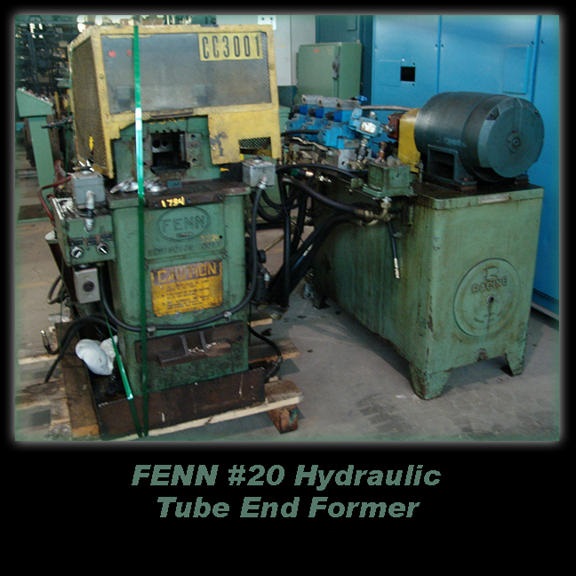

Fenn #20 Hydraulic Tube End Former

Stock #: 0102417

Equipped With

MACHINE SPECIFICATIONS:
Aluminum Low Carbon Steel Stainless Steel
Beading:
     2" x .095" (50.8 mm x 2.41 mm)
     1-3/8" x .072" (34.9 mm x 1.82 mm)
     1" x .065" (25.4 mm x 1.65 mm)
Reducing:
     2-1/2" x .109" (63.5 mm x 2.76 mm)
     1-7/8" x .072" (47.6 mm x 1.82 mm)
     1-3/8" x .065" (34.9 mm x 1.65 mm)
Expanding:
     2-1/2" x .109" (63.5 mm x 2.76 mm)
     2-1/2" x .083" (63.5 mm x 2.10 mm)
     1-3/8" x .065" (34.9 mm x 1.65 mm)
Flare:
     2-1/2" x .120" (63.5 mm x 3.04 mm)
     2" x .072" (50.8 mm x 1.82 mm)
     1-1/2" x .065" (38.1 mm x 1.65 mm)
Maximum O.D. (Single): 2-1/2" (63.5 mm)
Maximum O.D. (Double): 1-1/4" (31.7 mm)
Maximum O.D. (Triple): 5/8" (15.8 mm)
Clamp Pressure: 35,000 Lbs.
Thrust: 20,000 Lbs.
Idle Pressure: 200 PSI
Working Pressure: 1,500 PSI
Work Stroke: 0" – 4"
Hydraulics: 20 HP – 230/460/3 Phase – 1800 RPM
20 GPM Hydraulic Pump
60 Gallon Tank, Control Valves & Gauges

EQUIPPED WITH:
Automatic Water-Cooled Oil Cooler
Filtration: 74 Micron Suction Filter, 10 Micron Return Line Filter
Foot Operated Pedal
Dimensions: Frame Unit: 42" x 22", 1800 Lbs.
Hydraulic Unit: 50" x 40", 1200 Lbs.

Fenn #20 Hydraulic Tube End Former

STOCK # 0102417

MACHINE SPECIFICATIONS:
Aluminum Low Carbon Steel Stainless Steel
Beading:
     2" x .095" (50.8 mm x 2.41 mm)
     1-3/8" x .072" (34.9 mm x 1.82 mm)
     1" x .065" (25.4 mm x 1.65 mm)
Reducing:
     2-1/2" x .109" (63.5 mm x 2.76 mm)
     1-7/8" x .072" (47.6 mm x 1.82 mm)
     1-3/8" x .065" (34.9 mm x 1.65 mm)
Expanding:
     2-1/2" x .109" (63.5 mm x 2.76 mm)
     2-1/2" x .083" (63.5 mm x 2.10 mm)
     1-3/8" x .065" (34.9 mm x 1.65 mm)
Flare:
     2-1/2" x .120" (63.5 mm x 3.04 mm)
     2" x .072" (50.8 mm x 1.82 mm)
     1-1/2" x .065" (38.1 mm x 1.65 mm)
Maximum O.D. (Single): 2-1/2" (63.5 mm)
Maximum O.D. (Double): 1-1/4" (31.7 mm)
Maximum O.D. (Triple): 5/8" (15.8 mm)
Clamp Pressure: 35,000 Lbs.
Thrust: 20,000 Lbs.
Idle Pressure: 200 PSI
Working Pressure: 1,500 PSI
Work Stroke: 0" – 4"
Hydraulics: 20 HP – 230/460/3 Phase – 1800 RPM
20 GPM Hydraulic Pump
60 Gallon Tank, Control Valves & Gauges

EQUIPPED WITH:
Automatic Water-Cooled Oil Cooler
Filtration: 74 Micron Suction Filter, 10 Micron Return Line Filter
Foot Operated Pedal
Dimensions: Frame Unit: 42" x 22", 1800 Lbs.
Hydraulic Unit: 50" x 40", 1200 Lbs.

Specifications

Machine Type
Tube Machinery, Cut Off
Manufacturer
FENN
Model
#20
Year
N/A
Condition
Used
