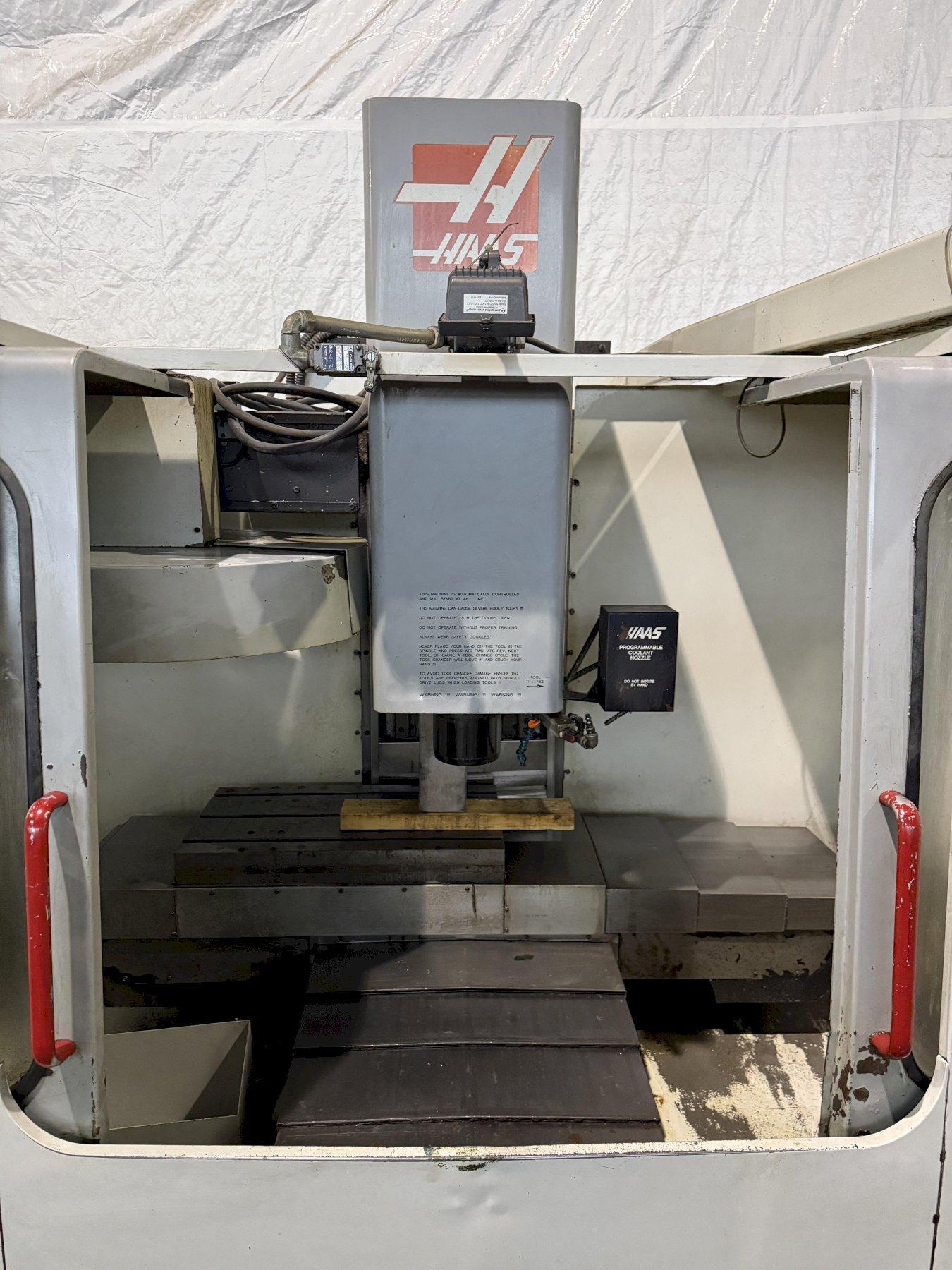

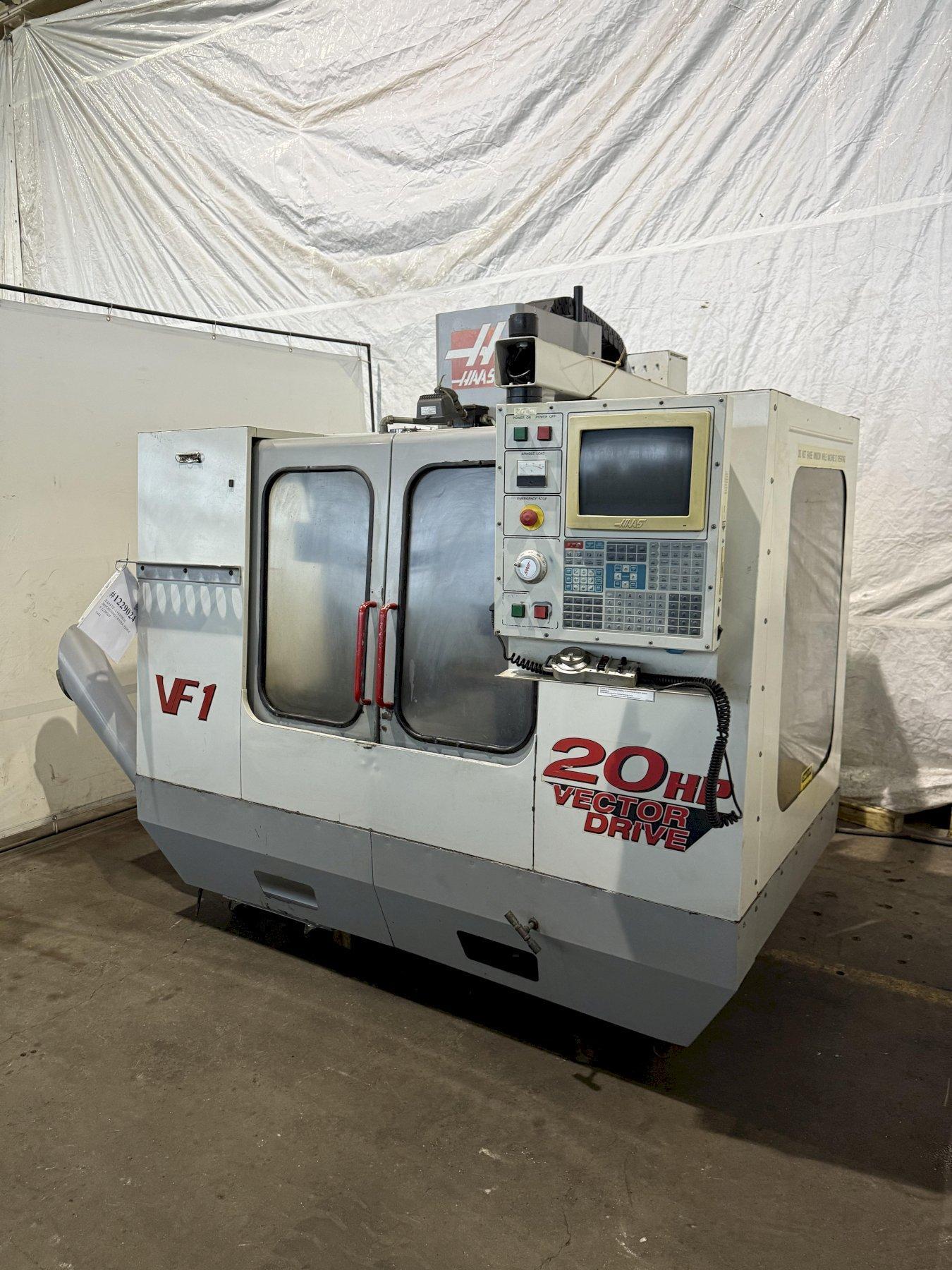

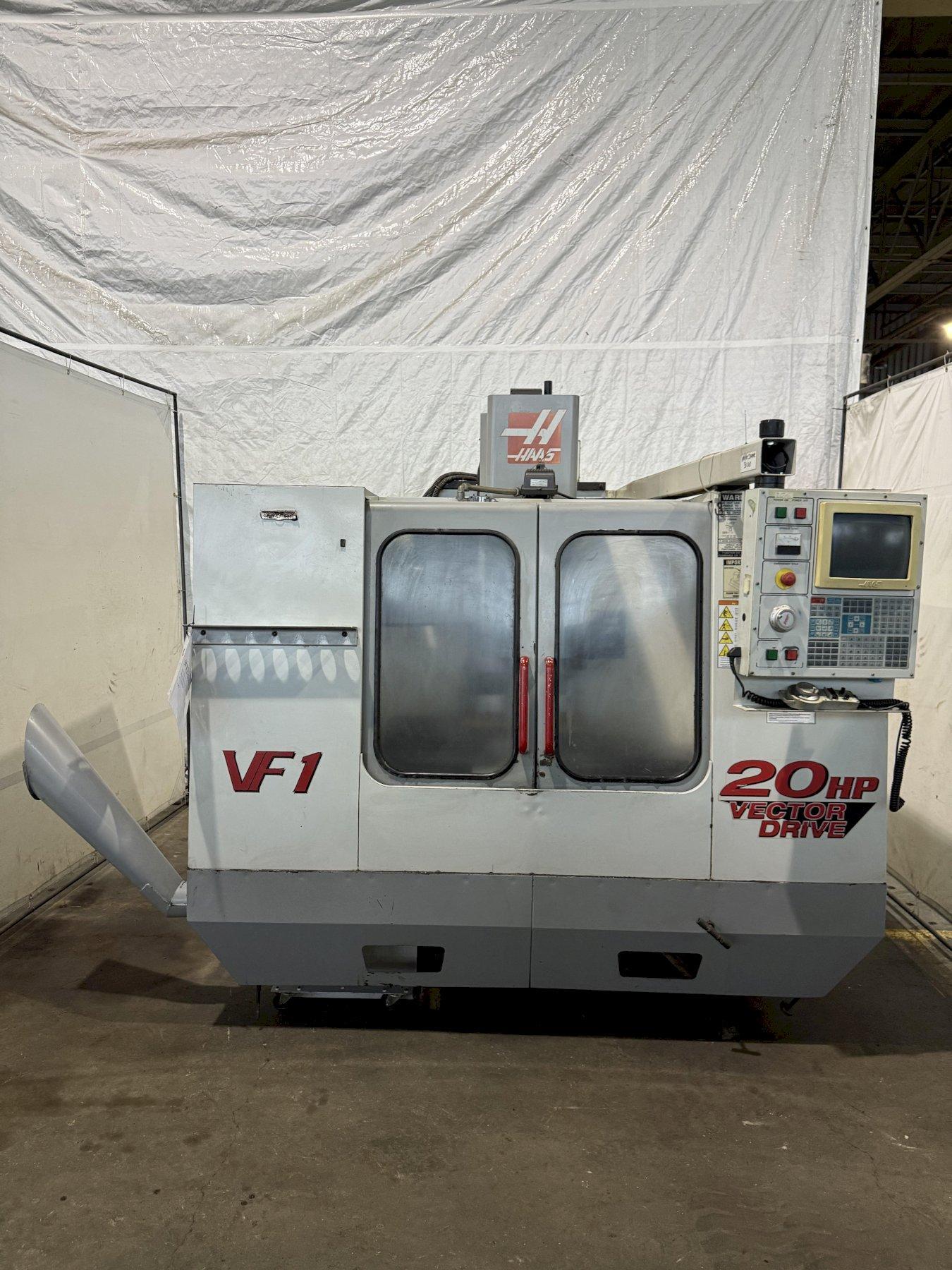

HAAS VF–1 VERTICAL MACHINING CENTER. STOCK # 1229024

Stock #: 1229024

Equipped With

X-AXIS TRAVEL............................: 20"
Y-AXIS TRAVEL............................: 16"
Z-AXIS TRAVEL............................: 20"
RAPID TRAVERSE RATE [INCHES/MINUTE]......: 710
CUTTING FEED RATES [INCHES/MINUTE].......: 630
MINIMUM SPINDLE NOSE TO TABLE DISTANCE...: 4"
MAXIMUM SPINDLE NOSE TO TABLE DISTANCE...: 24"

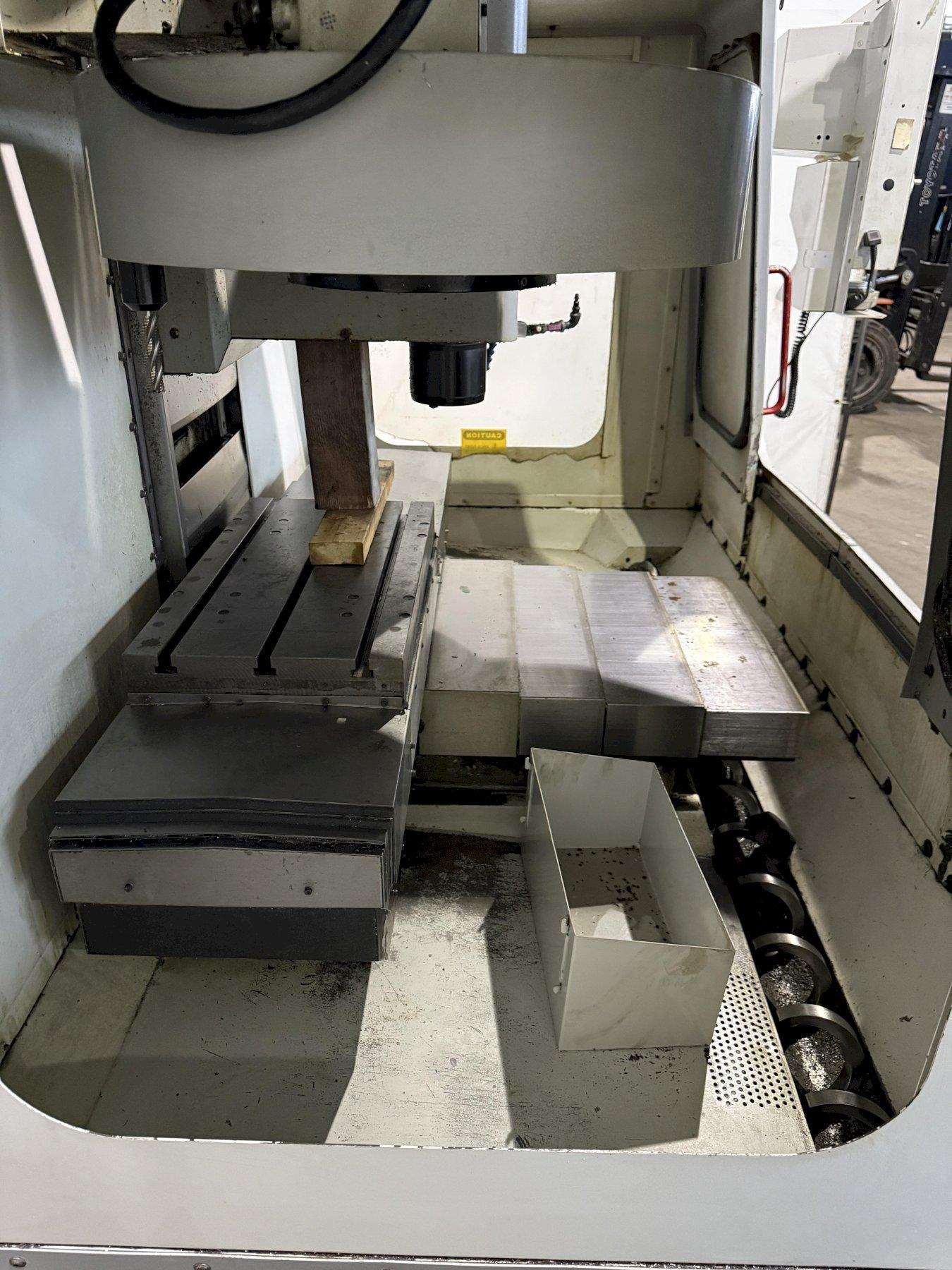

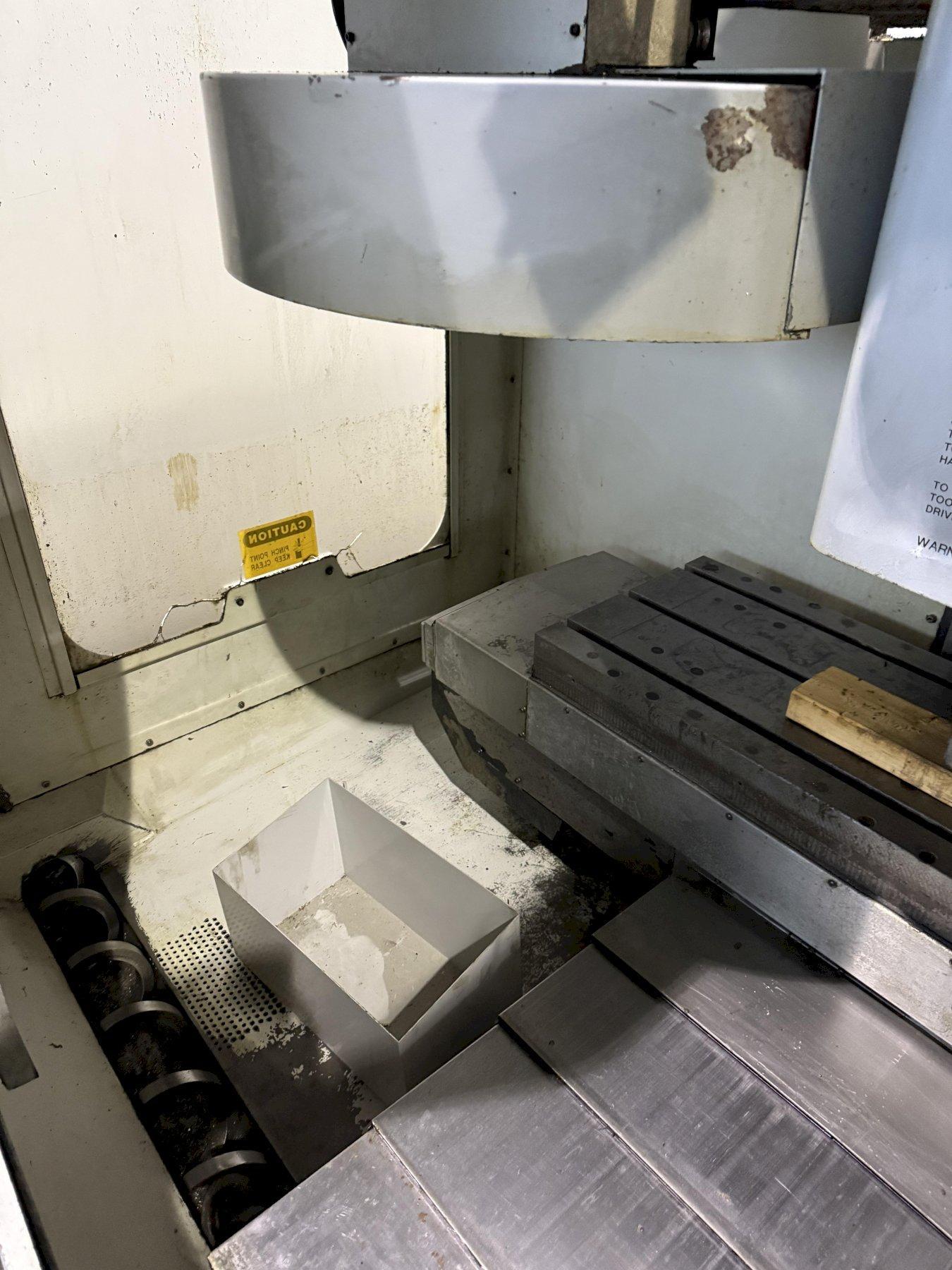

TABLE LENGTH.............................: 26"
TABLE WIDTH..............................: 14"
T-SLOT WIDTH.............................: 5/8"
NUMBER OF STD T-SLOTS....................: 3
MAX WEIGHT ON TABLE......................: 1800 LBS.

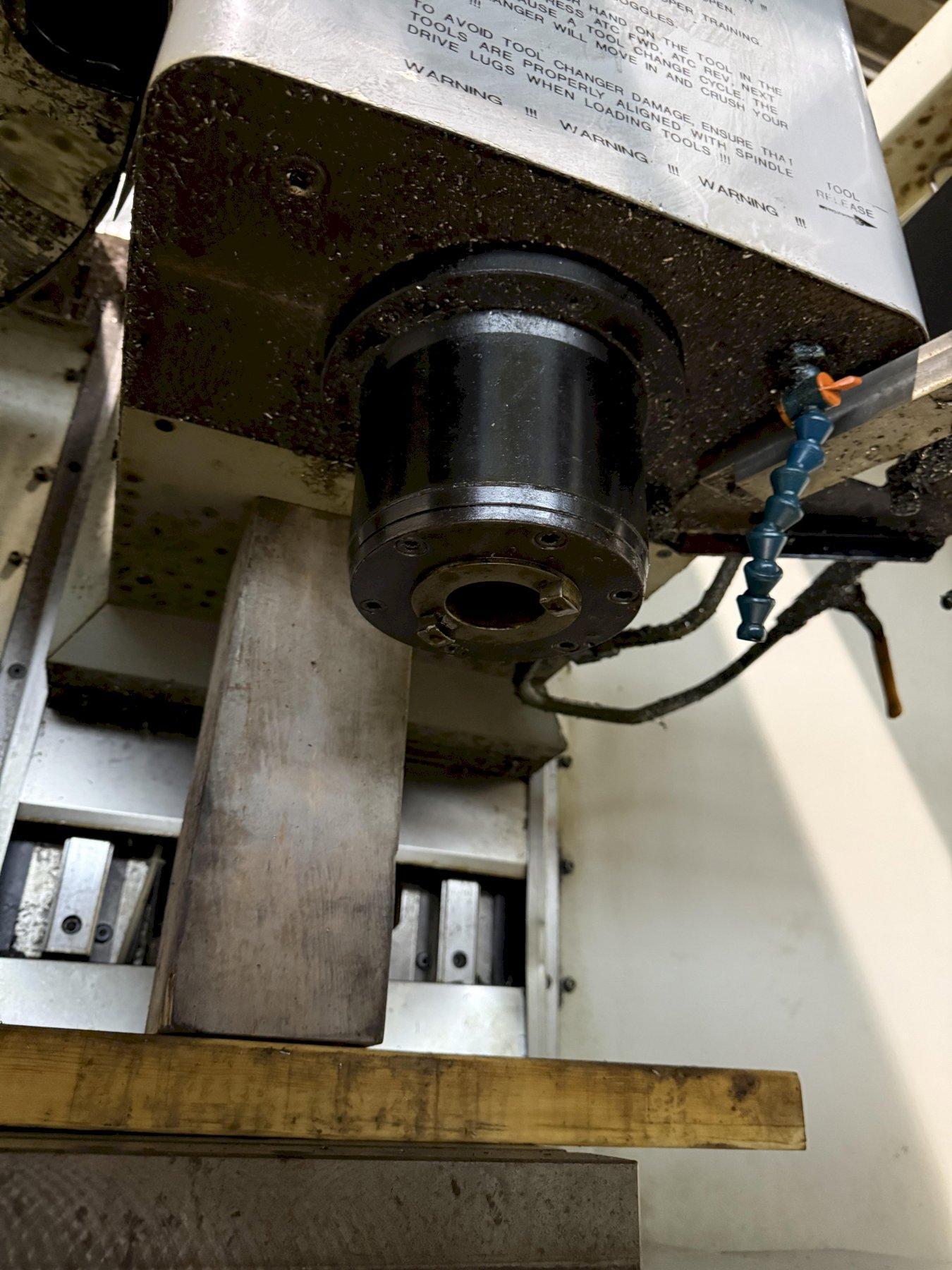

SPINDLE TAPER SIZE.......................: CAT-40
SPINDLE SPEED RANGE......................: 7500 RPM
SPINDLE POWER............................: 20 HP

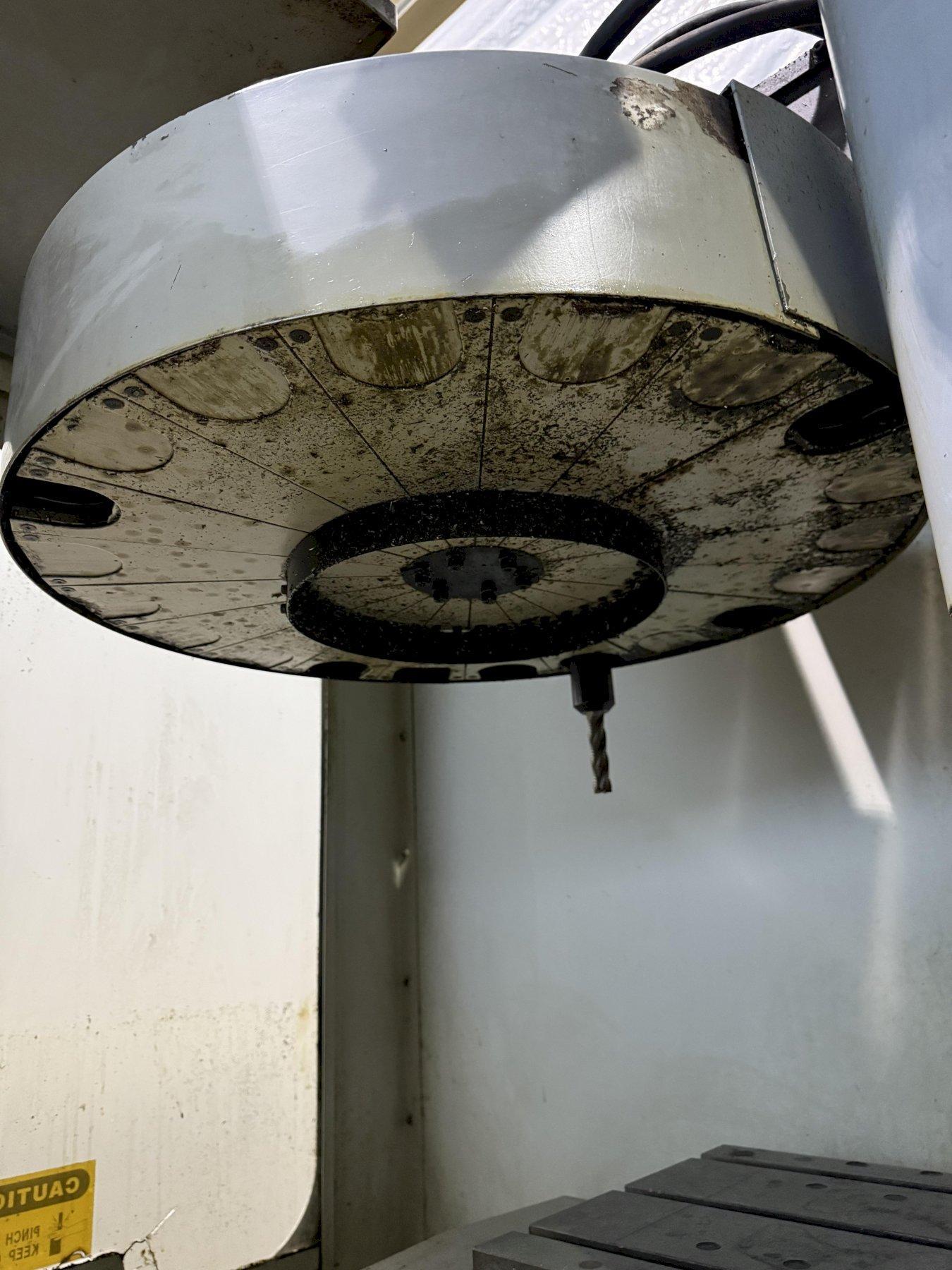

AUTOMATIC TOOL CHANGER CAPACITY..........: 20+1
MAXIMUM TOOL WEIGHT......................: 12 LBS.
MAXIMUM TOOL DIAMETER....................: 3.6"
MAXIMUM TOOL LENGTH......................: 11"
AIR REQUIRED.............................: 100 PSI

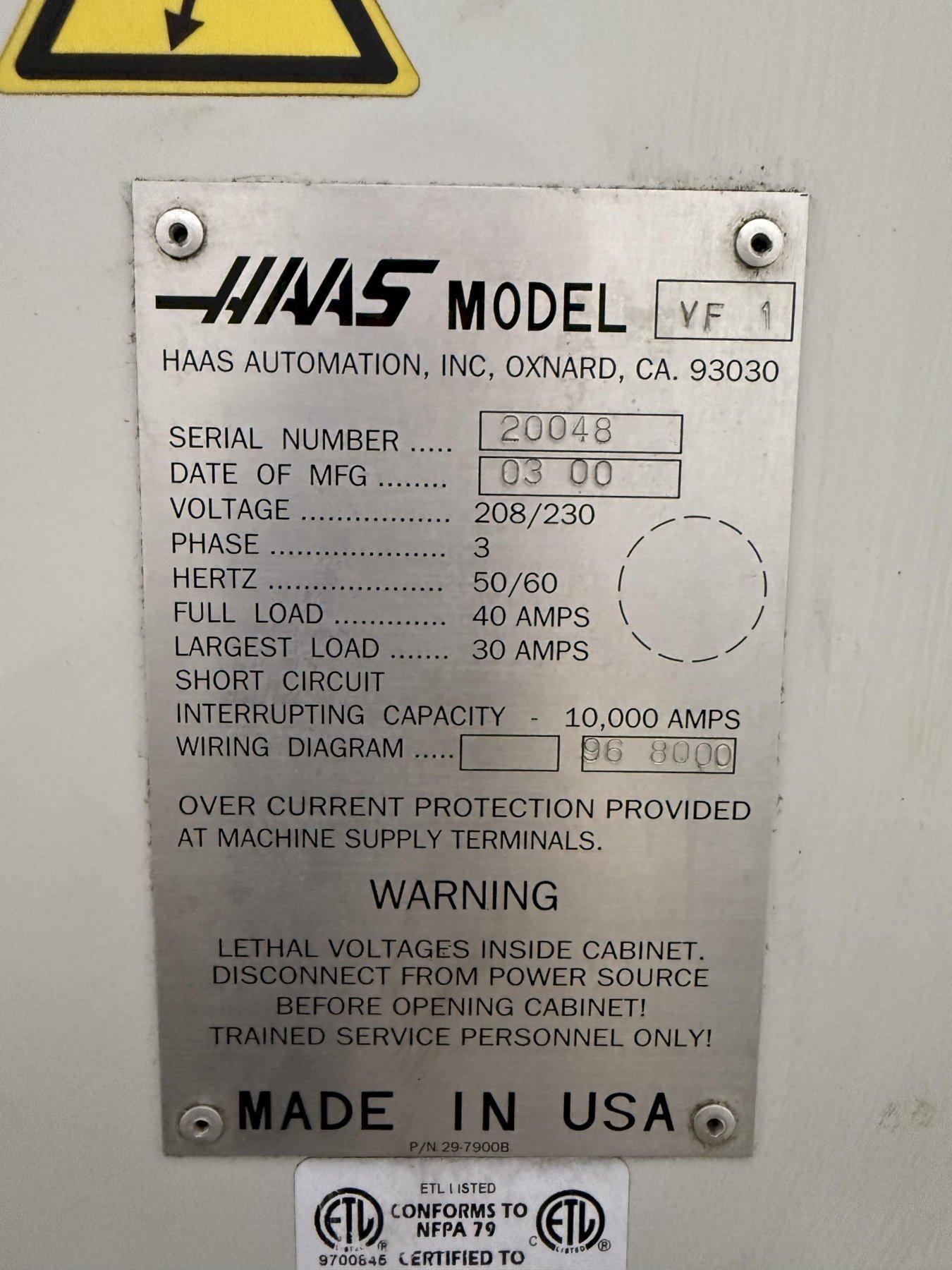

VOLTAGE..................................: 220
PHASE....................................: 3
DIMENSIONS...............................: 90" X 80" X 100"
WEIGHT...................................: 8,000 LBS.

HAAS VF–1 VERTICAL MACHINING CENTER. STOCK # 1229024

Download Images

X-AXIS TRAVEL............................: 20"
Y-AXIS TRAVEL............................: 16"
Z-AXIS TRAVEL............................: 20"
RAPID TRAVERSE RATE [INCHES/MINUTE]......: 710
CUTTING FEED RATES [INCHES/MINUTE].......: 630
MINIMUM SPINDLE NOSE TO TABLE DISTANCE...: 4"
MAXIMUM SPINDLE NOSE TO TABLE DISTANCE...: 24"
TABLE LENGTH.............................: 26"
TABLE WIDTH..............................: 14"
T-SLOT WIDTH.............................: 5/8"
NUMBER OF STD T-SLOTS....................: 3
MAX WEIGHT ON TABLE......................: 1800 LBS.
SPINDLE TAPER SIZE.......................: CAT-40
SPINDLE SPEED RANGE......................: 7500 RPM
SPINDLE POWER............................: 20 HP
AUTOMATIC TOOL CHANGER CAPACITY..........: 20+1
MAXIMUM TOOL WEIGHT......................: 12 LBS.
MAXIMUM TOOL DIAMETER....................: 3.6"
MAXIMUM TOOL LENGTH......................: 11"
AIR REQUIRED.............................: 100 PSI
VOLTAGE..................................: 220
PHASE....................................: 3
DIMENSIONS...............................: 90" X 80" X 100"
WEIGHT...................................: 8,000 LBS.

Specifications

Machine Type

Machining Centers, Vertical

Manufacturer

HAAS

Model

VF–1

Year

N/A

Condition

Not specified
