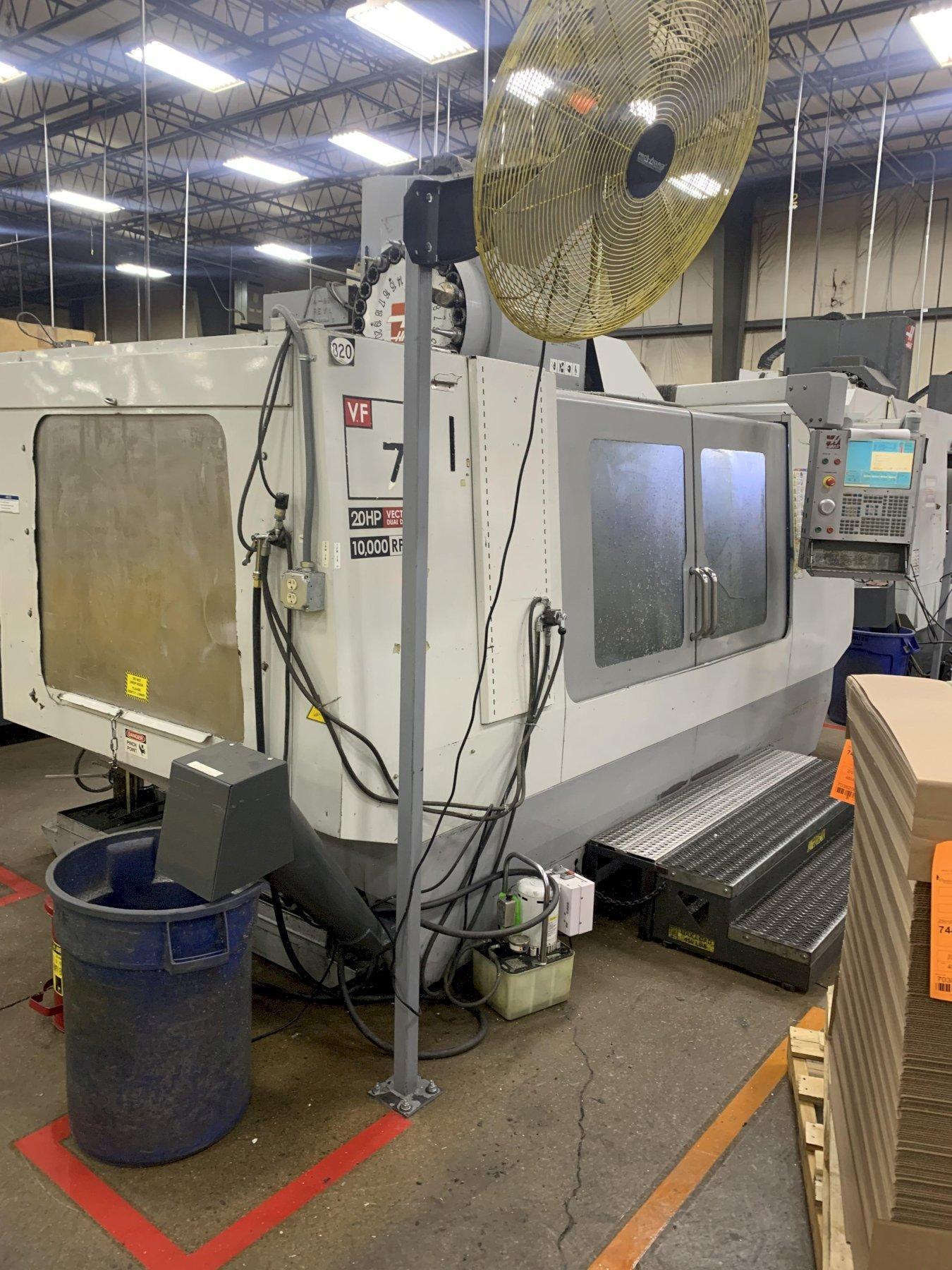

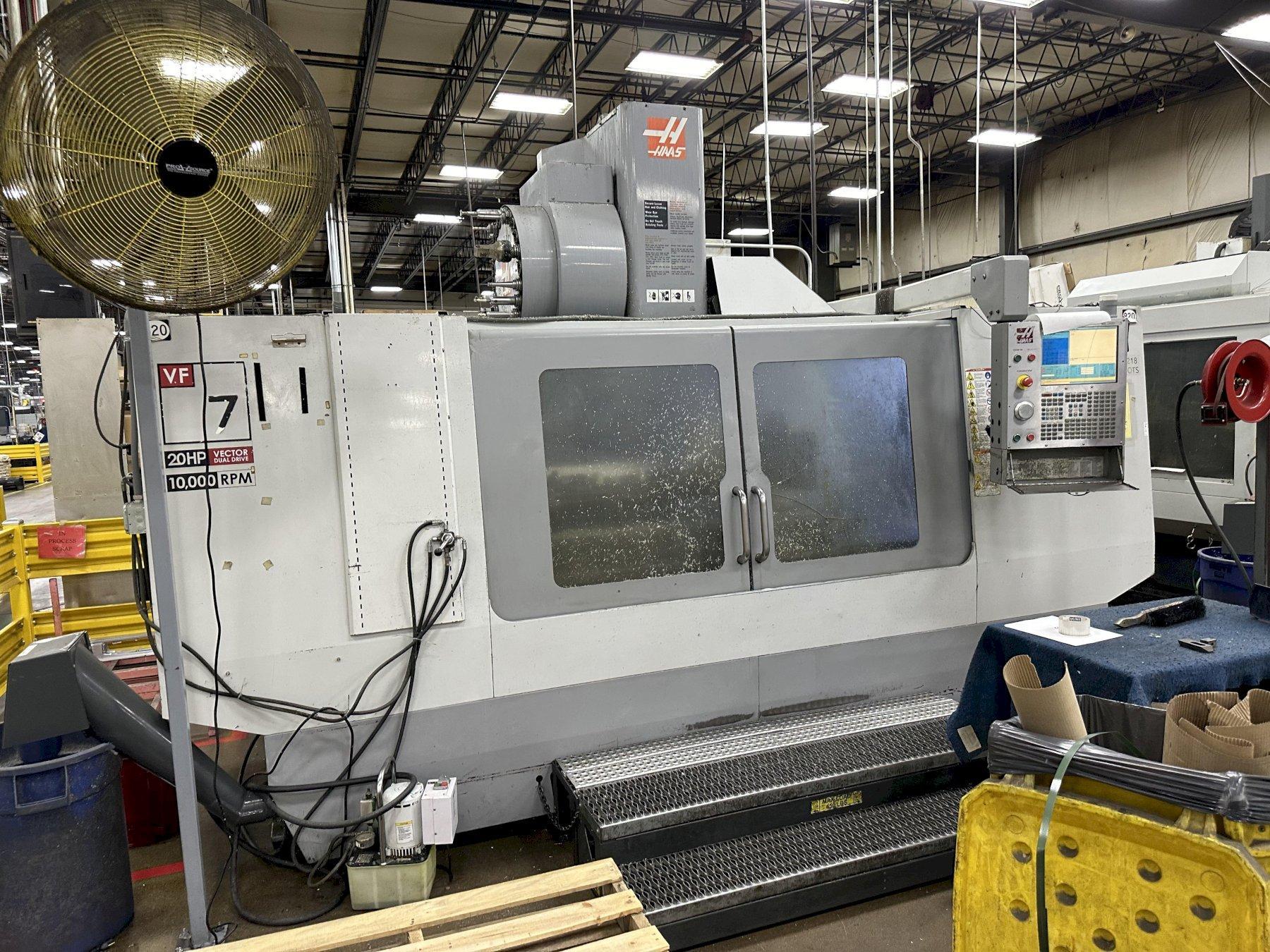

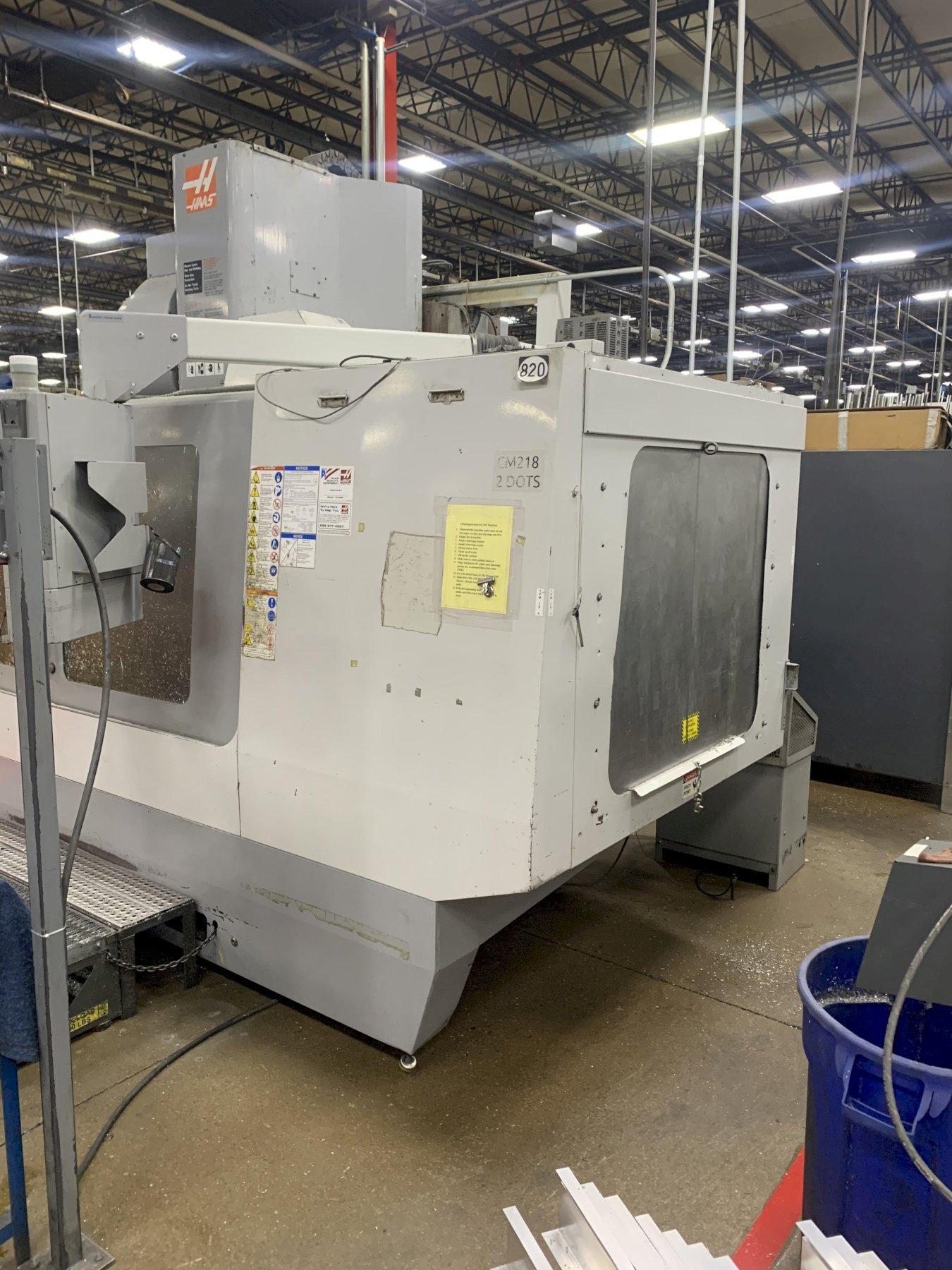

HAAS VF-7 VERTICAL MACHINING CENTER W/ 4TH AXIS CAPABILITY. STOCK # 0336124

Stock #: 0336124

Equipped With

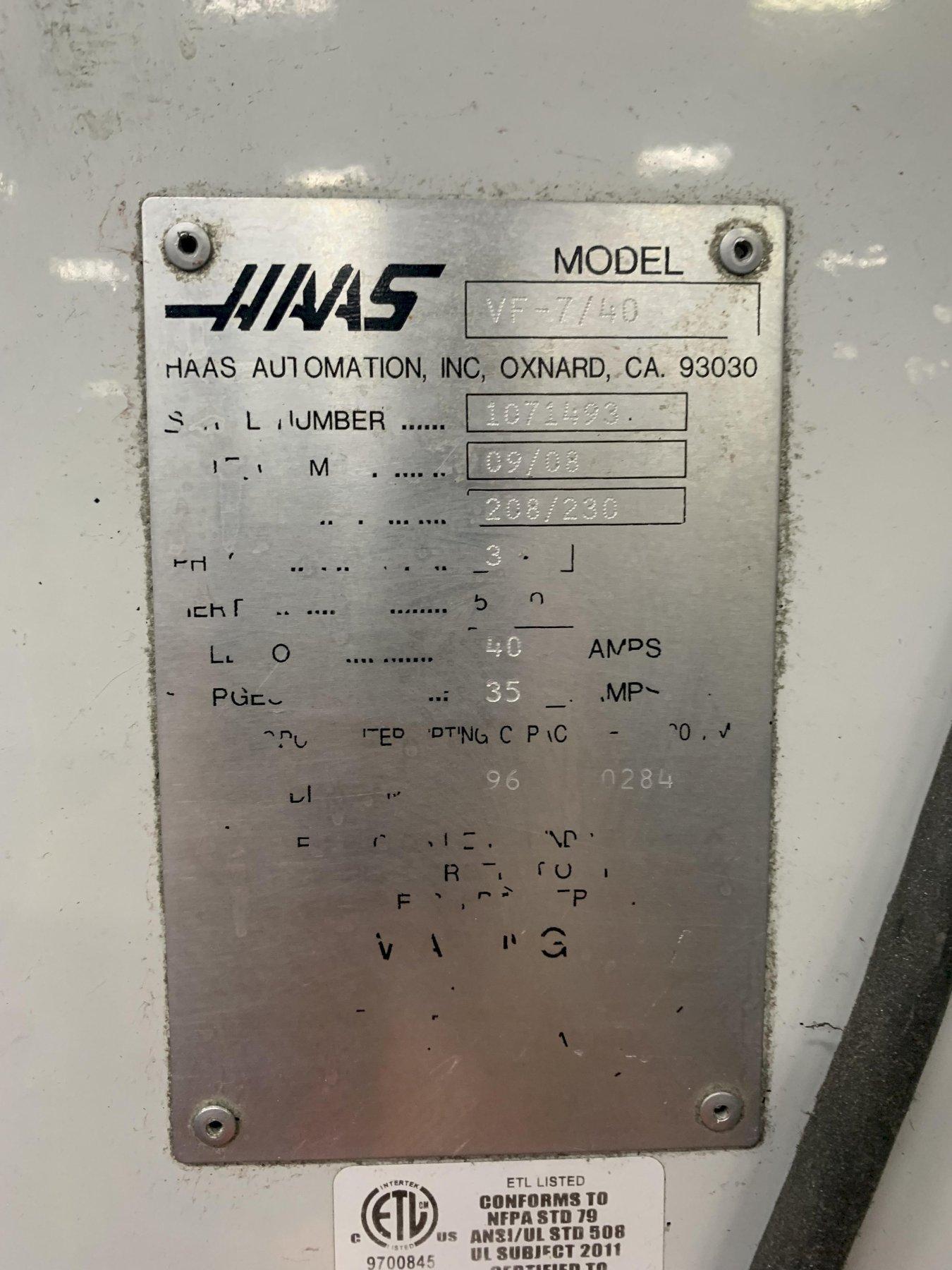

MODEL.....................: VF-7/40
YEAR NEW..................: 2008
TRAVELS:
X AXIS.......................: 84"
Y AXIS.......................: 32"
Z AXIS.......................: 30"
SPINDLE NOSE TO TABLE........: 34" MAX
SPINDLE NOSE TO TABLE........: 4" MIN

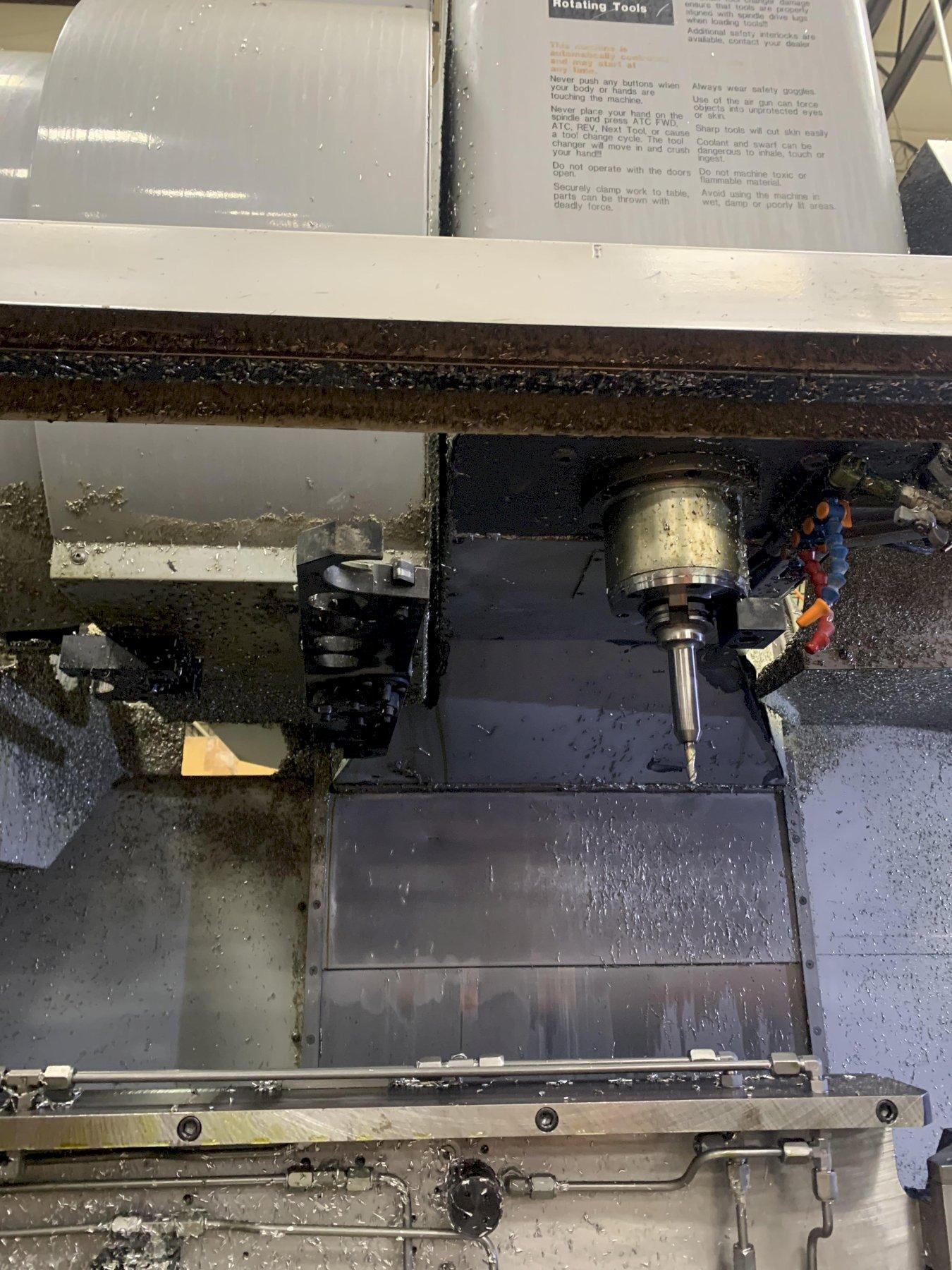

SPINDLE:
HP...........................: 20
MAX SPEED....................: 10000 RPM
MAX TORQUE...................: 90 FT-LBF @ 2000 RPM
2 SPEED GEAR DRIVE...........: YES
TAPER........................: 40

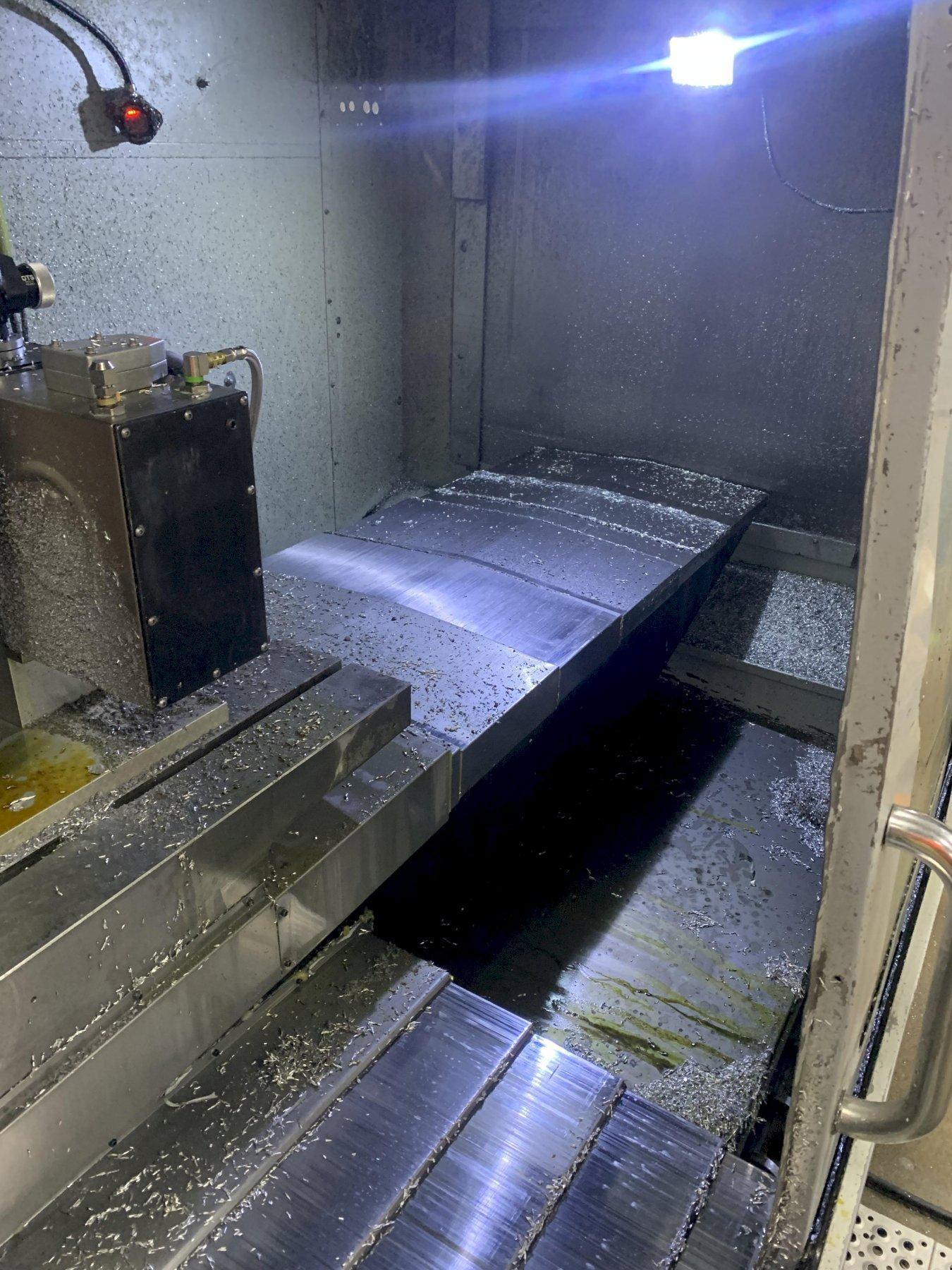

TABLE:
LENGTH.......................: 84"
WIDTH........................: 28"
MAX WEIGHT ON TABLE..........: 4,000 LBS

FEEDRATES:
MAX THRUST X.................: 3400 LBF
MAX THRUST Y.................: 3400 LBF
MAX THRUST Z.................: 5600 LBF

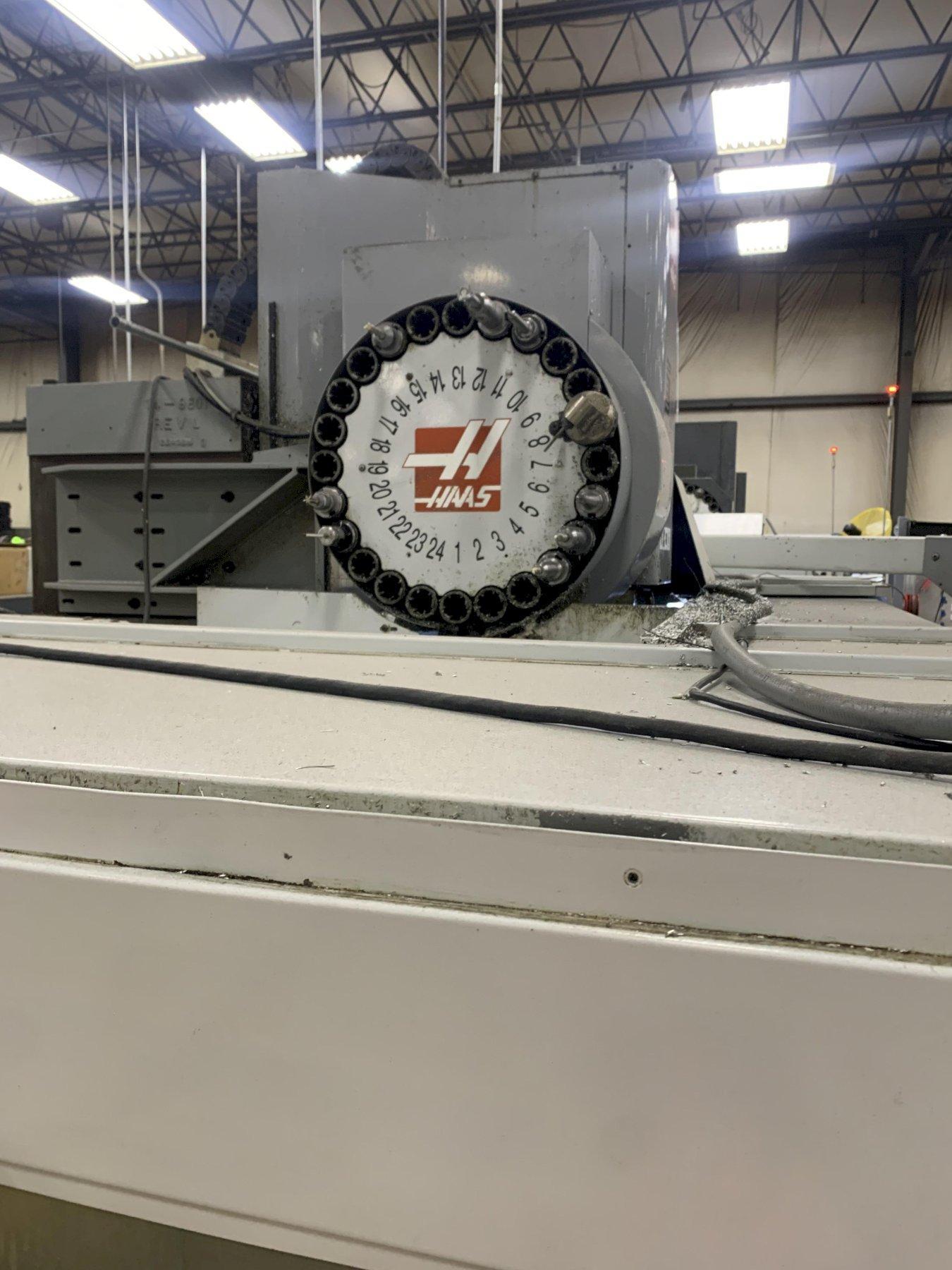

TOOL CHANGER.................: 32 + 1 ATC

RIDGID TAPPING...............: YES

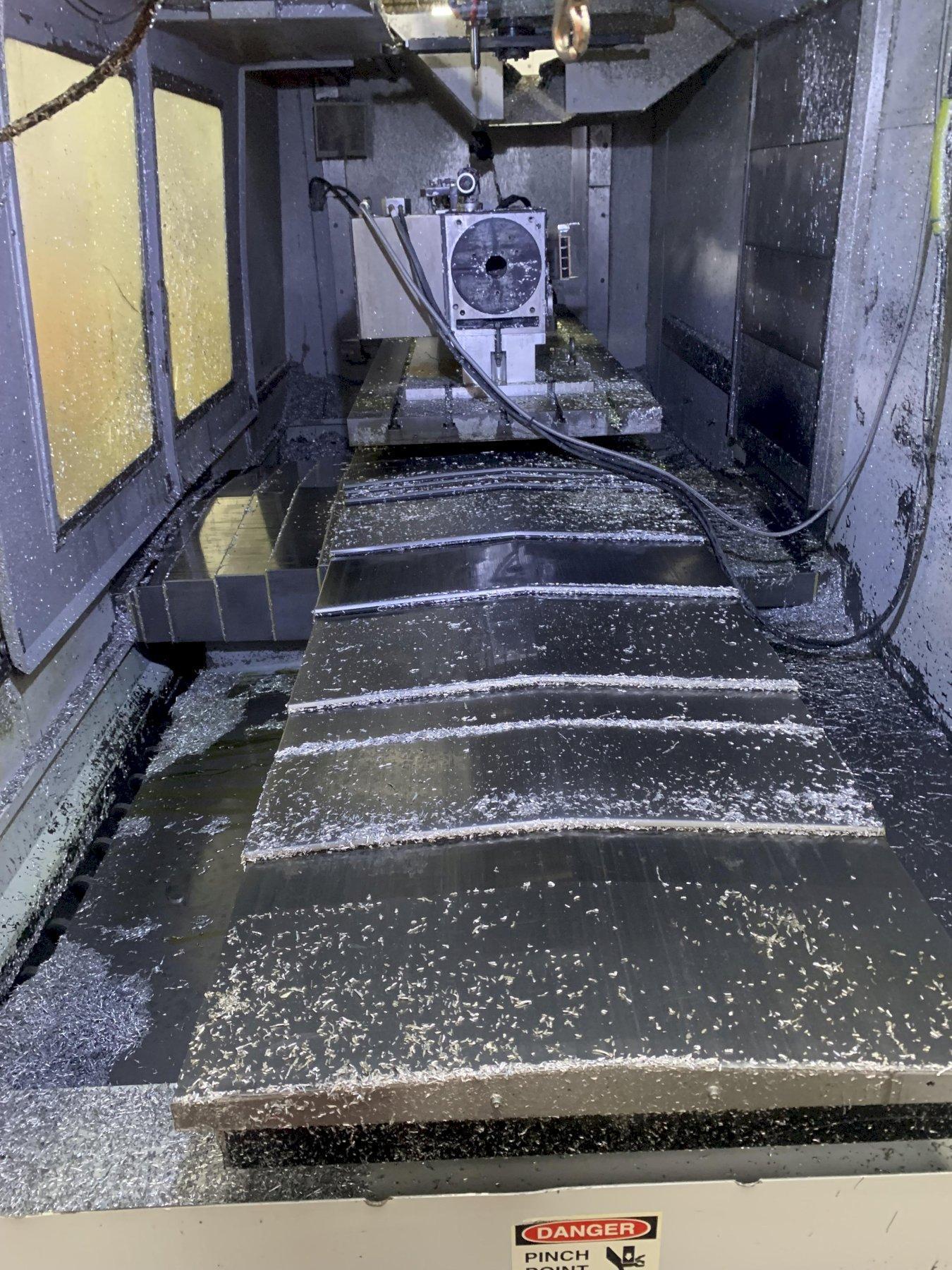

4TH AXIS DRIVE & WIRING......: YES WITH ROTARY
HIGH SPEED MACHINING.........: YES
ROT&SCALING..................: YES
SPINDLE ORIENTATION M19......: YES
WIPS.........................: YES
PROBING......................: YES NO SPINDLE PROBE
