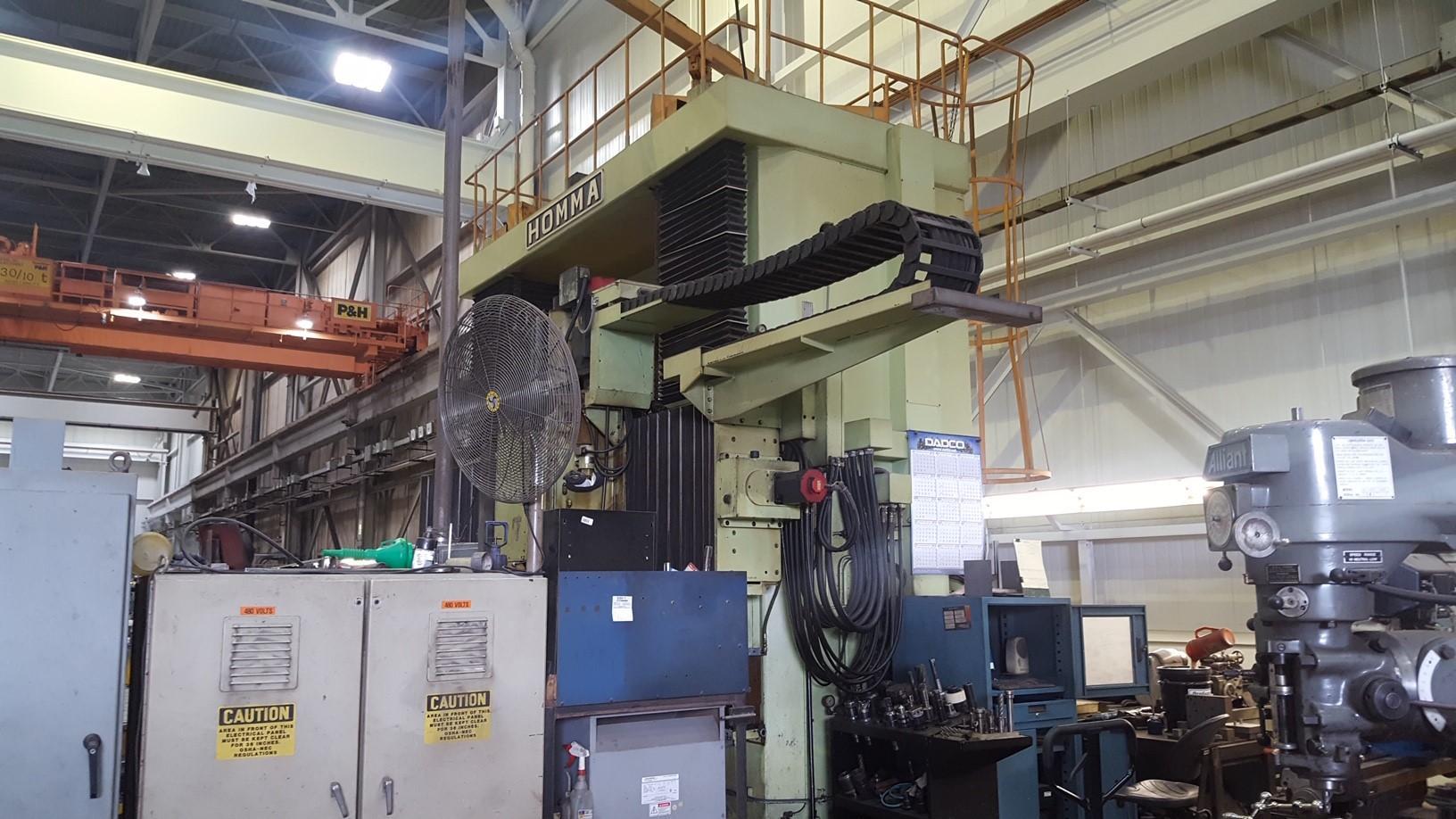

Homma HB-22/40-PM10 CNC Bridge Mill

Stock #: 2101219

Equipped With

Machine Specifications:
Max. Cutting Length: 160"
Distance Between Columns: 120"
Distance of Table Top to Spindle End: 64"
Max Permissible Weight : 35,000 lbs

Table:
Working Surface of Table: 86" x 160" (Width x Length)
Width of Table: 96"
Length of Table: 186"
Table Tool: 178"
Width of T Slots x Pitch: 1" x 10"
Feed Rate: 1 - 4000 mm/Min
Rapid Traverse Speed: 6000mm/min
Table Drive System: Ballscrews
Table Clamping System: Hydraulic Disc Clamping
Table Slideway Lubrication System: Static Pressure System

Milling and Boring Head:
Quill Type
Horizontal Travel: 122"
Vertical Travel of Quill: 14"
Quill Diameter: 10"
Spindle Nose Diameter: 5"
Spindle Taper: 50 Cat
Spindle Speeds:
Low: 10-227, 2-681
High: 30-681, 7-2045

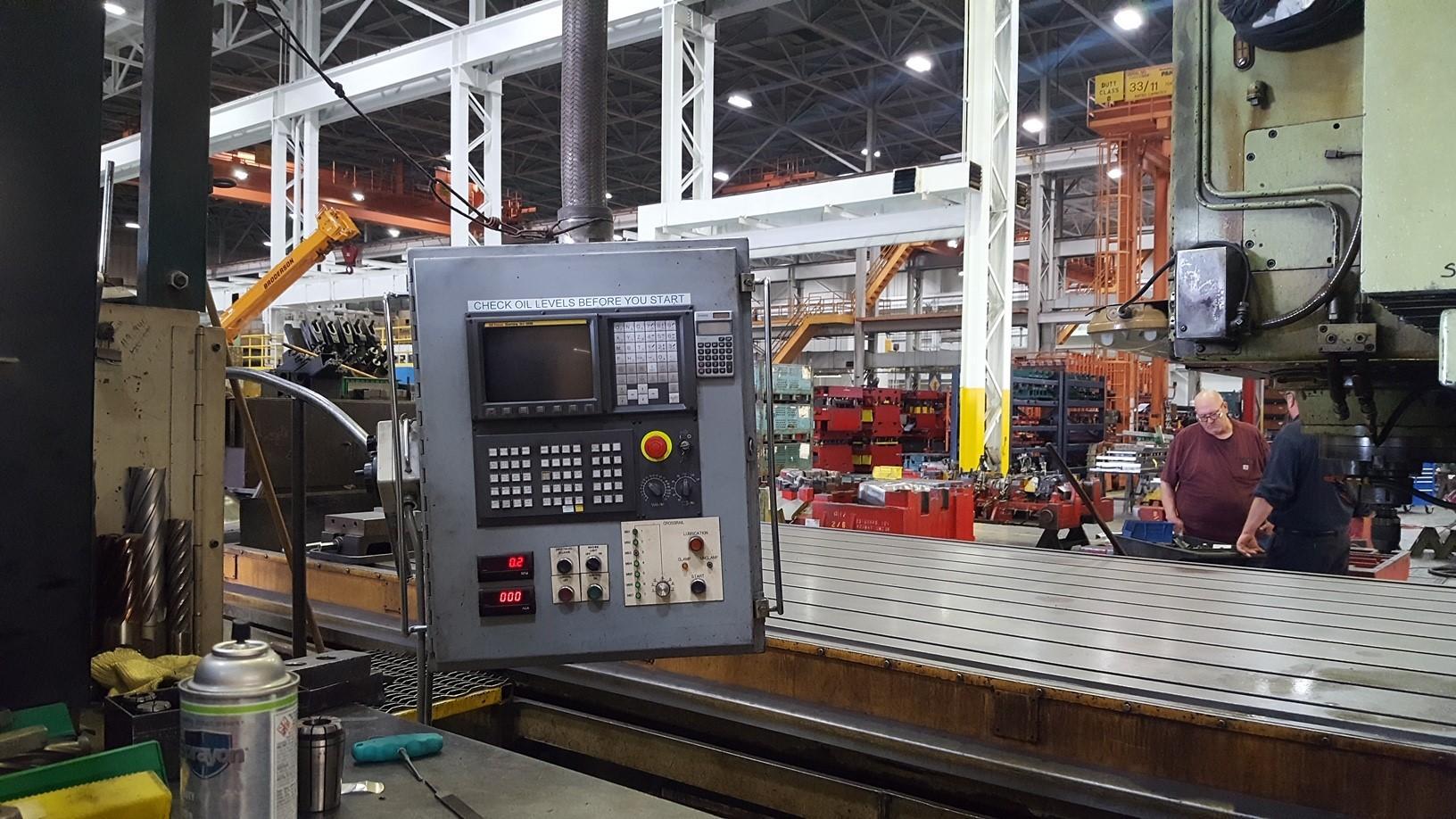

Control: Fanuc 10m Model A
Pendant Switch Box
