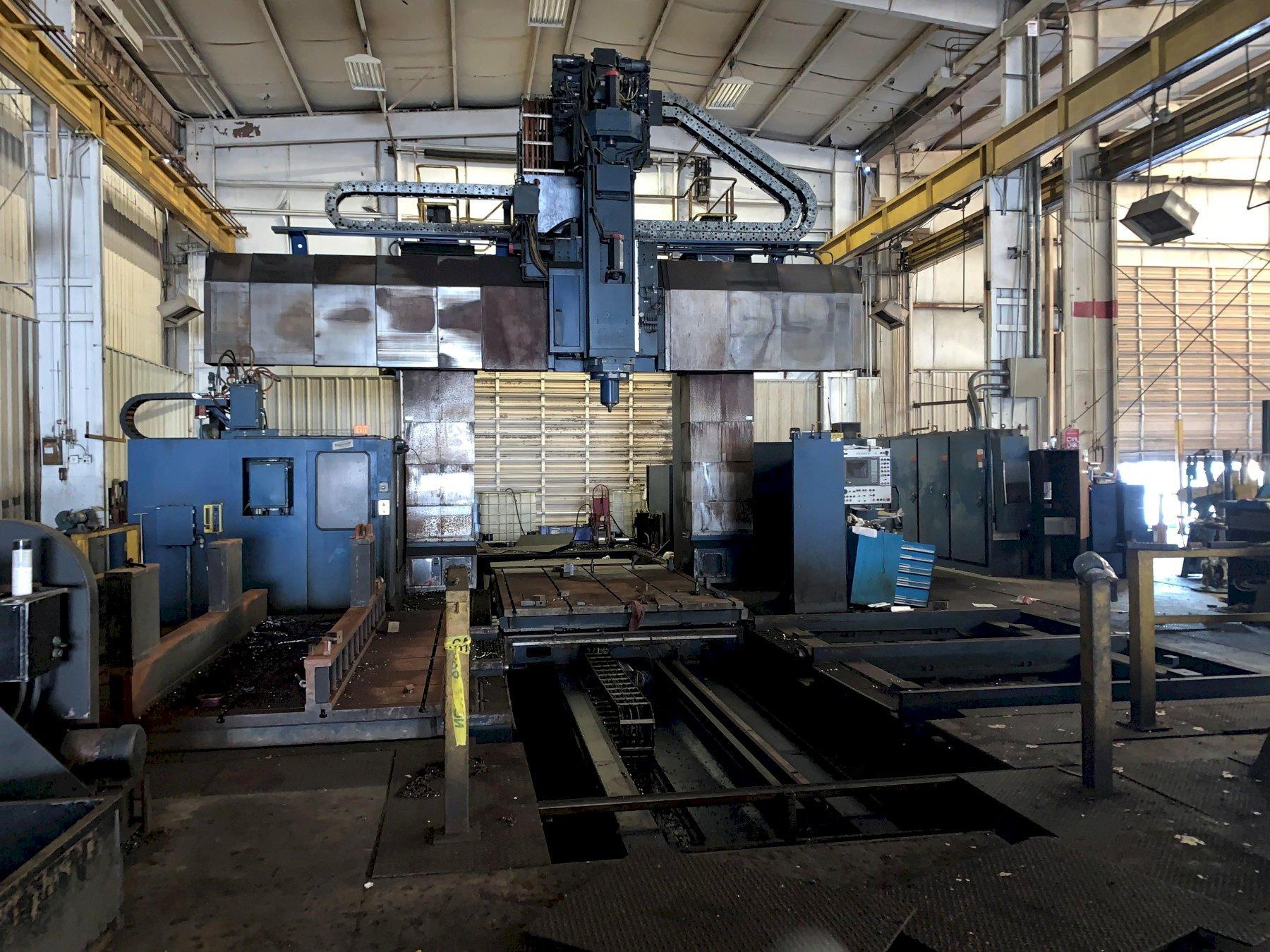

INGERSOLL-RAND MASTERMILL 6 AXIS CNC MACHINING CENTER. STOCK # 0734122

Stock #: 0734122

Equipped With

6-Axis Machine; 5 With Contouring Spindle Speed: 20-4000 RPM Continuous Power: 50 HP AC From 180 RPM Ram Size: 23" x 24"(585mm x 610mm) Ram Travel: 39.4"(1000mm) Ram Thrust: 6600 LB(3000 kg) Width Between Column Covers: 118.1"(3000mm) Height From Pallet To Ram: 108.2"(2750mm) Pallet Width: 98.4"(2500mm) Pallet Length: 157.5"(4000mm) Max Load Of Pallet Receiver: 88148 LB(40000 kg) Bertsche 100 Pocket(#50 Taper) Tool Changer CNC Controlled Straight & Right Angle Changing Capabilities 8-Station Spindle Transporter

INGERSOLL-RAND MASTERMILL 6 AXIS CNC MACHINING CENTER. STOCK # 0734122

STOCK # 0734122

6-Axis Machine; 5 With Contouring Spindle Speed: 20-4000 RPM Continuous Power: 50 HP AC From 180 RPM Ram Size: 23" x 24"(585mm x 610mm) Ram Travel: 39.4"(1000mm) Ram Thrust: 6600 LB(3000 kg) Width Between Column Covers: 118.1"(3000mm) Height From Pallet To Ram: 108.2"(2750mm) Pallet Width: 98.4"(2500mm) Pallet Length: 157.5"(4000mm) Max Load Of Pallet Receiver: 88148 LB(40000 kg) Bertsche 100 Pocket(#50 Taper) Tool Changer CNC Controlled Straight & Right Angle Changing Capabilities 8-Station Spindle Transporter

Specifications

Machine Type
Machining Centers, Vertical, (5-Axis or More)
Manufacturer
INGERSOLL-RAND
Model
N/A
Year
N/A
Condition
Used
