KEARNEY & TRECKER 650TF-20 HORIZONTAL MILLING MACHINE. STOCK # 0952220

Stock #: 0952220

Equipped With

MODEL ......................... 650TF-20
AREA OF TABLE ................. 108" X 25"
SPINDLE SPEEDS ................ (24) 54 TO 1300 RPM
LONGITUDINAL & CROSS FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL HEAD ................. (32) 3/16 TO 45 IPM
VERTICAL KNEE FEEDS ........... (32) 1/8" TO 30 IPM
LONGITUDINAL TABLE TRAVEL ..... 50"
CROSS TABLE TRAVEL ............ 16"
VERTICAL TRAVEL OF KNEE ....... 18"
VERTICAL TRAVEL OF HEAD ....... 8"
DISTANCE SPINDLE TO TABLE ..... 0" MINIMUM TO 23" MAXIMUM
SPINDLE TAPER ................. #50NS
THROAT ........................ 21"
RAPID TRAVERSE ................ 150 IPM
POWER DRAWBAR ................. YES
COOLANT ....................... YES
MOTOR ......................... 50 HORSEPOWER
FEED MOTOR .................... 5 HORSEPOWER

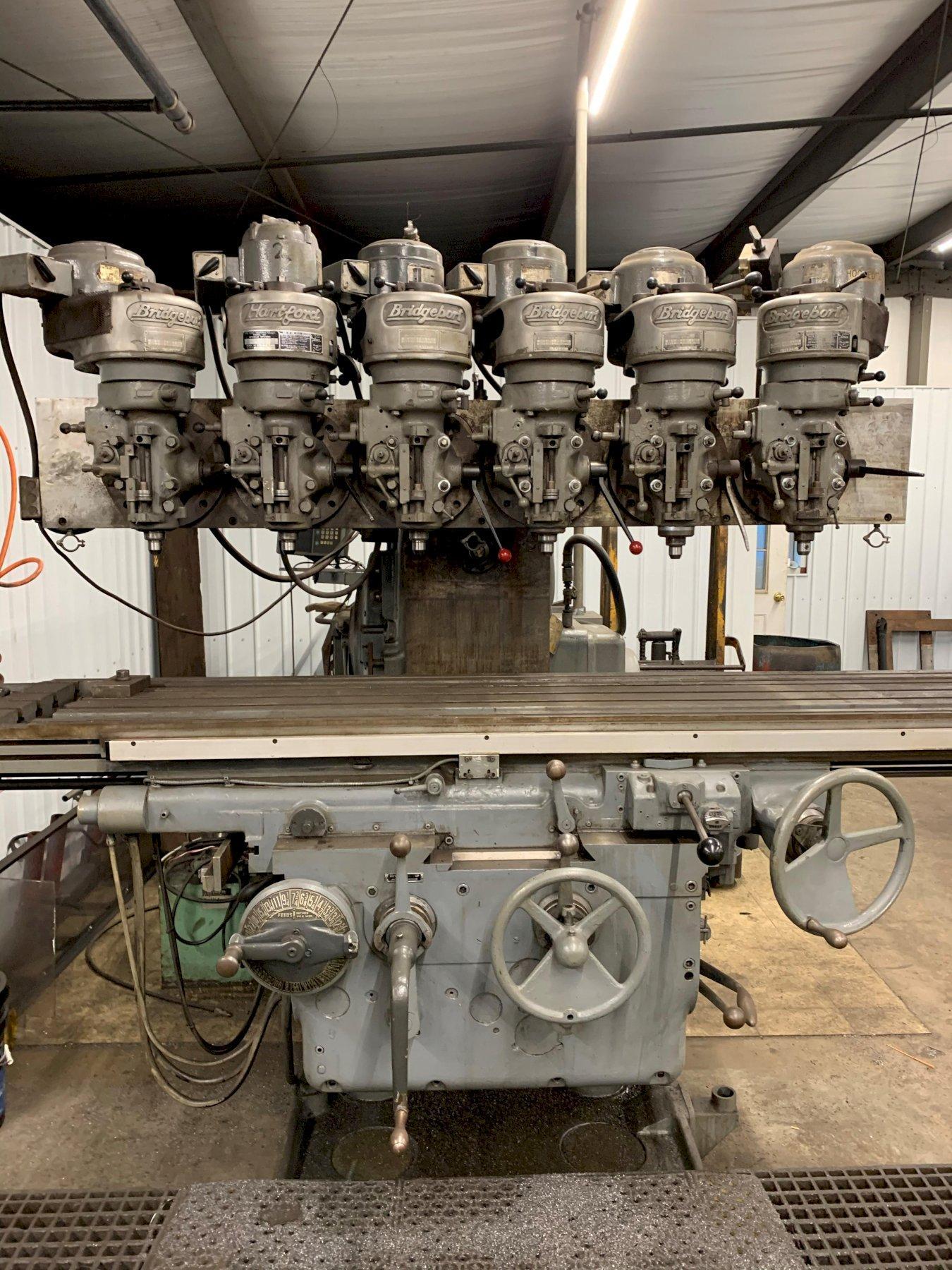

BRIDGEPORT HEADS WILL BE REMOVED FROM MACHINE.
MACHINE IS COMPLETELY OPERATIONAL
WITH DRO

KEARNEY & TRECKER 650TF-20 HORIZONTAL MILLING MACHINE. STOCK # 0952220

STOCK # 0952220

Specifications

View All Details
Machine Type
Millers, Horizontal, Plain
Manufacturer
KEARNEY & TRECKER
Model
650TF-20
Year
N/A
Condition
Excellent
Equipped With
MODEL ......................... 650TF-20
AREA OF TABLE ................. 108" X 25"
SPINDLE SPEEDS ................ (24) 54 TO 1300 RPM
LONGITUDINAL & CROSS FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL HEAD ................. (32) 3/16 TO 45 IPM
VERTICAL KNEE FEEDS ........... (32) 1/8" TO 30 IPM
LONGITUDINAL TABLE TRAVEL ..... 50"
CROSS TABLE TRAVEL ............ 16"
VERTICAL TRAVEL OF KNEE ....... 18"
VERTICAL TRAVEL OF HEAD ....... 8"
DISTANCE SPINDLE TO TABLE ..... 0" MINIMUM TO 23" MAXIMUM
SPINDLE TAPER ................. #50NS
THROAT ........................ 21"
RAPID TRAVERSE ................ 150 IPM
POWER DRAWBAR ................. YES
COOLANT ....................... YES
MOTOR ......................... 50 HORSEPOWER
FEED MOTOR .................... 5 HORSEPOWER

BRIDGEPORT HEADS WILL BE REMOVED FROM MACHINE.
MACHINE IS COMPLETELY OPERATIONAL
WITH DRO
