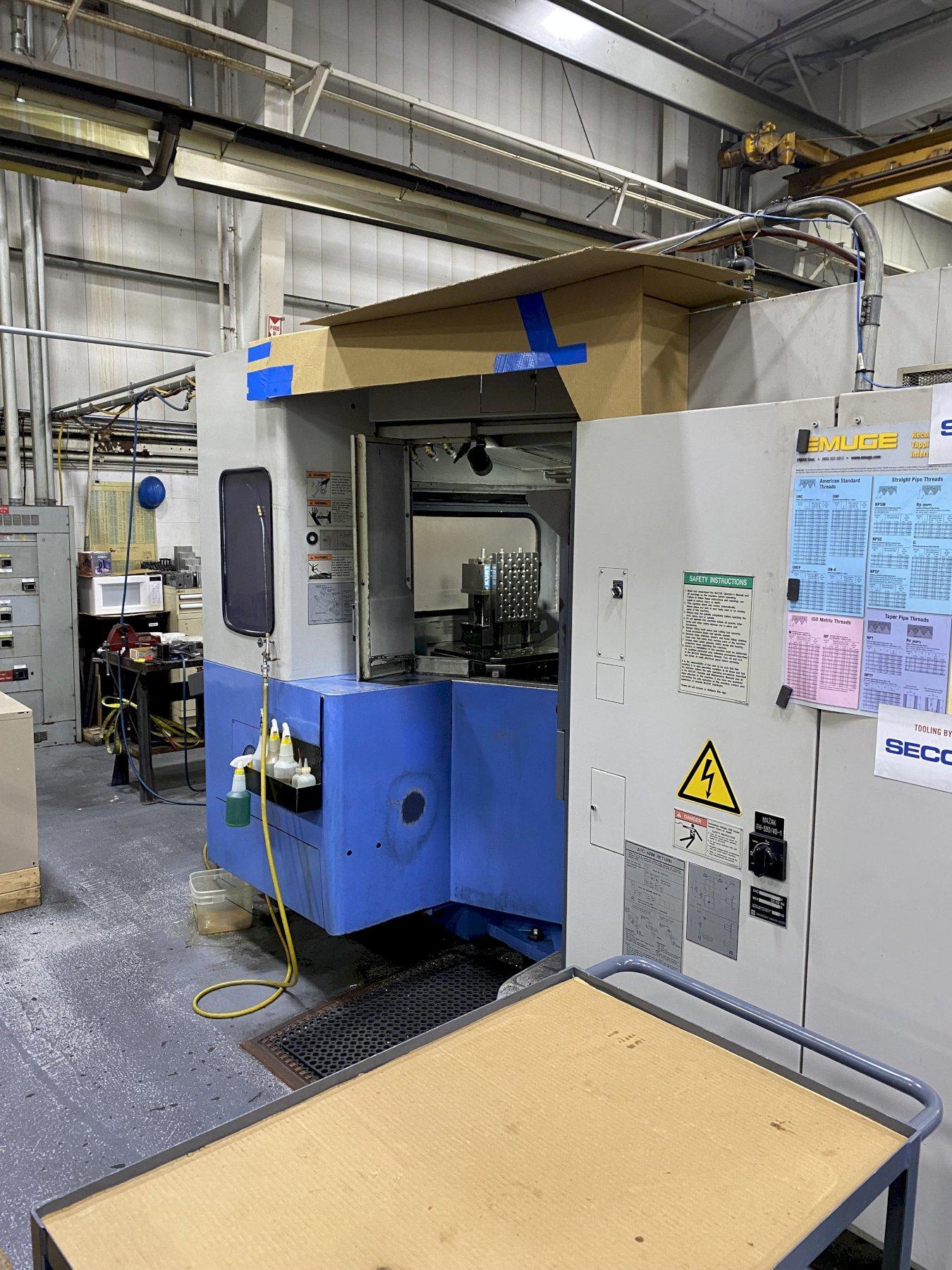

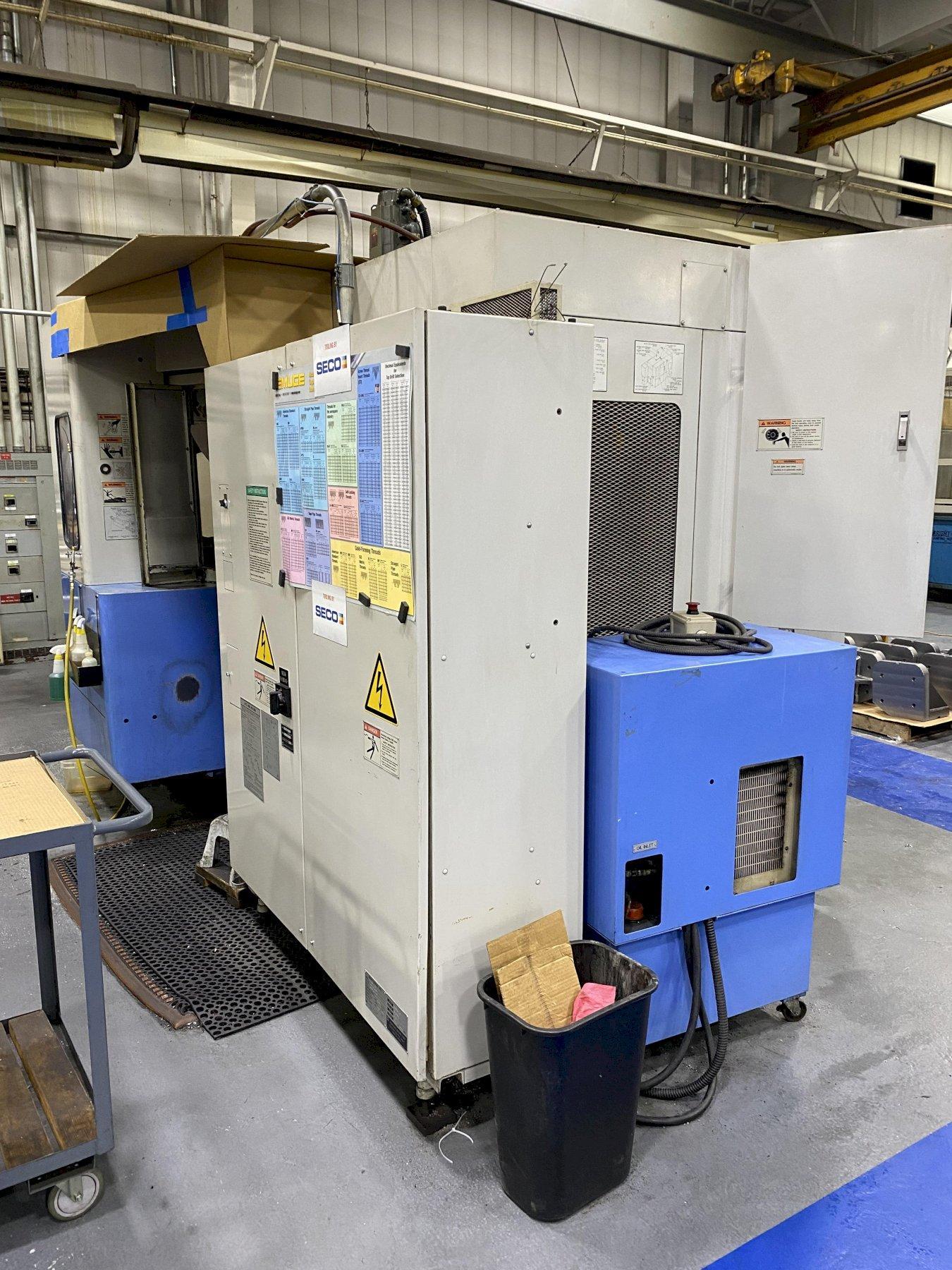

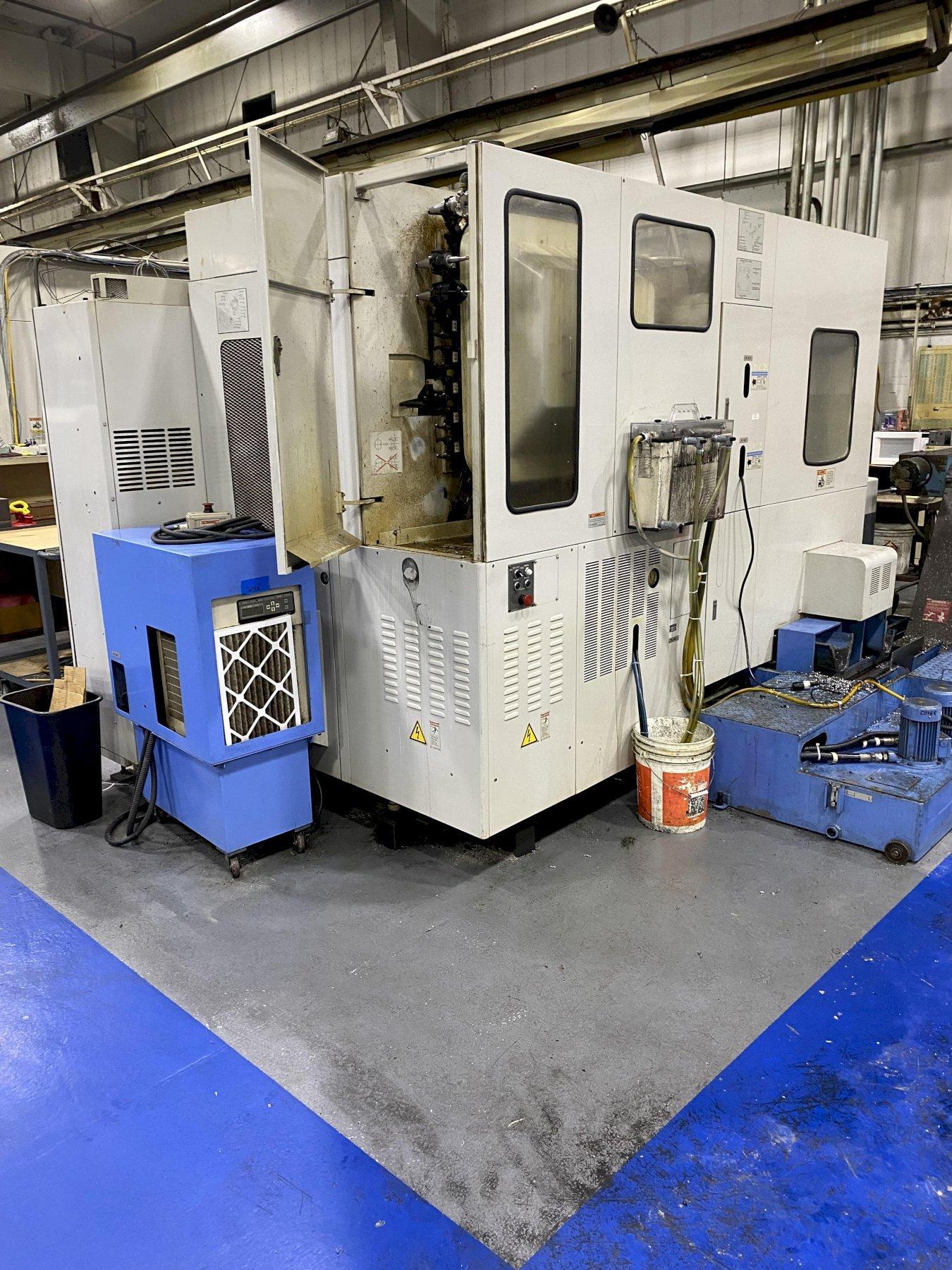

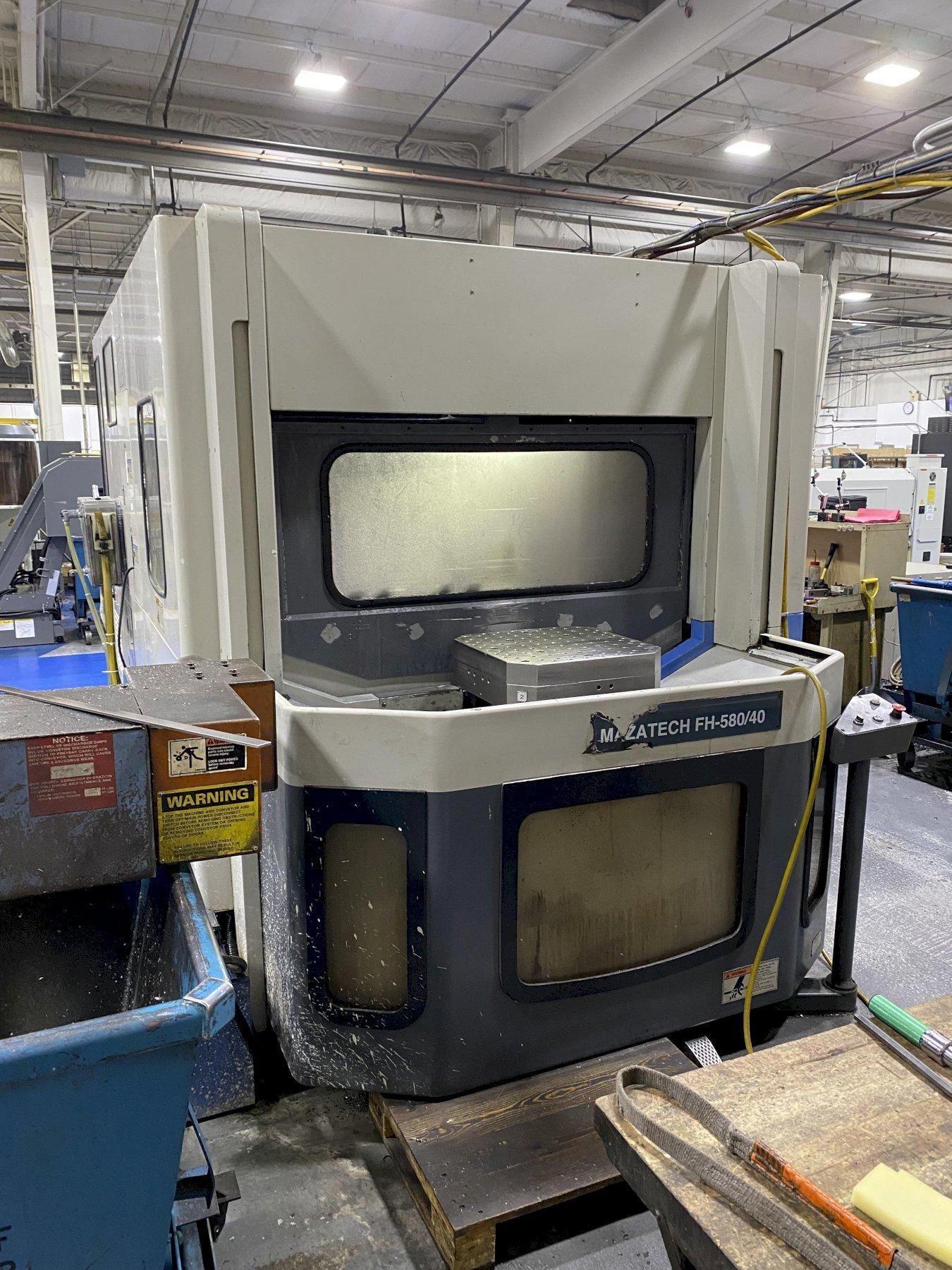

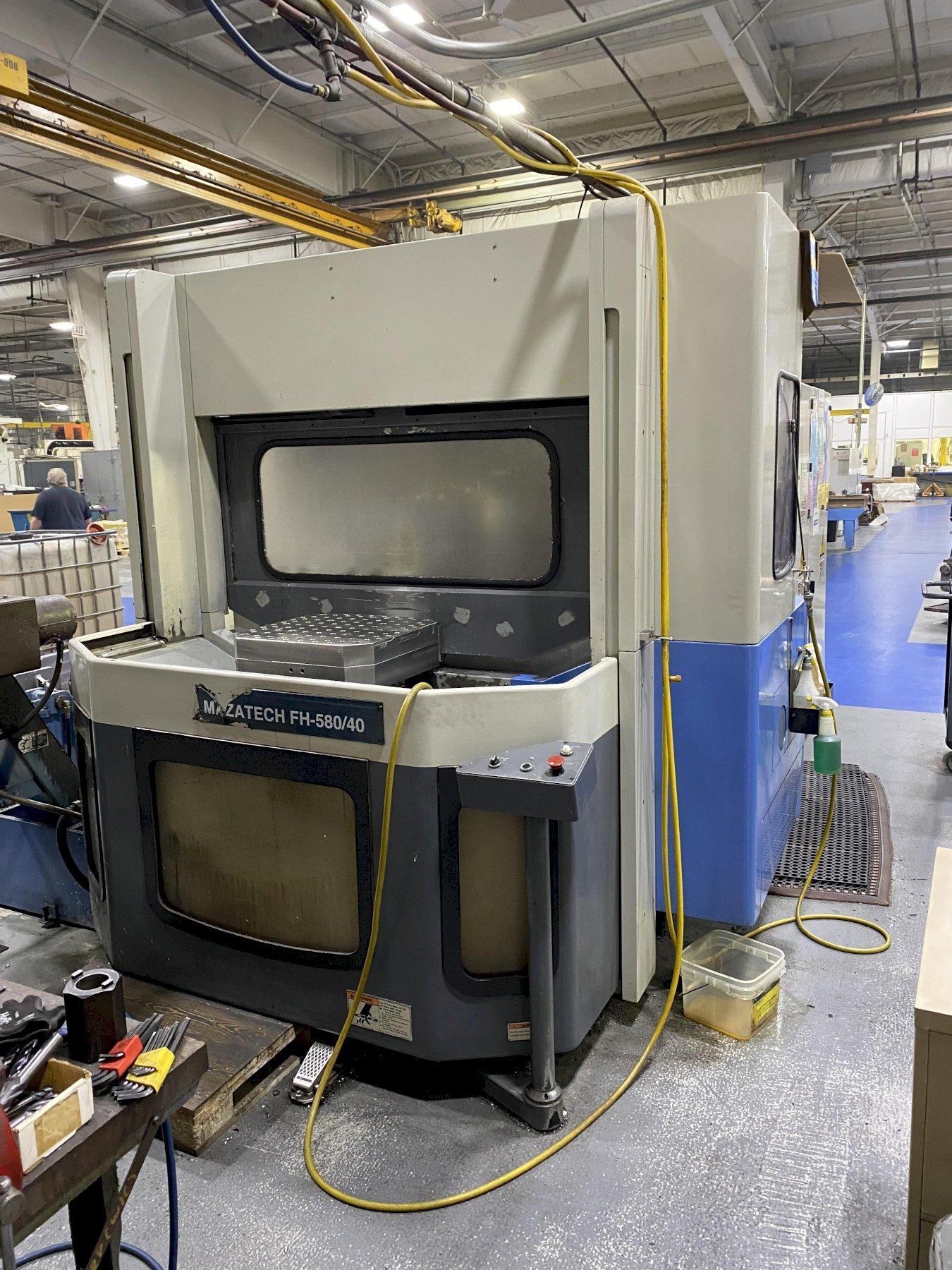

MAZAK FH-580/40 CNC HORIZONTAL MACHINING CENTER. STOCK # 0950722

Stock #: 0950722

Equipped With

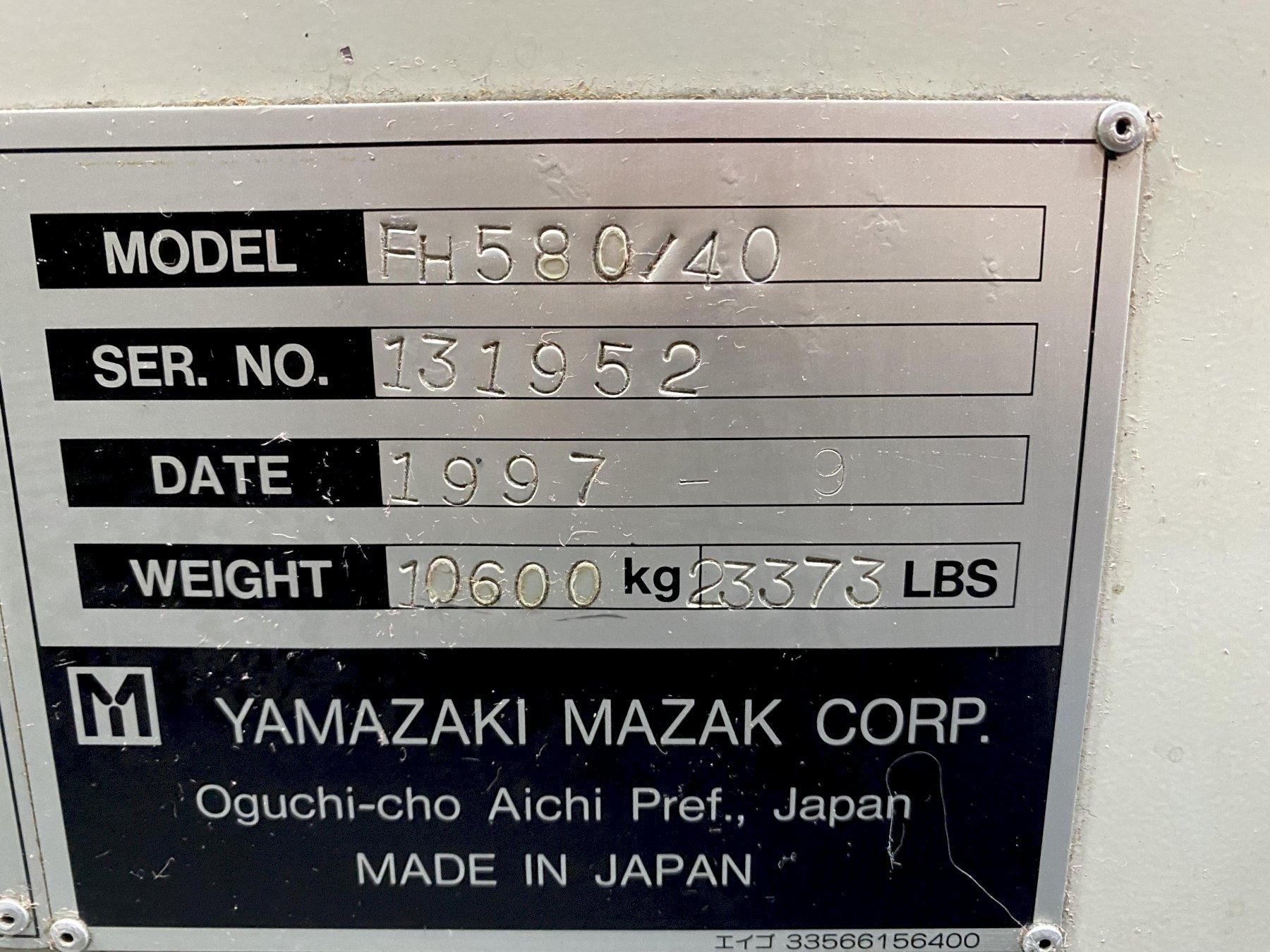

SERIAL #..............................: 131952
MODEL.................................: FH-580/40
SPECIFICATIONS:
X AXIS................................: 27.95"
Y AXIS................................: 24.02"
Z AXIS................................: 25.98"
A AXIS................................: INFINITE VARIABLE
PALLET SIZE...........................: 20" X 20"

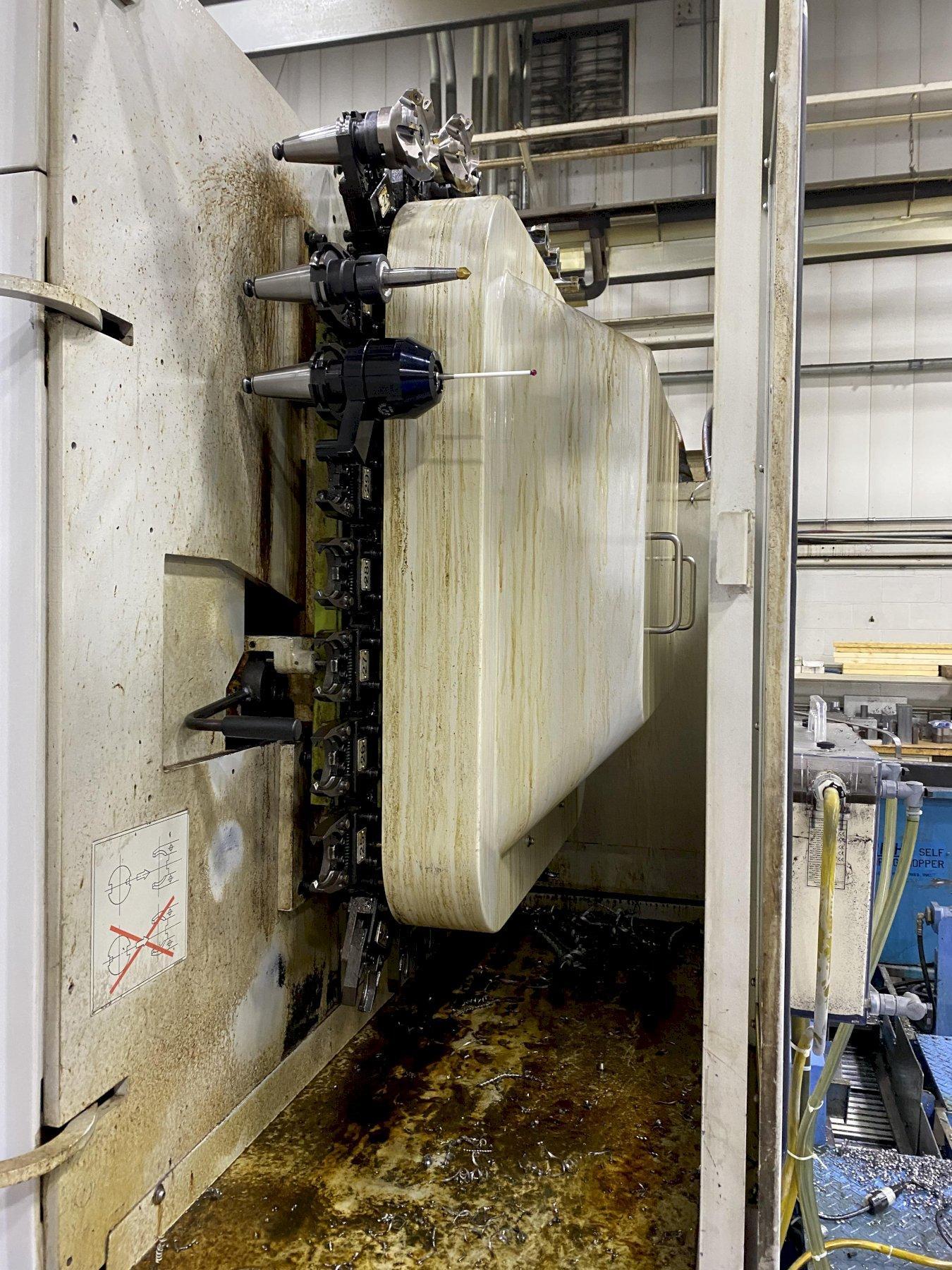

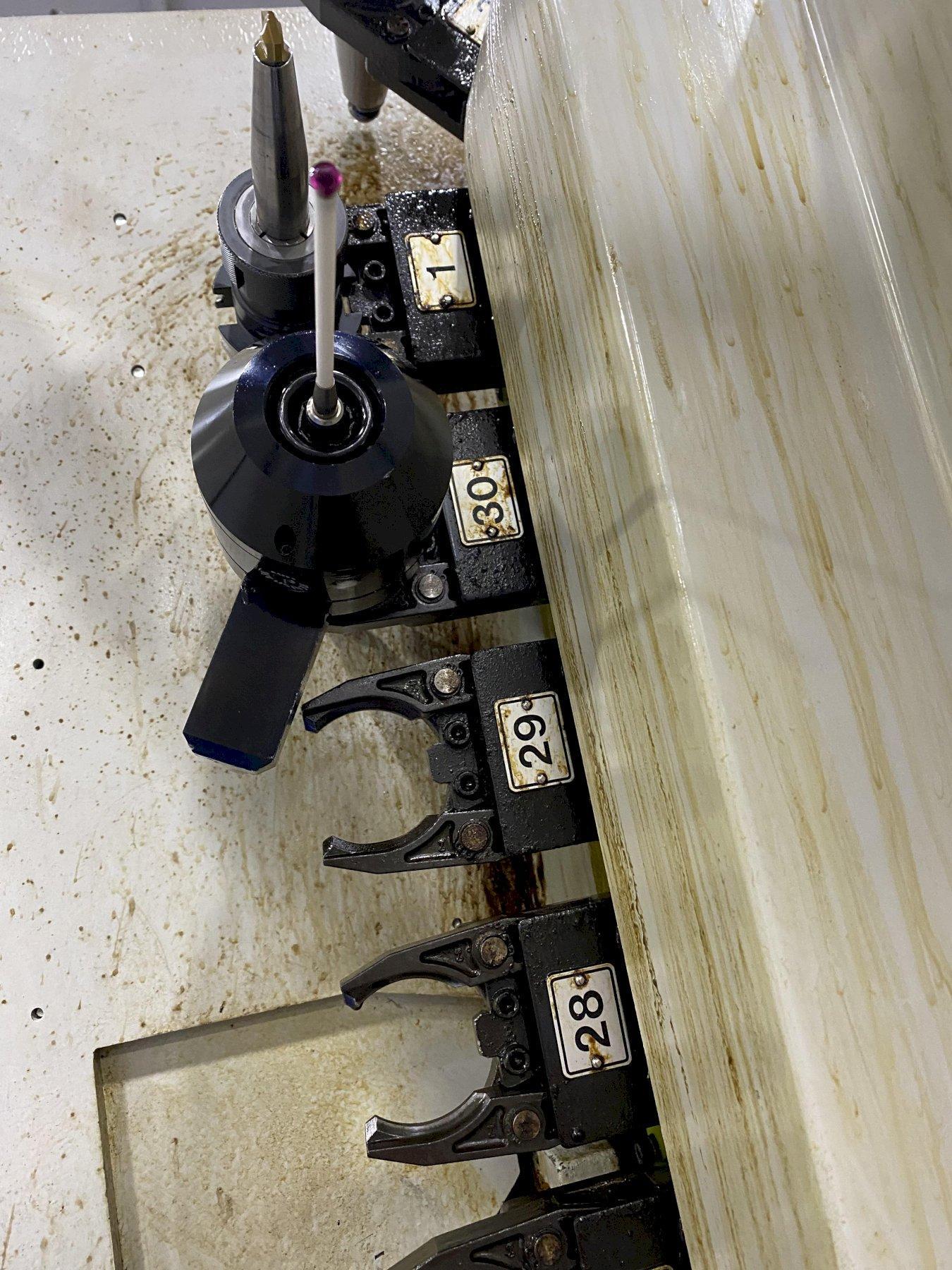

ATC...................................: 30
SPINDLE RPM...........................: 12,000
MOTOR.................................: 30 HP

SPECIFICATIONS:
- X-axis 27.95" (710 mm)
  Rapid Traverse 1260 IPM (32000 MM/min)
  Cutting Feedrate .04-1260 IPM (1-32000 mm/min)
- Y-axis 24.02" (610 mm)
  Same As X-axis
- Z-axis 25.98" (660 mm)
  Same As X-axis
- Center Spindle To Top Pallet 1.97-25.98" (50-660 mm)
- Spindle Nose To Center Of Pallet 5.91-31.69" (150-810 mm)
- Spindle Motor 30 HP

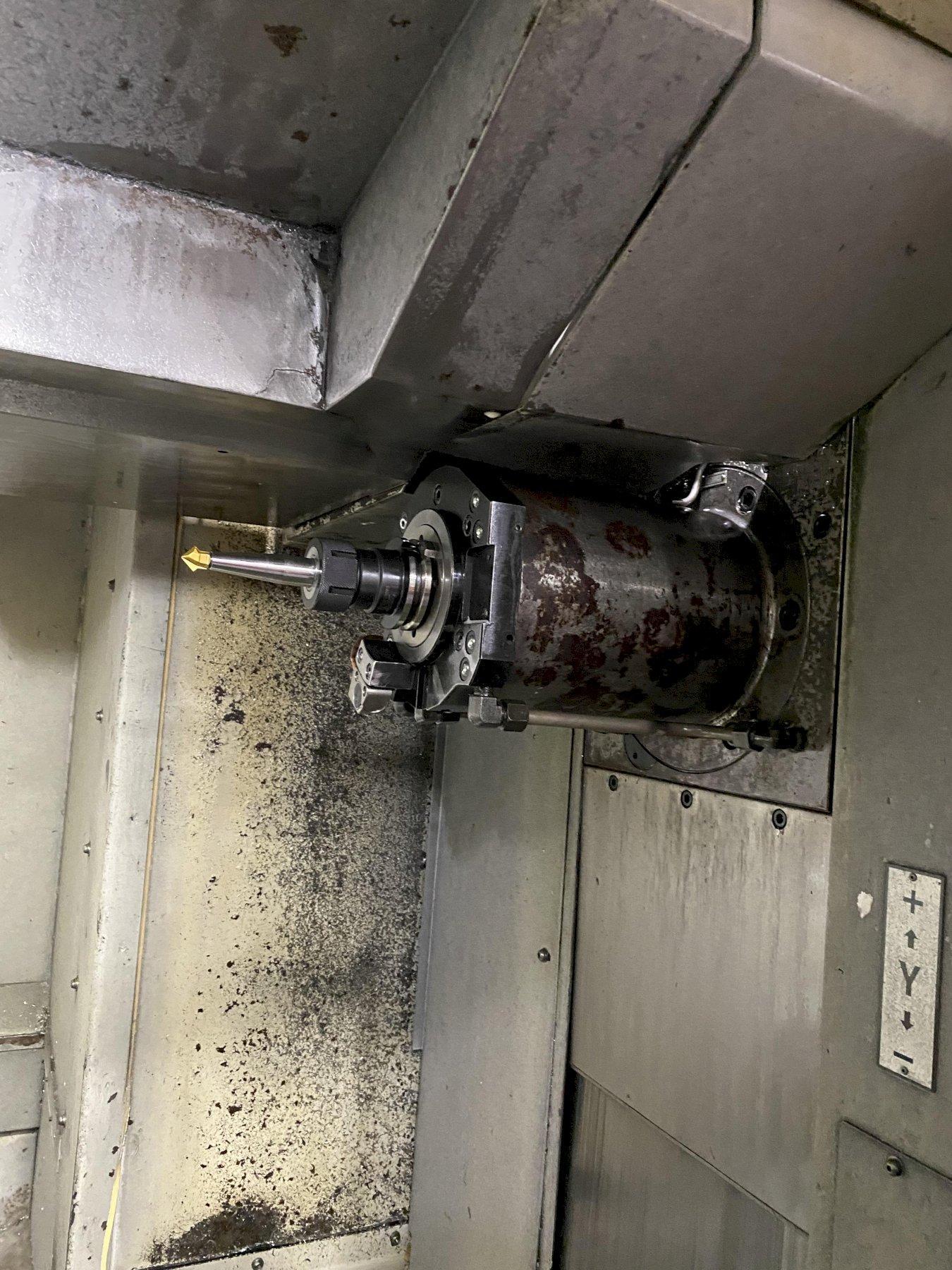

- Spindle Nose ISO #40
- Spindle Speed 35-12000 RPM

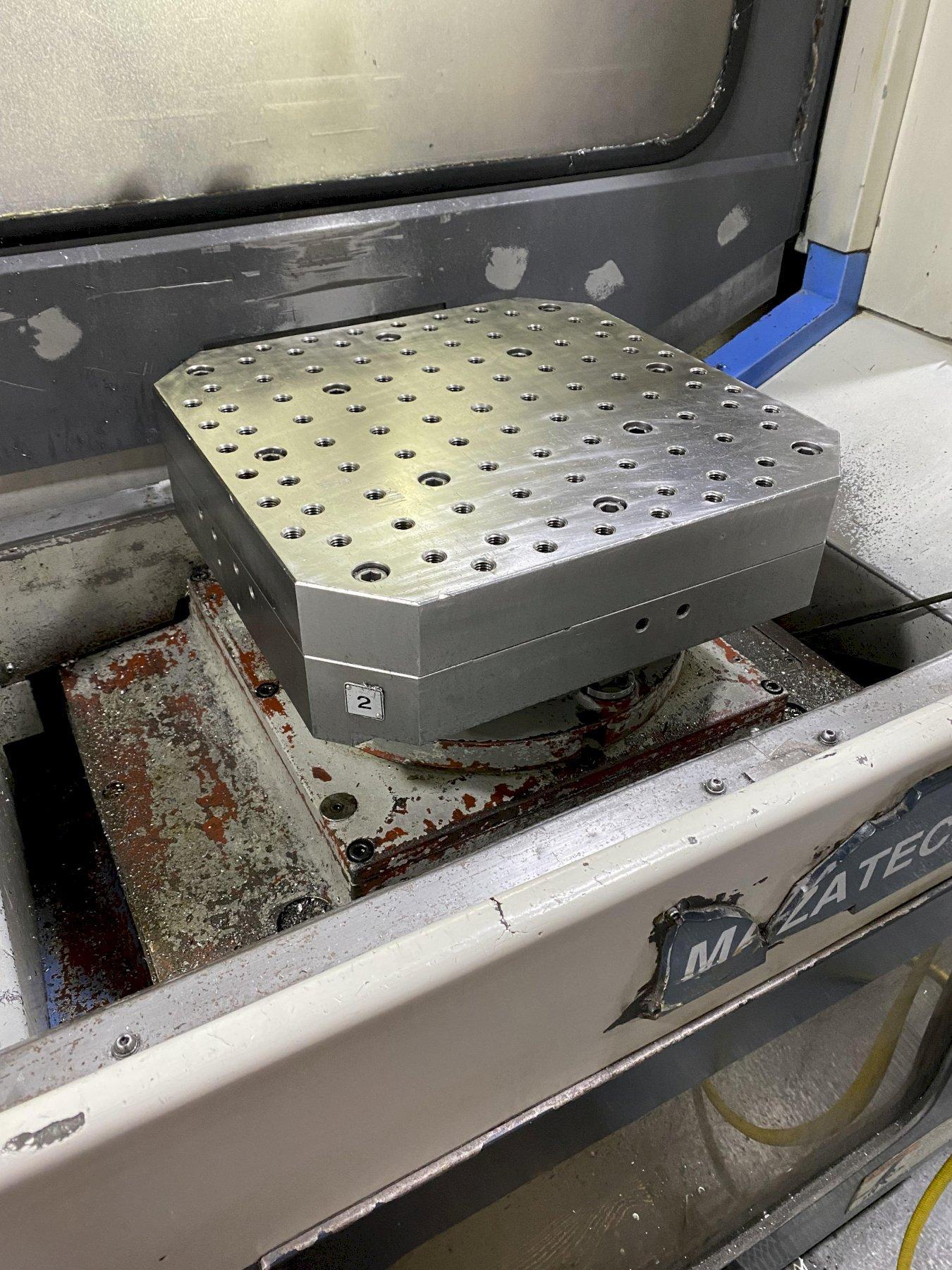

- Pallet Dimensions 19.69 x 19.69" (500 x 500 mm)
- Max Pallet Load 500 LB
- Max Dia. Tool Handled By ATC 5.91" (150 mm)
- Machine Eight 23408 LB (10640 Kg)
- Overall Dimensions 127.17" W x 158.54" D x 103.19" H (3230 x 4027 x 2621 mm
