Stock #: 1115024
SERIAL.............................: 10230

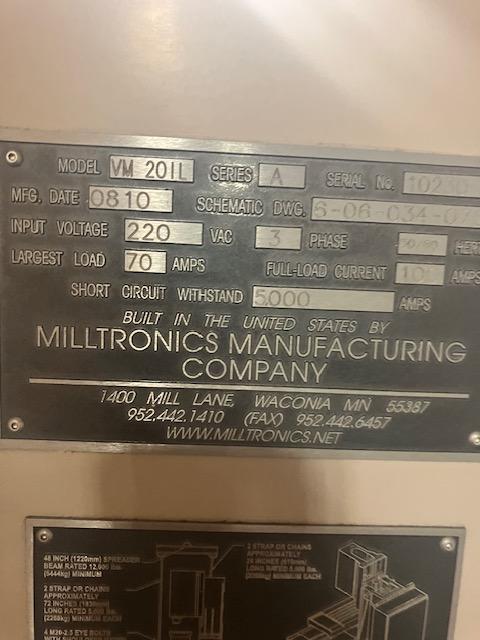

MODEL..............................: VM-20IL
SERIES.............................: A
YEAR OF MANUFACTURER...............: 2008
SPECIFICATIONS:
TABLE SIZE.........................: 44" X 20"
TABLE TRAVELS (XYZ)................: 40" X 20" X 26"
THROAT DISTANCE....................: 21"
DISTANCE SPINDLE TO TABLETOP.......: 4" TO 30"
MAXIMUM TABLE LOAD.................: 2000 LBS.
SPINDLE MOTOR HP...................: 24 / 15
SPINDLE SPEED......................: 8,000 RPM
SPINDLE TAPER......................: CT40
TOOL CHANGER TYPE..................: CAROUSEL
TOOL CHANGER # OF POCKETS..........: 24
RAPID TRAVERSE.....................: 1,000 IPM
MAX FEEDRATE.......................: 500 IPM
FLOOR DIMENSIONS...................: 112" X 92"
APPROX. WEIGHT.....................: 10,000 LBS.
EQUIPPED WITH......................: CENTURION 7 CNC CONTROL PANEL
10" LCD COLOR DISPLAY
CONVERSATIONAL PLUS G&M CODE PROGRAMMING
3D PART AND TOOL PATH GRAPHICS
FRONT PANEL ELECTRONIC HANDWHEEL WITH HANDWHEEL FEED
AUXILIARY KEYBOARD PORT AND TRAY
ELECTRONIC SPINDLE ORIENT
AC BRUSHLESS DIGITAL SERVO DRIVES
COOLANT TANK WITH FLOOD AND WASHDOWN PUMPS
AUTO LUBRICATION
SPRAY MIST
FULL ENCLOSURE
SOFTWARE PACK
STOCK # 1115024
