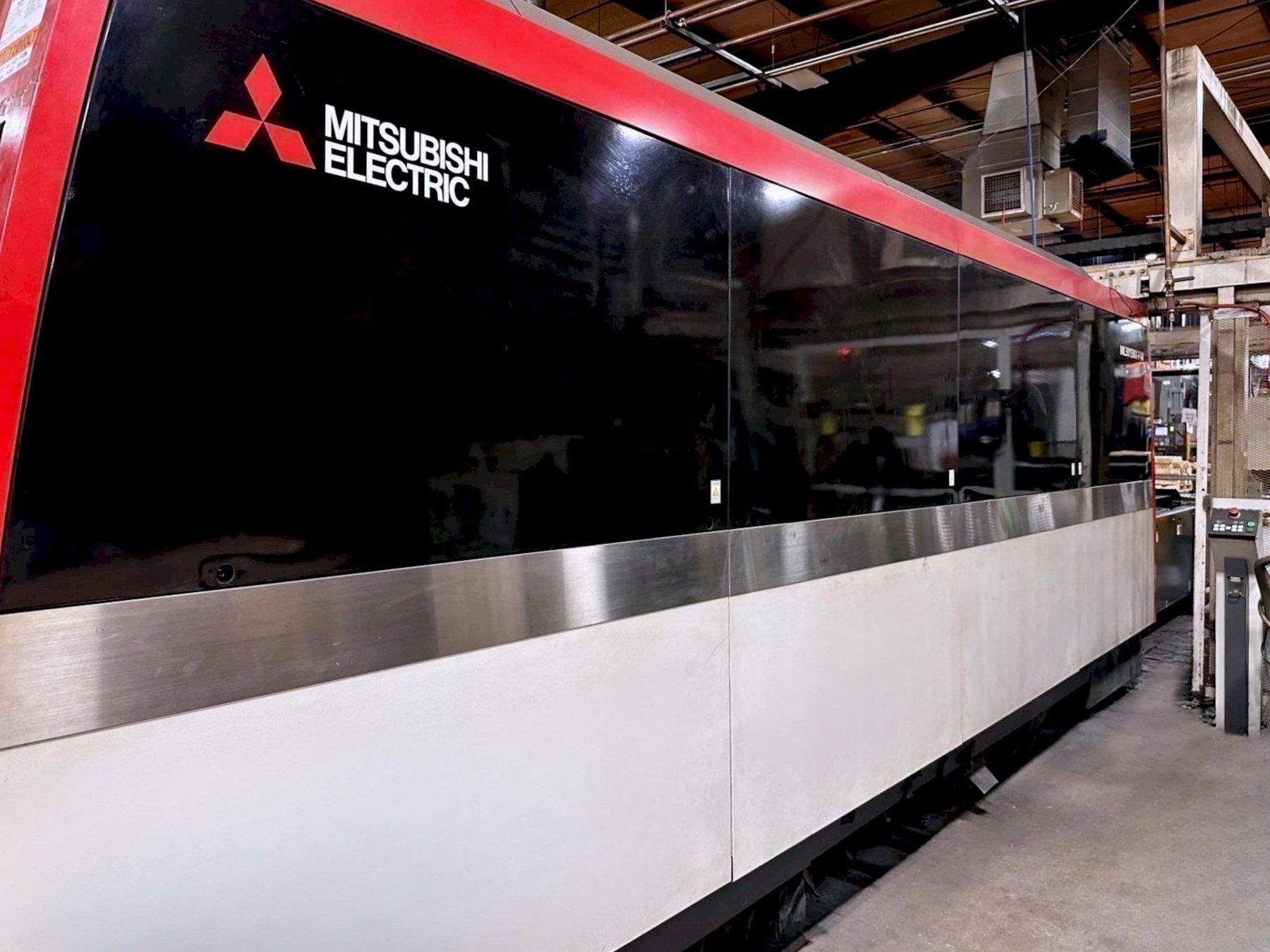

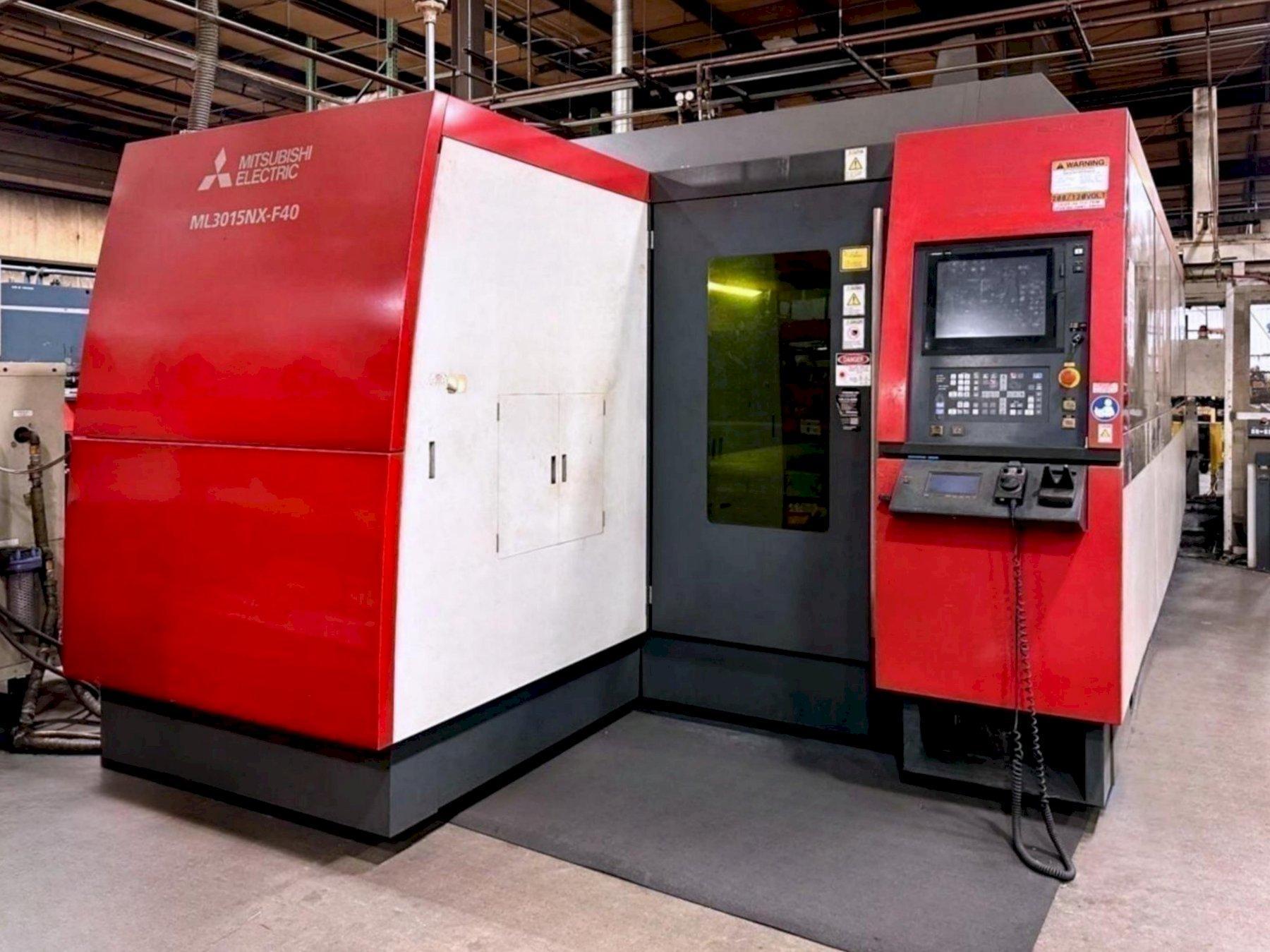

MITSUBISHI ML3015NX-F40 FIBER LASER

Stock #: 0789024

Equipped With

Type of CNC Control: Mitsubishi 700 Series
Resonator: IPG YLS-4000 Fiber
Resonator Type: Fiber
Power: 4,000 Watts
Rapid Travel Speed (X,Y): 4724 IPM (Single)
Rapid Travel Speed (X, Y): 6680 IPM (Sim.)
Max Processing Feedrate: 2360 IPM
Output Power Adjustable Range (%): 0-100
Machine Structure X/Y: Precision Rack & Pinion
Machine Structure Z: Precision Ball Screw
Travel Drive Method X-Y-Z: Sim. 3 Axes
Max Workpiece: 120.1" X 60.0"
Positioning Precision: .0019/20
Drive Motor Type: Intelligent AC Servo
Sheet-W: 60 inches
Sheet-L: 120 inches
Wattage: 4000 watts
Max Cut Mild Steel: 1.0"
Max Cut Stainless Steel: .50"
Max Cut Aluminum: .50"

Equipped With:

Mitsubishi 700 Series
IPG YLS 4000 Watt Fiber Source
Magnetic Breakaway Head
Two High Pressure Assist Gas Ports
5" x 10" Dual Pallet Shuttle Tables
Eco Mode
Power Control System
ThermalCare AccuChiller Unit

MITSUBISHI ML3015NX-F40 FIBER LASER

STOCK # 0789024

Type of CNC Control: Mitsubishi 700 Series
Resonator: IPG YLS-4000 Fiber
Resonator Type: Fiber
Power: 4,000 Watts
Rapid Travel Speed (X,Y): 4724 IPM (Single)
Rapid Travel Speed (X, Y): 6680 IPM (Sim.)
Max Processing Feedrate: 2360 IPM
Output Power Adjustable Range (%): 0-100
Machine Structure X/Y: Precision Rack & Pinion
Machine Structure Z: Precision Ball Screw
Travel Drive Method X-Y-Z: Sim. 3 Axes
Max Workpiece: 120.1" X 60.0"
Positioning Precision: .0019/20
Drive Motor Type: Intelligent AC Servo
Sheet-W: 60 inches
Sheet-L: 120 inches
Wattage: 4000 watts
Max Cut Mild Steel: 1.0"
Max Cut Stainless Steel: .50"
Max Cut Aluminum: .50"

Equipped With:

Mitsubishi 700 Series
IPG YLS 4000 Watt Fiber Source
Magnetic Breakaway Head
Two High Pressure Assist Gas Ports
5" x 10" Dual Pallet Shuttle Tables
Eco Mode
Power Control System
ThermalCare AccuChiller Unit

Specifications

Machine Type
Laser Cutters
Manufacturer
MITSUBISHI
Model
ML3015NX-F40
Year
2014
Condition
Good
