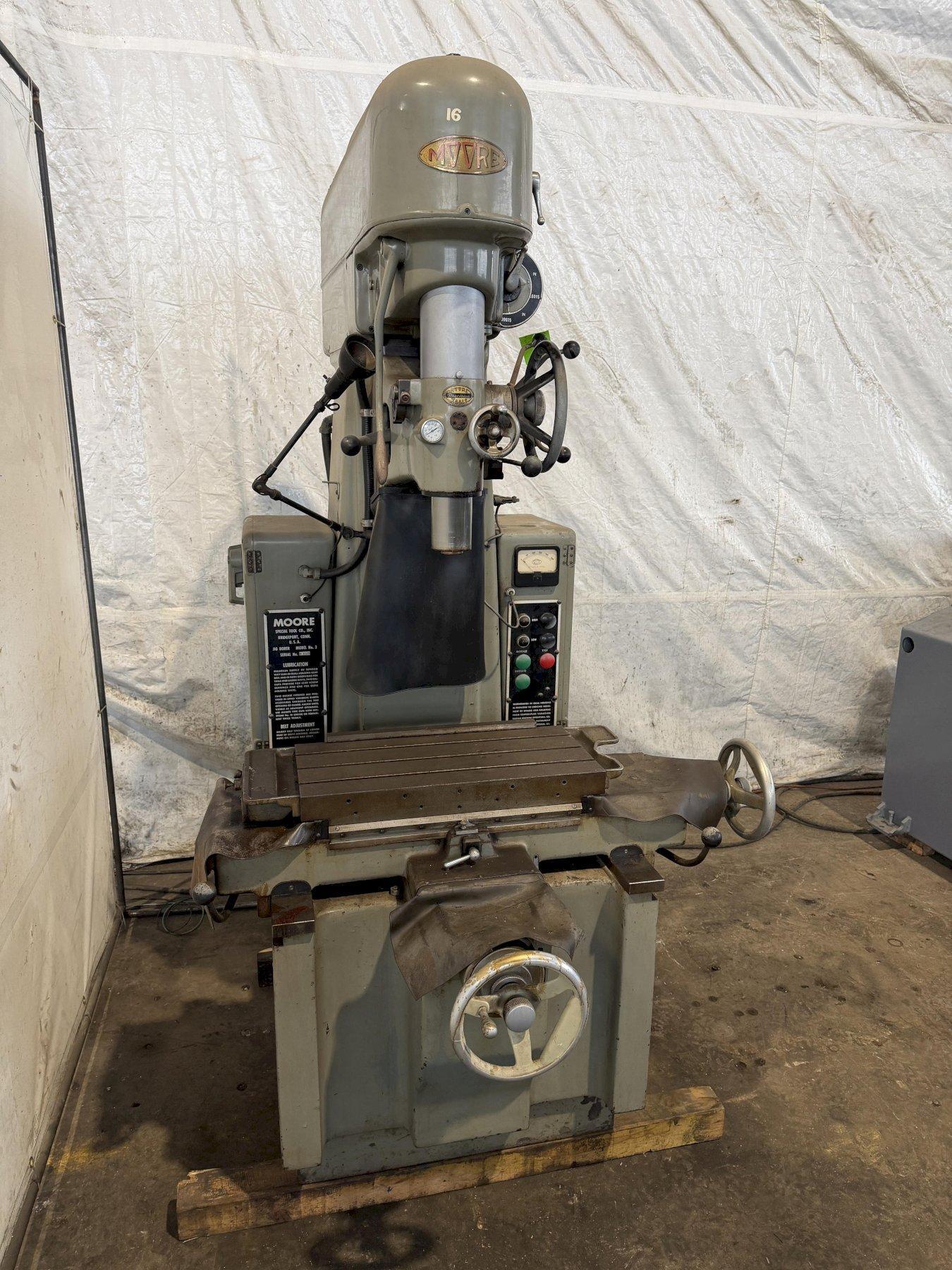

MOORE #3 JIG BORER MACHINE. STOCK # 0224226

Stock #: 0224226

Equipped With

MODEL NUMBER......................: 3
SERIAL NUMBER.....................: B1028

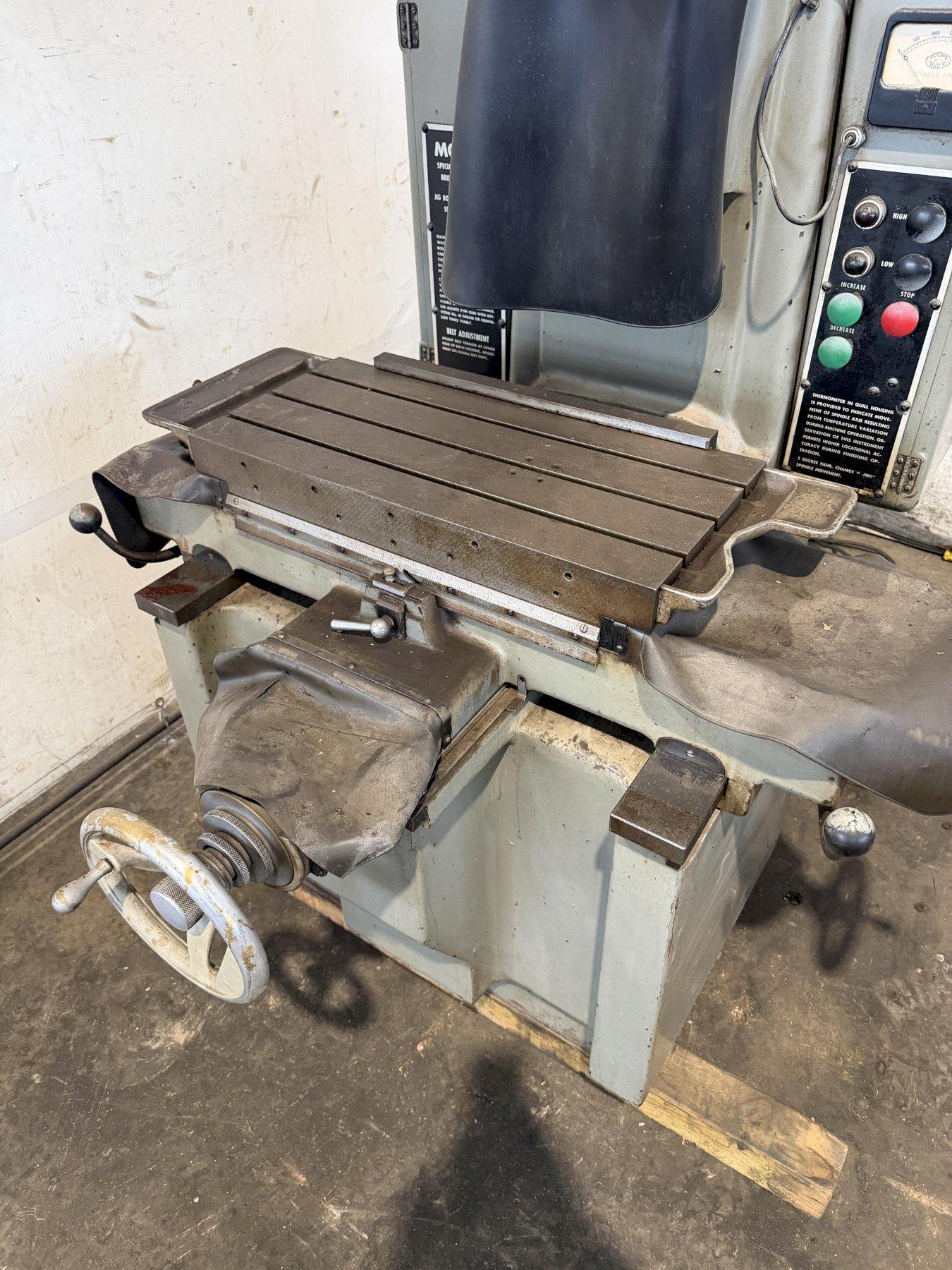

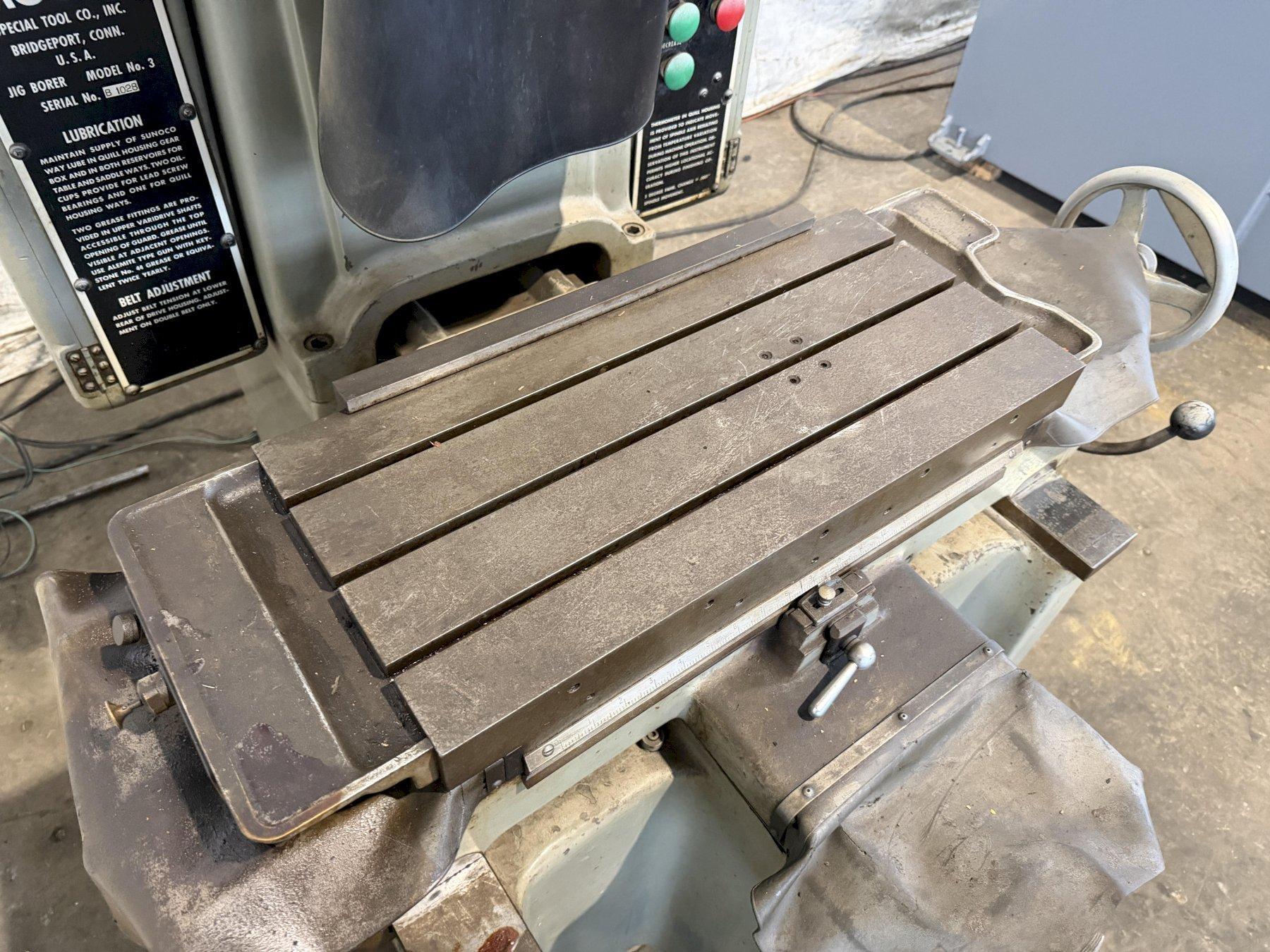

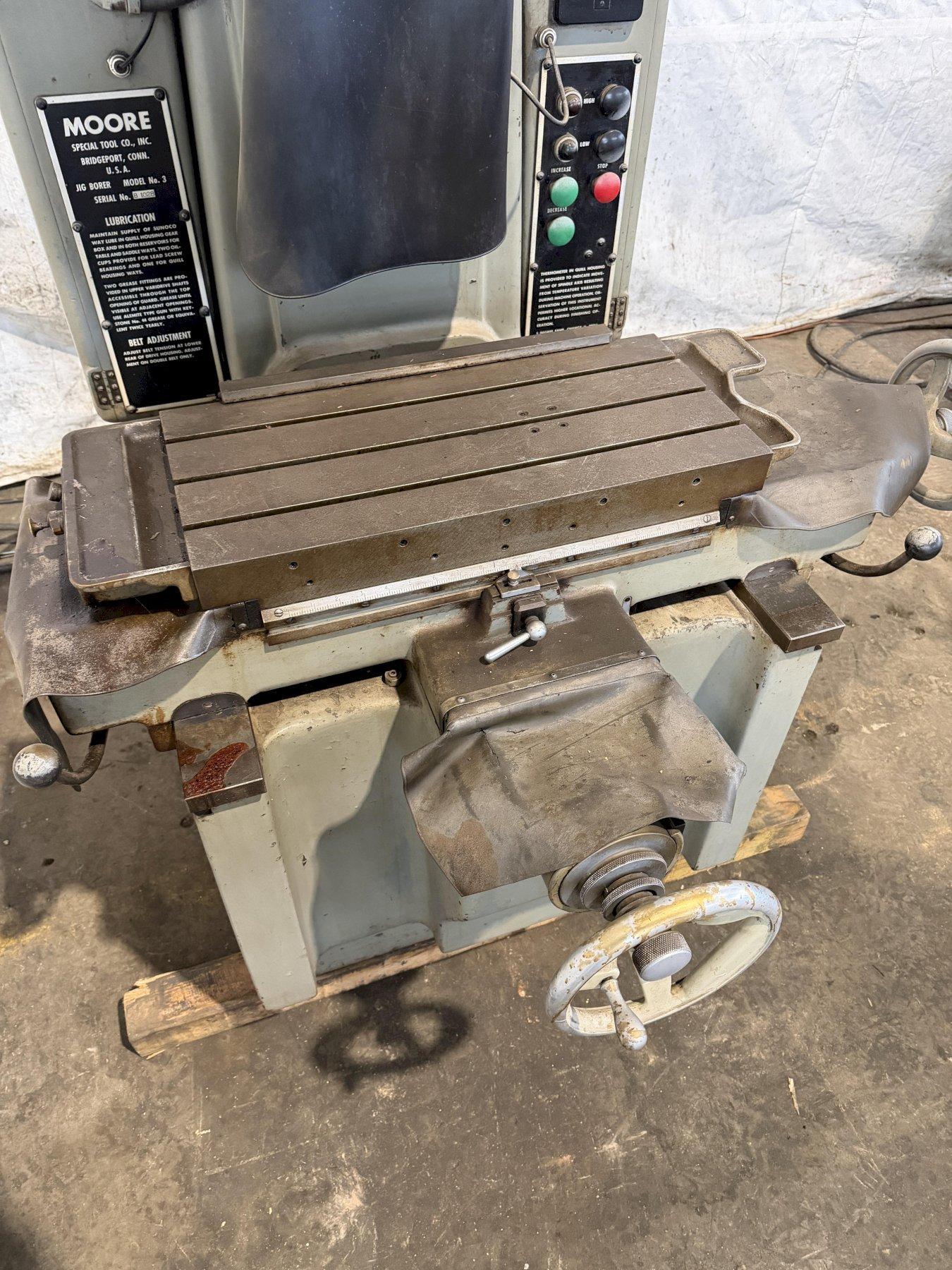

TABLE SIZE........................: 11” x 24”
LONGITUDINAL TABLE TRAVEL.........: 18”
CROSS TABLE TRAVEL................: 11”
SPINDLE HOUSING TRAVEL............: 11-15/16”

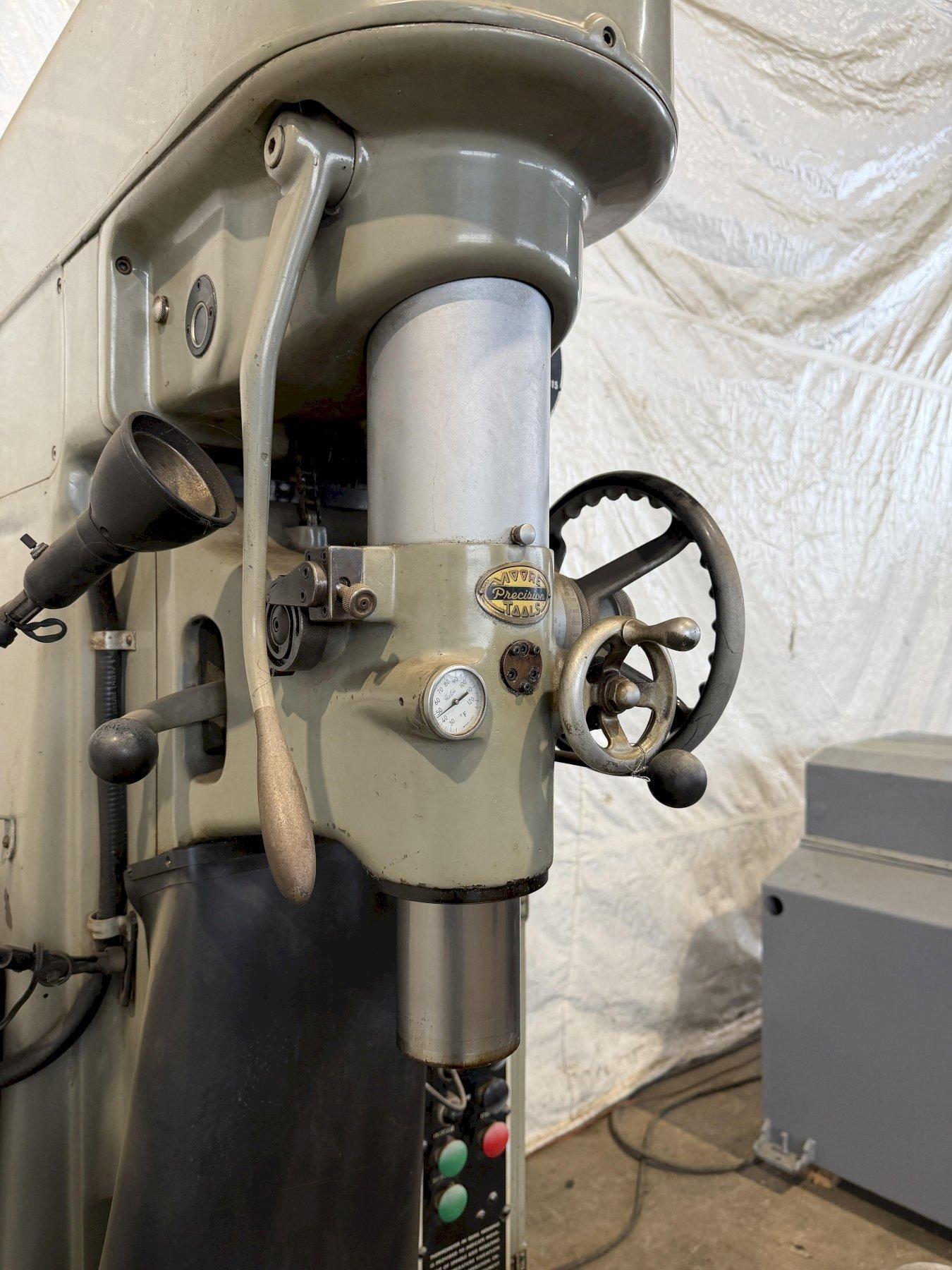

VERTICAL QUILL TRAVEL.............: 5”
MAX SPINDLE TO TABLE..............: 20-13/16”
SPINDLE CENTER TO COLUMN WAYS.....: 10”
SPINDLE CENTER TO COLUMN THROAT...: 13.75”
SPINDLE SPEED.....................: 60 – 2250 RPM
SPINDLE HEAD FEED.................: 0.00075” – 0.003” /Rev
MOTOR HP..........................: 2 HP
MOTORO SPEED......................: 865 – 1725 RPM / 865 – 1760 RPM
VOLTAGE/PH/HZ.....................: 220 V; 3 Ph; 60
APPROX. DIMS(l x w x h)...........: 76” x 50” x 96”
APPROX WEIGHT.....................: 3,900 LB
