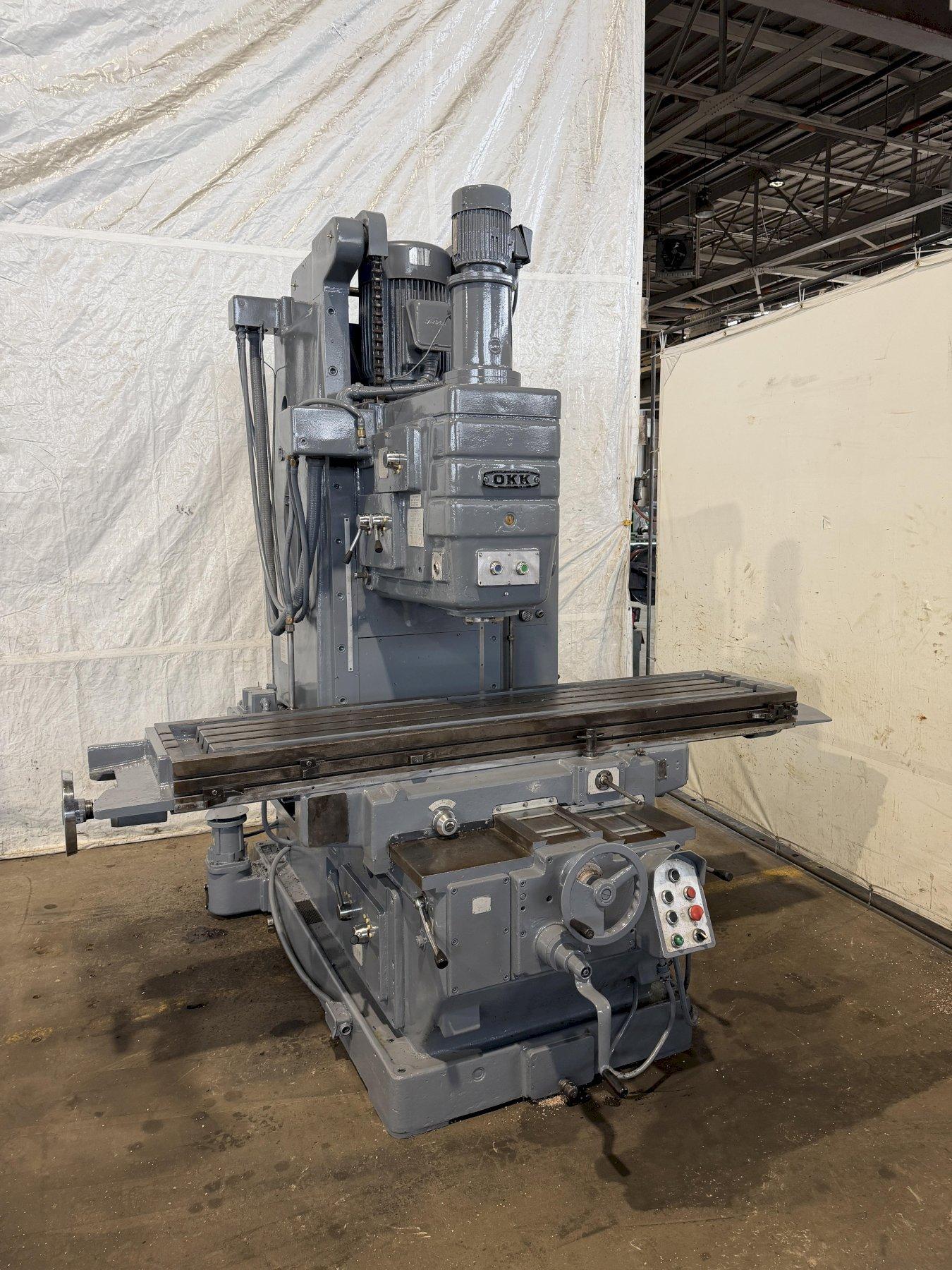

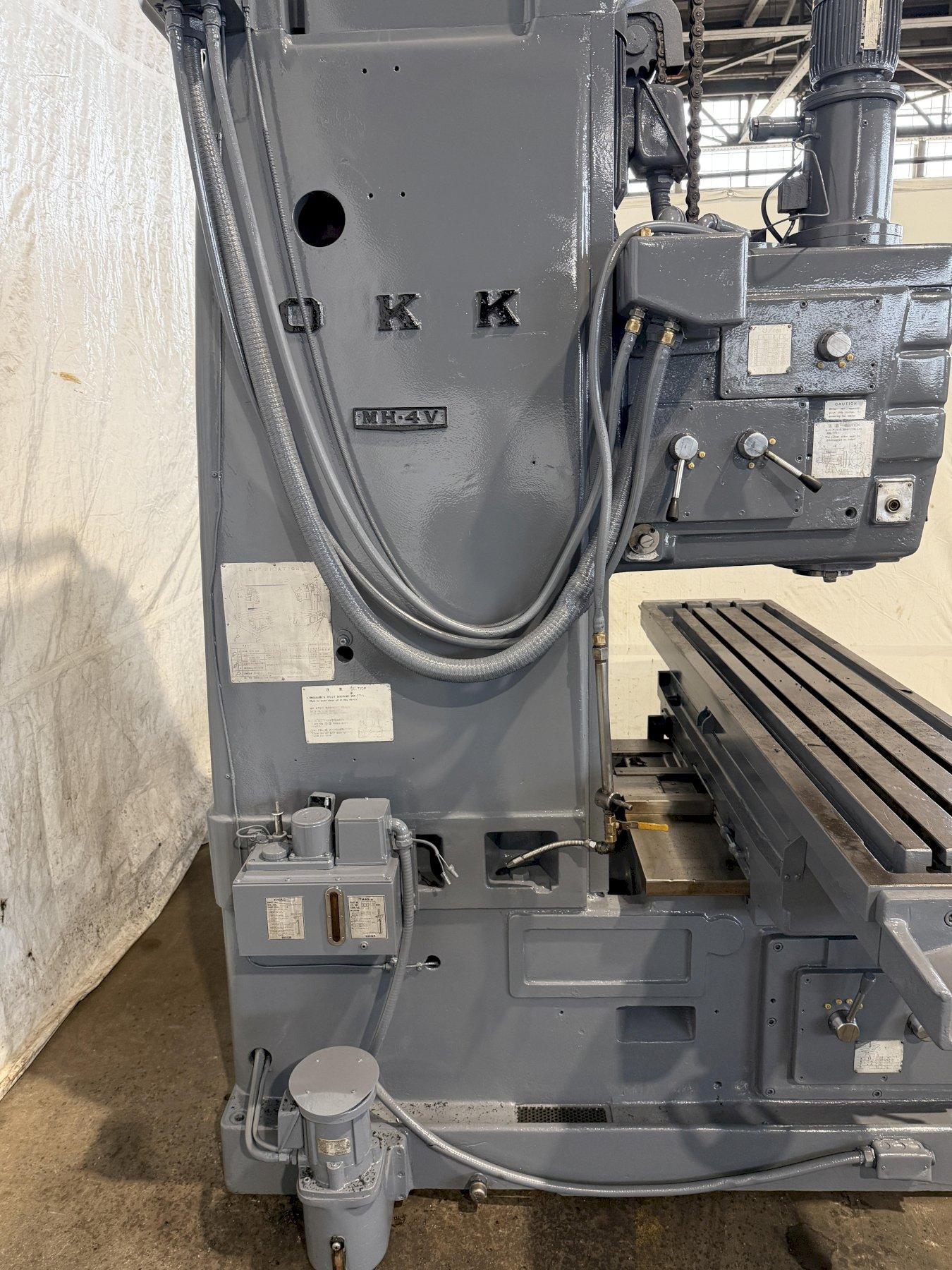

OKK MH-4V VERTICAL MILL. STOCK # 0116426

Stock #: 0116426

Equipped With

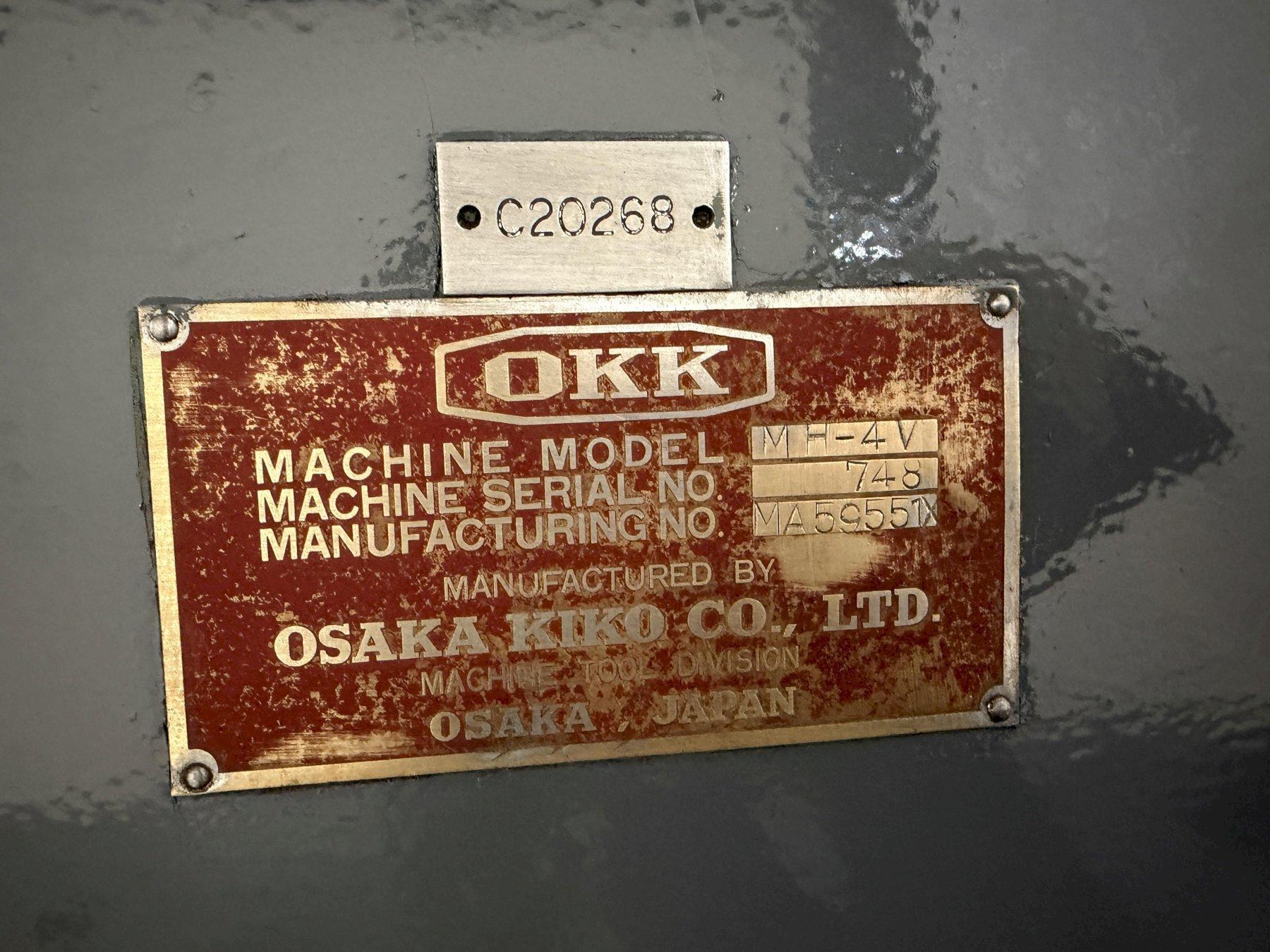

SERIAL................................: 748
MODEL.................................: MH-4V

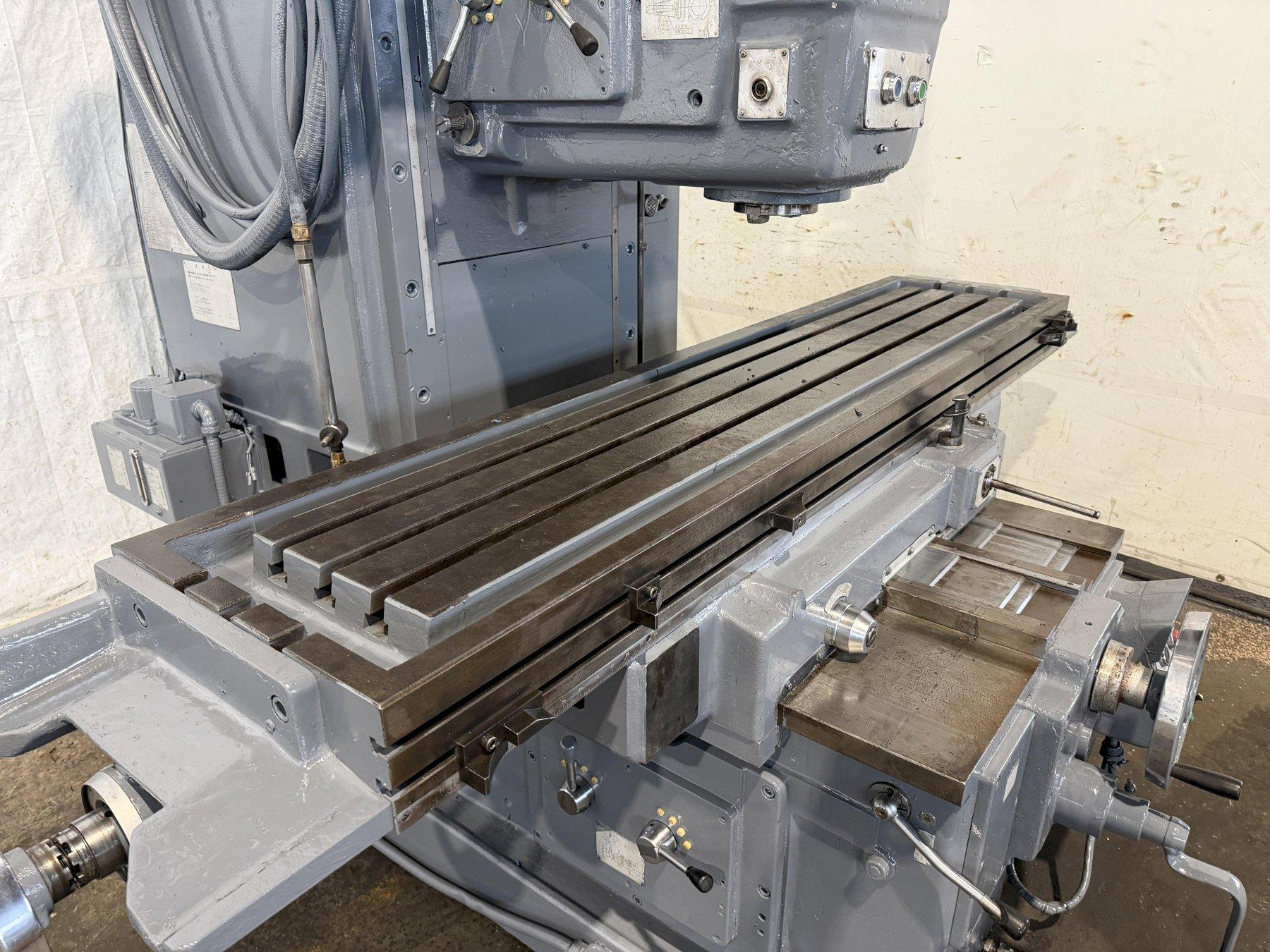

TABLE SIZE............................: 17" X 78"
LONGITUDINAL TRAVEL...................: 43-1/4"
CROSS TRAVEL..........................: 16-1/2"
TABLE FEEDS...........................: (16) 3/8 TO 66 IPM
POWER RAPID TRAVERSE..................: 125 IPM
HEAD VERTICAL TRAVEL..................: 19-5/8"
HEAD VERTICAL FEED RATE...............: .150 TO 26.4 IPM
DISTANCE SPINDLE NOSE TO TABLE........: 4" TO 23-5/8"
DISTANCE SPINDLE CENTER TO COLUMN.....: 20-1/2"
TAPER.................................: 50
SPINDLE SPEEDS........................: (18) 22 TO 1400 RPM
EQUIPPED WITH:
POWER DRAW BAR
AUTOMATIC TABLE FEED- RAPID CYCLE

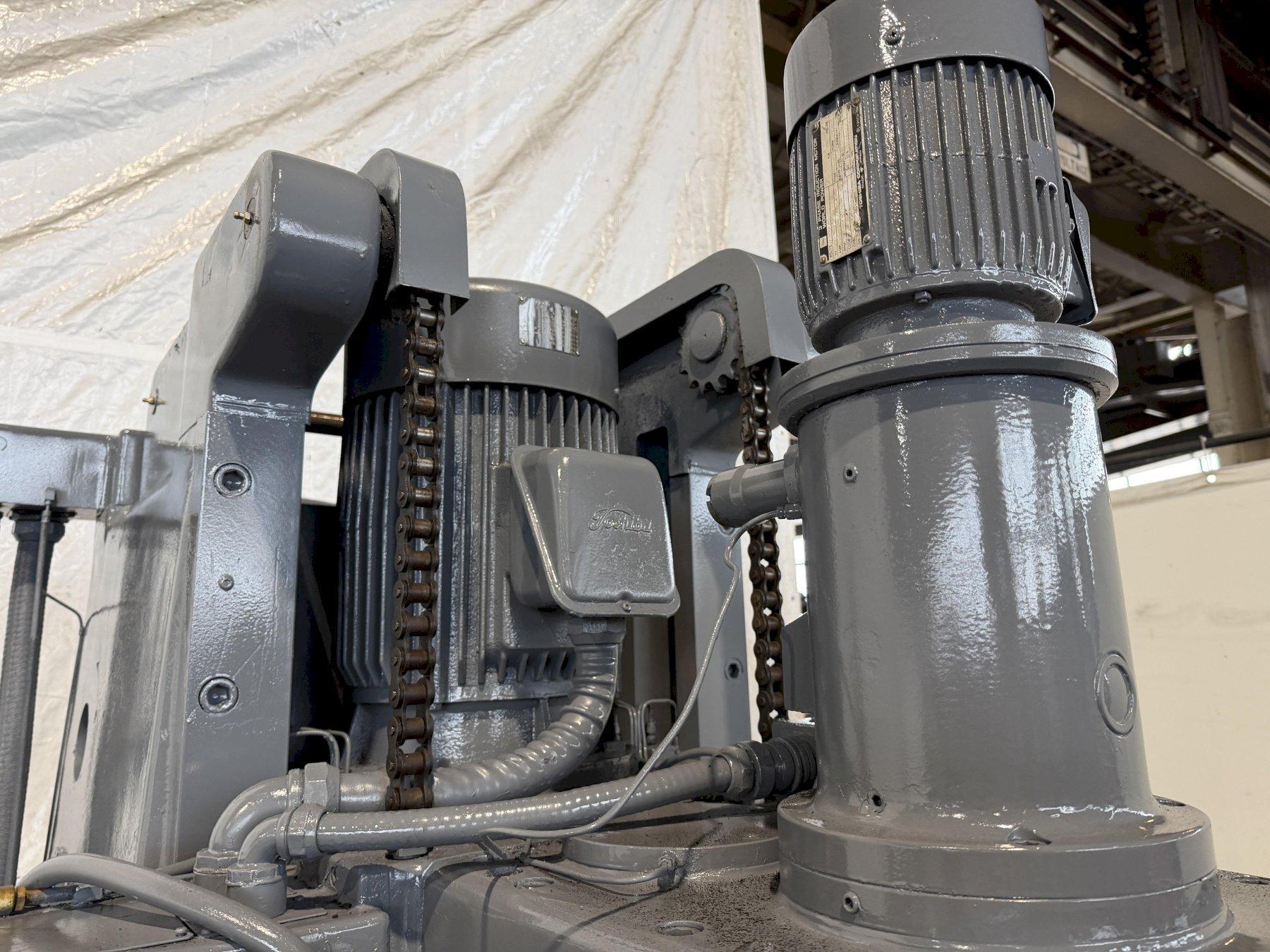

20 HP MAIN MOTOR
3 HP FEED MOTOR
1/5 HP COOLANT PUMP MOTOR
1/2 HP POWER DRAW BAR
