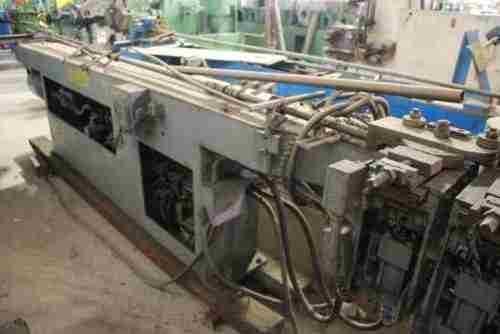

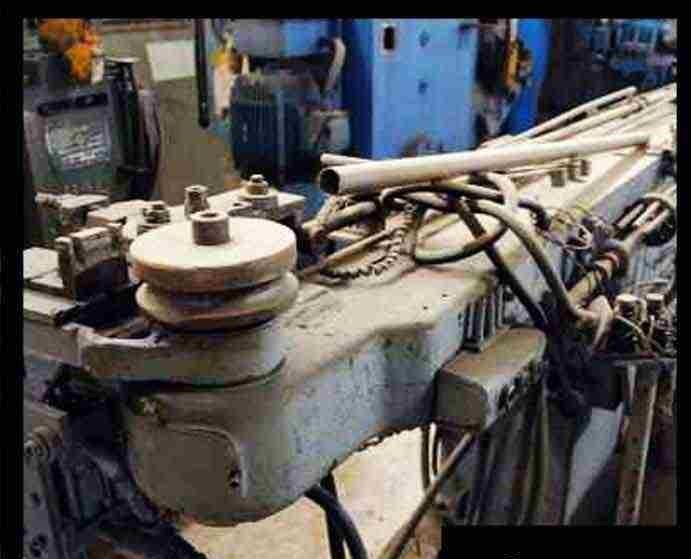

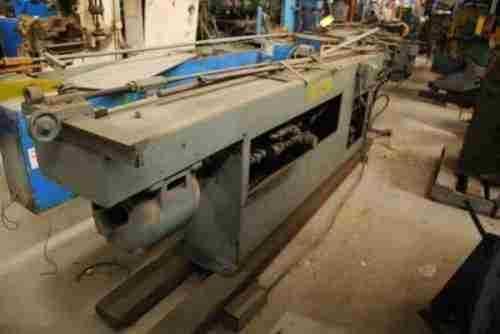

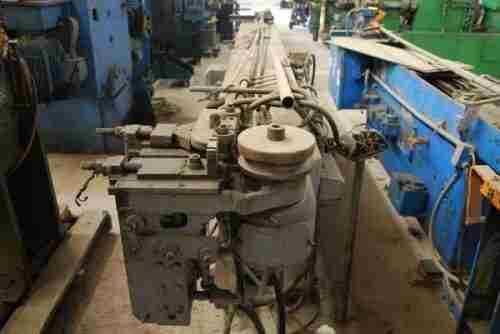

Pines #3/4 Hydraulic Rotary Tube Bender

Stock #: 0101617

Equipped With

MACHINE SPECIFICATIONS:
Maximum Radius: 5" (Approximate)
Maximum Tube Length: 9′ 11"
Standard Operating Pressure: 1,000 PSI
Bending Arm Speed: 27 RPM
Floor to Centerline of Bending Form: 35"
Rotation: Counter-Clockwise
Maximum Bend Angle: 180 Degrees + Overbend
Panel Mounted Hydraulic Valves
Oil Reservoir in Base

EQUIPPED WITH:
Stationary Mandrel Rod & Holder
Manual (8) Station Turret Degree of Bend Selector
Pressure Die Holder; Clamp Die Holder (Special)
AC Main Drive Motor and Electrical Controls
Pedestal Mounted Controls with Disconnect Switch
Distance Between Bend Stops

Bending Capacities:
I.P.S. Extra Heavy Pipe: 3/4"
Non-Ferrous Tubing Y.P. to 12,000 PSI: 1-1/2" O.D. x .093" Wall
Non-Ferrous Tubing Y.P. to 25,000 PSI: 1-1/2" O.D. x .065" Wall
Steel Tubing Y.P. to 40,000 PSI: 1-3/8" O.D. x .065" Wall
Stainless Steel Tubing Y.P. to 60,000 PSI: 1-1/8" O.D. x .065" Wall
Steel Bar Round Y.P. to 40,000 PSI: 3/4" Diameter
Steel Bar Square Y.P. to 40,000 PSI: 11/16" Square
Angle Iron Y.P. to 40,000 PSI: 1-1/4" x 1-1/4" x 3/16"
Square Tube Mild Steel: 1" x .065"
Rectangular Tubing Mild Steel (E-Plane): 1" x 1-1/4" x .065"
Rectangular Tubing Mild Steel (H-Plane): 1" x 1-1/4" x .049"

APPROXIMATE OVERALL DIMENSIONS: 144" L – R x 48" F – B x 48" H
APPROXIMATE WEIGHT: 2,750 Lbs.

Pines #3/4 Hydraulic Rotary Tube Bender

STOCK # 0101617

Specifications

View All Details
Machine Type
Benders, Pipe, Tube & Bar
Manufacturer
PINES
Model
#3/4
Year
N/A
Condition
Excellent
Equipped With

MACHINE SPECIFICATIONS:
Maximum Radius: 5" (Approximate)
Maximum Tube Length: 9′ 11"
Standard Operating Pressure: 1,000 PSI
Bending Arm Speed: 27 RPM
Floor to Centerline of Bending Form: 35"
Rotation: Counter-Clockwise
Maximum Bend Angle: 180 Degrees + Overbend
Panel Mounted Hydraulic Valves
Oil Reservoir in Base

EQUIPPED WITH:
Stationary Mandrel Rod & Holder
Manual (8) Station Turret Degree of Bend Selector
Pressure Die Holder; Clamp Die Holder (Special)
AC Main Drive Motor and Electrical Controls
Pedestal Mounted Controls with Disconnect Switch
Distance Between Bend Stops

Bending Capacities:
I.P.S. Extra Heavy Pipe: 3/4"
Non-Ferrous Tubing Y.P. to 12,000 PSI: 1-1/2" O.D. x .093" Wall
Non-Ferrous Tubing Y.P. to 25,000 PSI: 1-1/2" O.D. x .065" Wall
Steel Tubing Y.P. to 40,000 PSI: 1-3/8" O.D. x .065" Wall
Stainless Steel Tubing Y.P. to 60,000 PSI: 1-1/8" O.D. x .065" Wall
Steel Bar Round Y.P. to 40,000 PSI: 3/4" Diameter
Steel Bar Square Y.P. to 40,000 PSI: 11/16" Square
Angle Iron Y.P. to 40,000 PSI: 1-1/4" x 1-1/4" x 3/16"
Square Tube Mild Steel: 1" x .065"
Rectangular Tubing Mild Steel (E-Plane): 1" x 1-1/4" x .065"
Rectangular Tubing Mild Steel (H-Plane): 1" x 1-1/4" x .049"

APPROXIMATE OVERALL DIMENSIONS: 144" L – R x 48" F – B x 48" H
APPROXIMATE WEIGHT: 2,750 Lbs.
