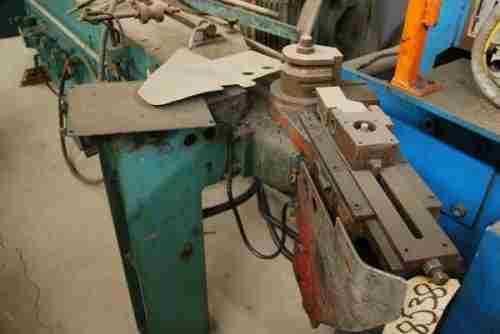

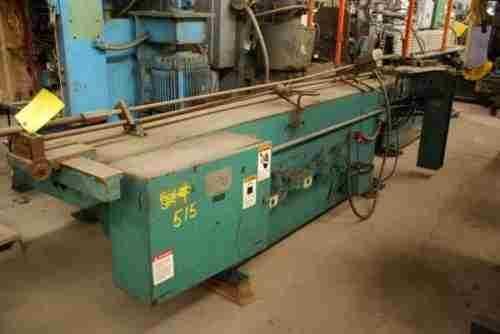

Pines Hydraulic Rotary Tube Bender

Stock #: 0101717

Equipped With

MACHINE SPECIFICATIONS:
Maximum Tube Outside Diameter: 1" (25.4 mm)
Maximum Radius: 10"
Maximum Tube Length: 9′ 11"
Standard Operating Pressure: 1,000 PSI
Bending Arm Speed: 15 RPM; Speed Control Valve
Rotation: Counter-Clockwise
Maximum Bend Angle: 180 Degrees + Overbend
Bend Angle Accuracy: + or – 1/4 Degree
EQUIPPED WITH:
(6) Station Automatic Turret Degree of Bend Selector
Pressure Die Holder
BIJUR One-Shot Slide Lubricator
Swinging Arm Safety Device
5 HP AC Main (Pump) Drive Motor; Electrical Controls
Distance Between Bend Stops
Push Button Operation
BENDING CAPACITIES:
I.P.S. Extra Heavy Pipe: 3/4"
Non-Ferrous Tubing Y.P. to 12,000 PSI: 1-1/2" O.D. x .093" Wall
Non-Ferrous Tubing Y.P. to 25,000 PSI: 1-1/2" O.D. x .065" Wall
Steel Tubing Y.P. to 40,000 PSI: 1-3/8" O.D. x .065" Wall
Stainless Steel Tubing Y.P. to 60,000 PSI: 1-1/8" O.D. x .065" Wall
Steel Bar Round Y.P. to 40,000 PSI: 3/4" Diameter
Steel Bar Square Y.P. to 40,000 PSI: 11/16" Square
Angle Iron Y.P. to 40,000 PSI: 1-1/4" x 1-1/4" x 3/16"
Square Tube Mild Steel: 1" x .065"
Rectangular Tubing Mild Steel (E-Plane): 1" x 1-1/4" x .065"
Rectangular Tubing Mild Steel (H-Plane): 1" x 1-1/4" x .049"
APPROXIMATE OVERALL DIMENSIONS: 158" L – R x 40" F – B x 40" H
APPROXIMATE WEIGHT: 3,750 Lbs.
