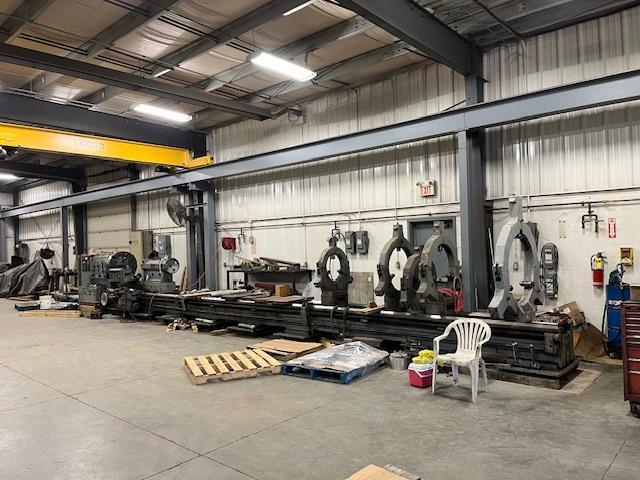

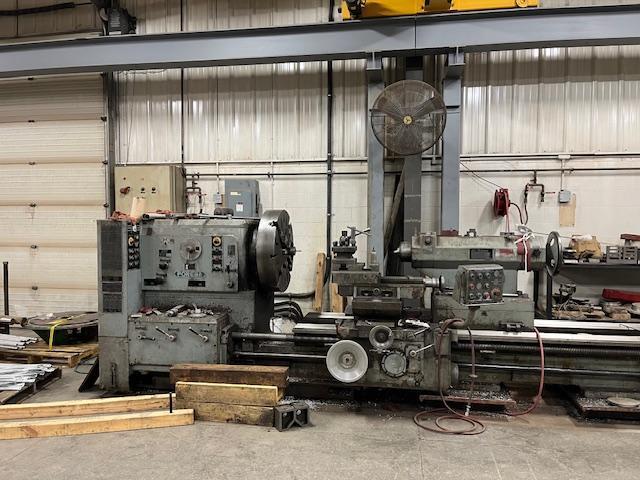

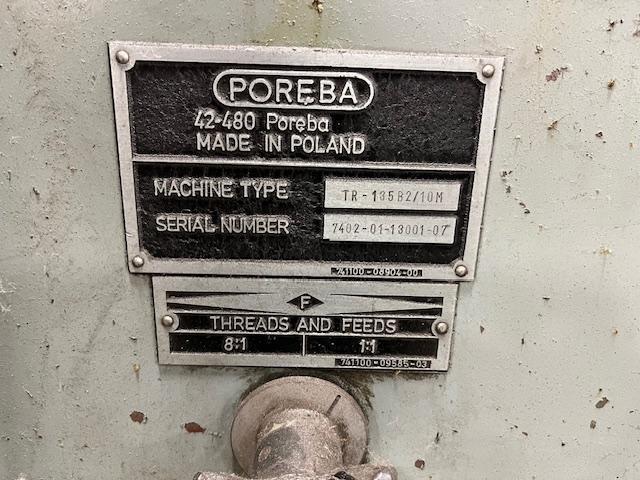

POREBA TR 135B2/10M LATHE. STOCK # 0131425

Stock #: 0131425

Equipped With

SWING OVER WAYS.........................: 53"
SWING ONER CROSS SLIDE..................: 41"
SWING IN GAP............................: 65"
LENGTH OF GAP FROM SPINDLE TO NOSE......: 22"
SPINDLE SPEED RANGE.....................: 5-500 RPM
SPINDLE SPEEDS..........................: 21
SPINDLE NOSE............................: A1-15
SPINDLE HOLE............................: 4-3/4"
TAILSTOCK QUILL DIAMETER................: 7-1/2"
QUILL TRAVEL............................: 12"
LONGITUDINAL FEEDS......................: .0035 - .400 TPR
CROSS SLIDE FEEDS.......................: .0017 - .100 TPR
TOP SLIDE FEEDS.........................: .0008 - .100 TPR
INCH/METRIC THREADING...................: 1/2 - 60 TPI AND 1 - 120 MM / REV
EQUIPPED WITH...........................: LIVE CENTER BUILT INTO TAILSTOCK
MAXIMUM WEIGHT BETWEEN CENTERS:
UNSUPPORTED.............................: 20,000 LBS

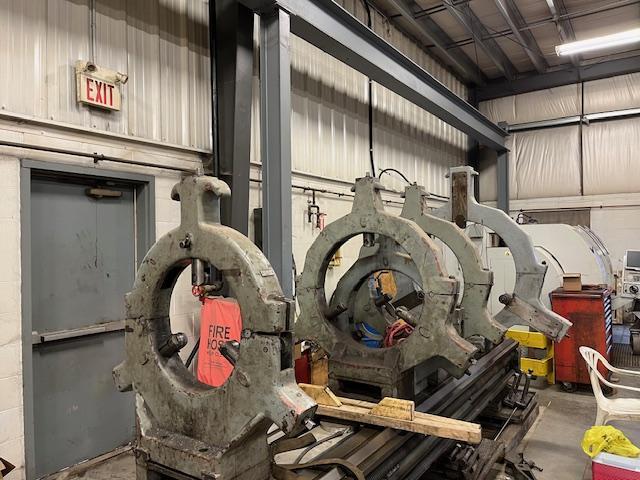

WITH 1 STEADY REST......................: 23,100 LBS
WITH 2 STEADY RESTS.....................: 26,500 LBS
