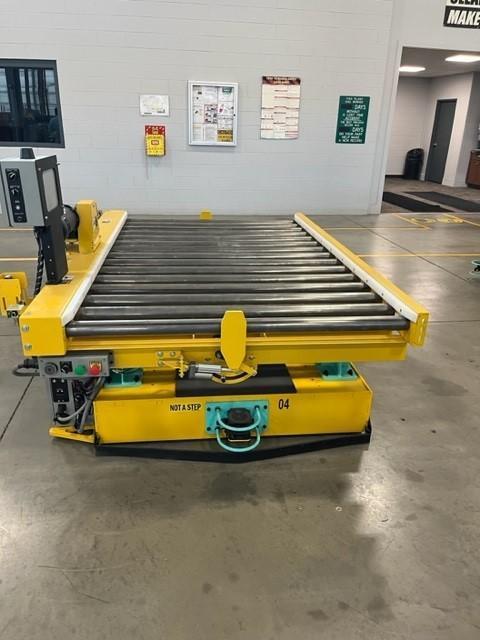

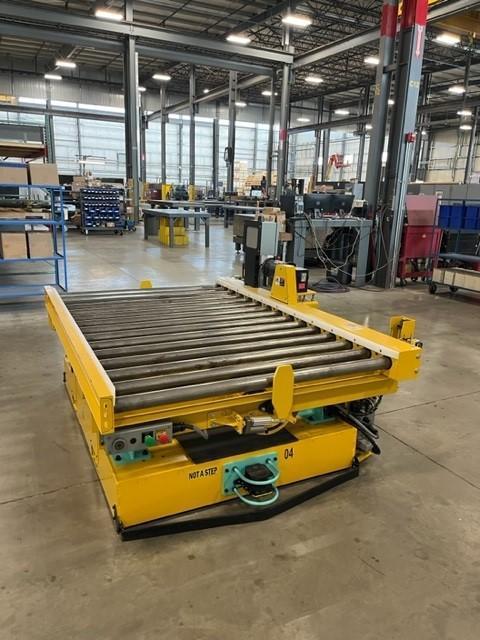

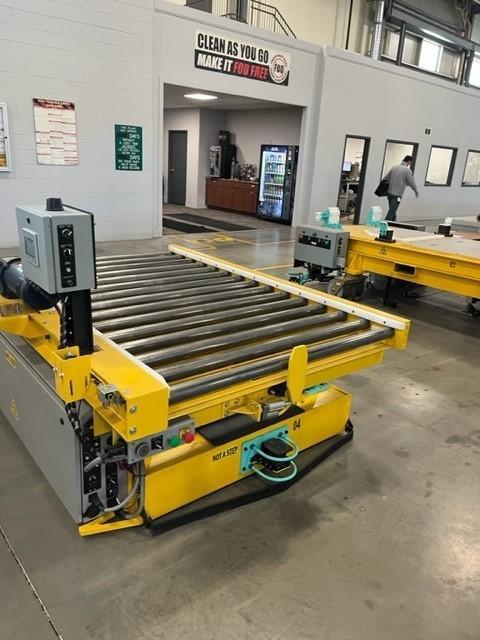

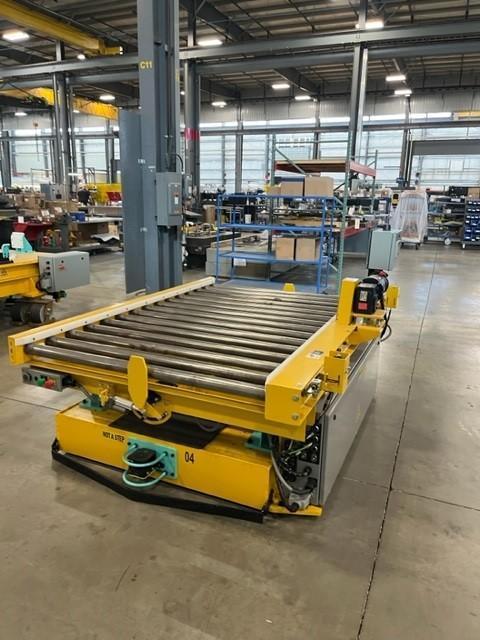

5,000 LB SMTD5K AGV SYSTEM (BRAND NEW, NEVER USED). STOCK # 0447025

Stock #: 0447025

Equipped With

CAPACITY................: 5,000 LBS.
MAXIMUM SPEED...........: 30 IN./SEC.
STOPPING ACCURACY.......: +/– 1/2"
GROUND CLEARANCE........: ~1/4"
MINIMUM TURN RADIUS.....: 0°
CONVEYOR HEIGHT.........: 28"
VOLTAGE.................: 24 [DC]
BATTERY WEIGHT W/ TRAYS.: ~200 LBS.
DRIVE WHEEL DIAMETER....: 10"
TRACTOR DRIVE WATTAGE...: 600
EQUIPPED WITH...........: HIGH-TORQUE TRACTOR DRIVE CONFIGURATION
                          FORK POCKETS
                          25A ONBOARD CHARGER
                          INTEGRAL FAIL-SAFE BREAKS
                          MAGNETIC GUIDANCE W/ DEAD RECKON CAPABILITY
                          DUAL RFID READERS FOR GUIDANCE
                          DUAL SIL2 SAFETY SCANNERS
                          DUAL ENCODER FEEDBACK
                          MOTOR CONTACTOR BACKCHECK
                          ESTOP INTERRUPTION
                          PLC COMMUNICATION
                          WIFI RADIO COMMUNICATION
                          ONBOARD HMI FOR PROGRAMMING & INFORMATION
                          24VDC USER I/O FOR ON BOARD CONTROL
                          ALLEN BRADLEY PLC CONTROLS
                          REGENERATIVE SERVO DRIVE W/ ENCODER FEEDBACK
                          BATTERY CHARGER
                          FLOOR-MOUNTED CHARGE SHOES
                          INTEGRATED CONVEYOR FOR DUNNAGE TRANSFERS
DIMENSIONS:
LENGTH..................: 90-1/2"
WIDTH...................: 77-1/2"
HEIGHT..................: 52-1/2"
AGC WEIGHT W/ BATTERIES.: ~2,800 LBS.
