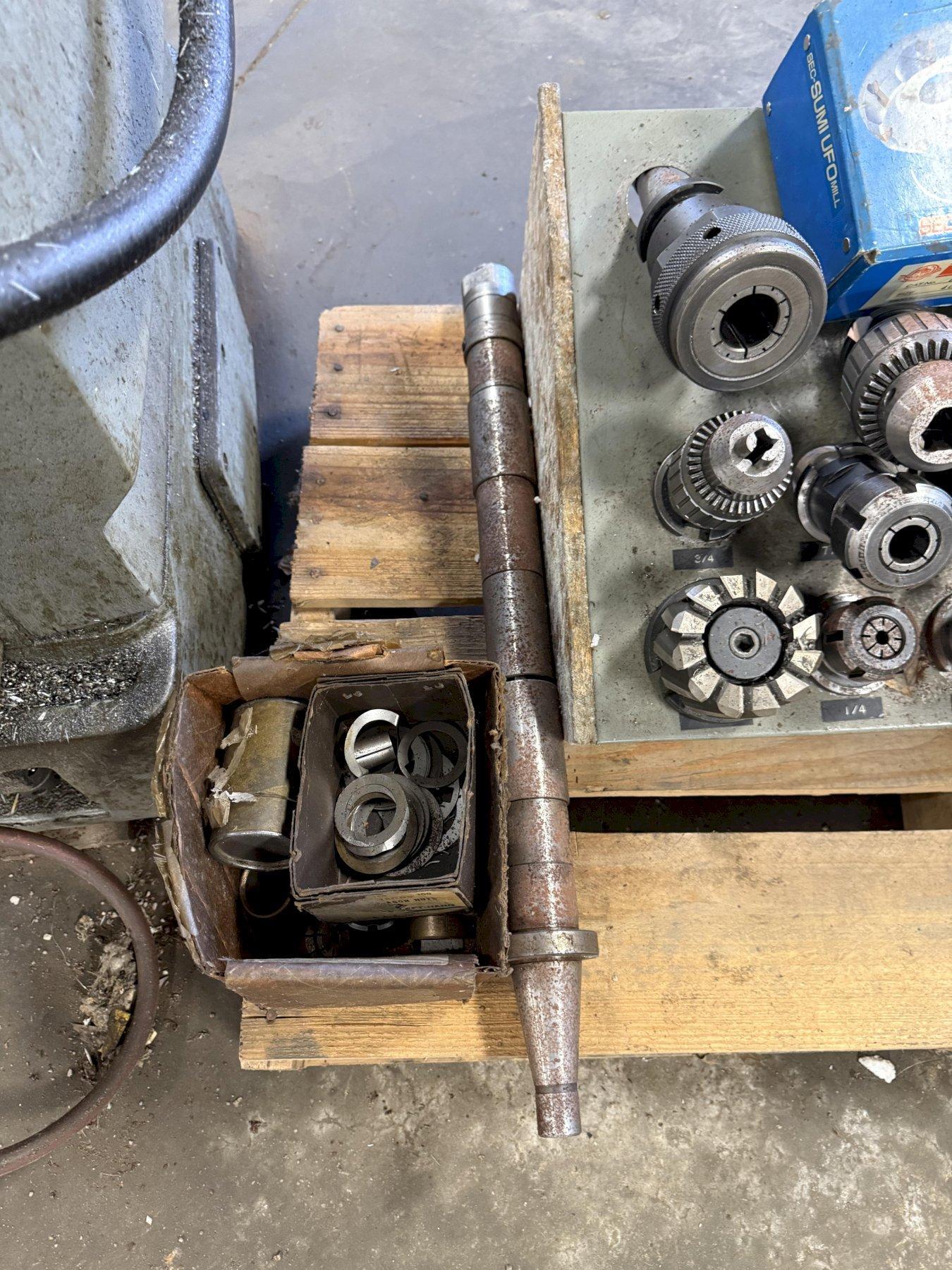

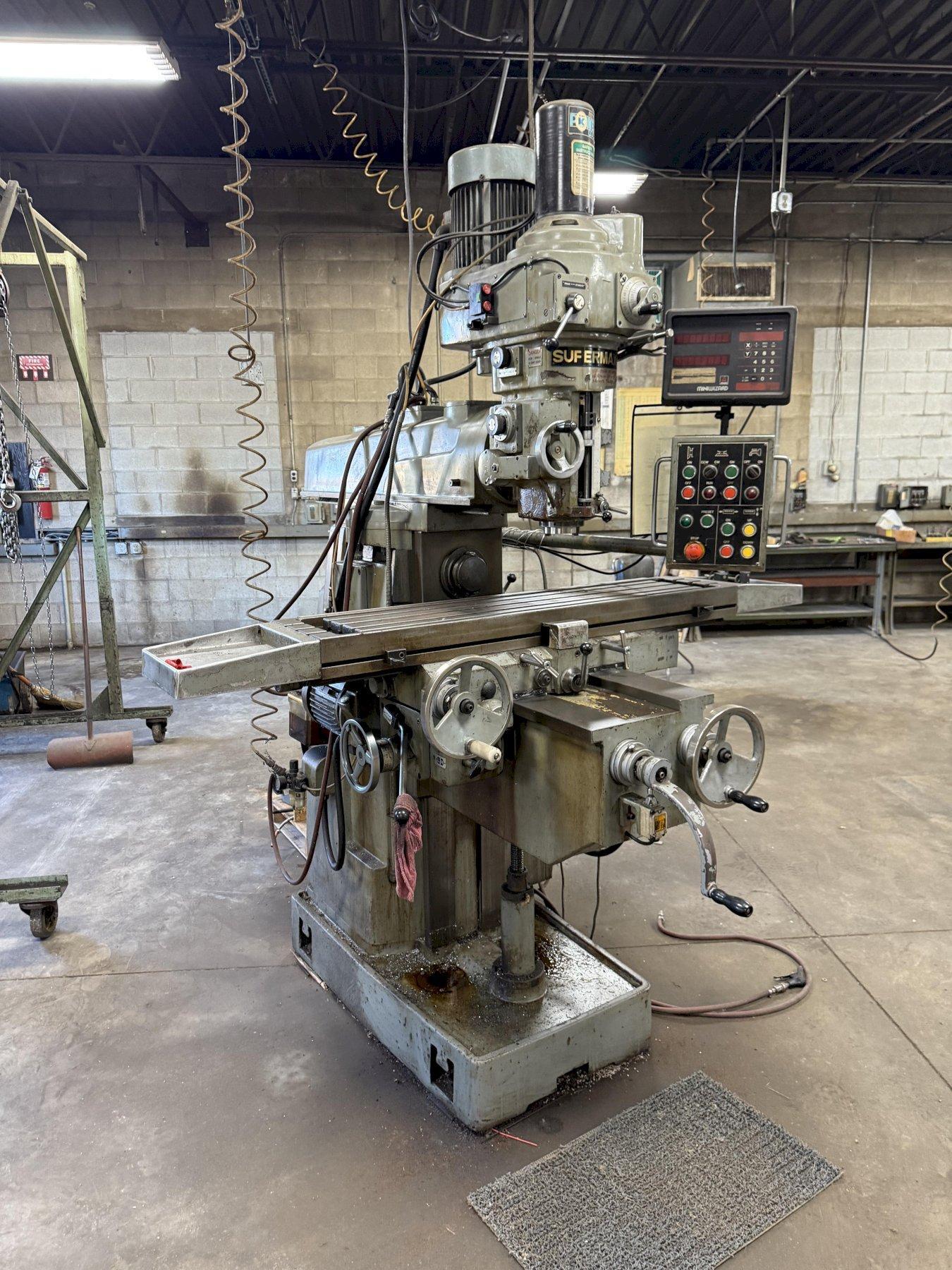

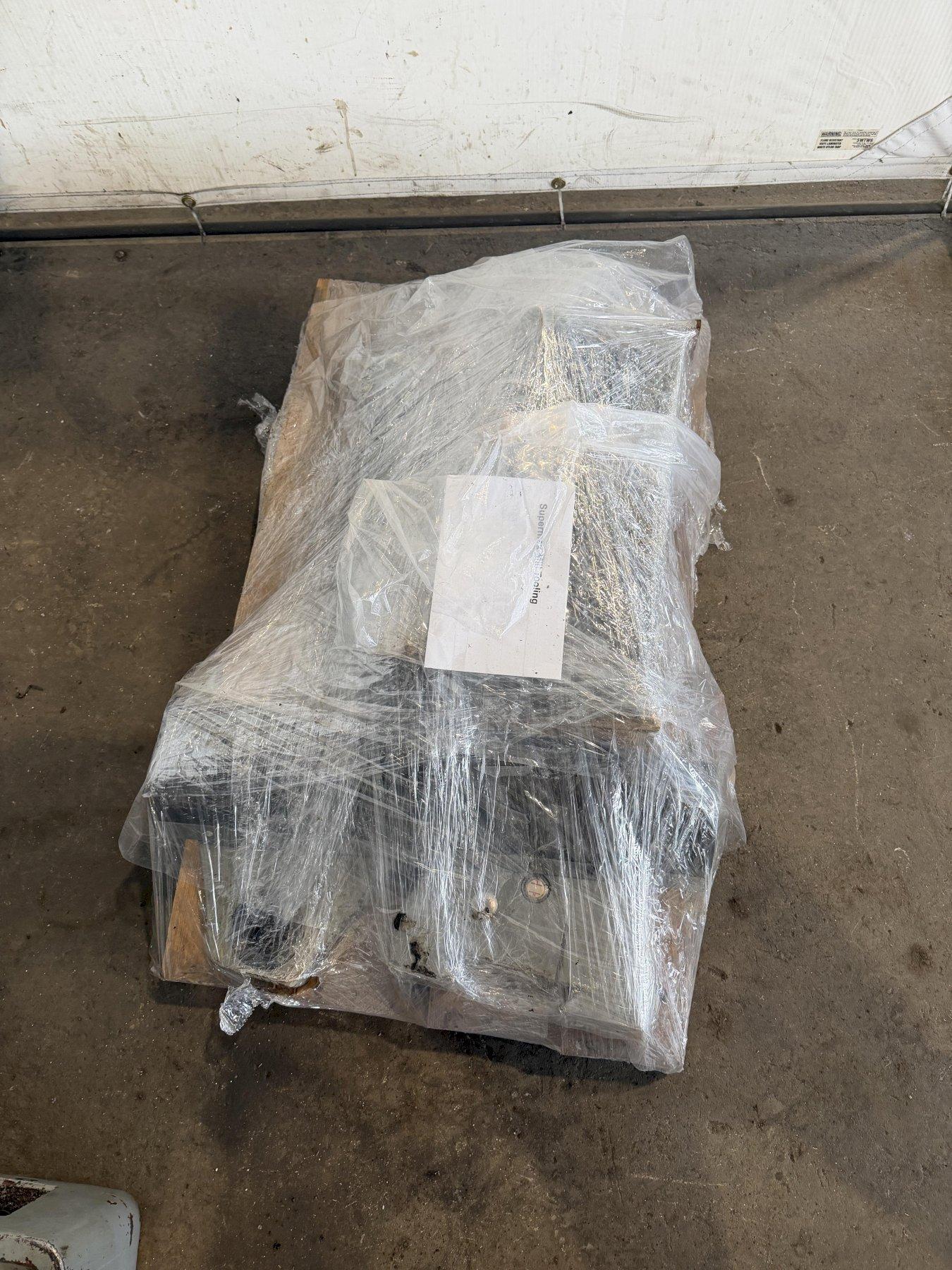

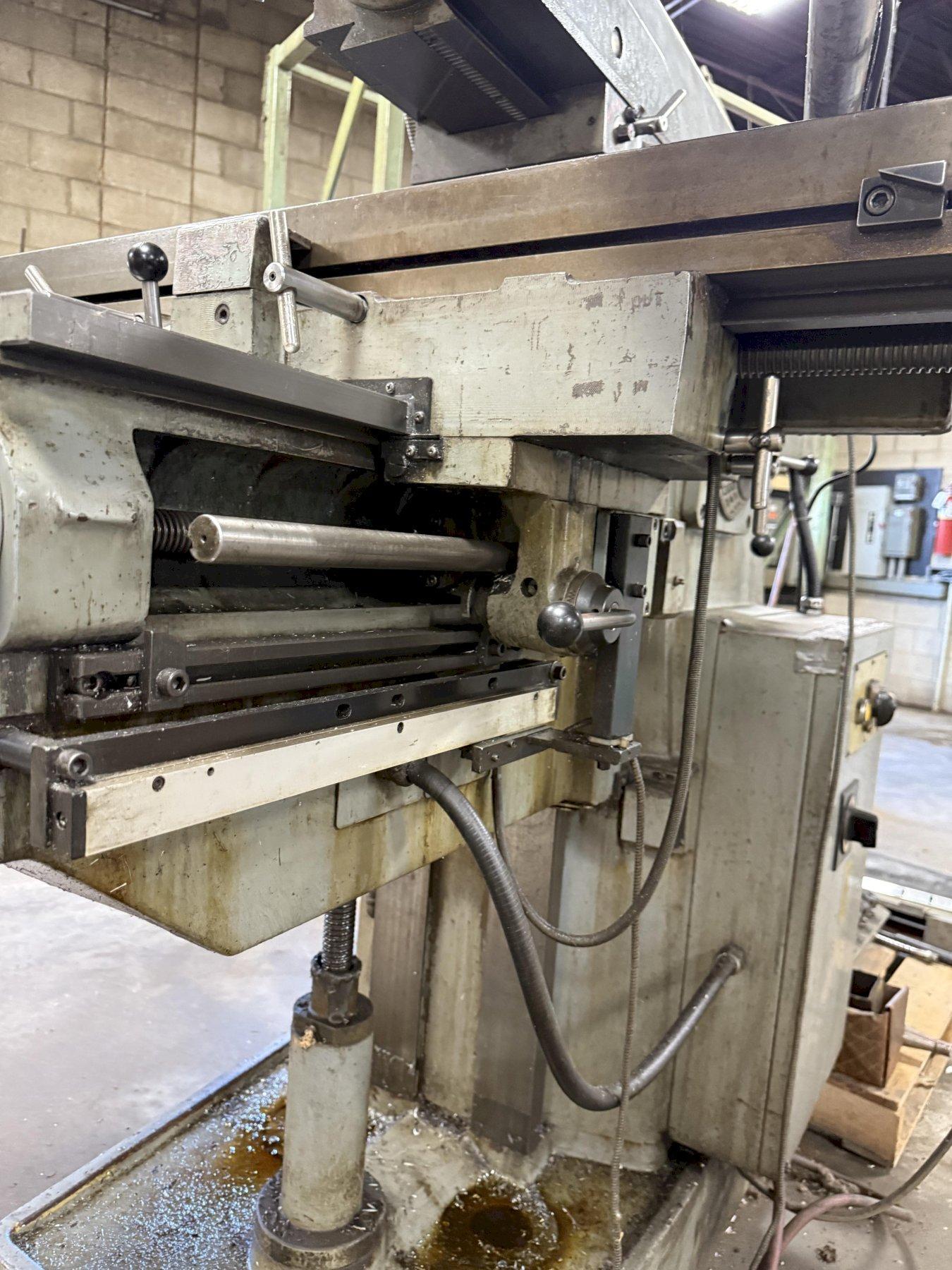

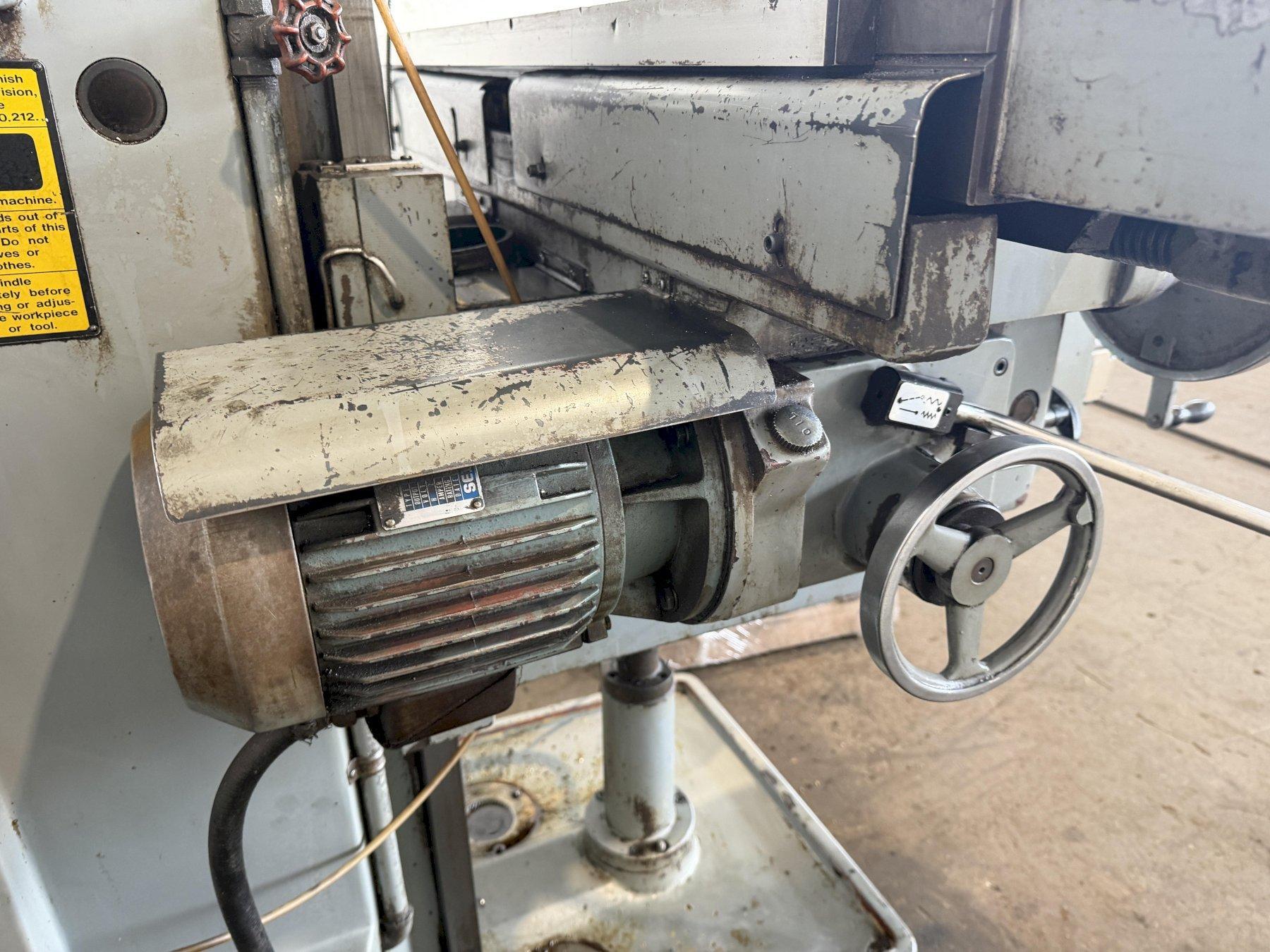

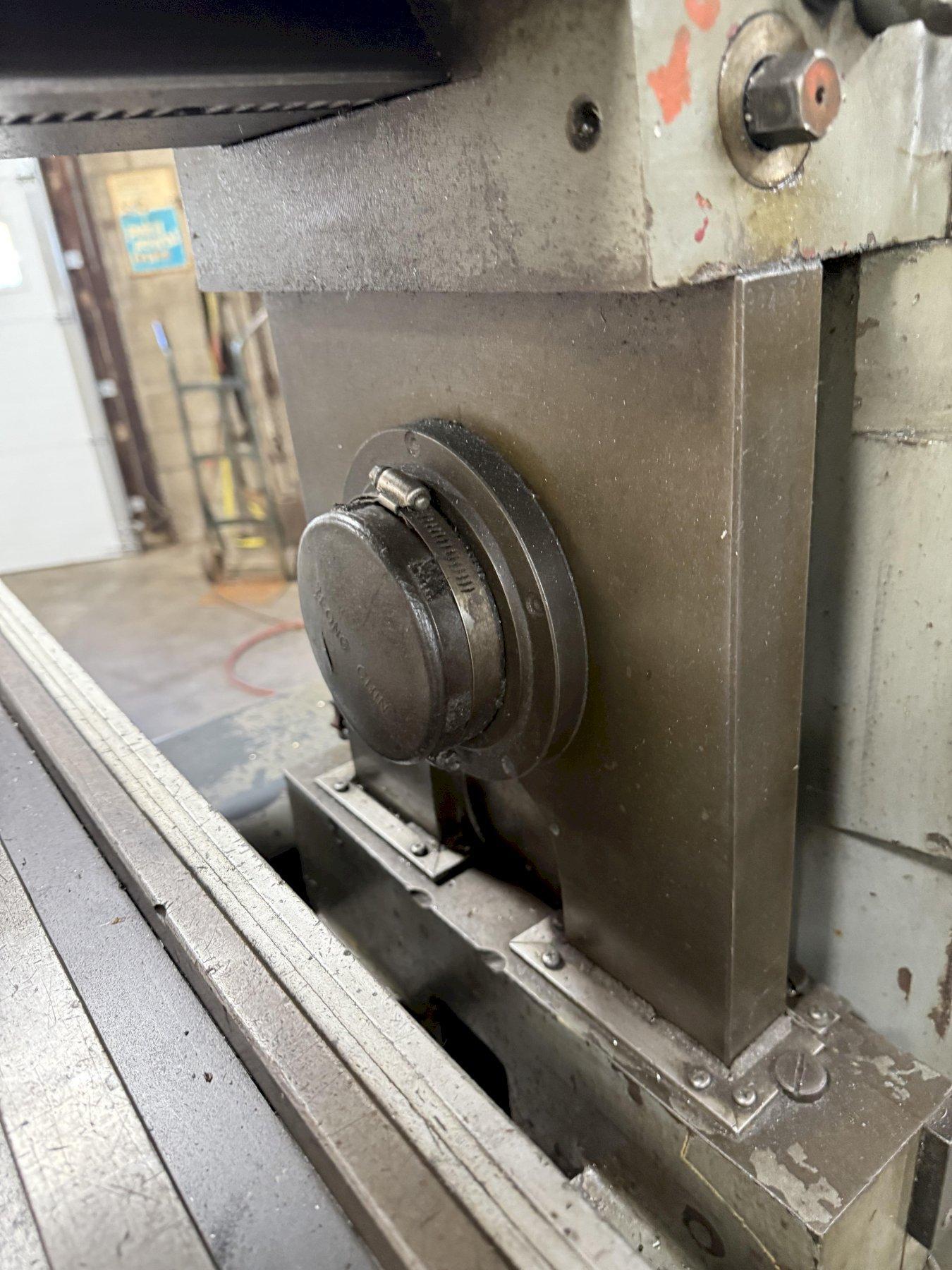

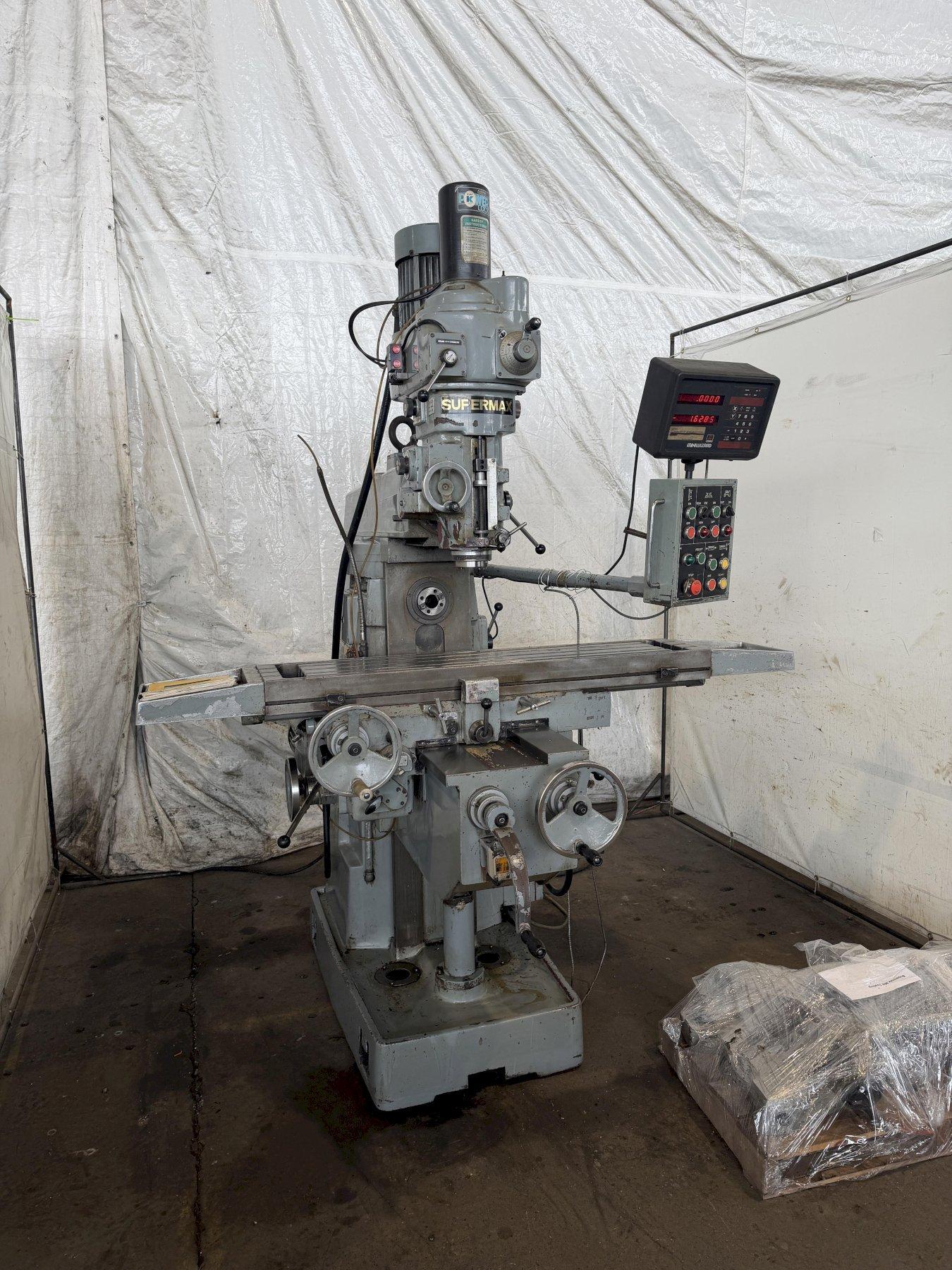

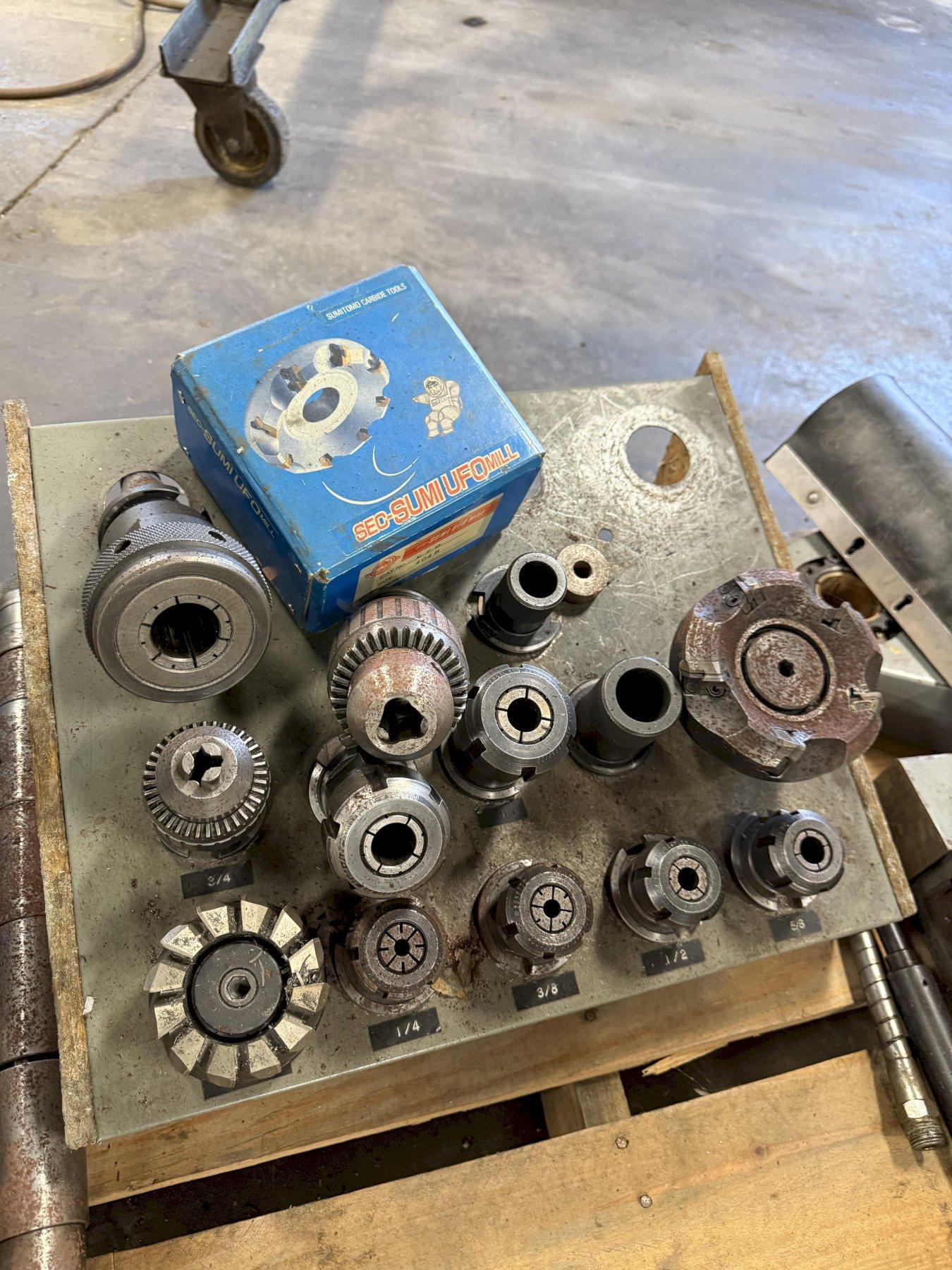

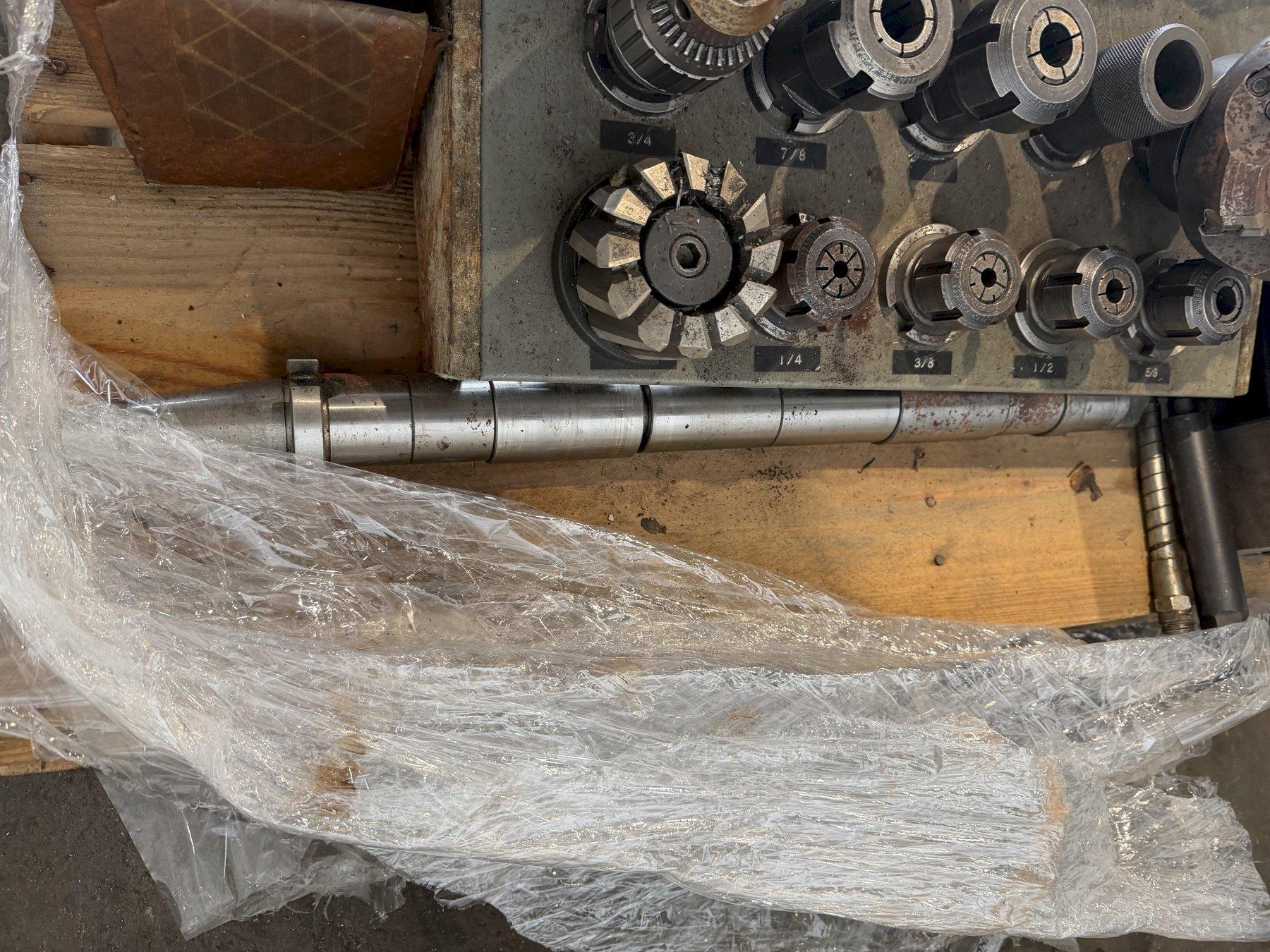

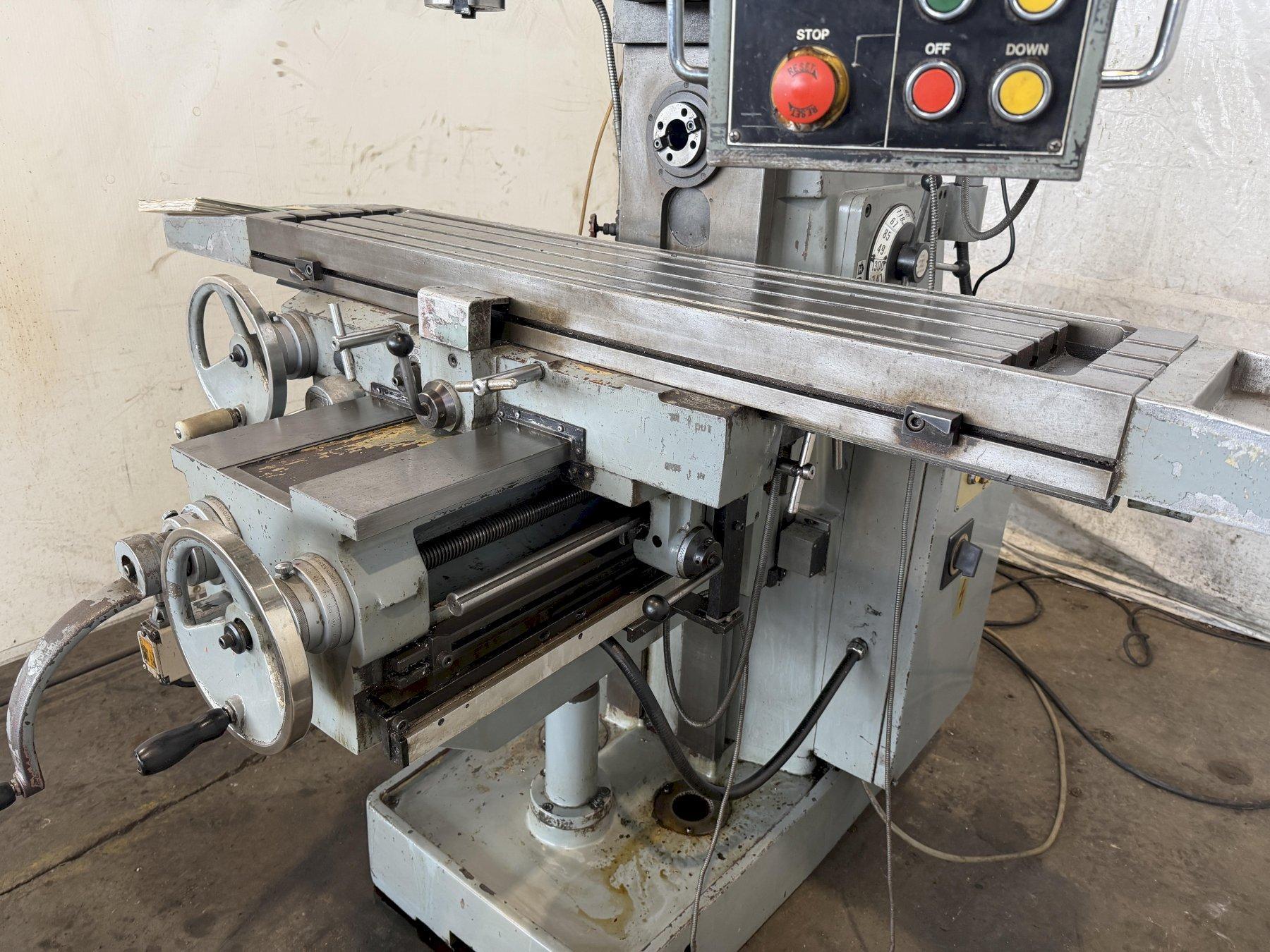

SUPERMAX YCM-2GS VERTICAL/HORIZONTAL UNIVERSAL MILL W/ TOOLING. STOCK #1008125

Stock #: 1008125

Equipped With

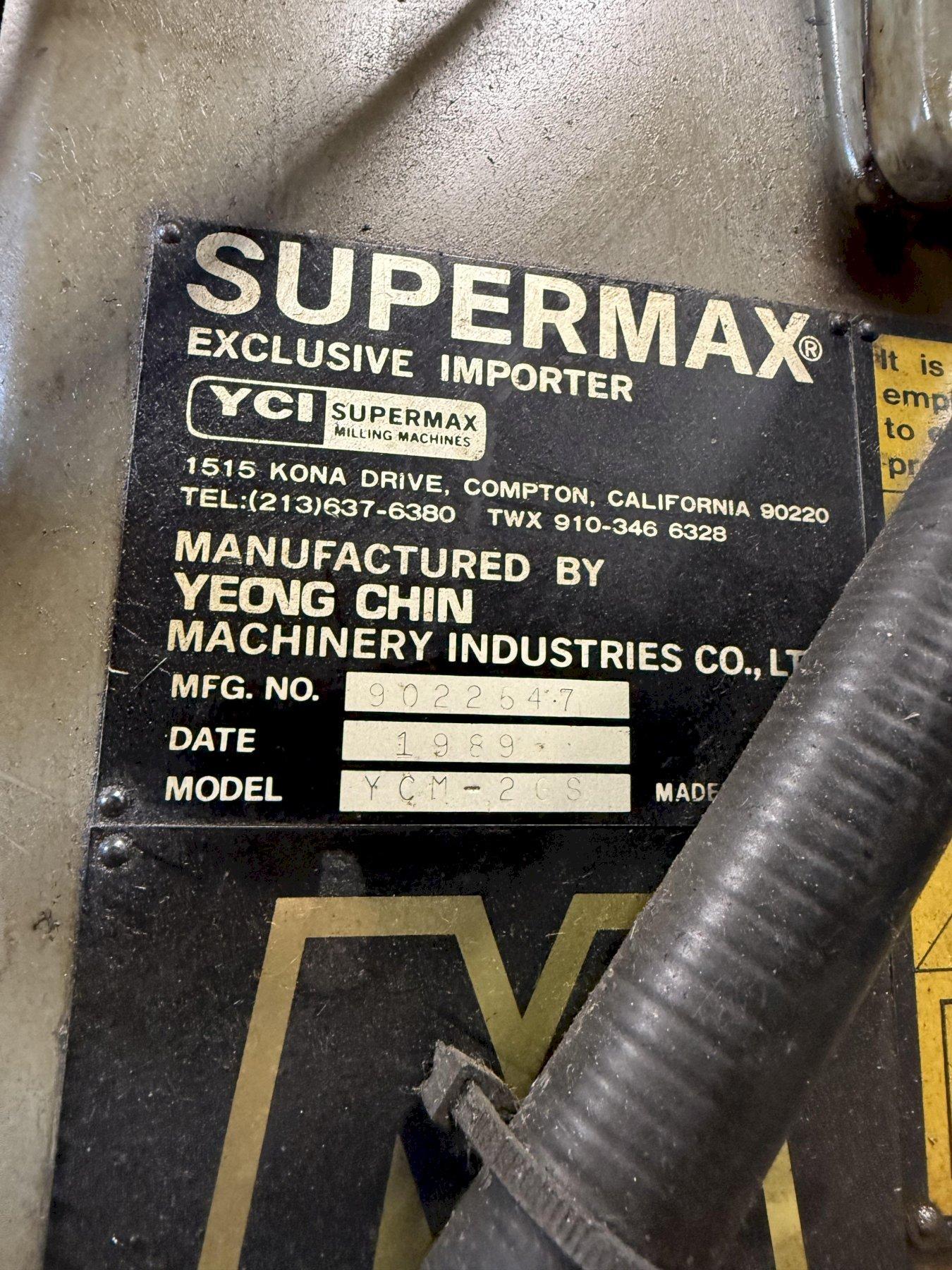

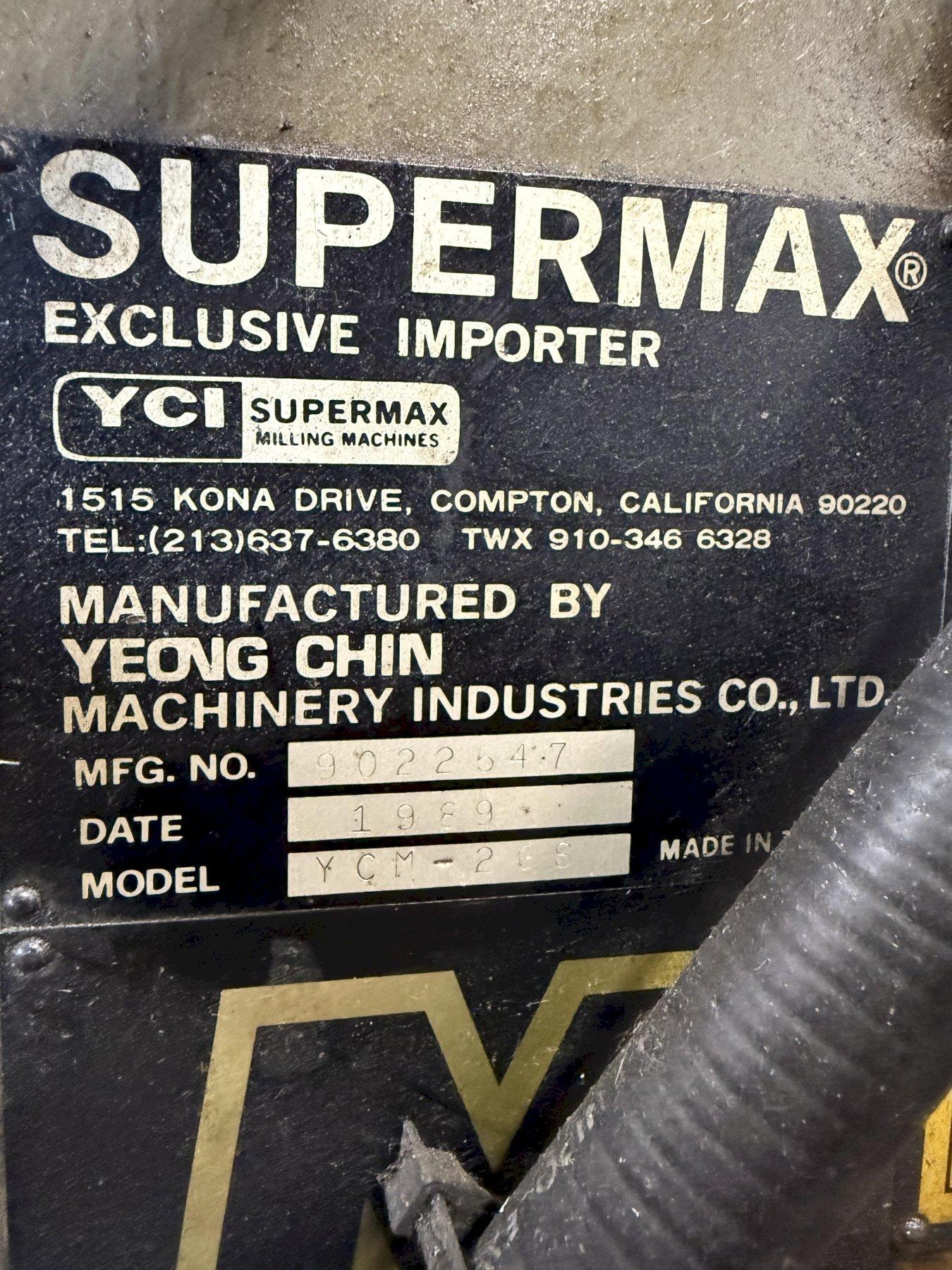

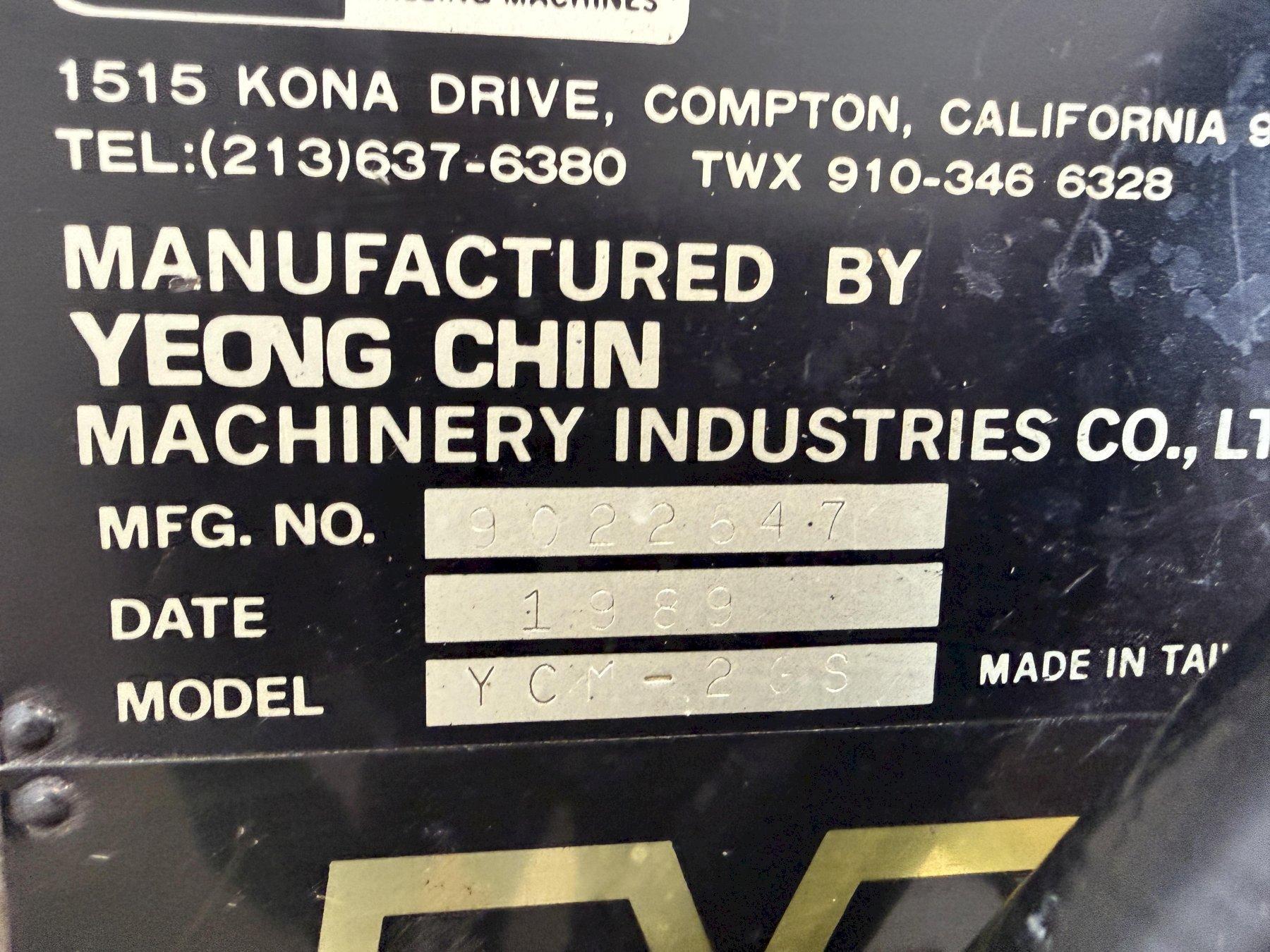

SERIAL......................: 9022547
MODEL.......................: YCM-2GS

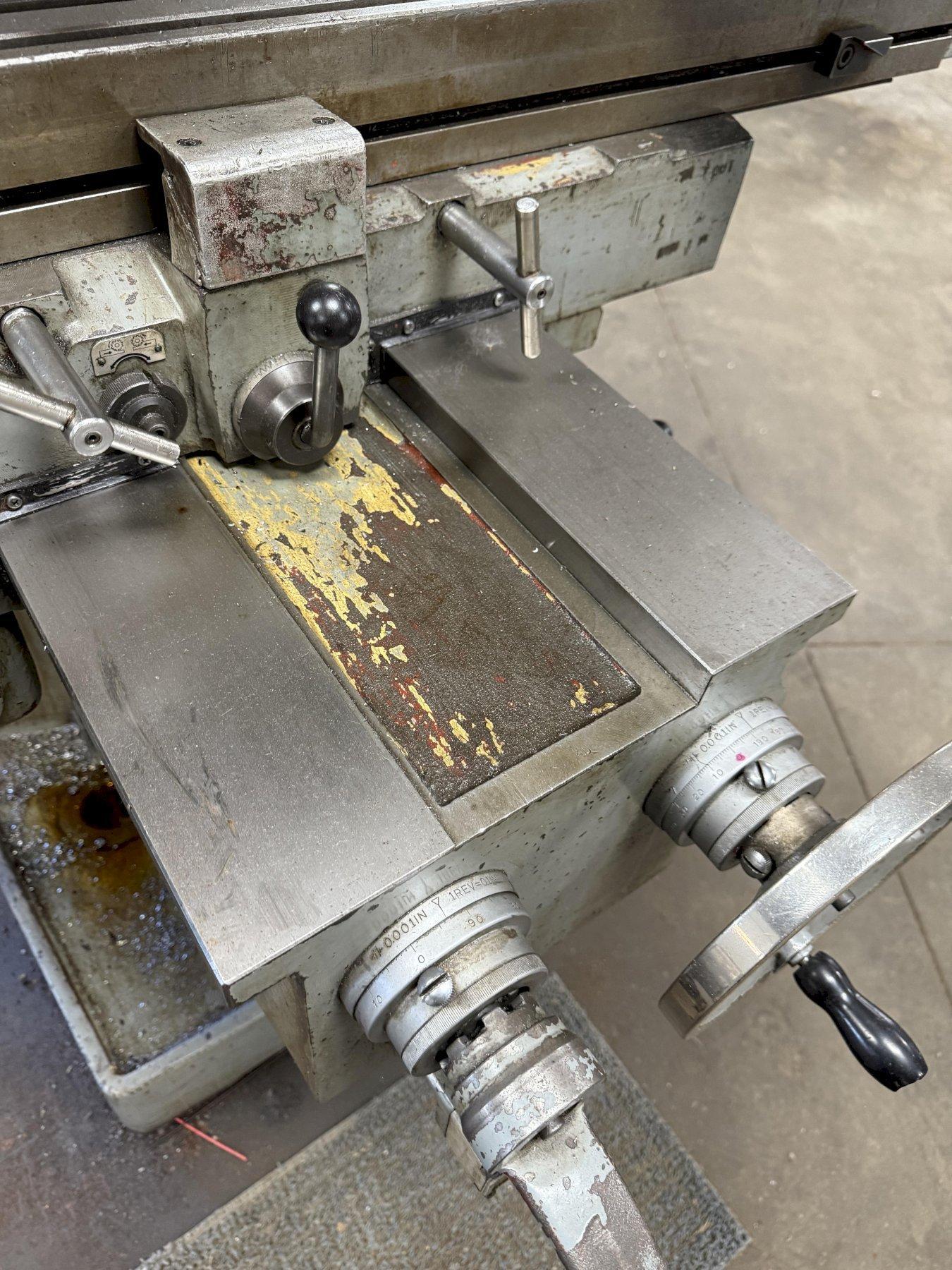

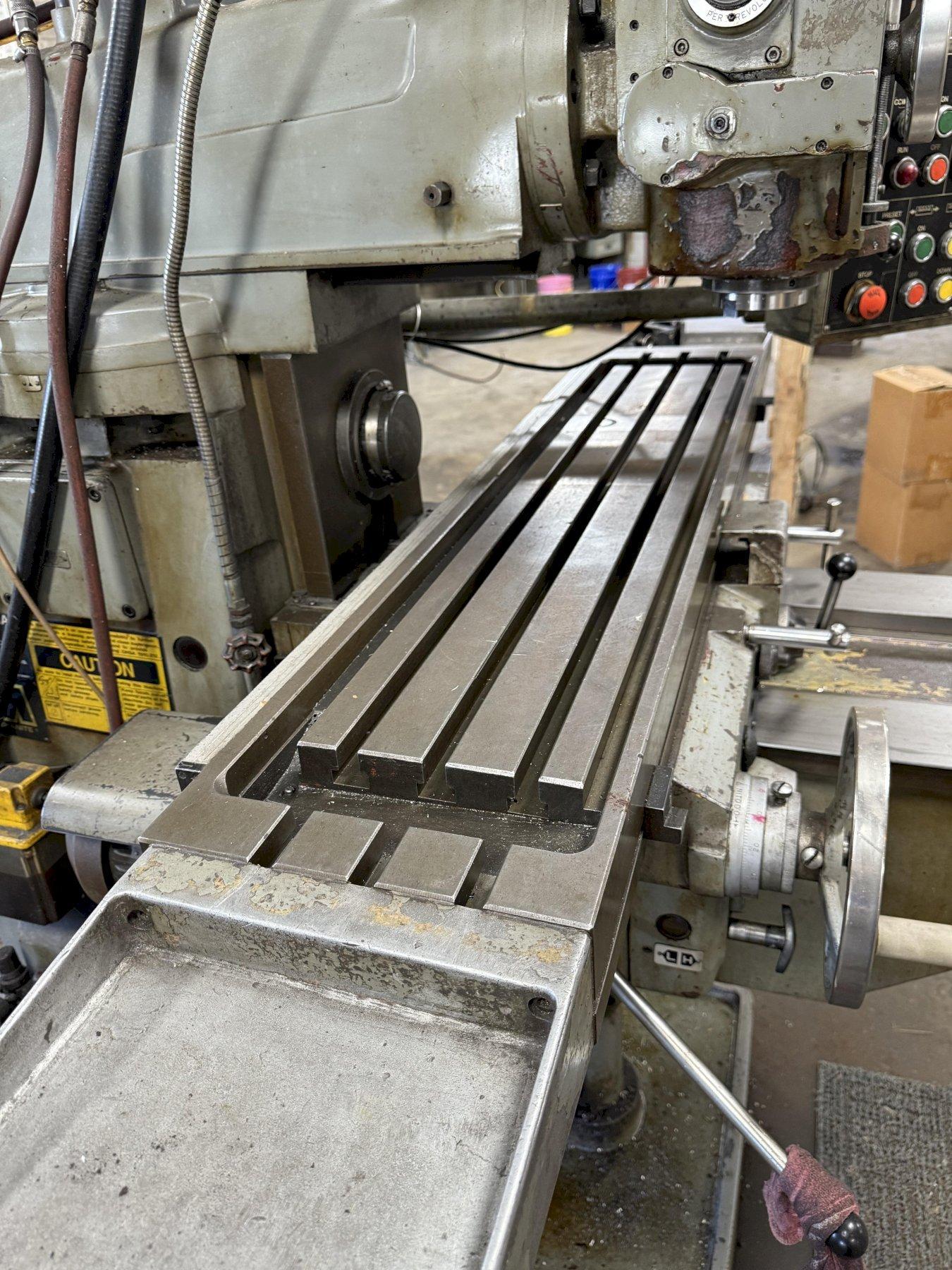

TABLE SIZE..................: 51.2" X 11"
TABLE TRAVEL LONGITUDINAL...: 39.4"
CROSS TRAVEL................: 14.2"
VERTICAL....................: 17.7"
TABLE FEEDS:
LONGITUDINAL & CROSS........: 1/2 TO 23-3/4 IPM
RAPID TRAVERSE:
LONGITUDINAL & CROSS........: 118 IPM
VERTICAL....................: 31-1/2 IPM

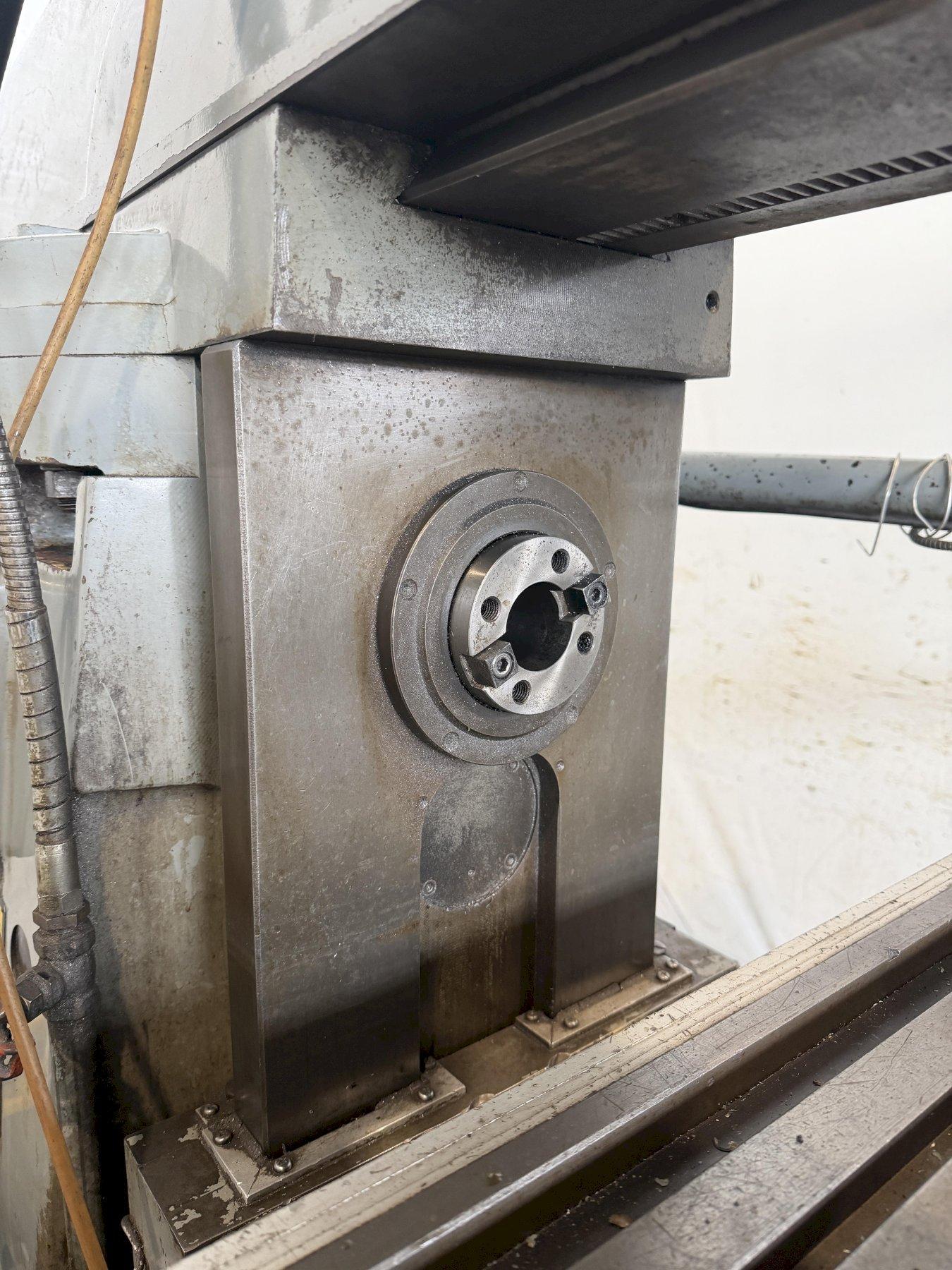

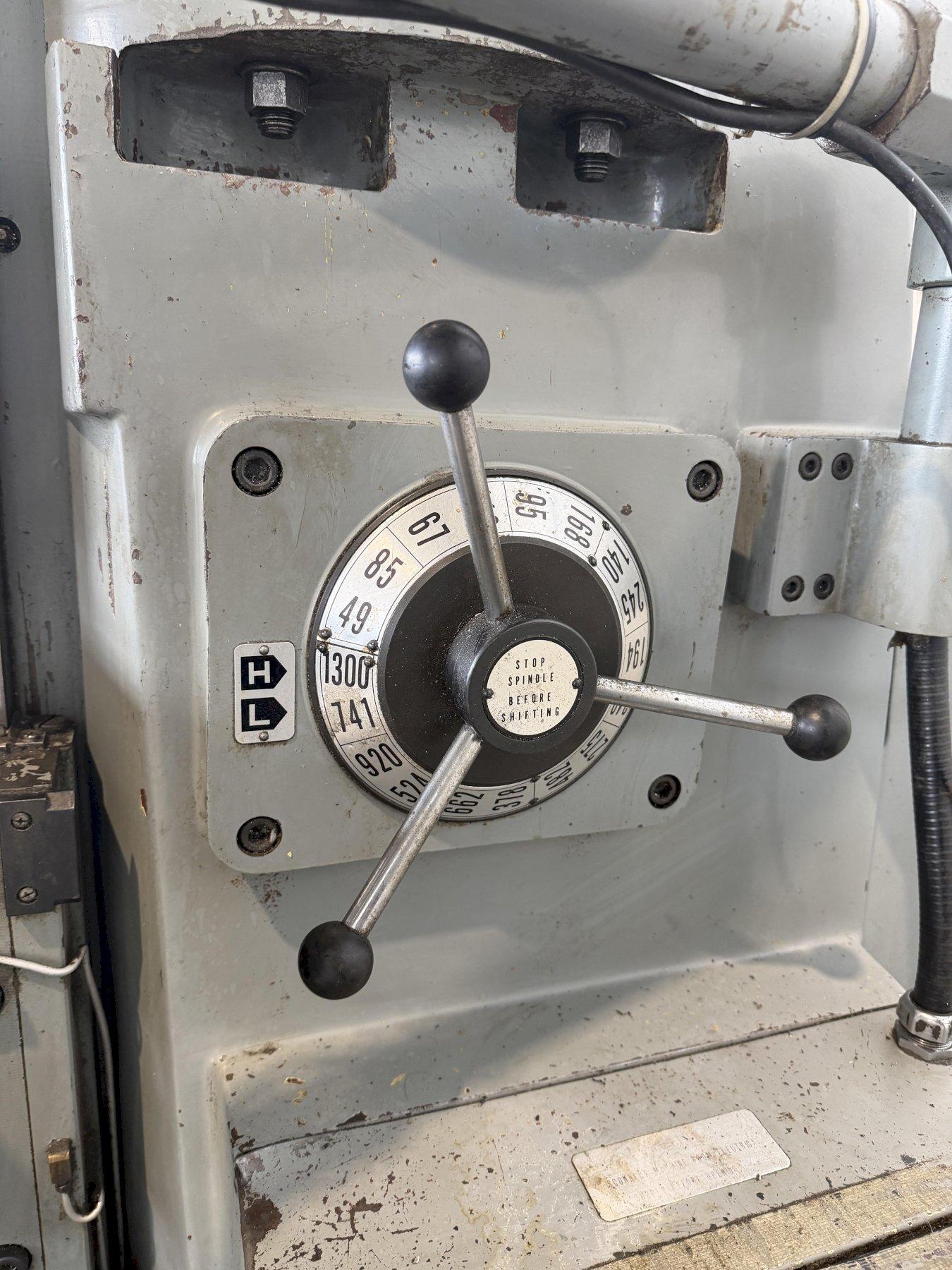

HORIZONTLE SPINDLE:
TAPER.......................: 40
NUMBER OF FEEDS.............: 9

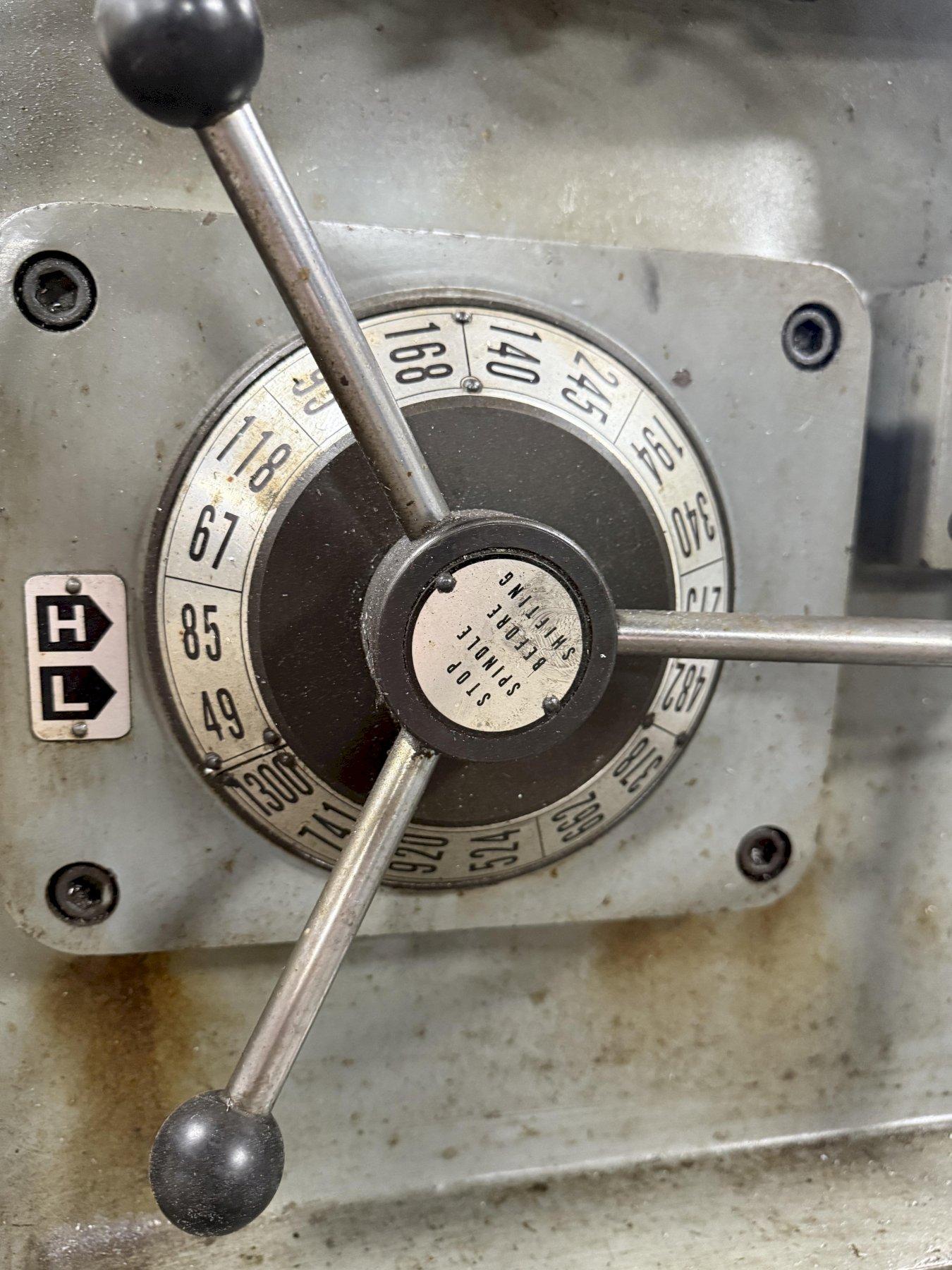

RANGE OF SPEEDS.............: 85 TO 1300 RPM
MAIN SPINDLE MOTOR..........: 5 HP

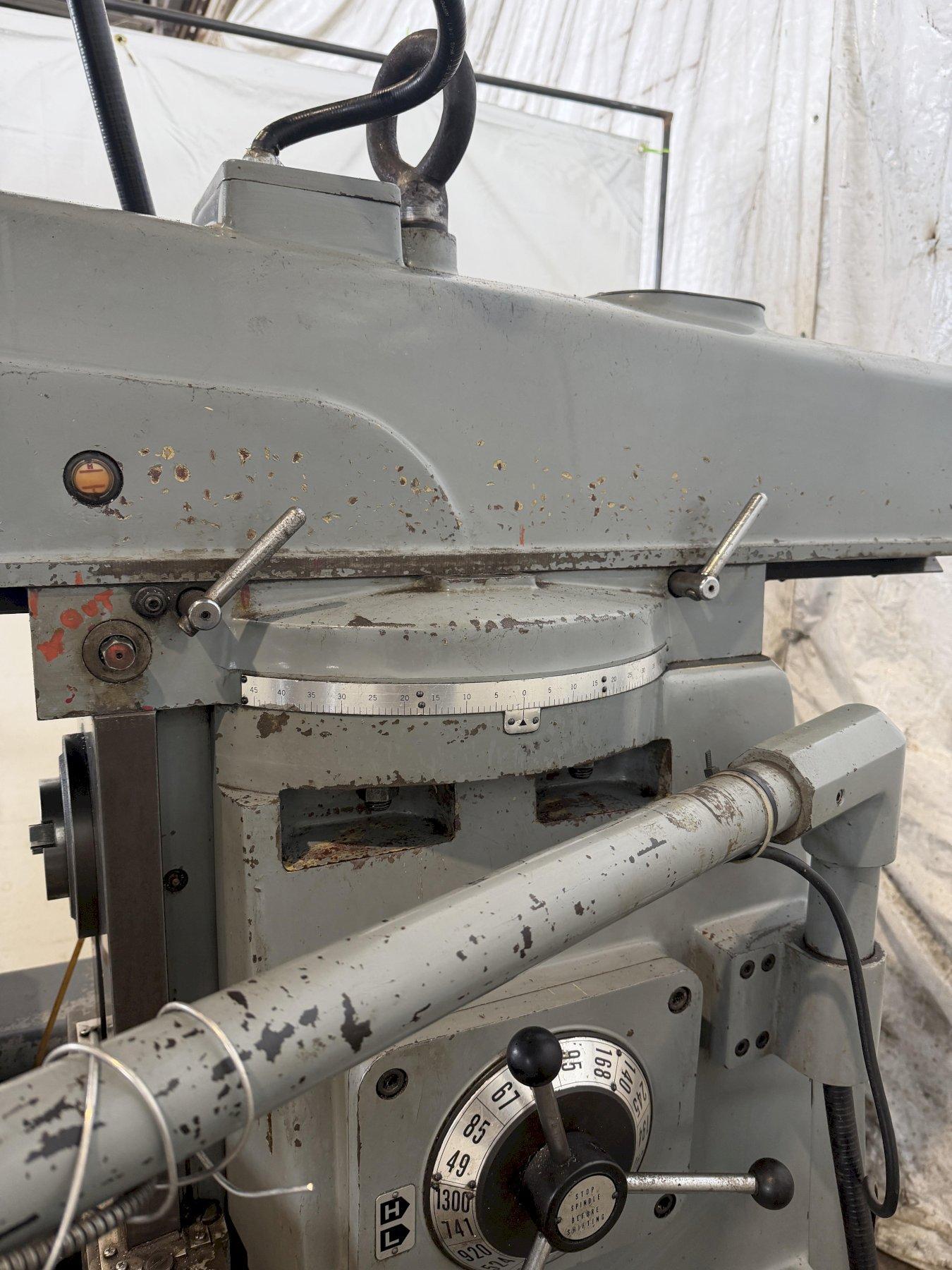

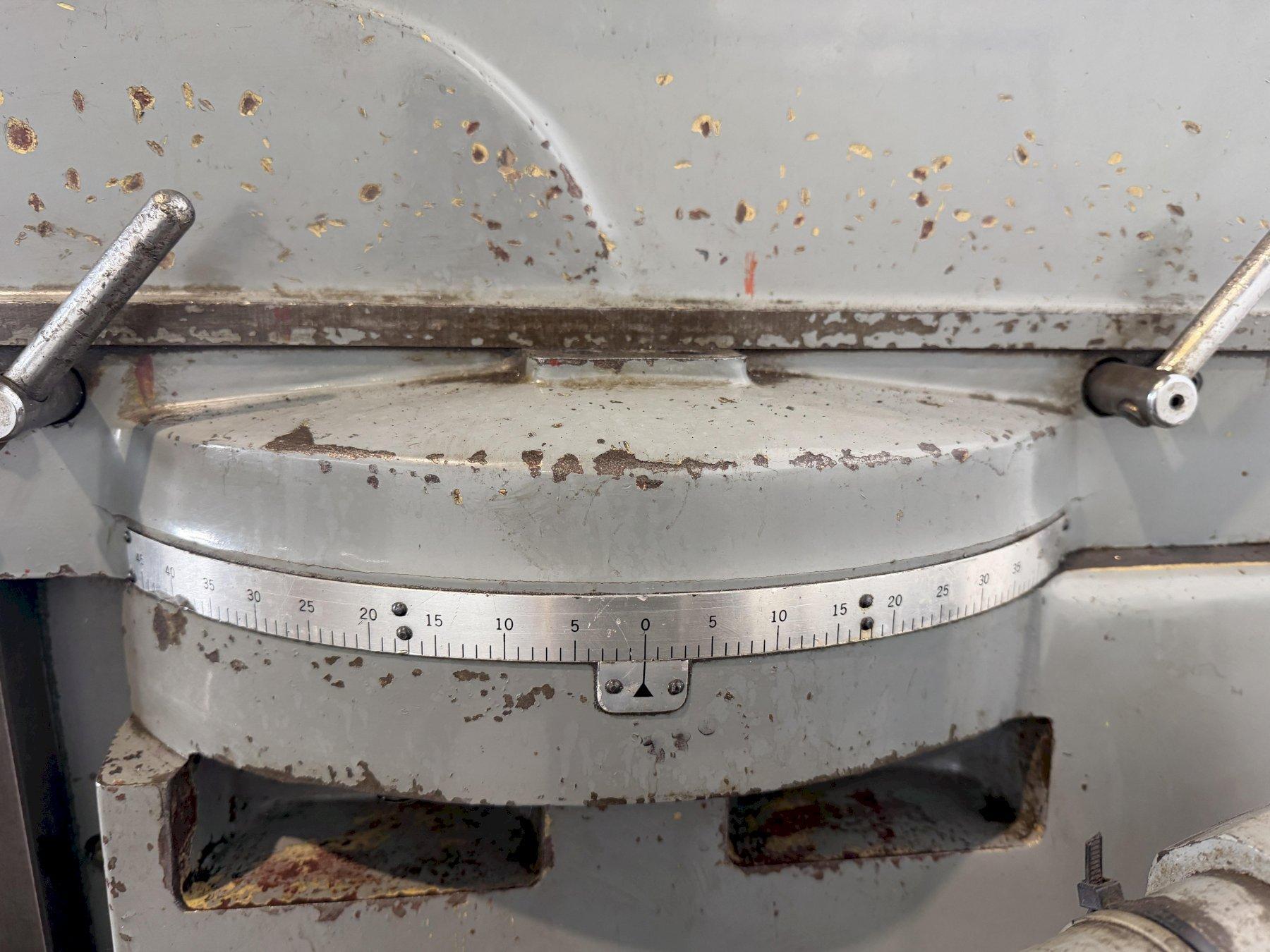

SWIVEL OF COLUMN............: 45 DEGREES

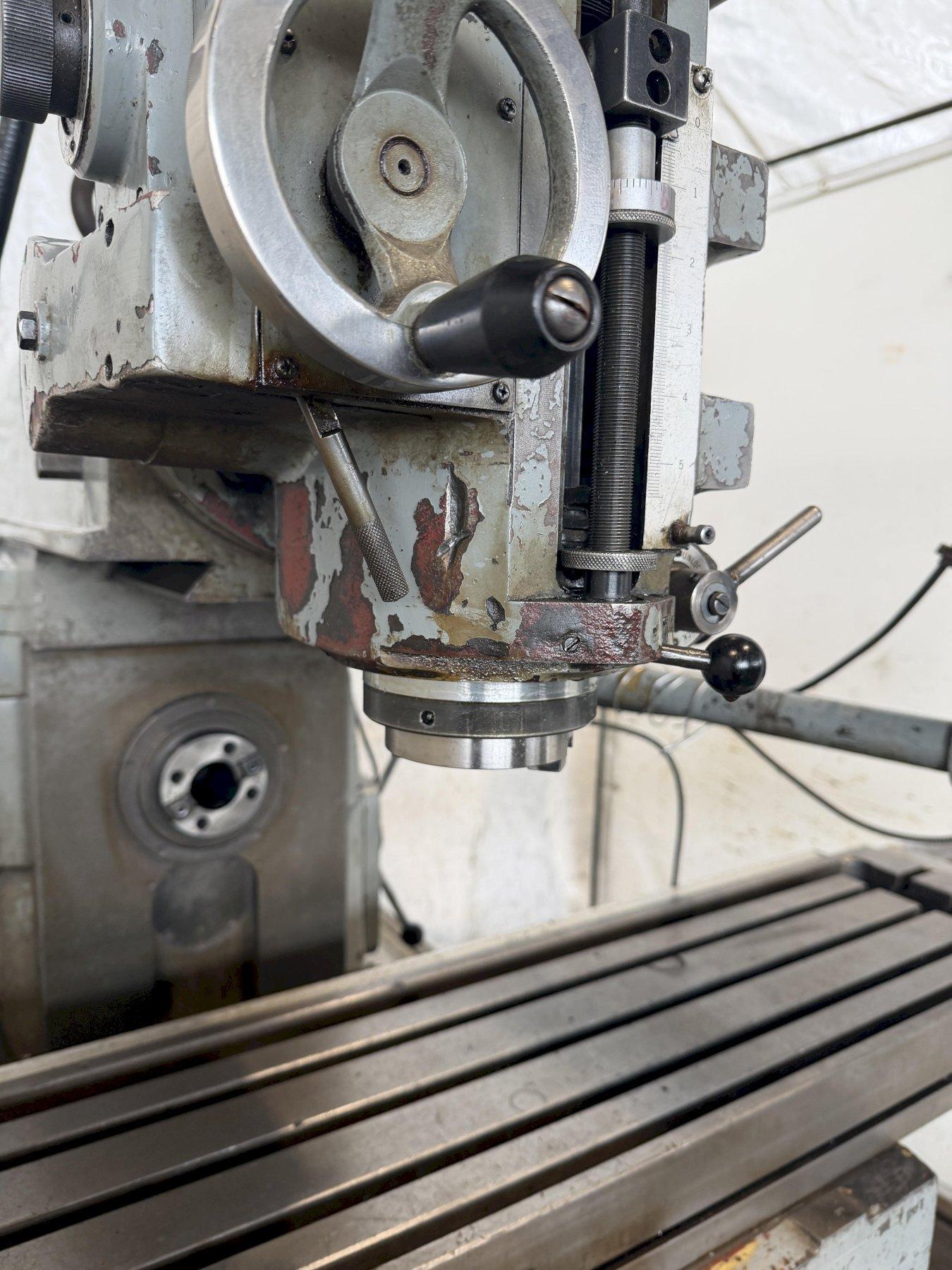

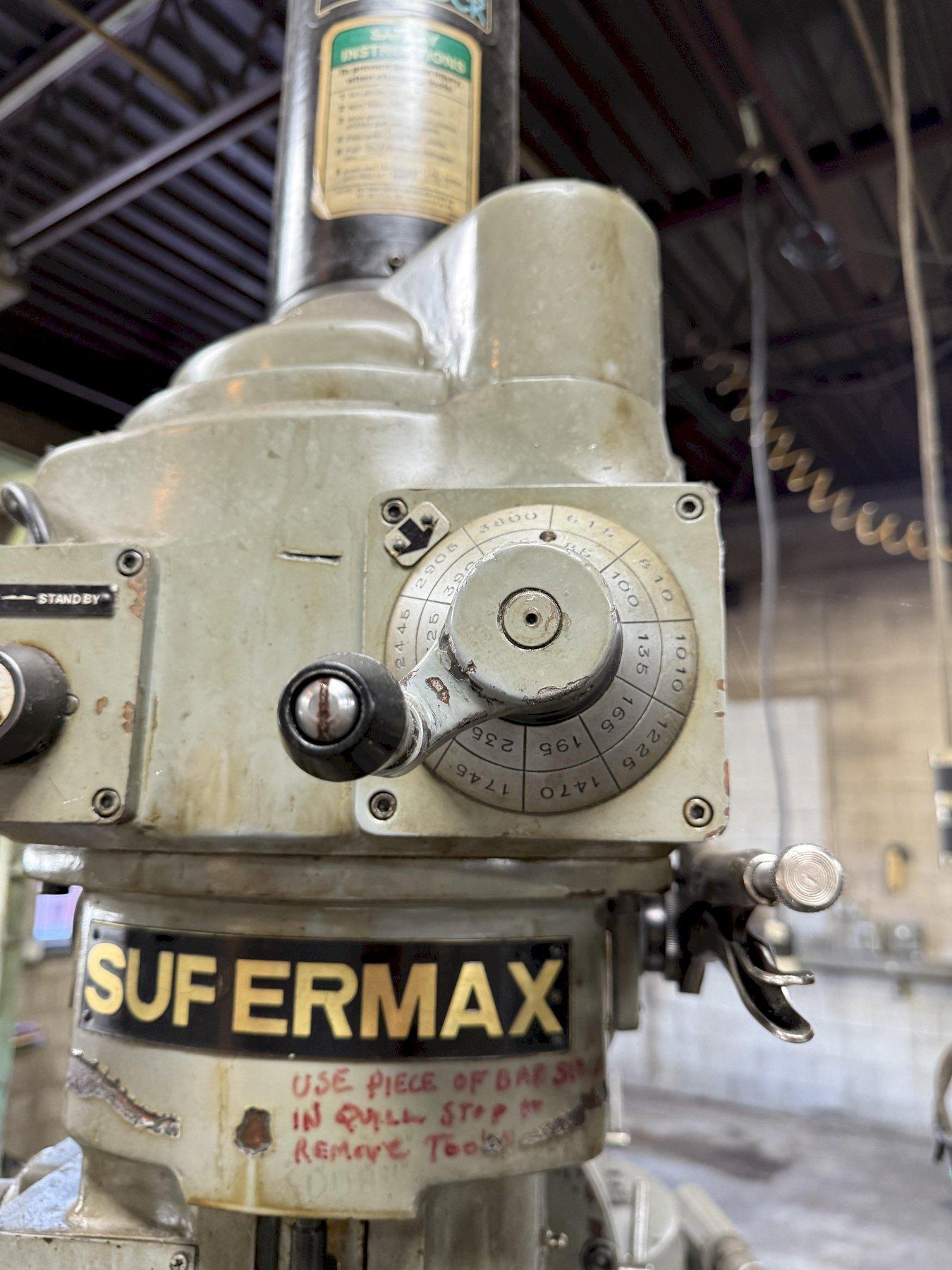

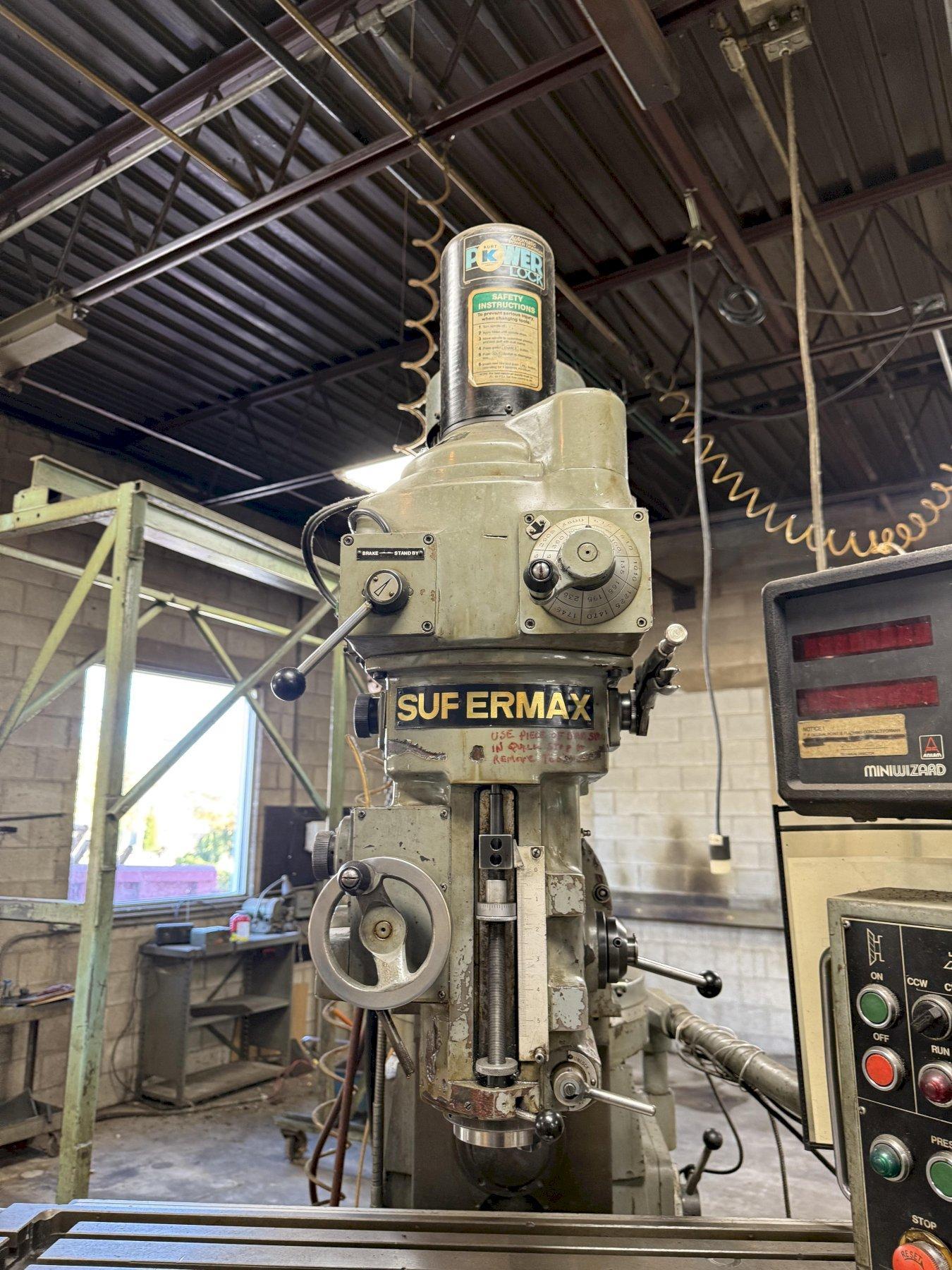

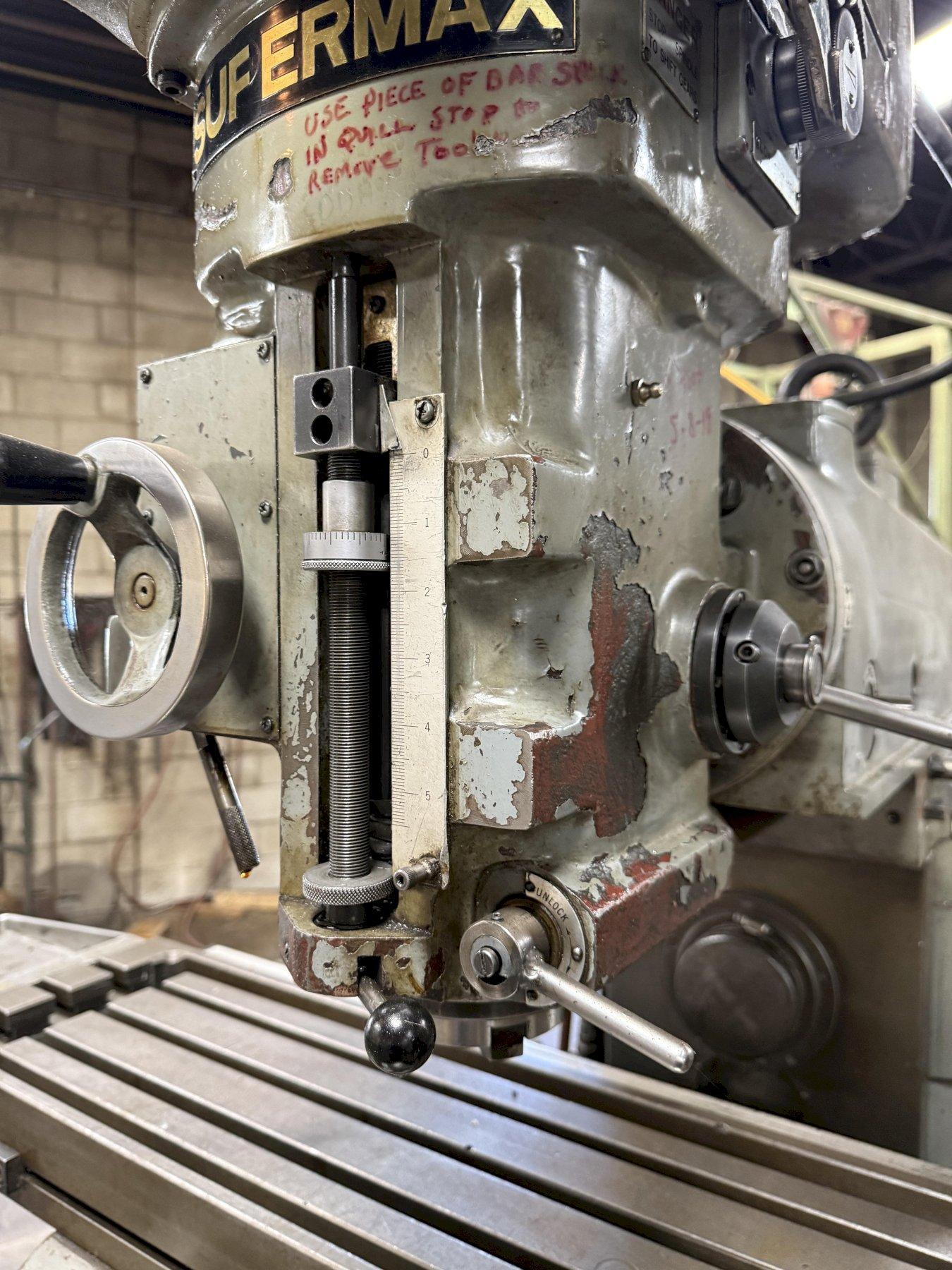

VERTICAL SPINDLE:
MAIN MOTOR..................: 5 HP
RANGE OF SPEEDS.............: 75 TO 4220 RPM
SPINDLE NOSE TAPER..........: 40 TAPER
QUILL FEEDS.................: 3: .0015, .005, .003 IPR
QUILL TRAVEL................: 5-1/2"
SWIVEL ANGLE OF HEAD........: 90 DEGREES
MACHINE WEIGHT: 5,720 LBS
DIMENSIONS: 74" LONG X 62" WIDE X 94" TALL
