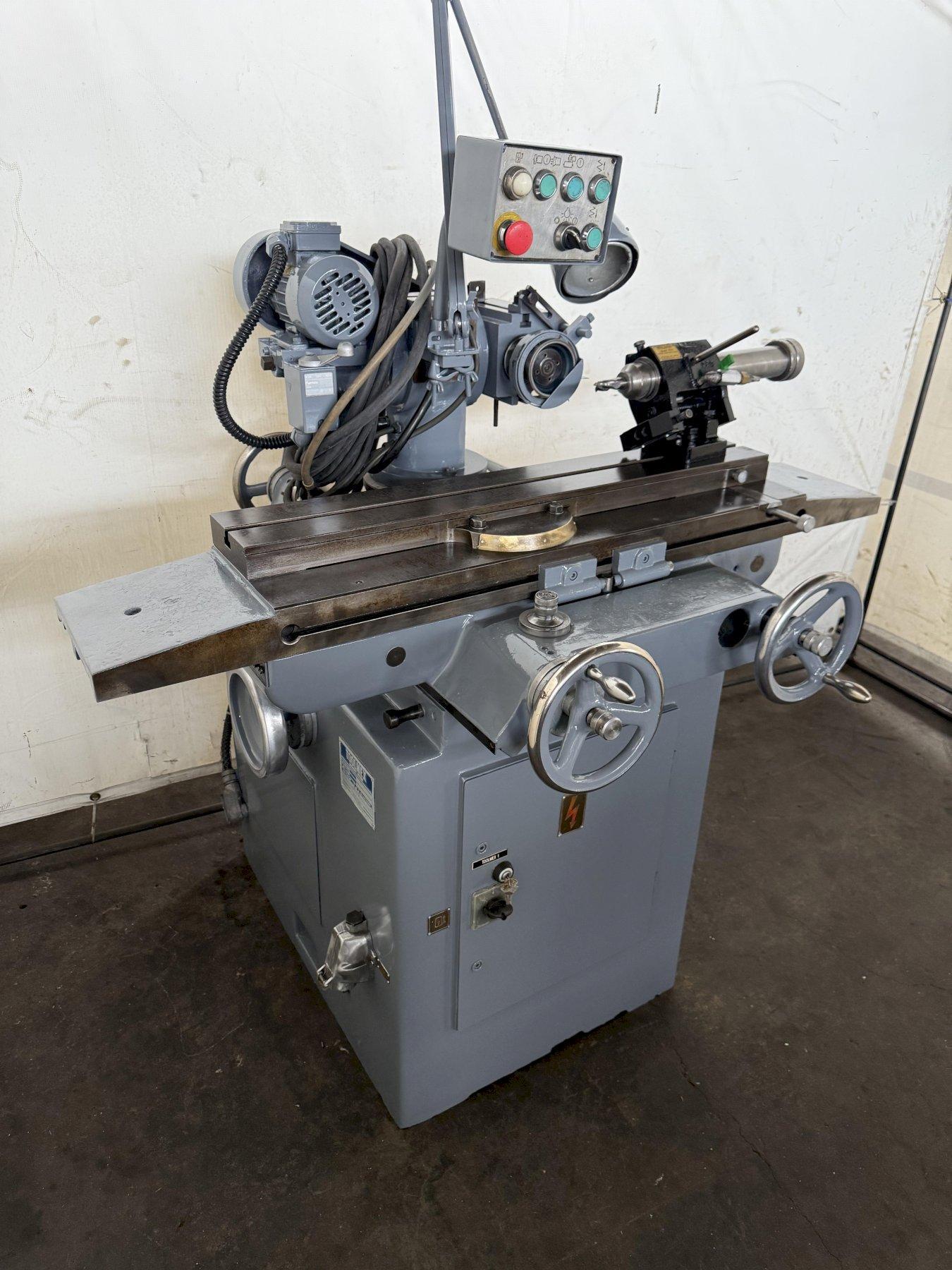

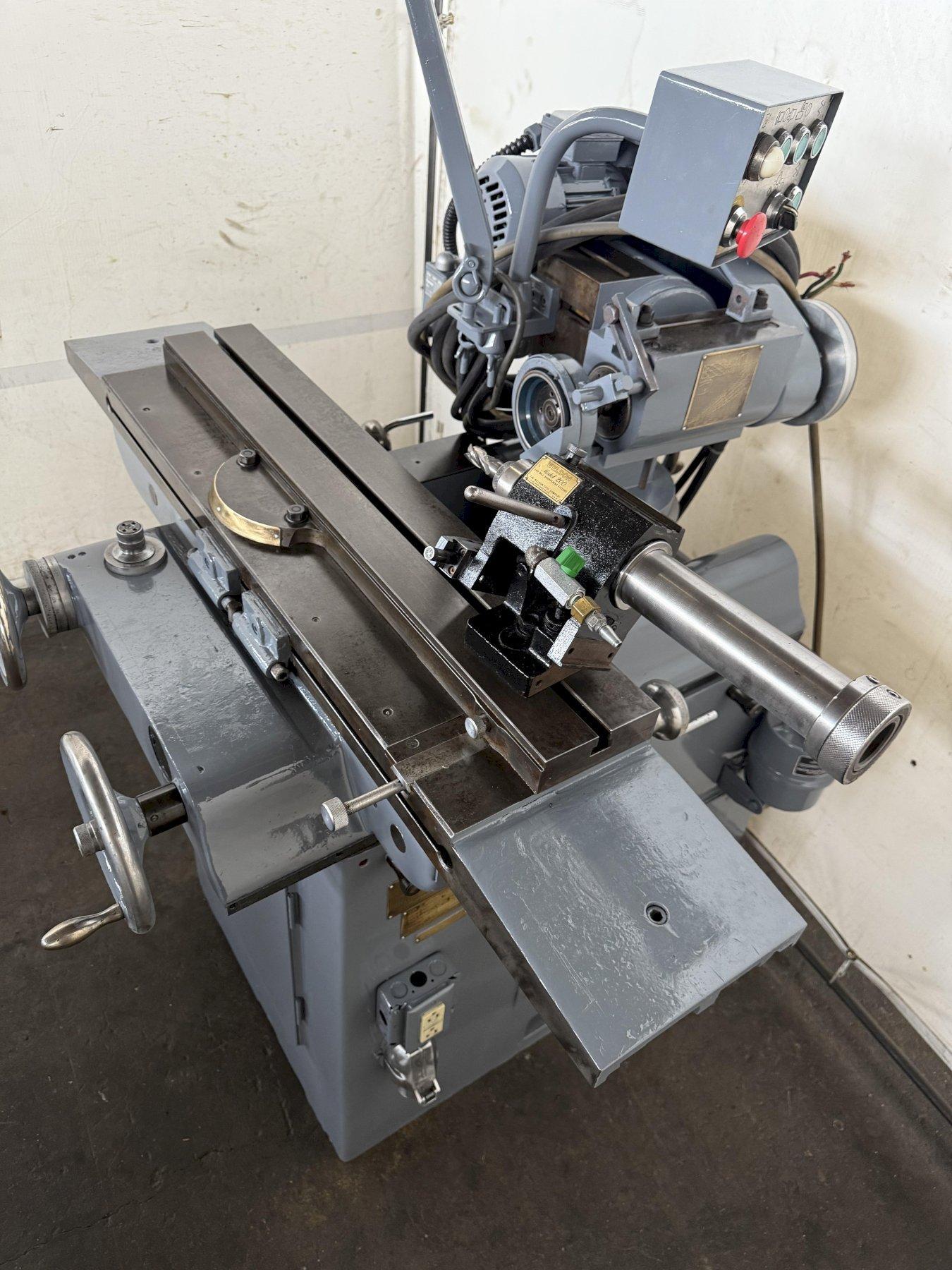

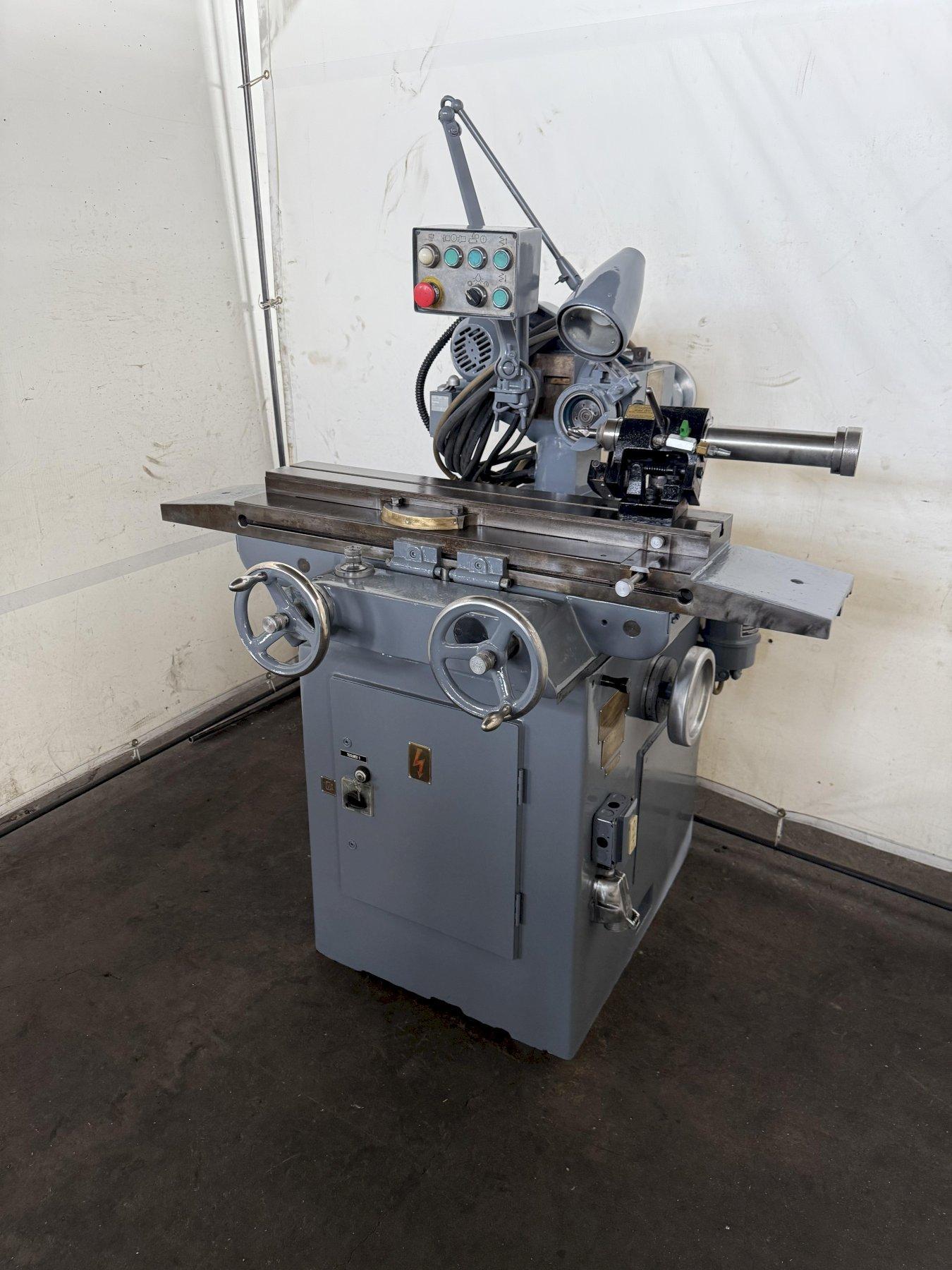

Toolmex NUA25M Tool & Cutter Grinder

Stock #: 1111017

Equipped With

SPECIFICATIONS:

Toolmex NUA-25M Tool & Cutter Grinder

Manufacturer: Toolmex Model: NUA-25M

Specifications:��(Subject to Verification)
Table Size: 36" x 5.25"
Max Center Distance: 25"
Max Swing Over Table: 9.8"
Distance Wheel Center to Table: 3.5" - 13.75"
Longitudinal Table Travel: 17"
Cross Table Travel: 9.5"

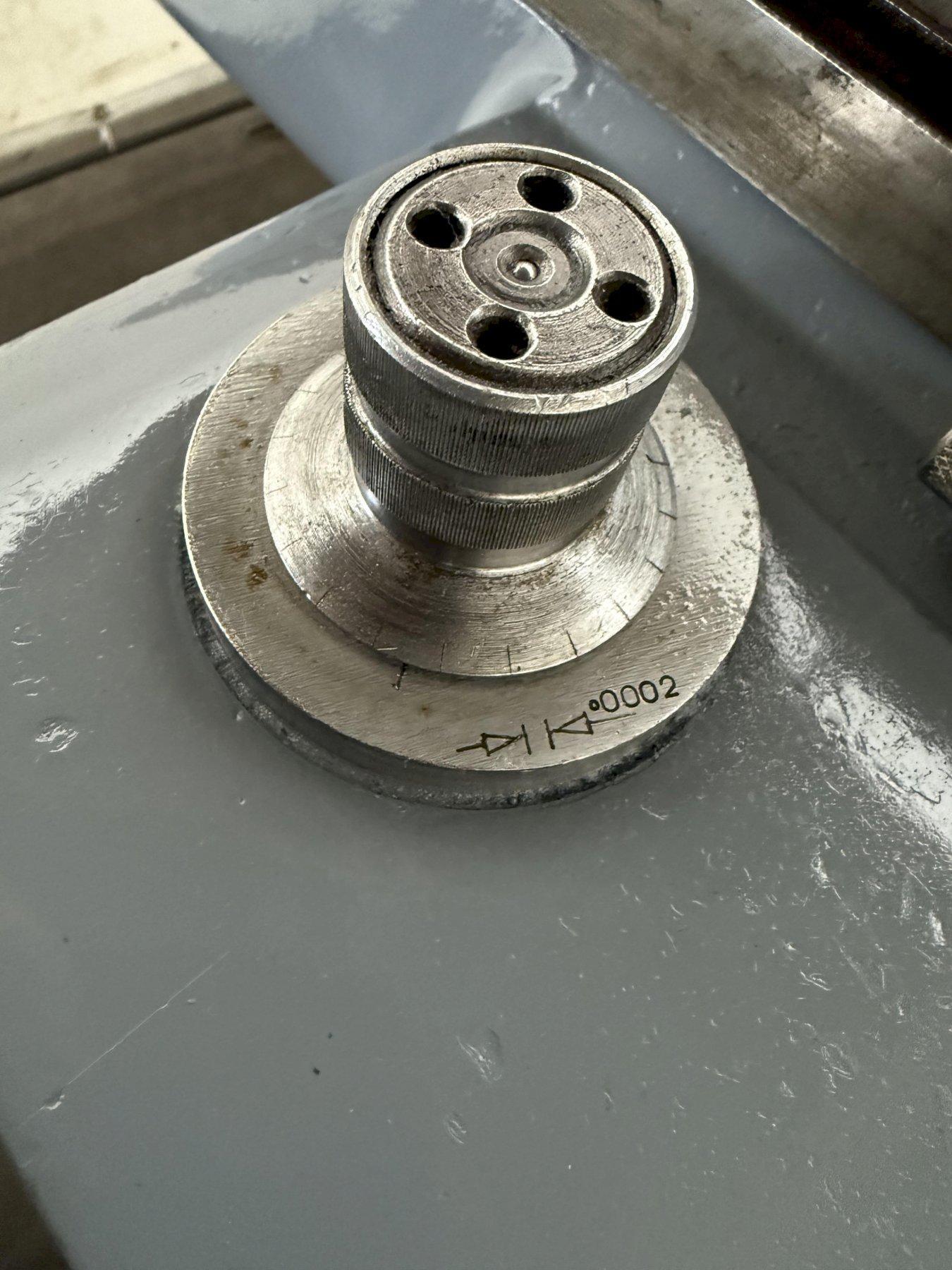

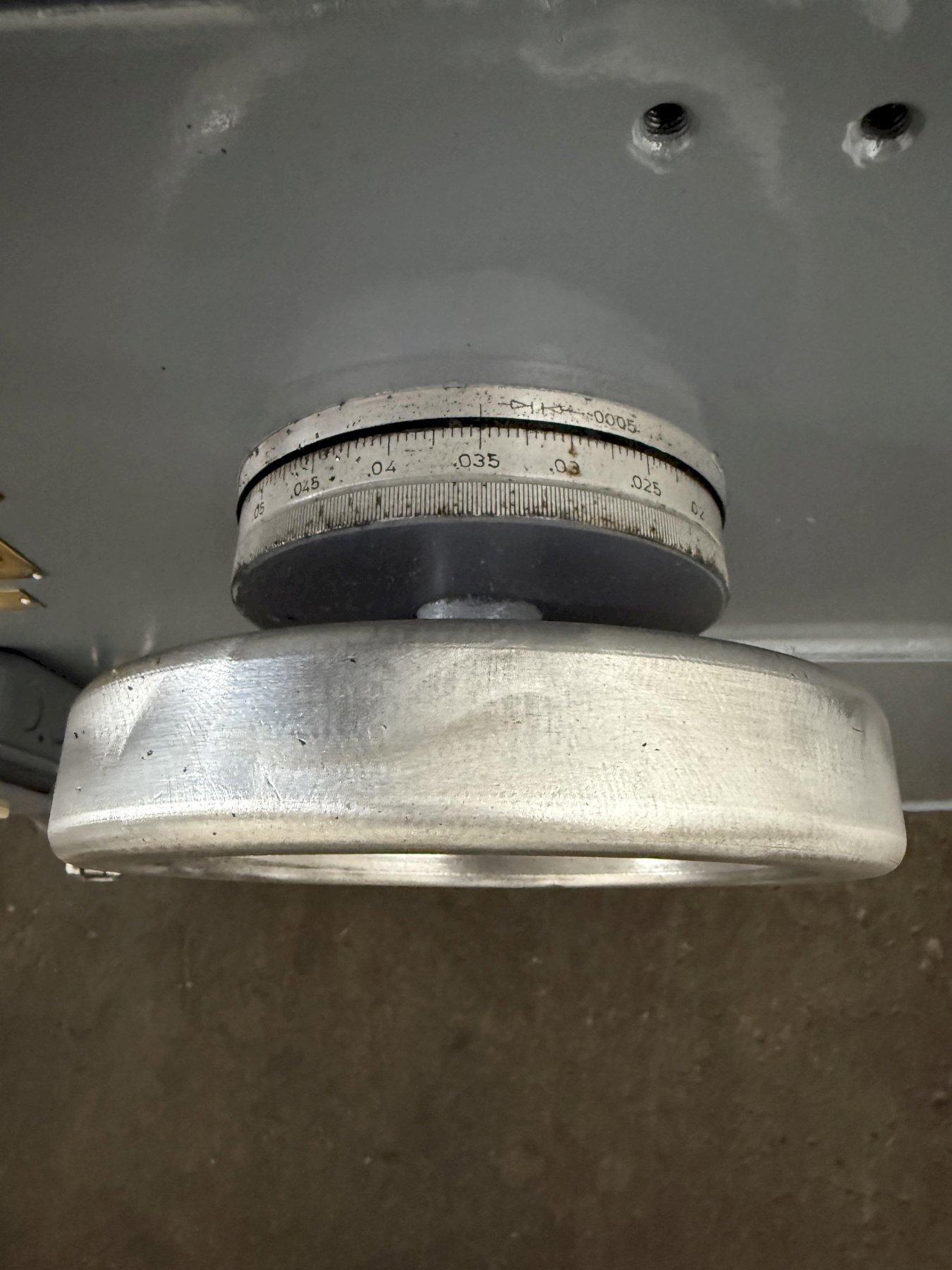

Fine Cross Travel Movement: .00002" (.004" / Revolution)

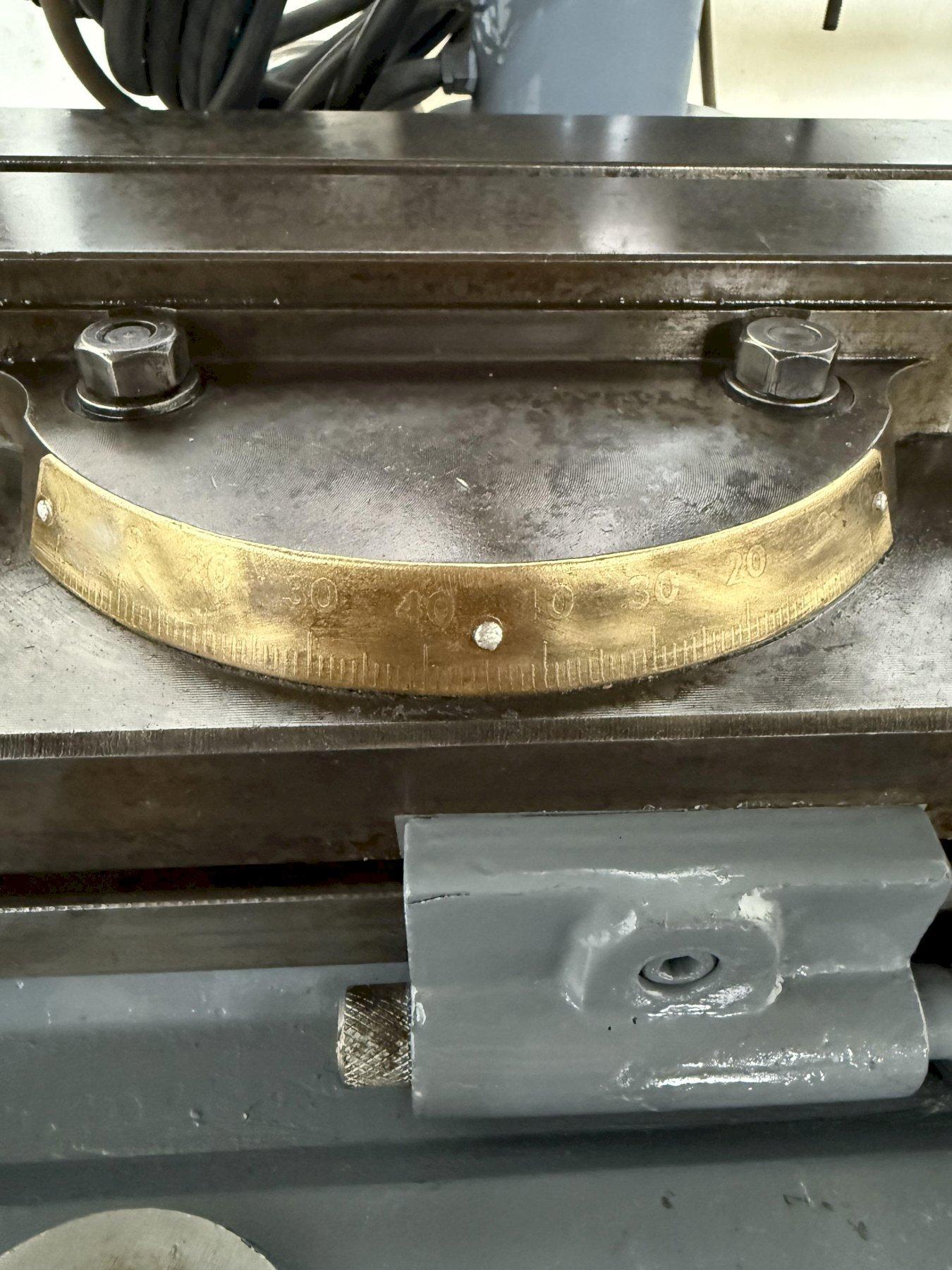

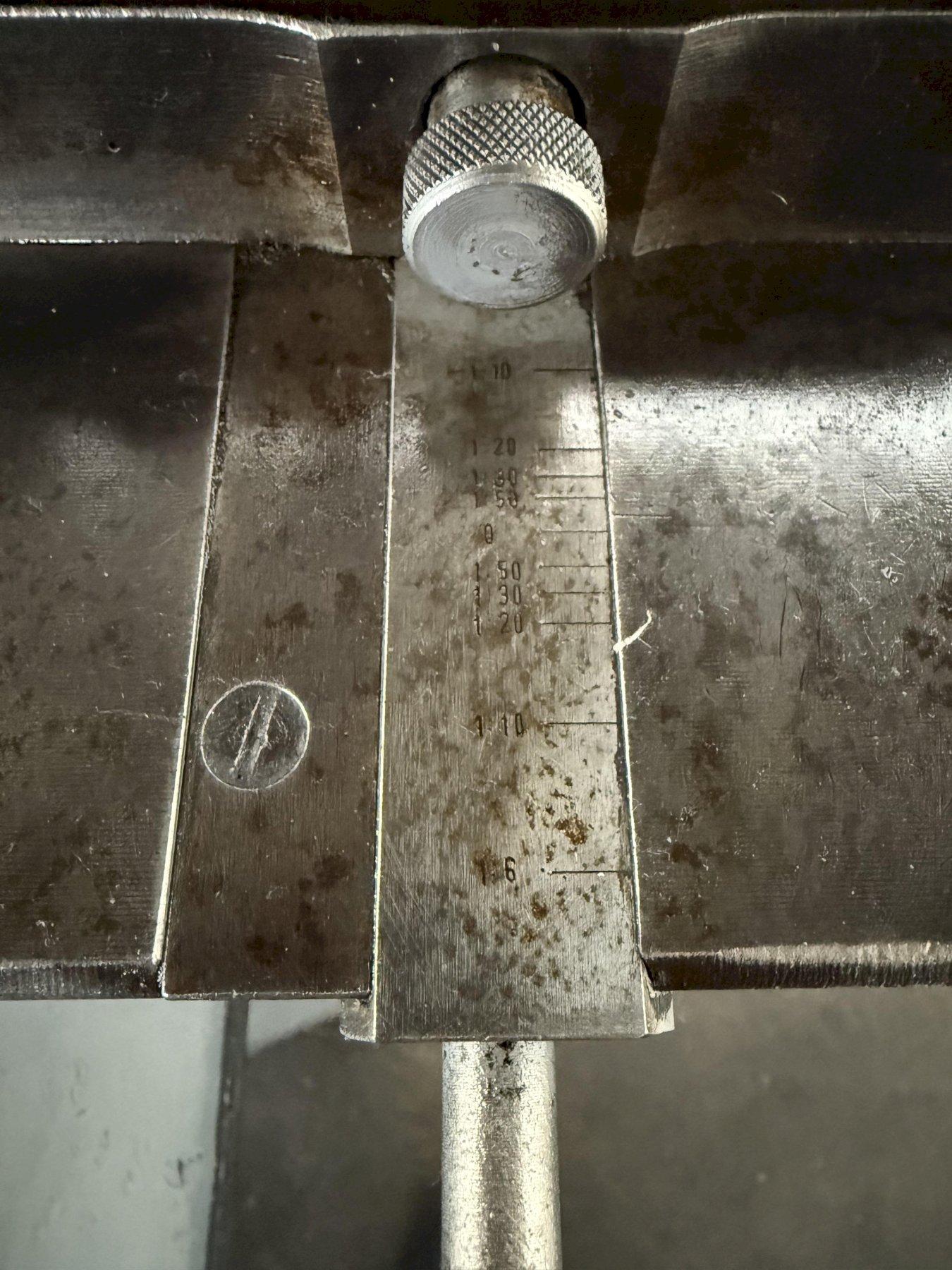

Table Swivel: +/- 45 Degrees

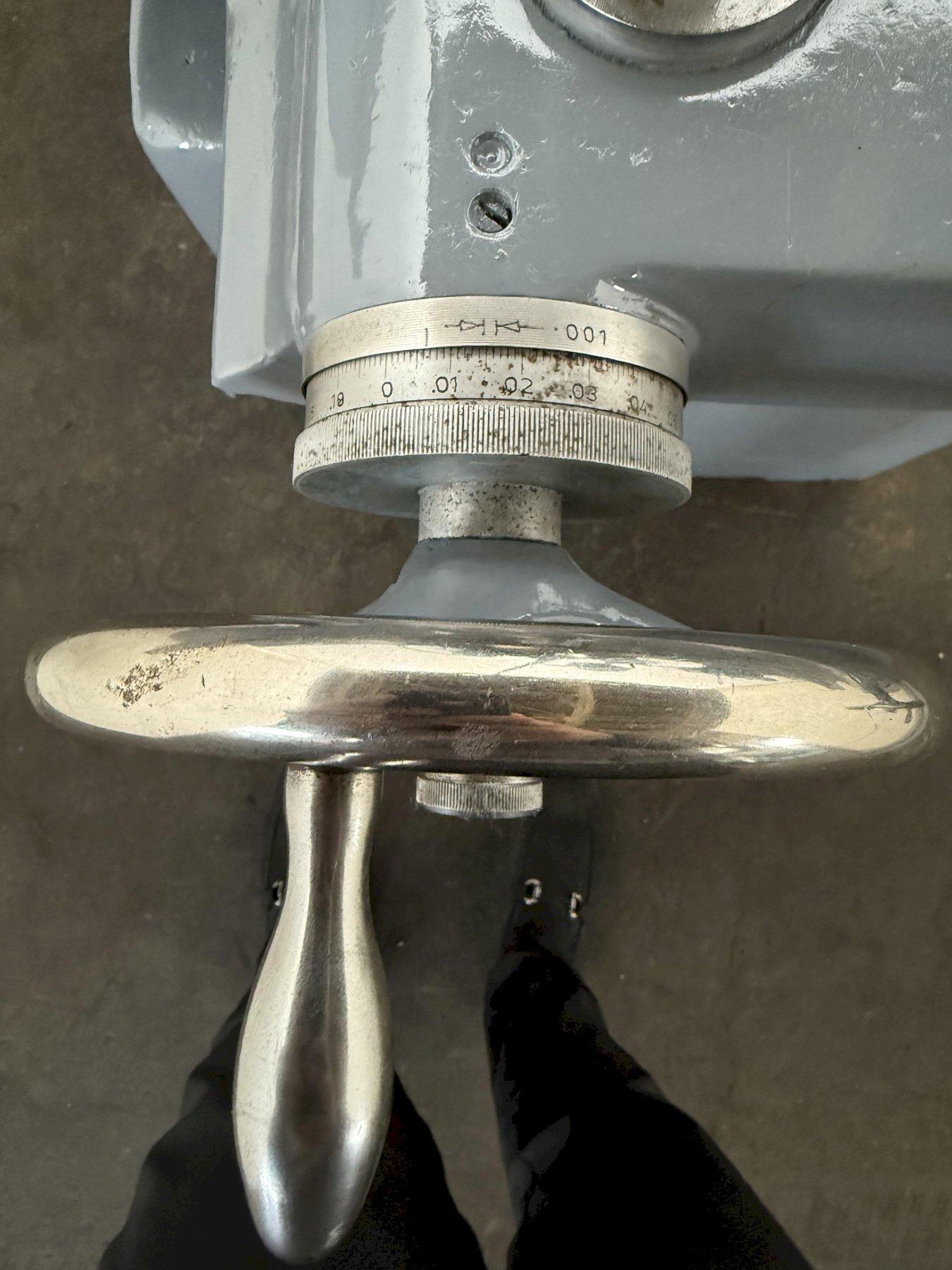

Vertical Head Movement: 10.5" / .0005" Graduation
Wheelhead Tilt Vertical Plane: -20 Deg / + 90 Degrees

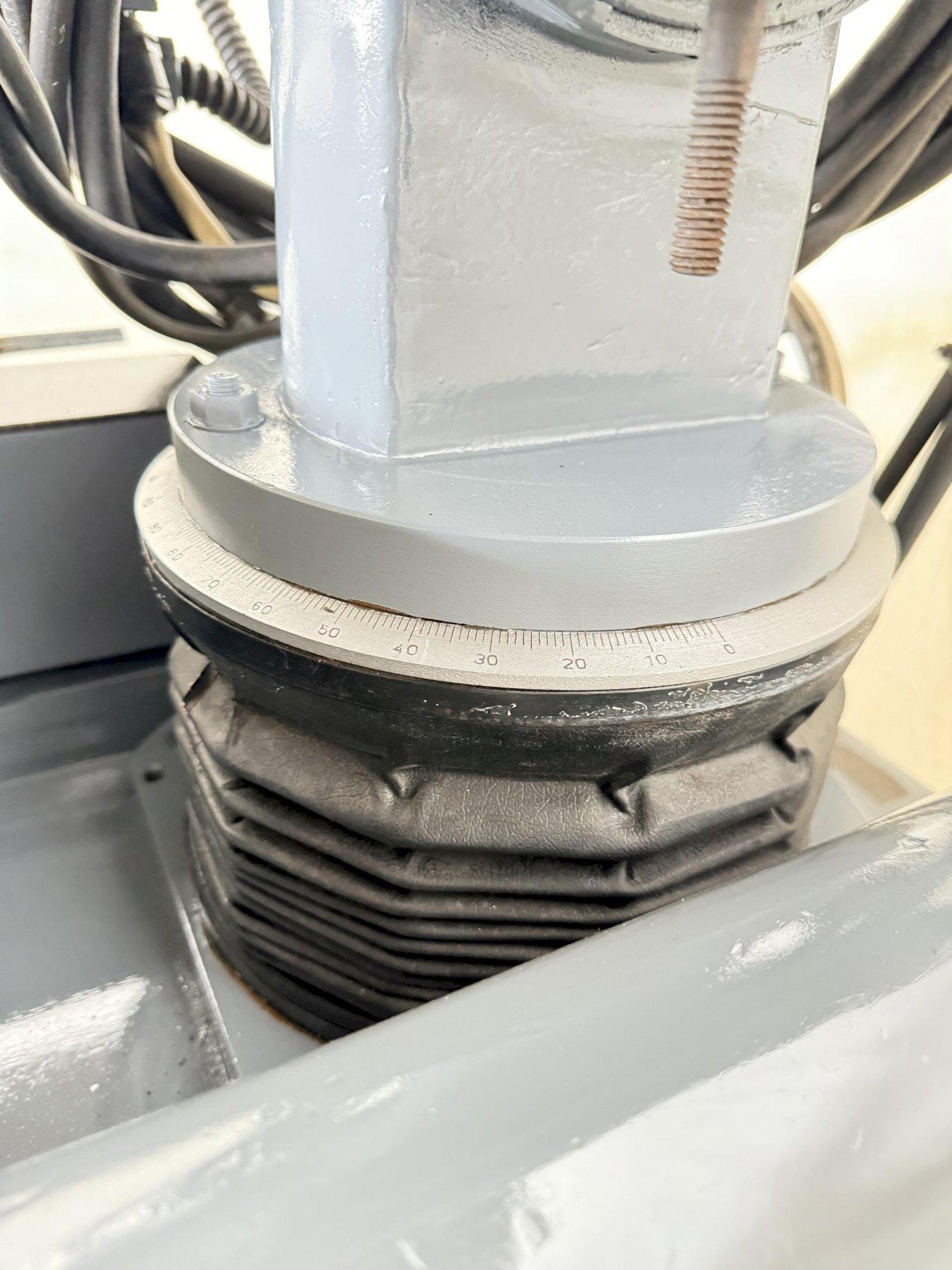

WheelHead Swivel / Horizontal Plane: 180 Degrees
Max Wheel Size: 5.75" x 1/2" x 1.25" Hole

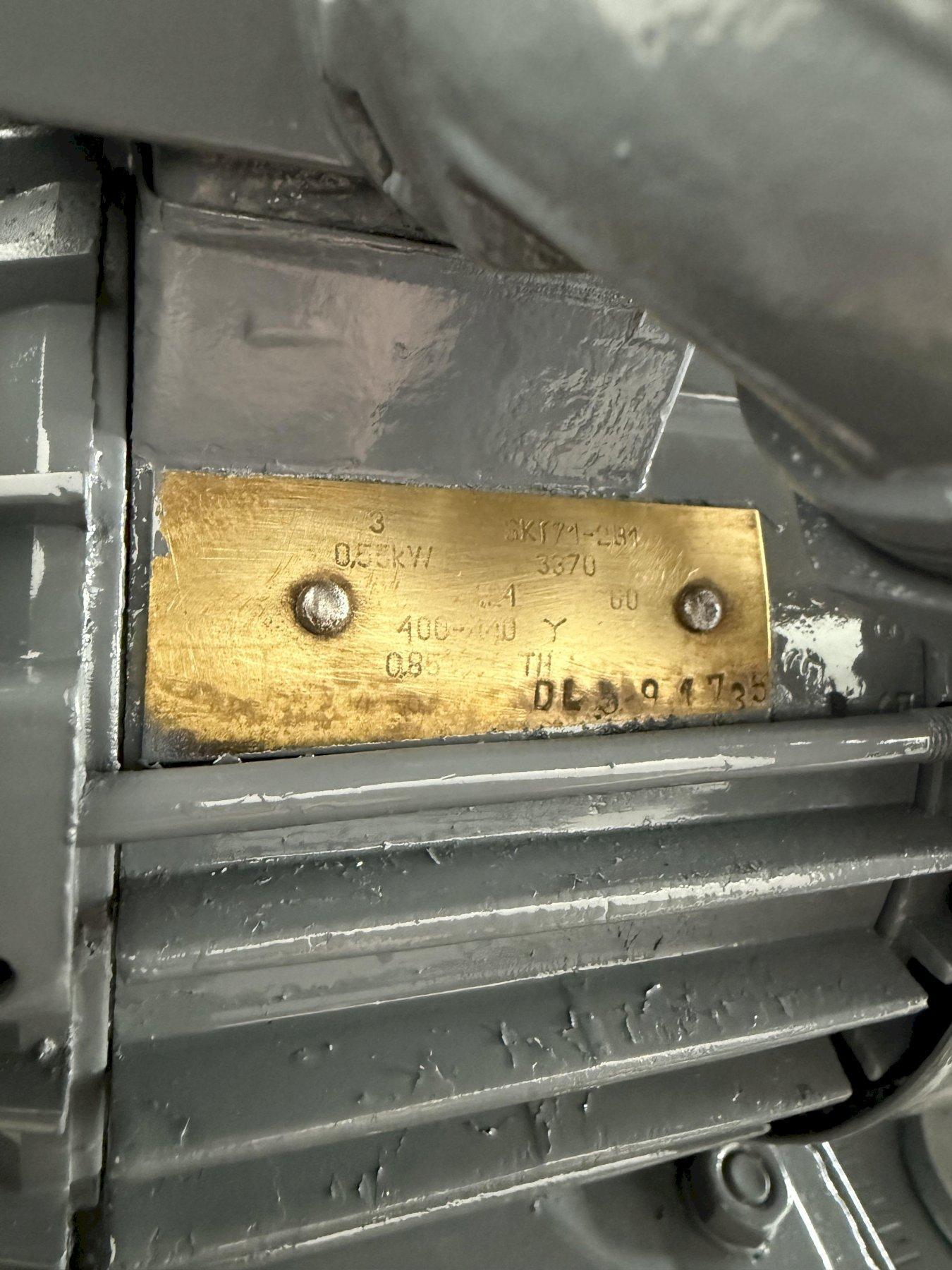

Main Drive Motor: 1.5 HP

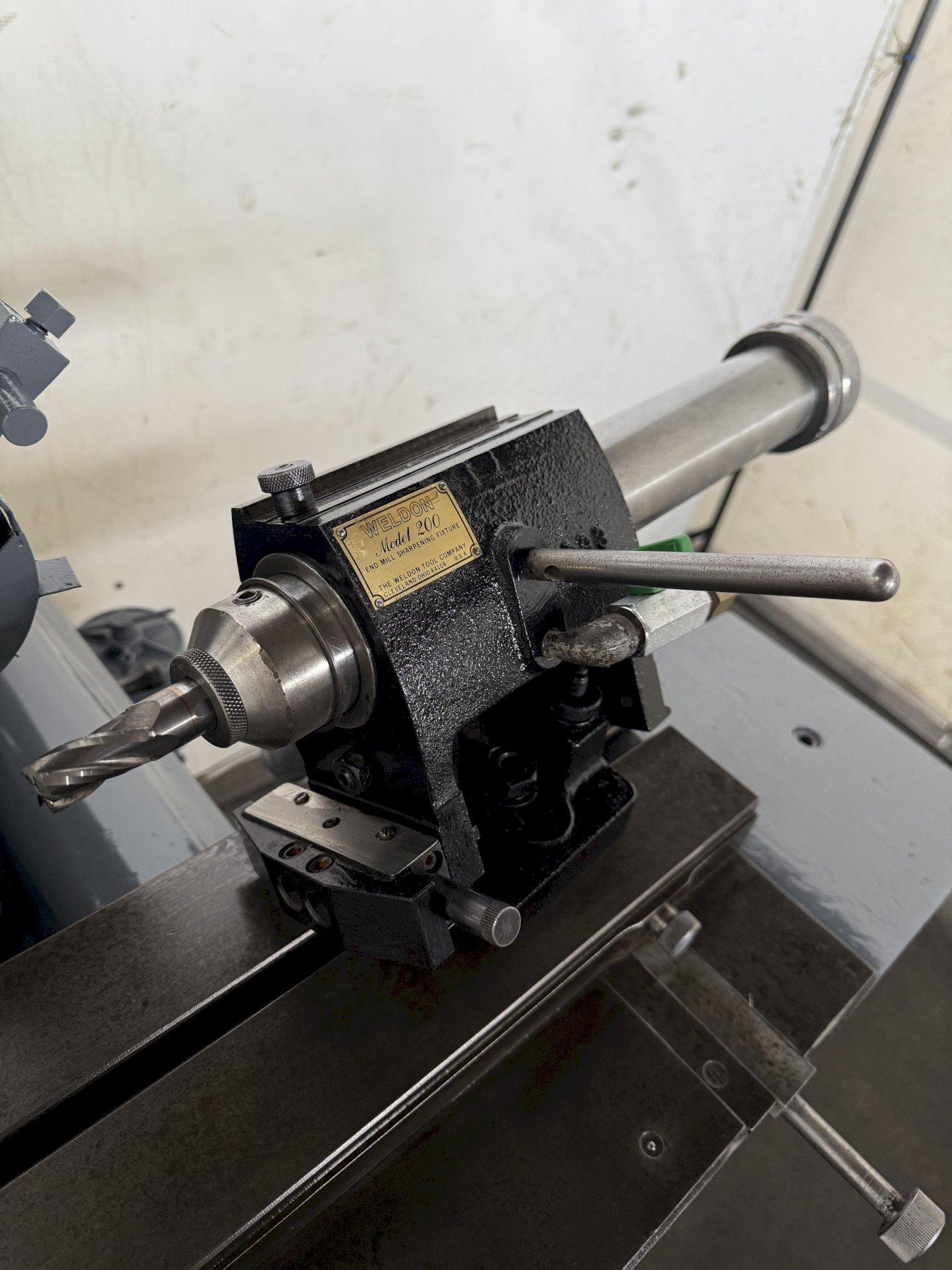

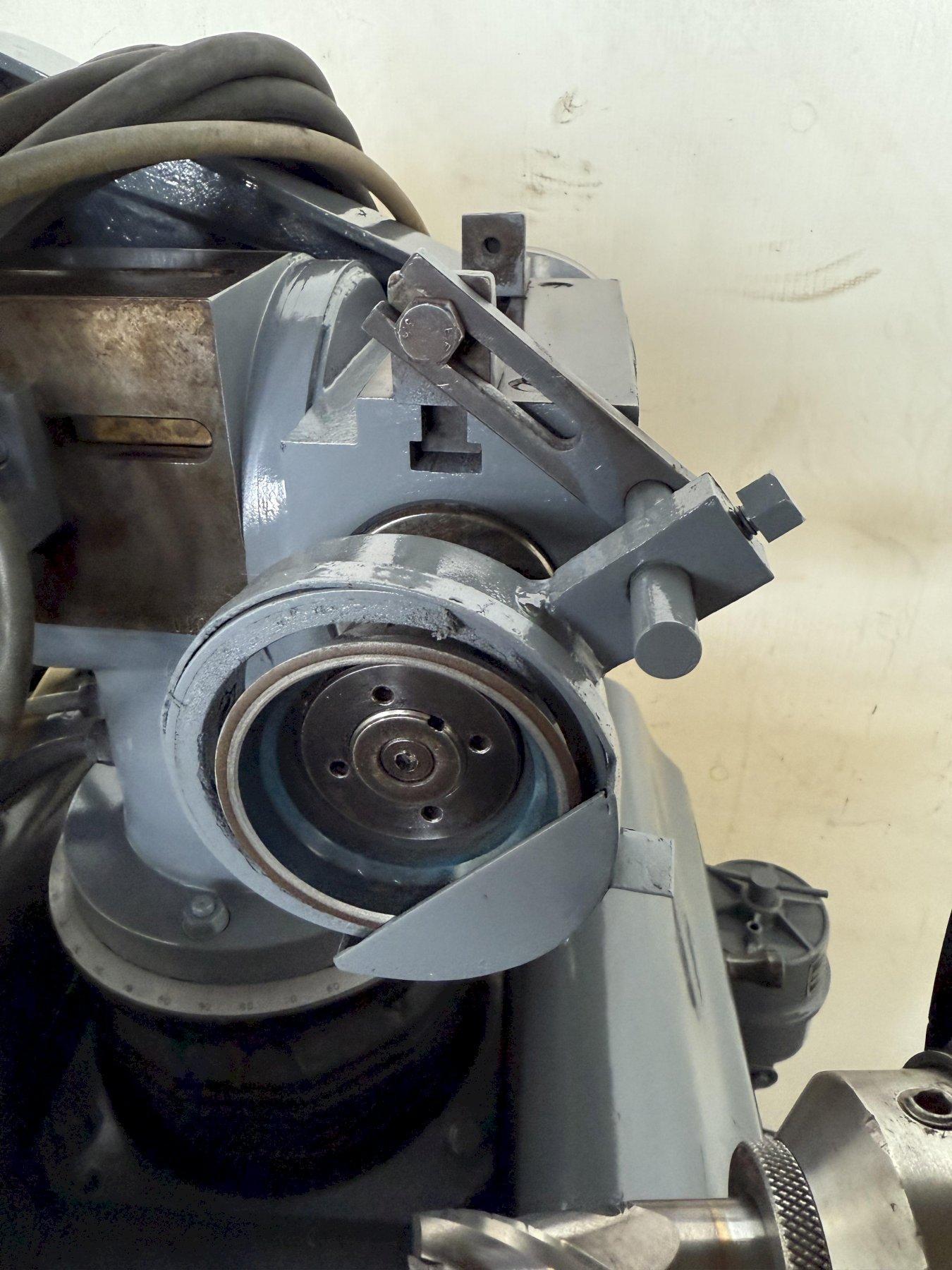

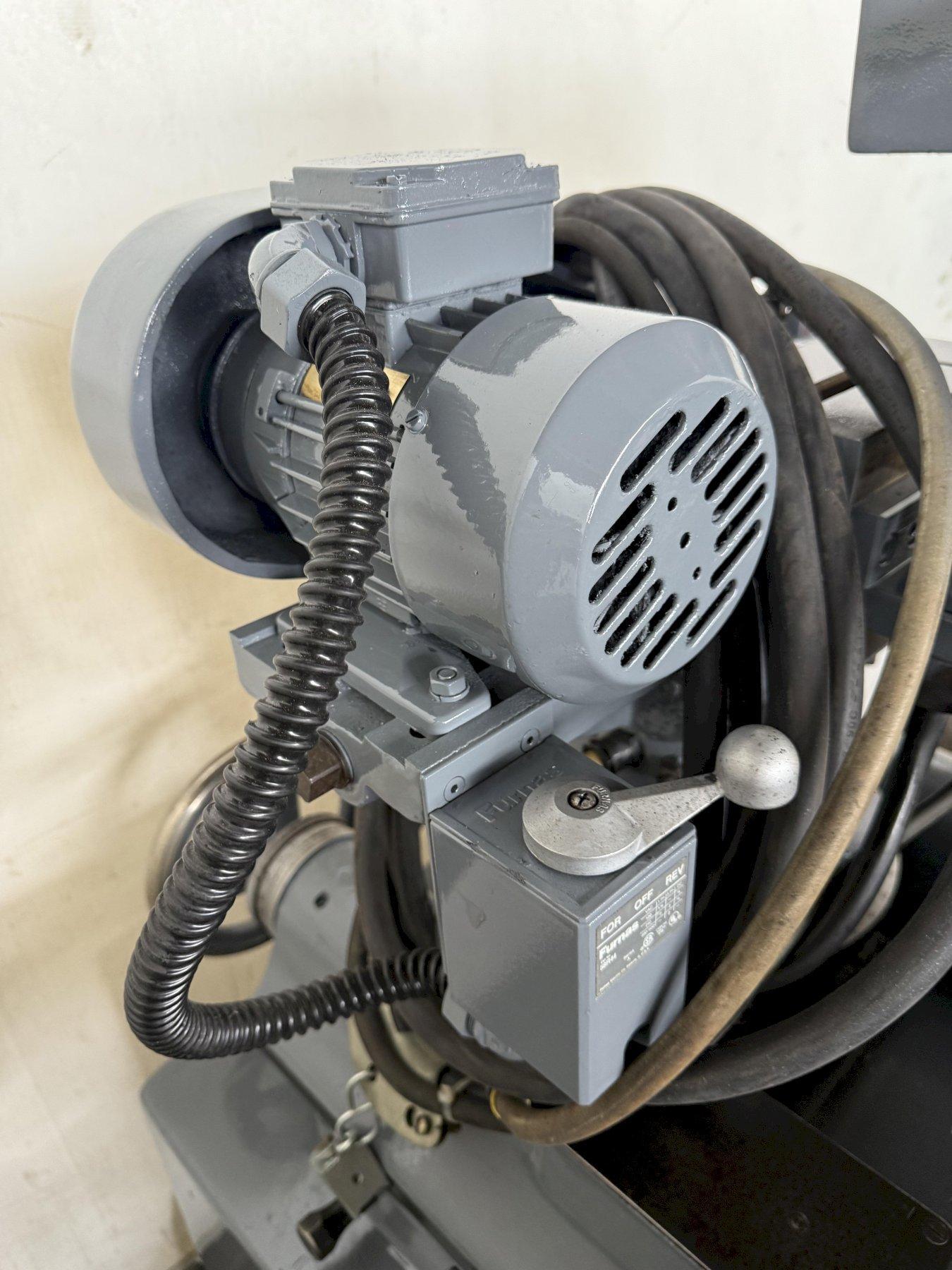

Equipped With: (2) Matched Centers / Tailstocks, Universal Motorized
Workhead, Wheel Guards, Assorted Tooling As Shown, Manual.

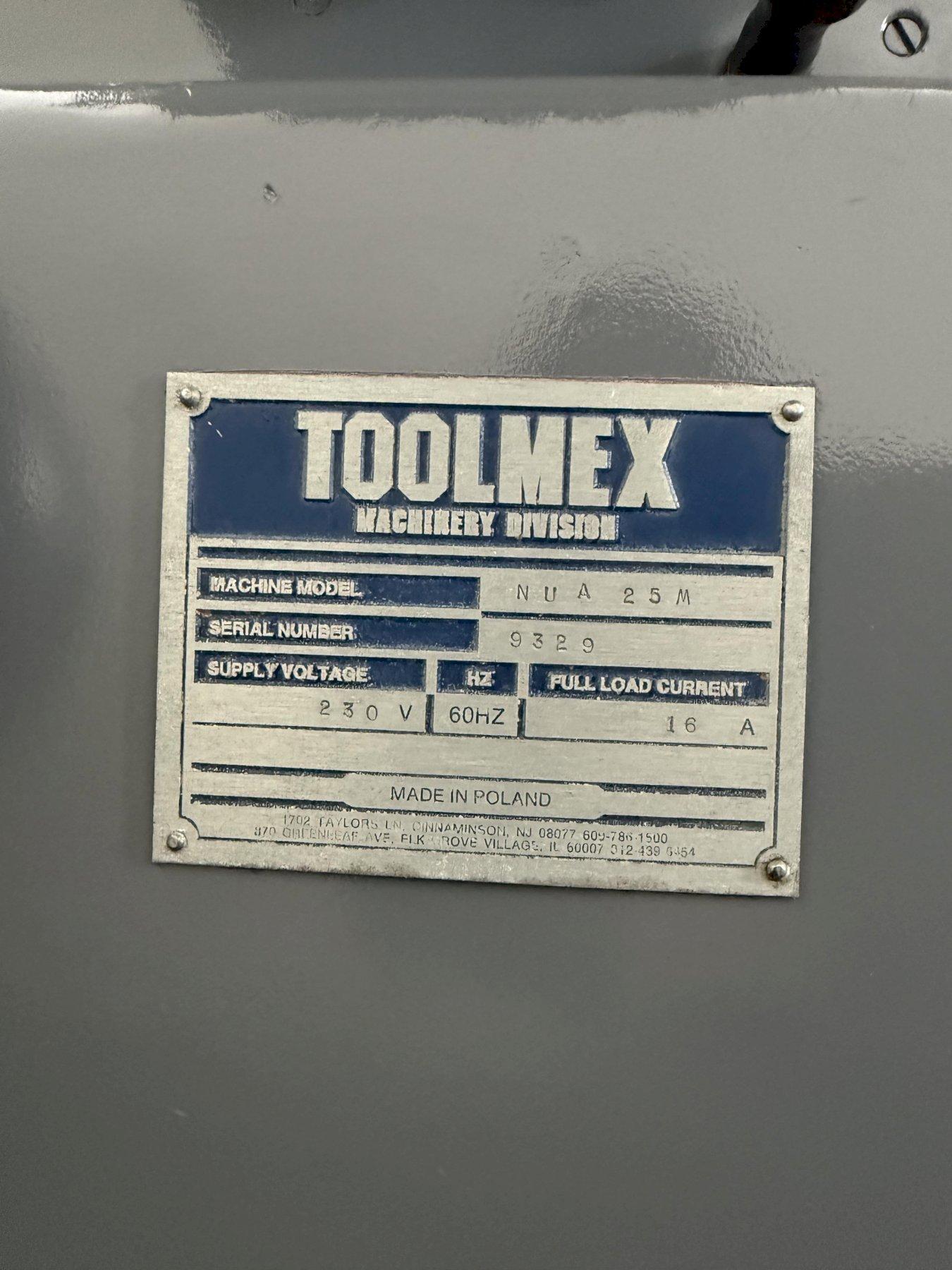

Electrics: 220 Volt, 3 Phase
Main Unit Approx Weight: 2255 lbs
Main Unit Dimensions (in inches): Length: 53" � Width: 50" � Height:
74"

Stock #: 1111017



Toolmex NUA25M Tool & Cutter Grinder

STOCK # 1111017

Specifications

View All Details
Machine Type
Grinders, Tool & Cutter
Manufacturer
TOOLMEX
Model
NUA-25M
Year
1988
Condition
Used
Equipped With
SPECIFICATIONS:

Toolmex NUA-25M Tool & Cutter Grinder

Manufacturer: Toolmex Model: NUA-25M

Specifications:��(Subject to Verification)
Table Size: 36" x 5.25"
Max Center Distance: 25"
Max Swing Over Table: 9.8"
Distance Wheel Center to Table: 3.5" - 13.75"
Longitudinal Table Travel: 17"
Cross Table Travel: 9.5"
Fine Cross Travel Movement: .00002" (.004" / Revolution)
Table Swivel: +/- 45 Degrees
Vertical Head Movement: 10.5" / .0005" Graduation
Wheelhead Tilt Vertical Plane: -20 Deg / + 90 Degrees
WheelHead Swivel / Horizontal Plane: 180 Degrees
Max Wheel Size: 5.75" x 1/2" x 1.25" Hole
Main Drive Motor: 1.5 HP
Equipped With: (2) Matched Centers / Tailstocks, Universal Motorized
Workhead, Wheel Guards, Assorted Tooling As Shown, Manual.
Electrics: 220 Volt, 3 Phase
Main Unit Approx Weight: 2255 lbs
Main Unit Dimensions (in inches): Length: 53" � Width: 50" � Height:
74"

Stock #: 1111017
