SAMUEL/TITAN STELL STRAPPING HEAD. STOCK # 1009824

Stock #: 1009824

Equipped With

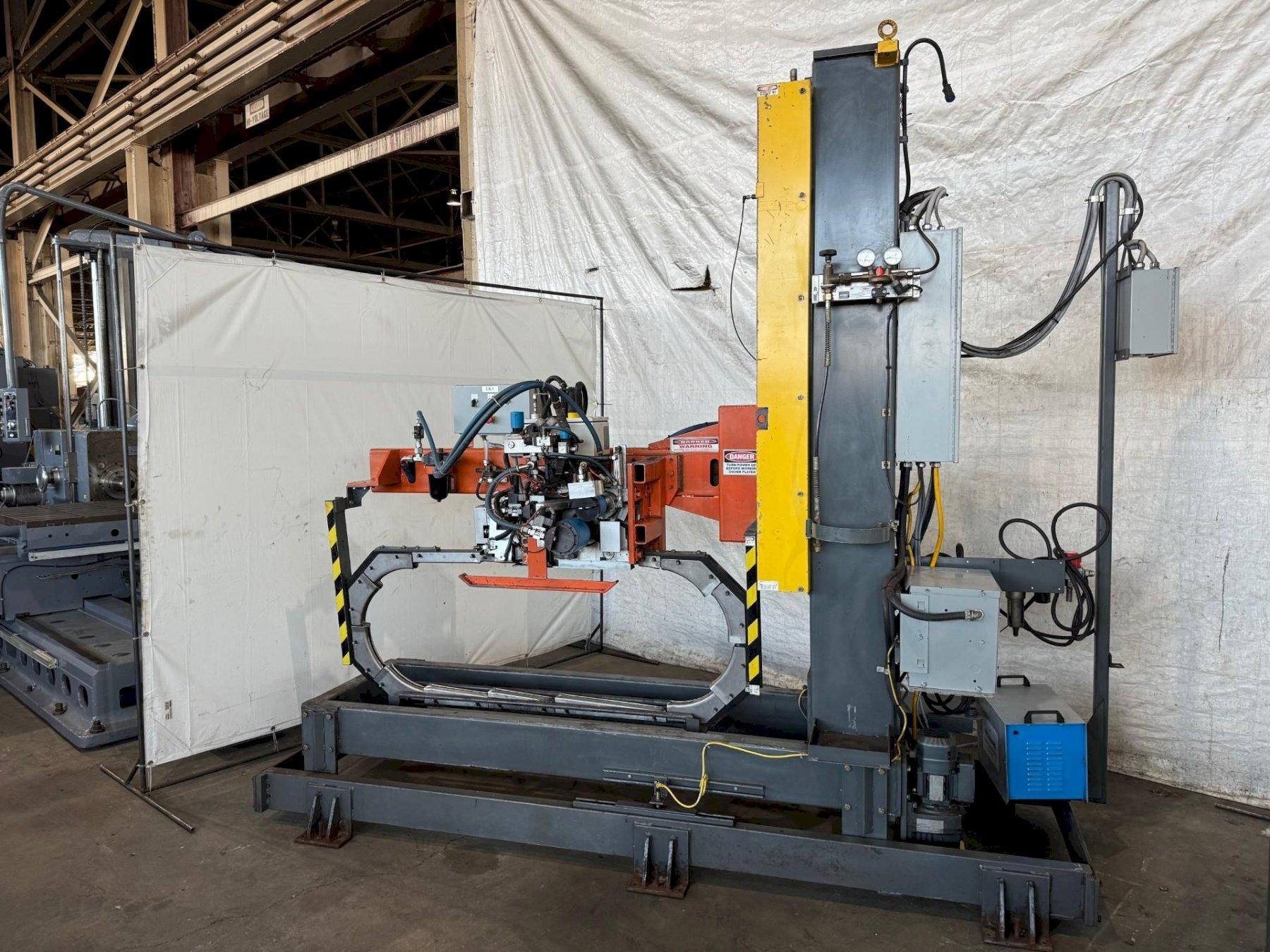

STRAPPING HEAD:
MODEL................................: TITAN VS32L
SERIAL...............................: A-1961

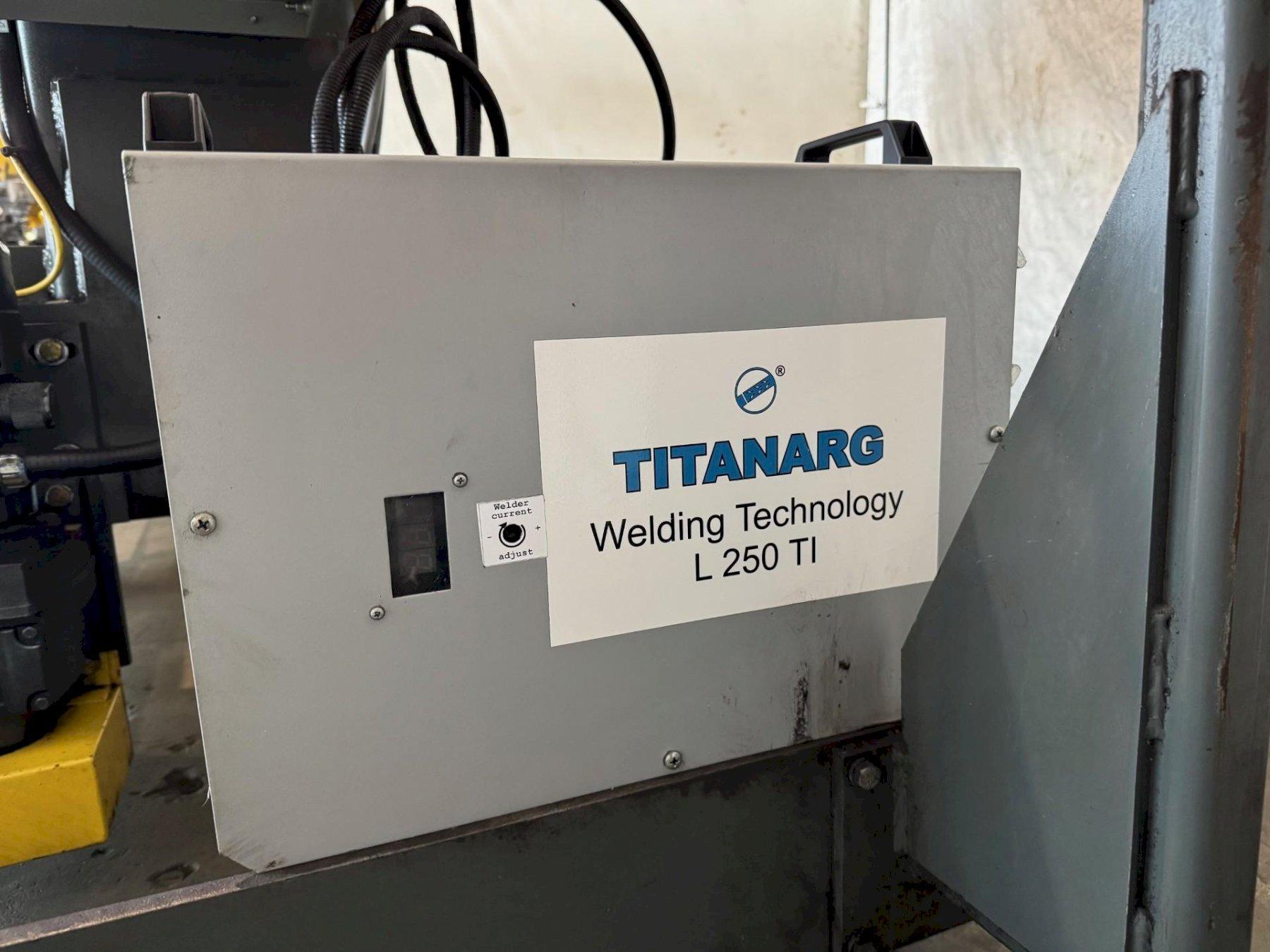

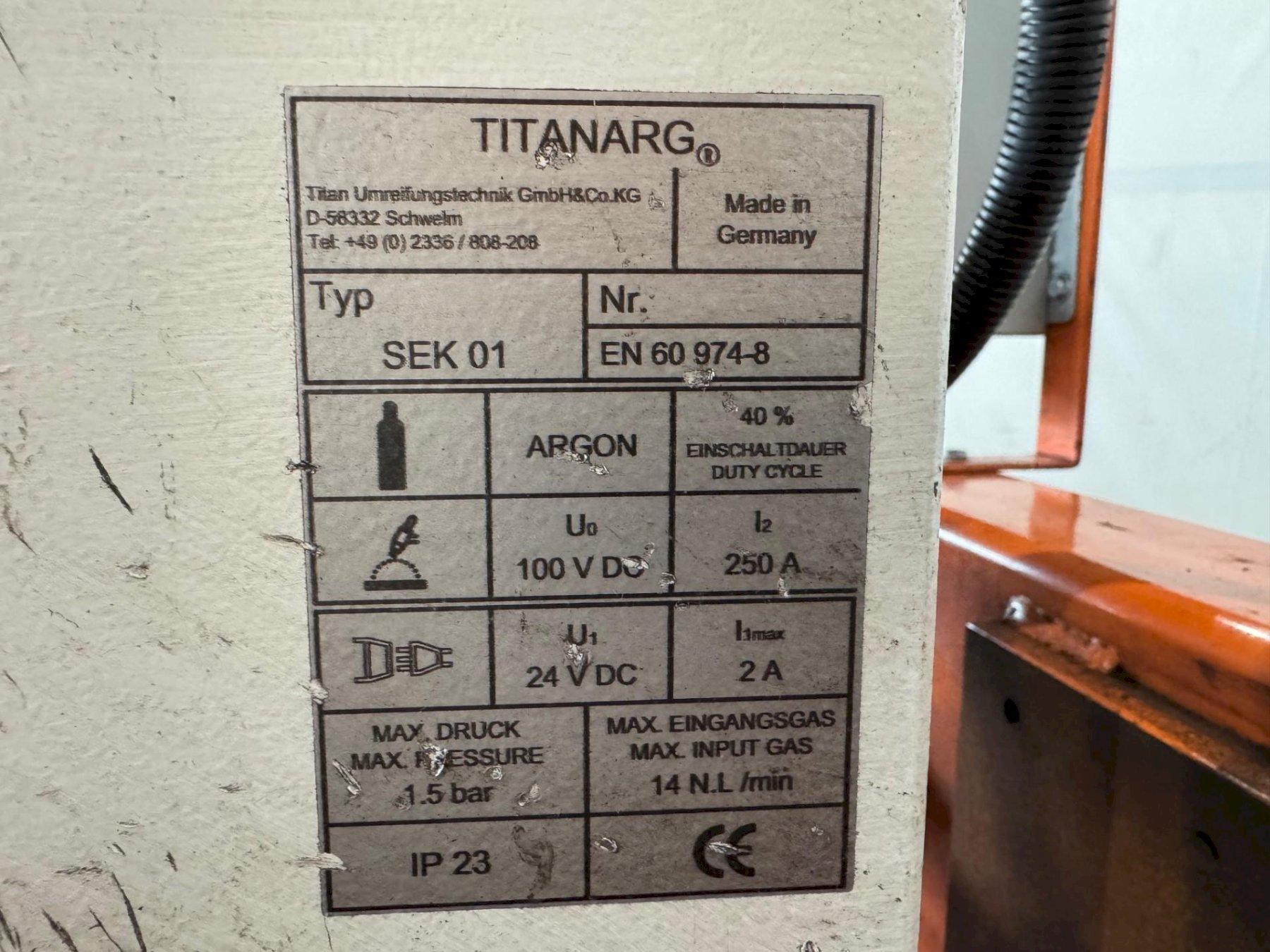

JOINTS...............................: TIG WELD JOINT, 2 WELD POINTS
MINIMUM PACKAGE SURFACE..............: STRAIGHT - 6"
                                       ROUND - 28"

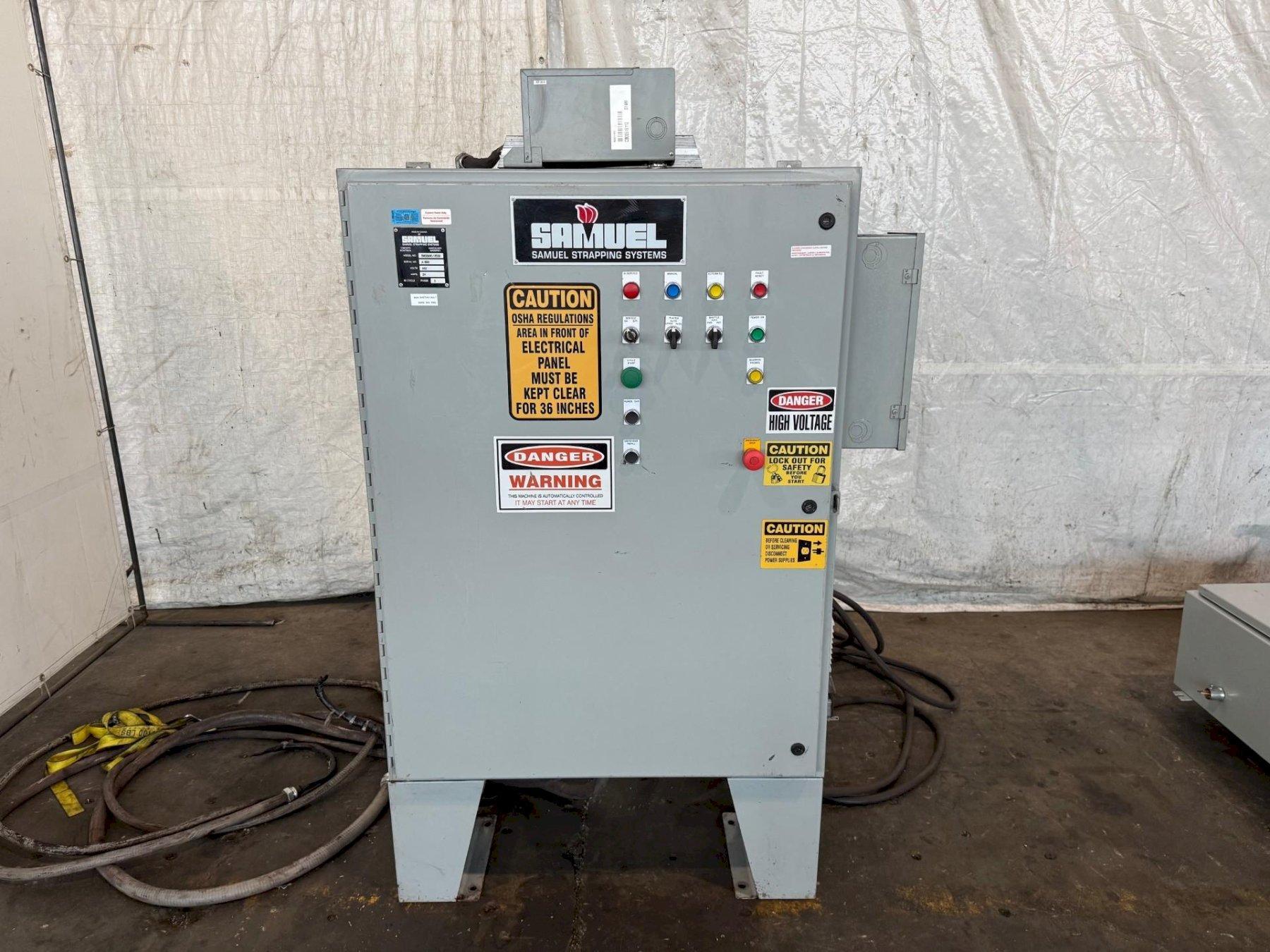

STRAPPING MACHINE:

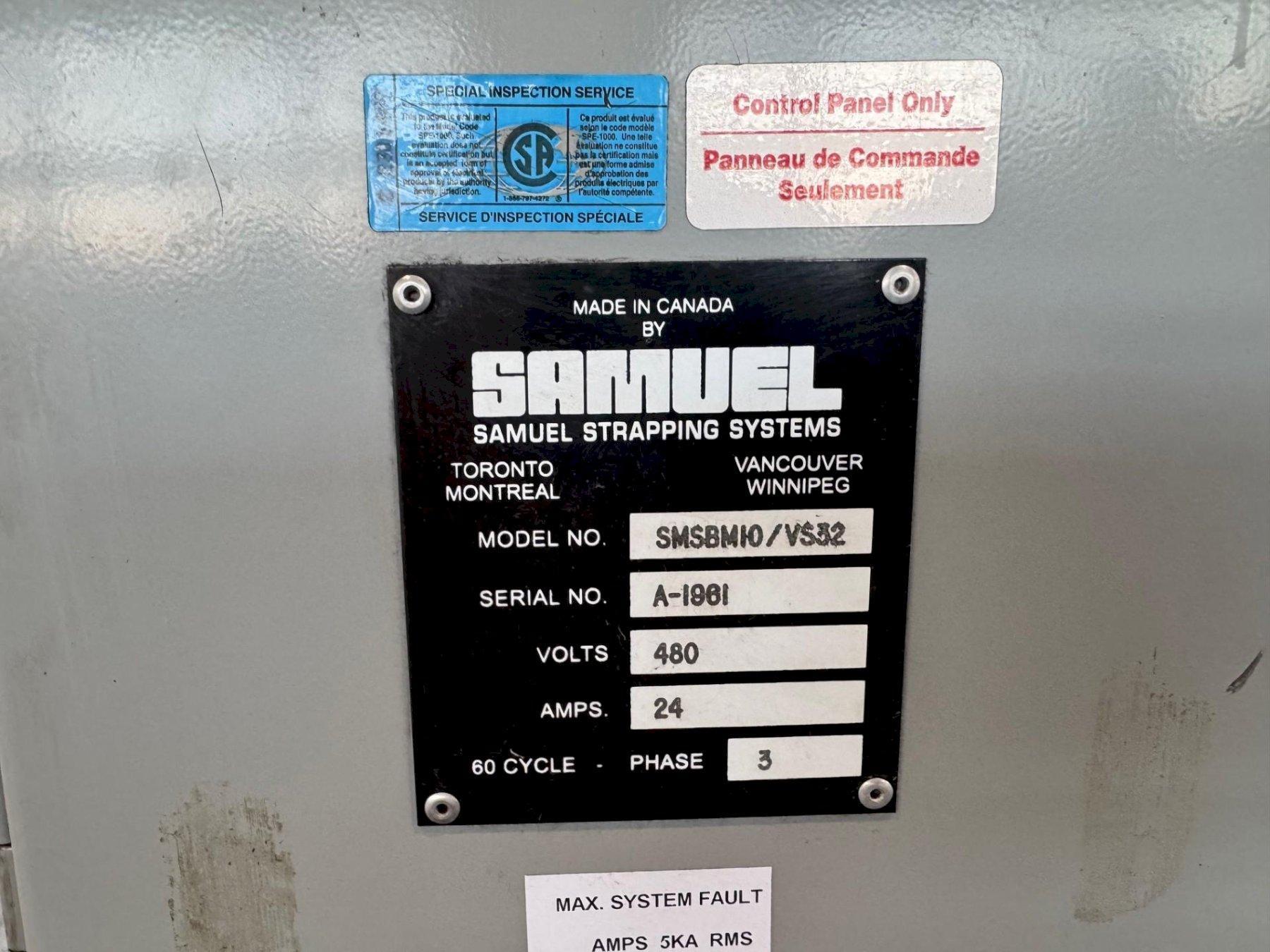

MODEL................................: SAMUEL SMSBM10
DRIVE MODE...........................: PNEUMATIC
CYLINDERS............................: 2

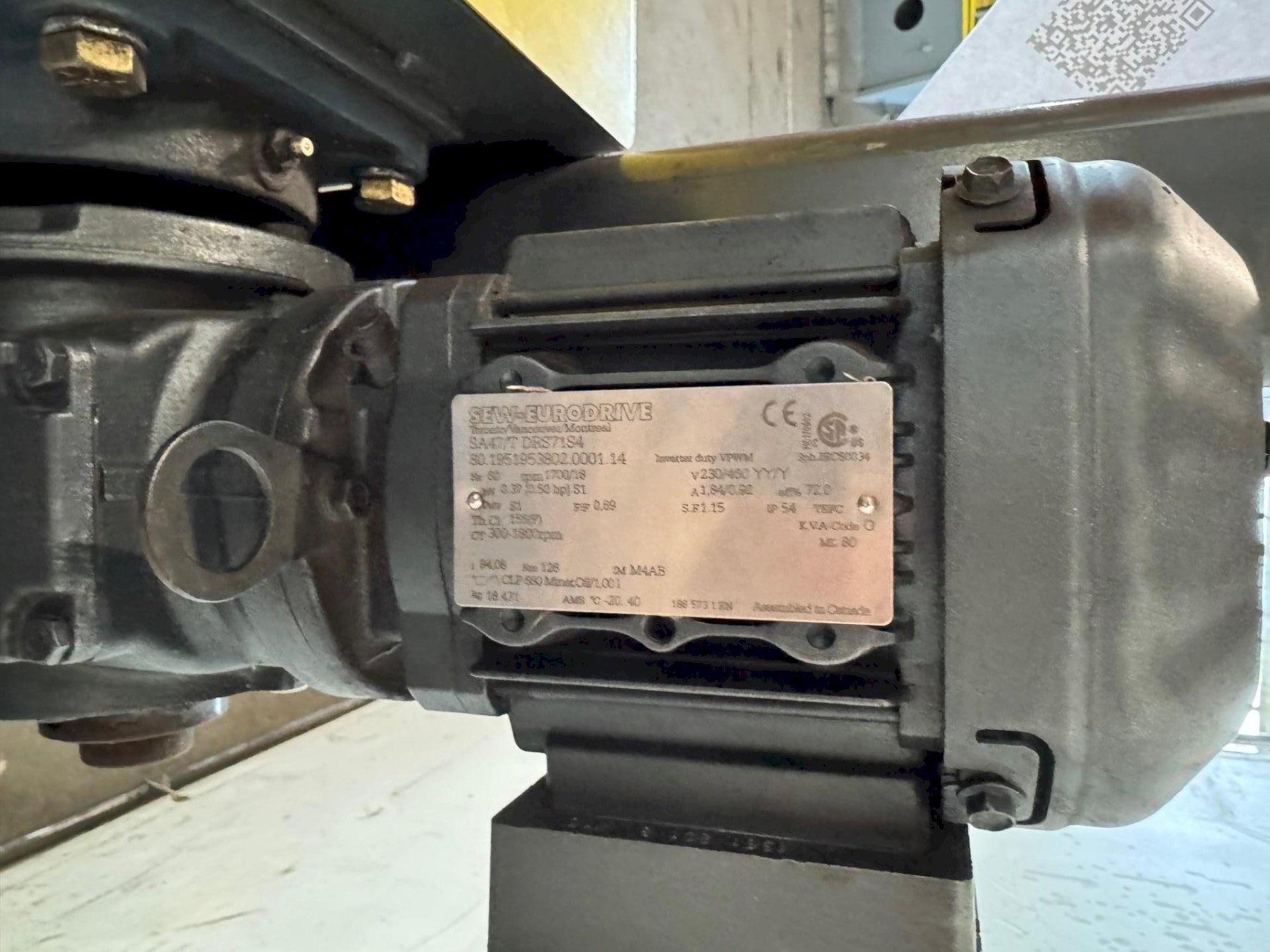

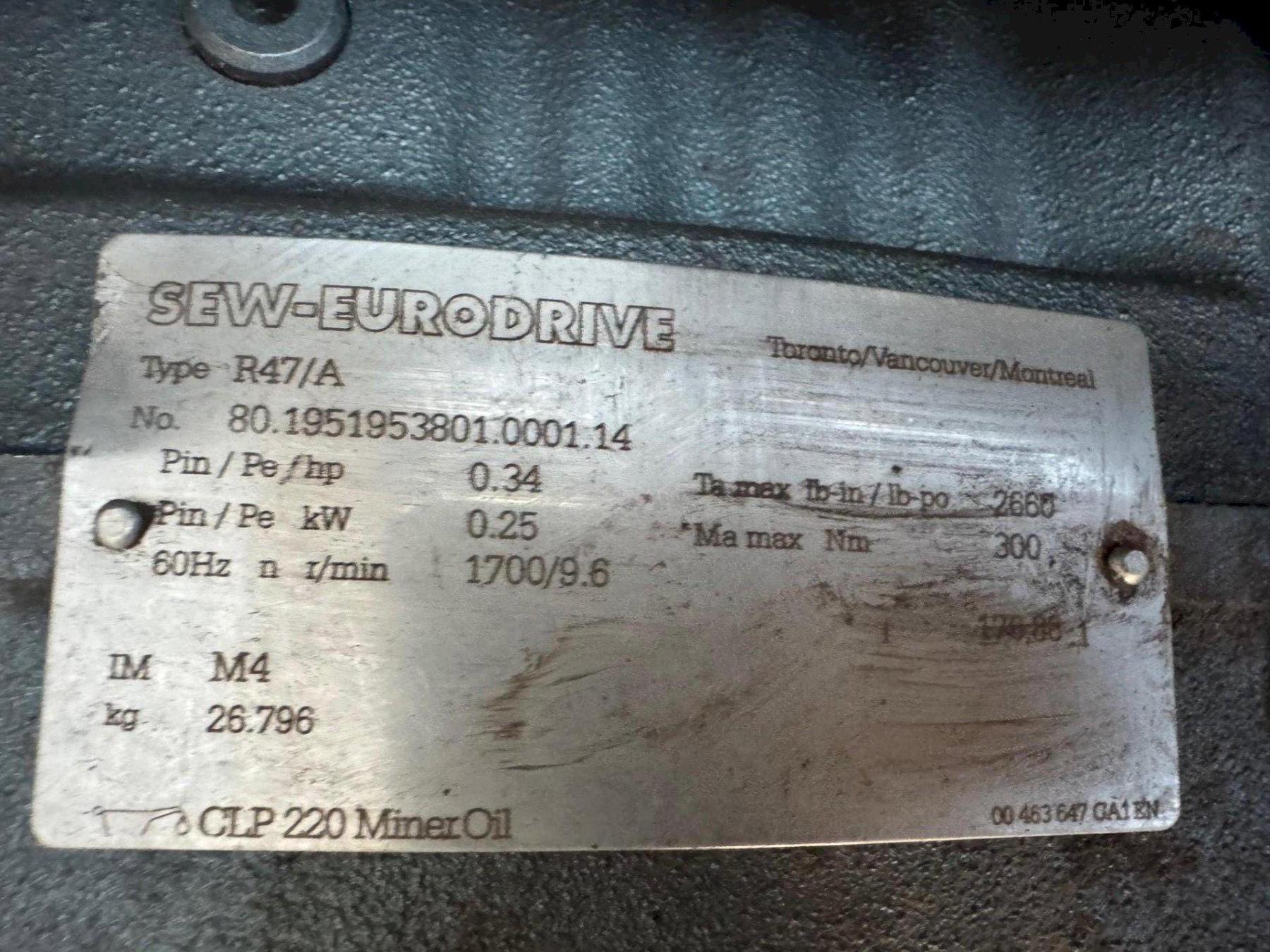

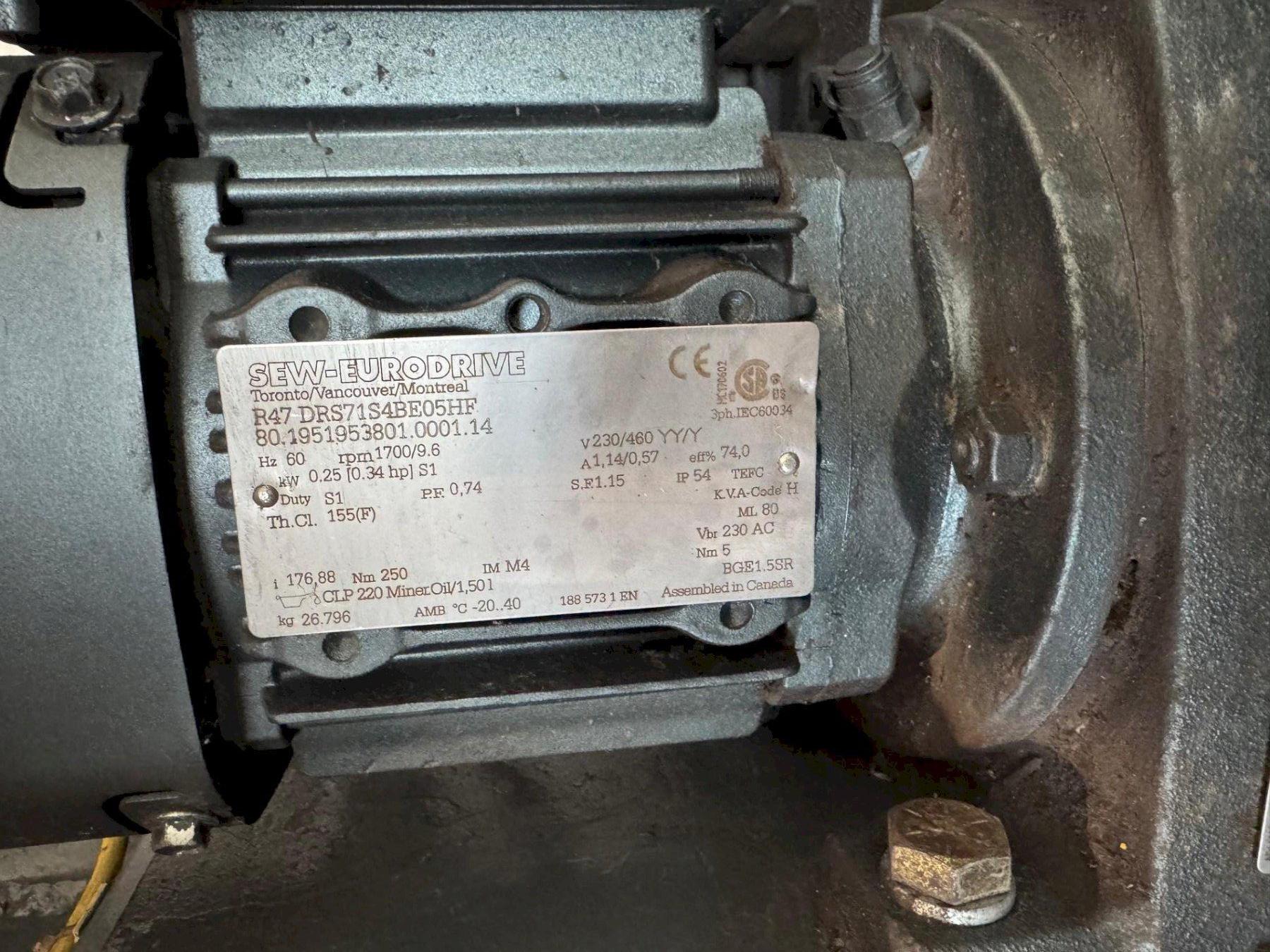

MOTORS...............................: 3
FEED SPEED...........................: 5.6 FT. PER SECOND
TENSIONING CAPACITIES................: 900 - 3,825 LBS.

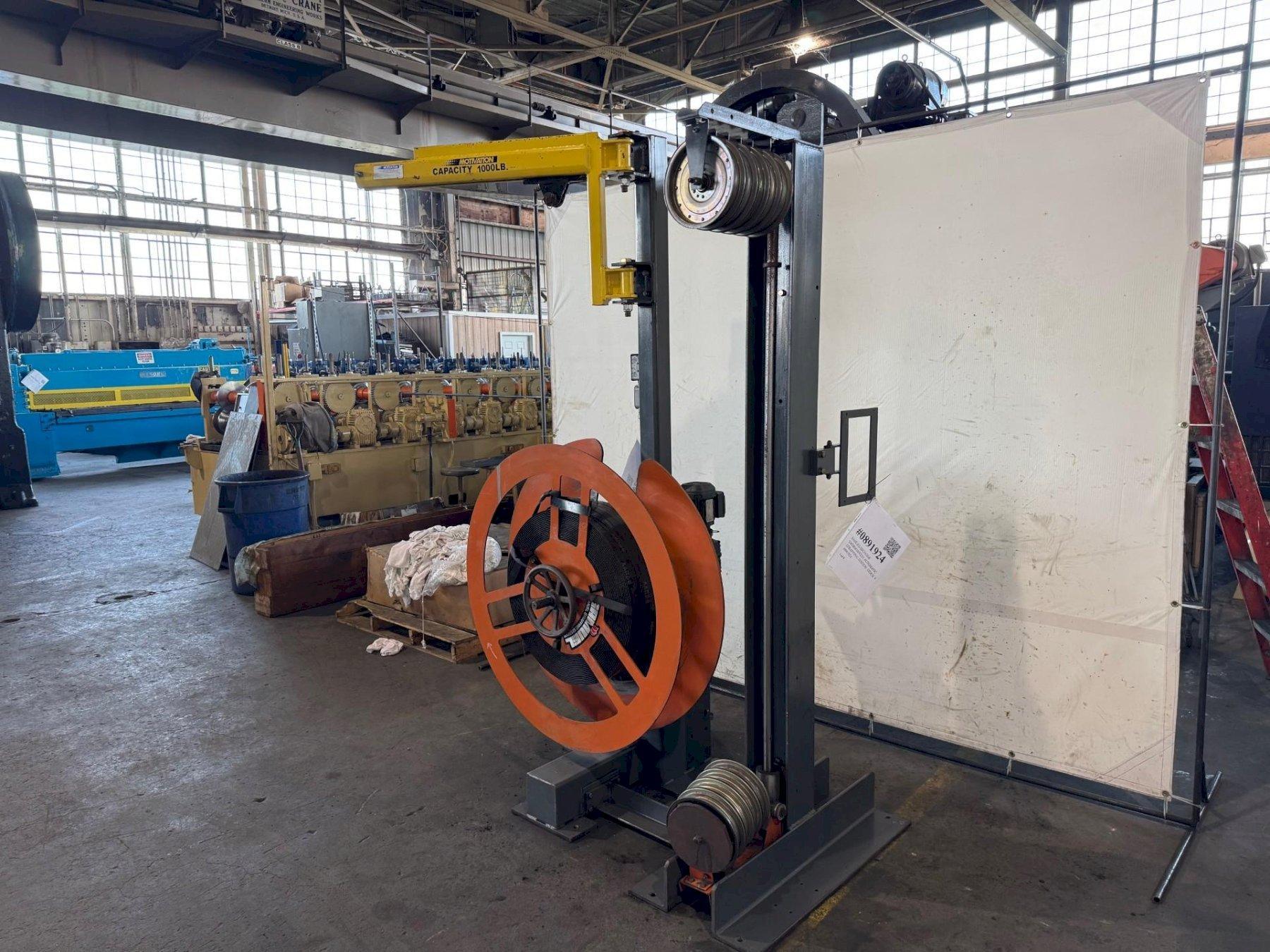

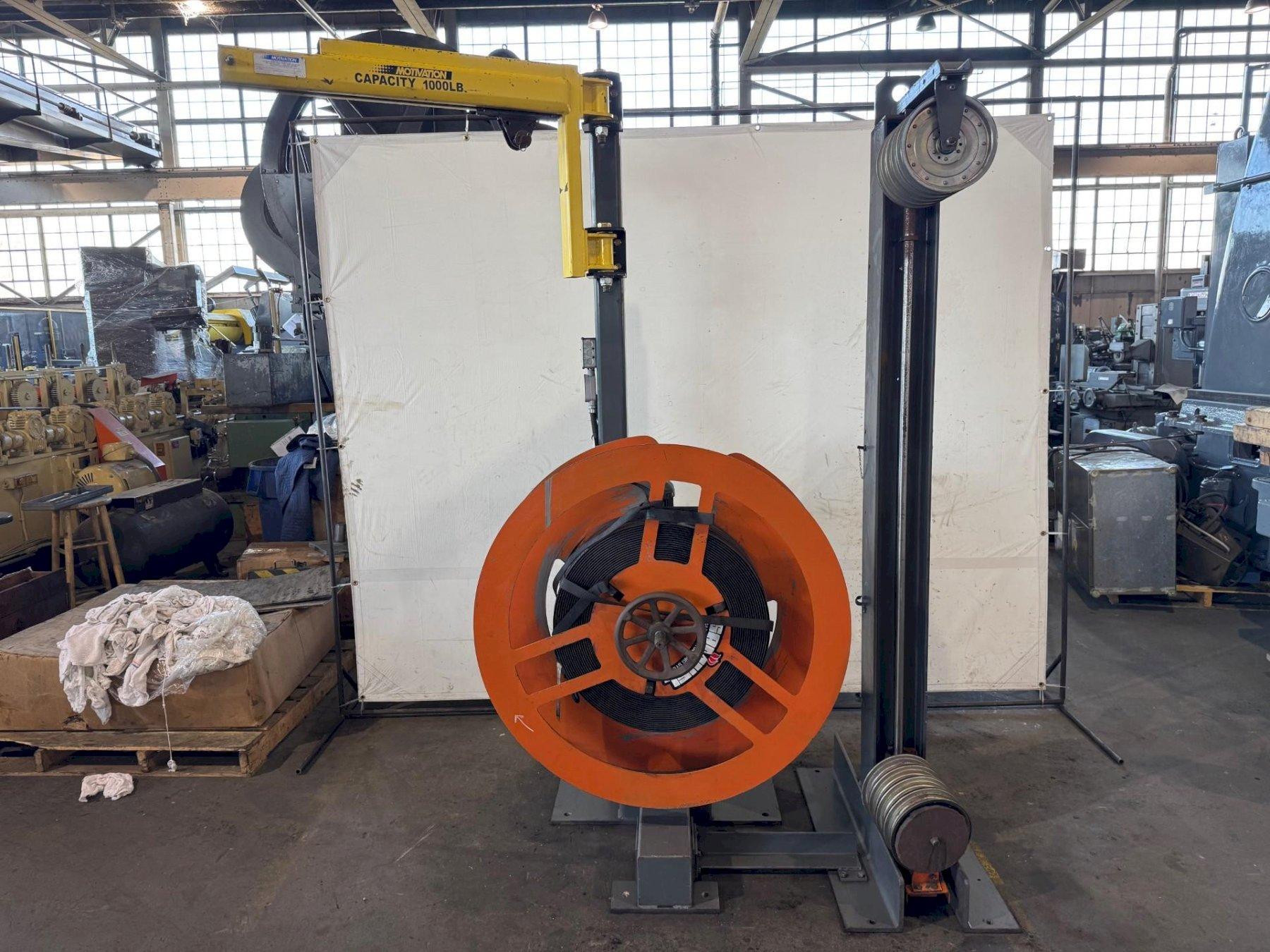

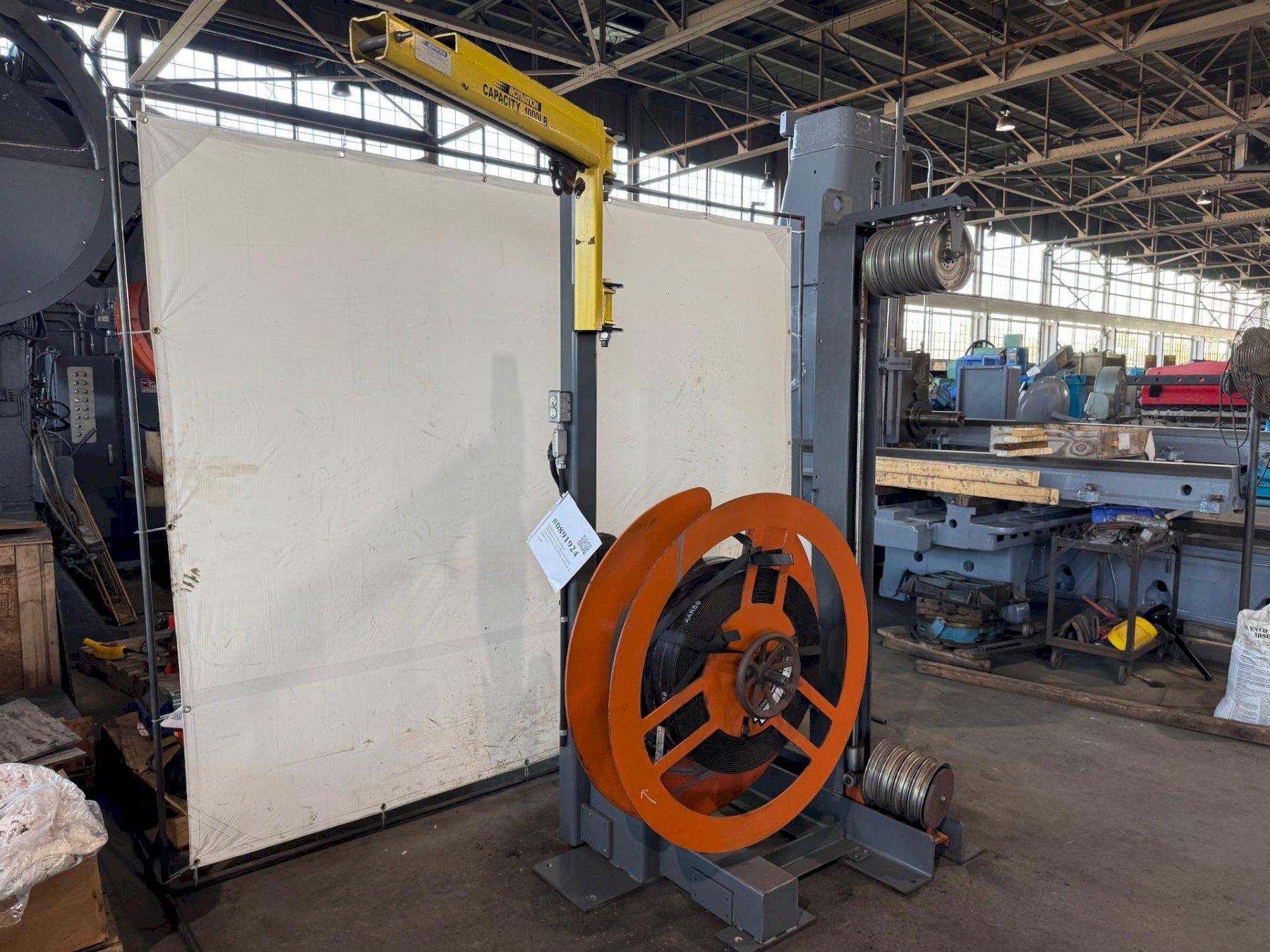

STRAP DISPENSER:
MODEL................................: SCD-14
COIL DETAILS:
INSIDE DIAMETER......................: 16"
OUTSIDE DIAMETER.....................: 36"
FACE WIDTH...........................: 6" TO 8"
STRAP DETAIL.........................: 1-1/4"
COIL ROTATION SPEED..................: 18 RPM
