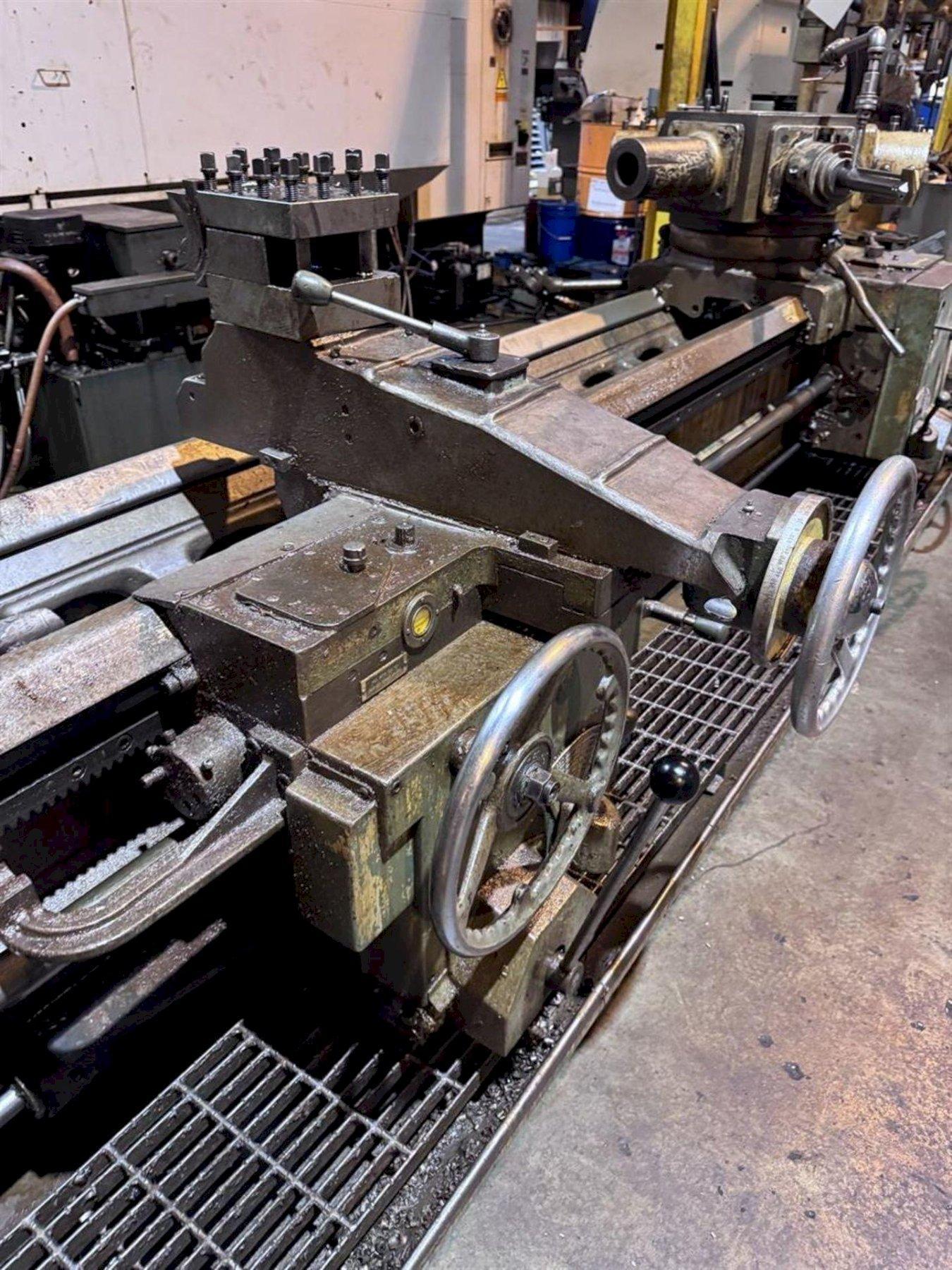

WARNER & SWASEY M–3580 SQUARE HEAD TURRET LATHE. STOCK # 1107725

Stock #: 1107725

Equipped With

SERIAL ............................ 2361390
TYPE .............................. 4A SQUARE HEAD
MODEL ............................. M-3580
SWING OVER WAYS ................... 29-1/2"
SWING OVER CARRIAGE ............... 22-7/16
DISTANCE SPINDLE TO TURRET FACE ... 144"
SPINDLE SPEEDS .................... (32) 10 TO 526
TURRET FEEDS ...................... (16) .005 TO .167 IPR
CROSS SLIDE FEEDS ................. (16) .003 TO .090 IPR
DIAMETER OF SPINDLE HOLE .......... 12-1/2"

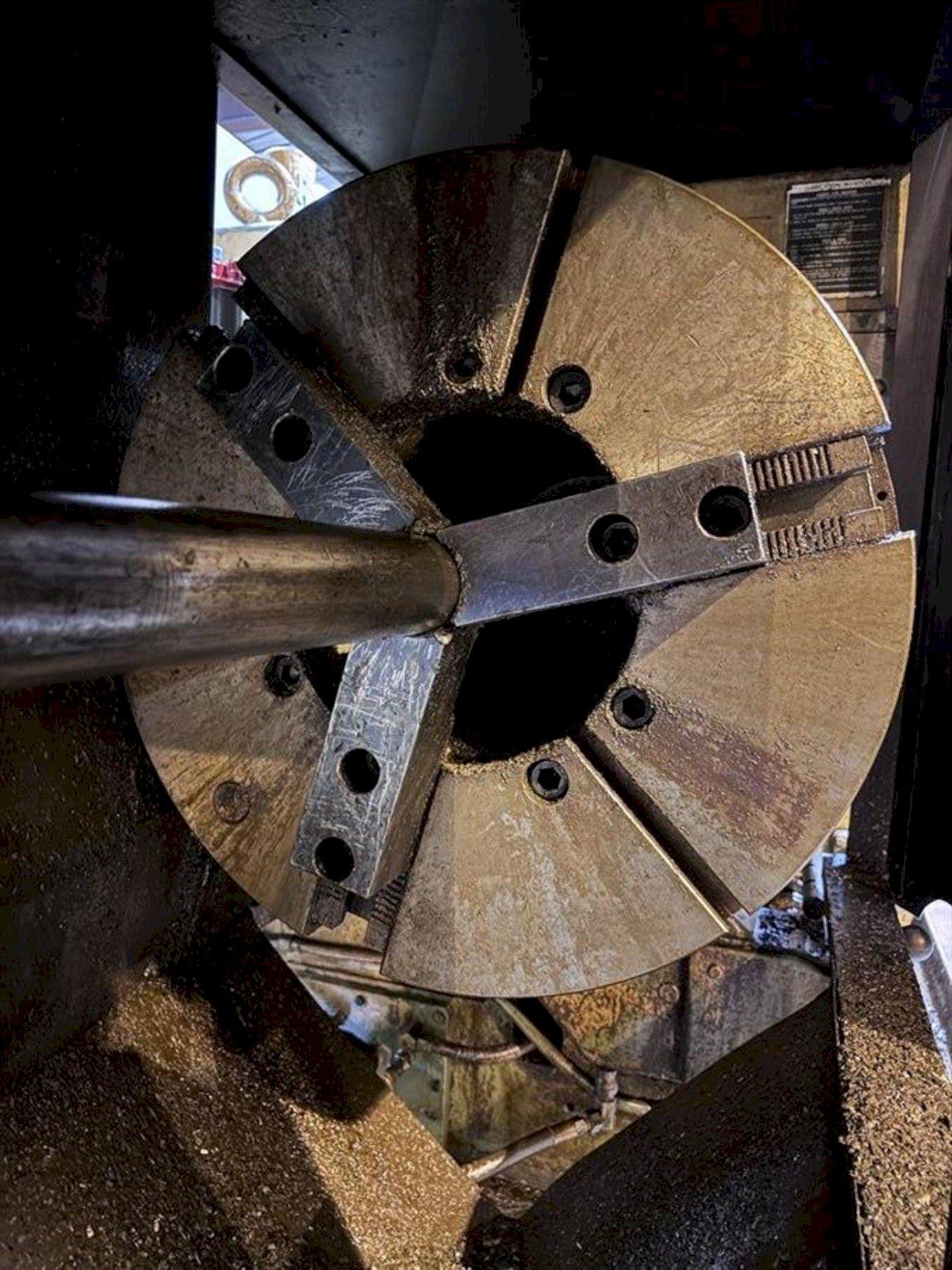

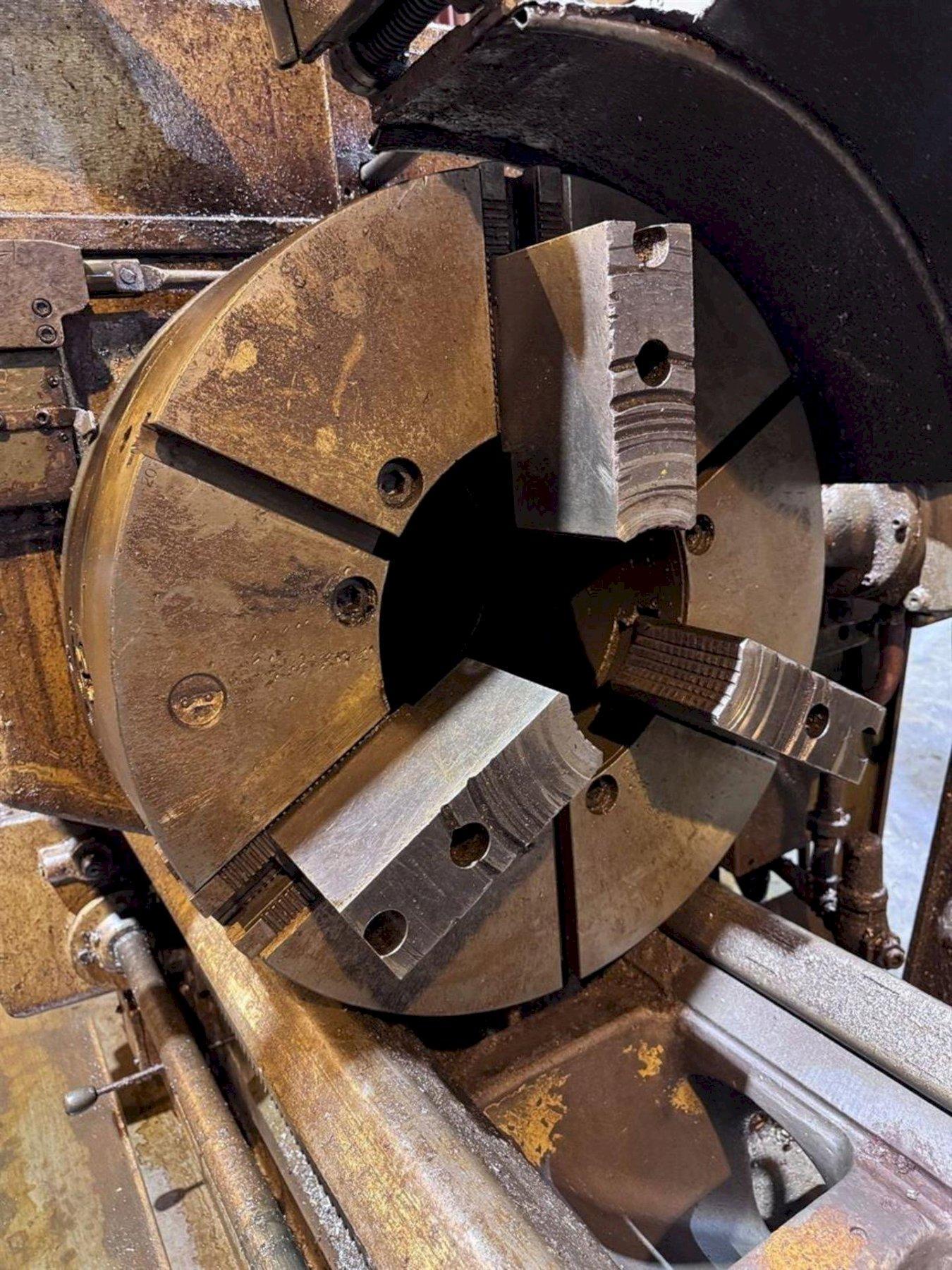

CHUCKS, FRONT & REAR .............. 28" 3 JAW EACH
FULL LENGTH THREADING ............. 1 TO 36 IPR
POWER CHUCK WRENCH ................ YES
RAPID TRAVERSE .................... YES
FLANGE HOLDERS .................... (5)
CHIP PAN AND COOLANT .............. YES
MOTOR ............................. 75 HORSEPOWER
