Stock #: 0894024
SERIAL................................ 4847
MODEL ................................ 5AAREA OF BASE ......................... 130" X 58" SPINDLE SPEEDS ....................... (8) 8 TO 800 RPM THREADS .............................. (5) 6, 7, 8, 11-1/2, 18 DISTANCE SPINDLE TO BASE ............. 18-1/2" TO 98" MAXIMUM SPINDLE TRAVEL ....................... 24" FIXED BASE DRILLS .................... 14' TAPER IN SPINDLE ..................... #6 MT DIAMETER OF SPINDLE .................. 4" TRAVEL OF ARM ON COLUMN .............. 54" TRAVEL OF HEAD ON ARM ................ 105" POWER HEAD CLAMPING .................. YES POWER HEAD TRAVERSE .................. YES POWER ELEVATION ...................... YES COOLANT .............................. YES MAIN MOTOR ........................... 30 HORSEPOWER

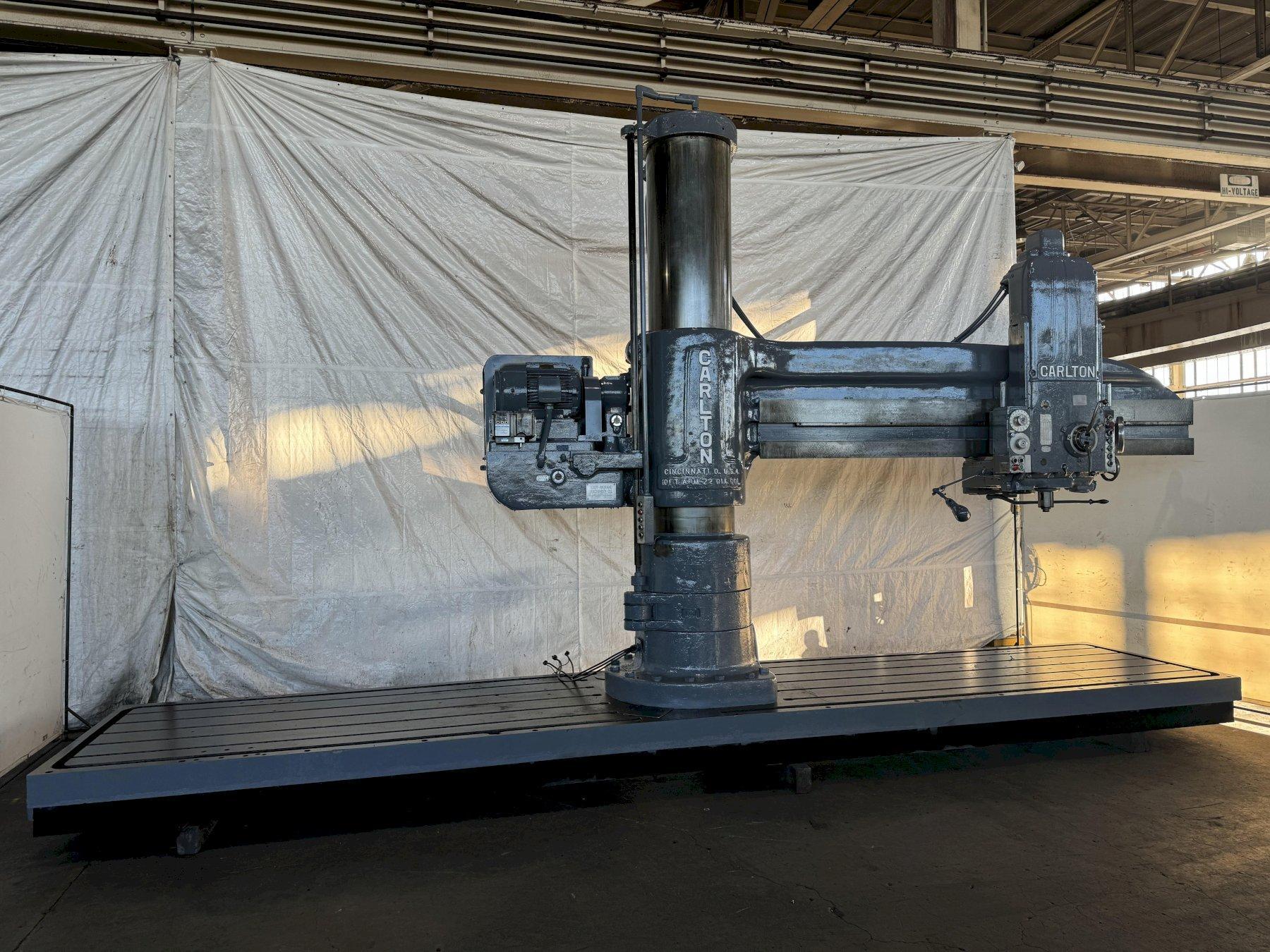

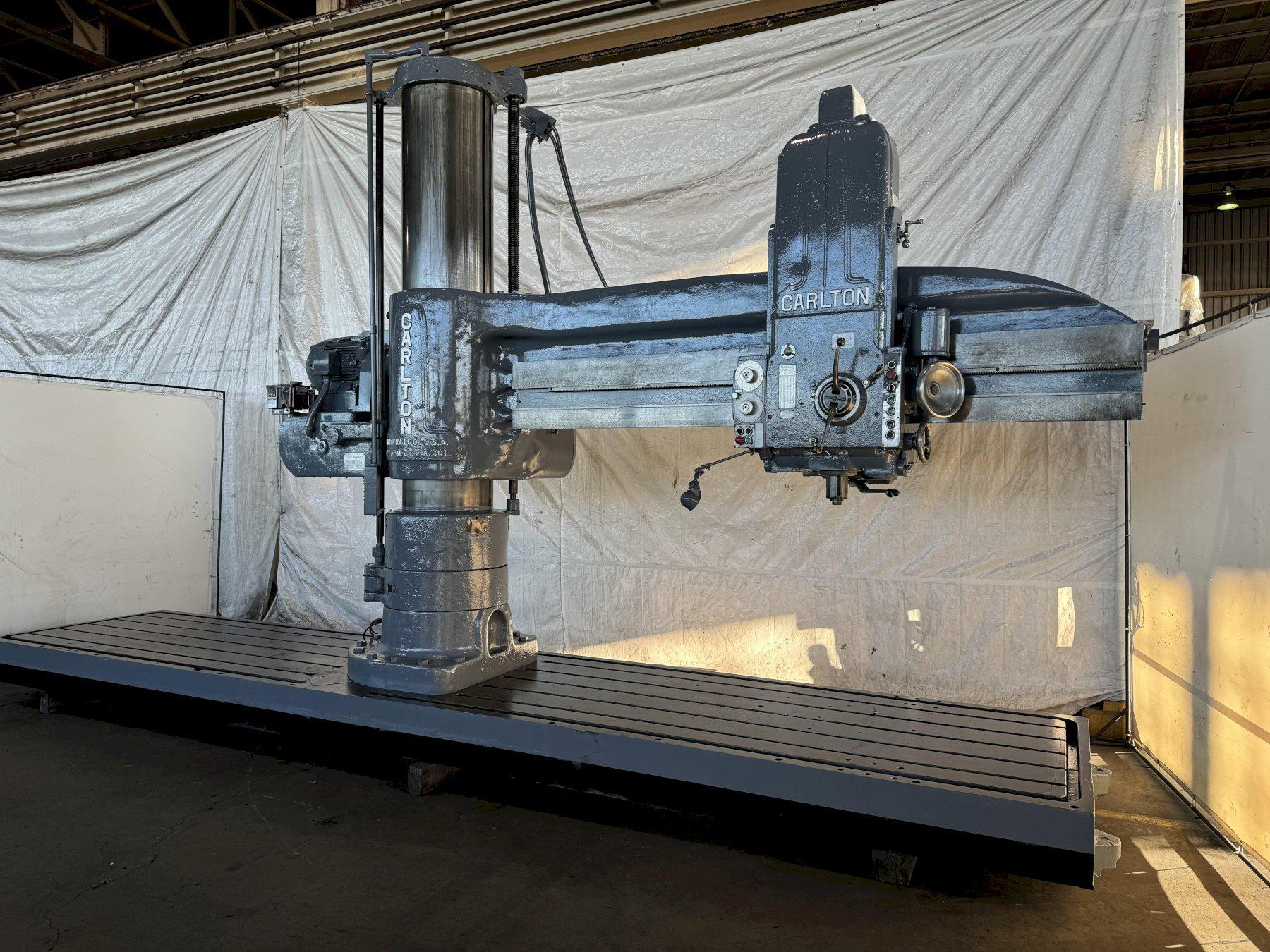

180 BASE DESIGN WITH (1) HALF BASE. COMPLETE 180 DEGREE COVERAGE
STOCK # 0894024

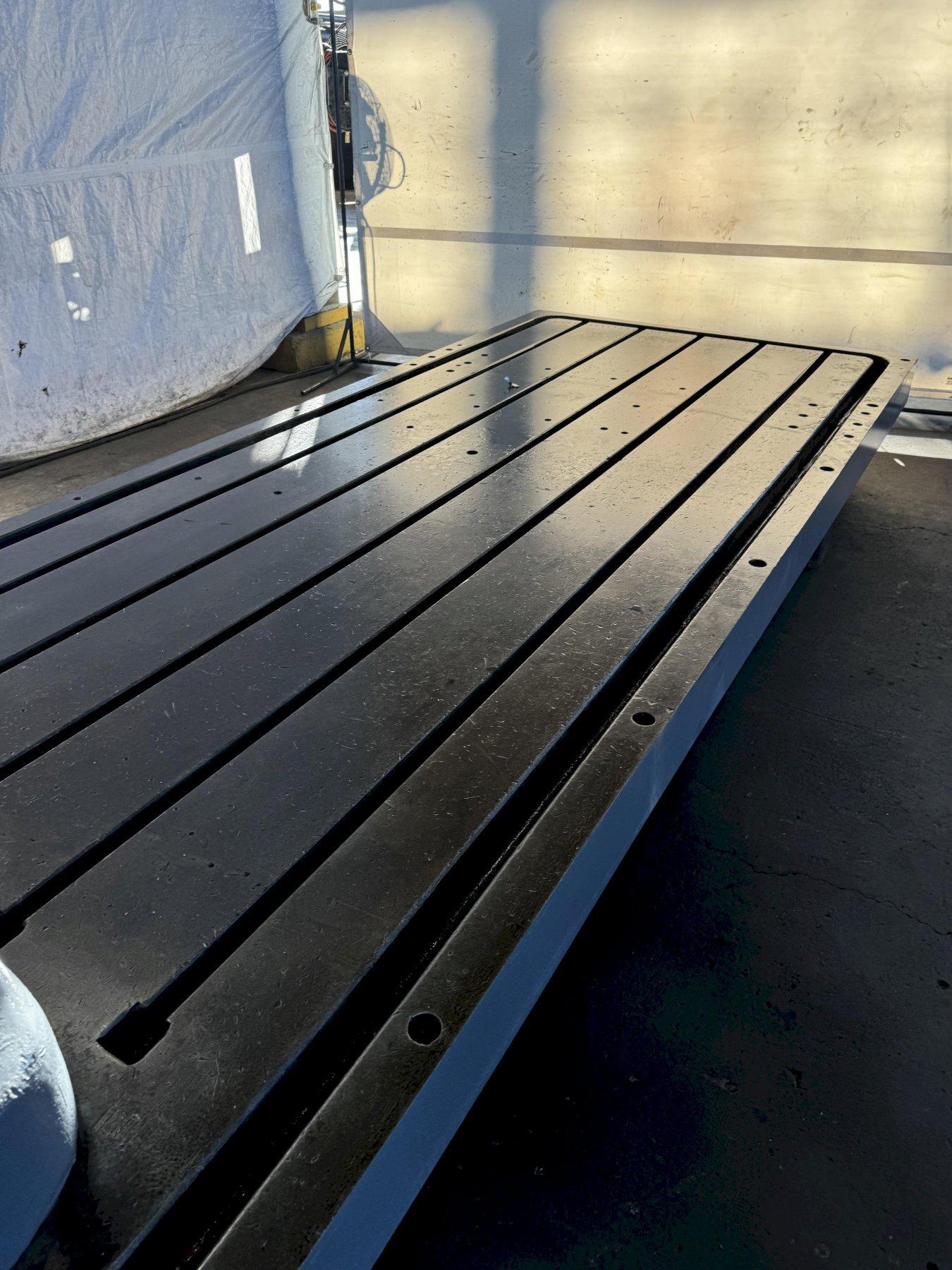

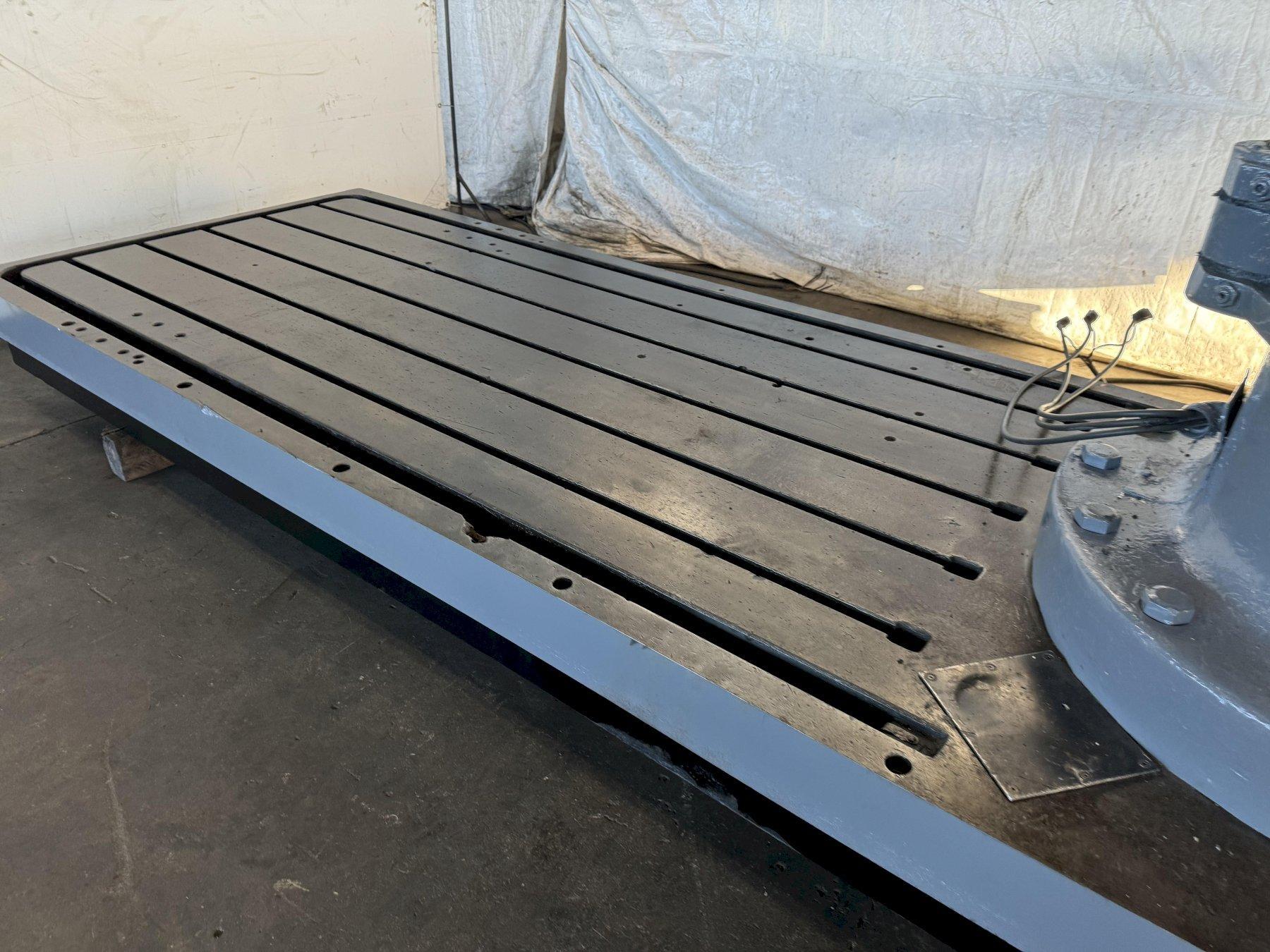

AREA OF BASE ......................... 130" X 58"

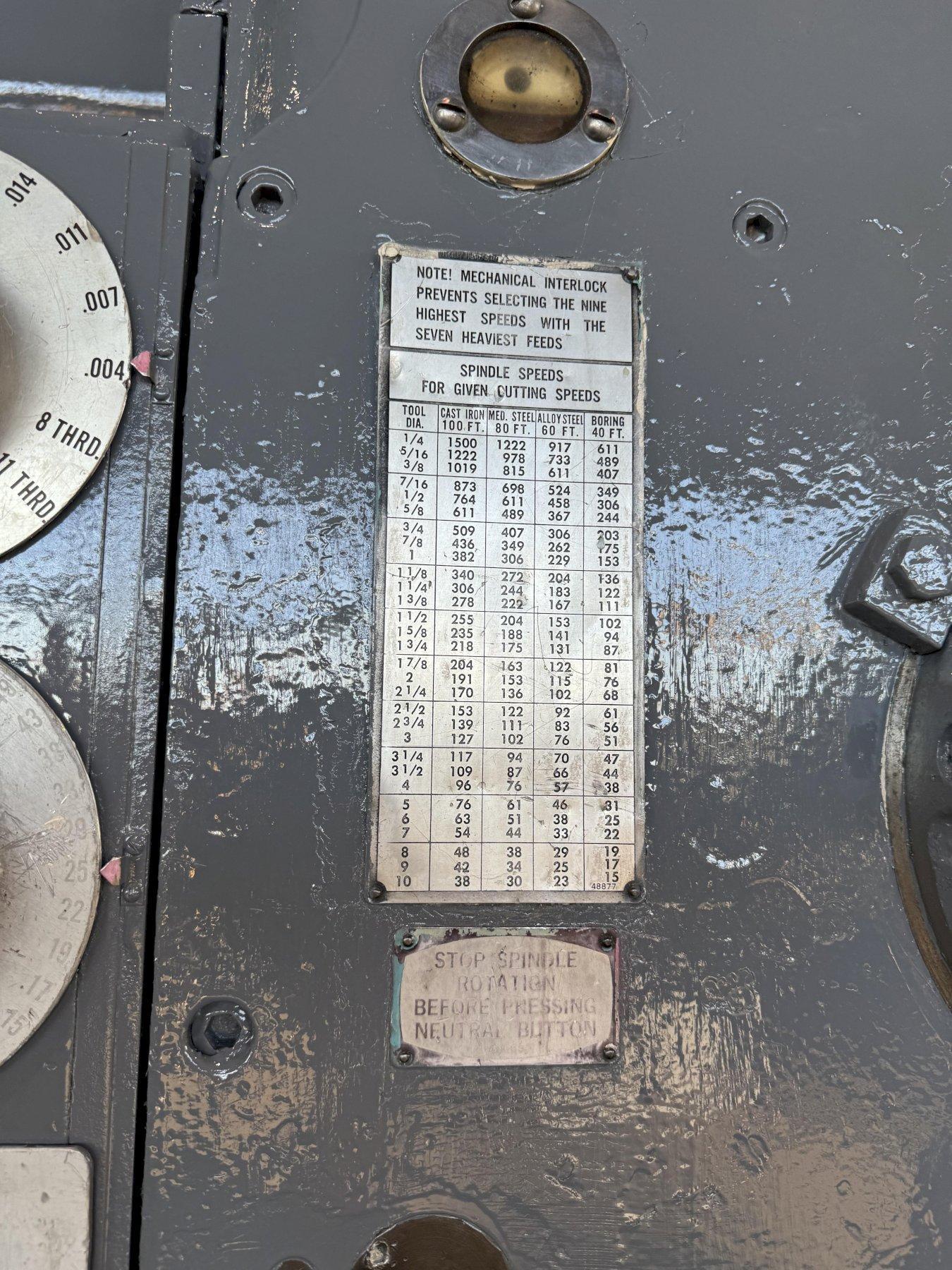

SPINDLE SPEEDS ....................... (8) 8 TO 800 RPM
THREADS .............................. (5) 6, 7, 8, 11-1/2, 18
DISTANCE SPINDLE TO BASE ............. 18-1/2" TO 98" MAXIMUM
SPINDLE TRAVEL ....................... 24"
FIXED BASE DRILLS .................... 14'
TAPER IN SPINDLE ..................... #6 MT
DIAMETER OF SPINDLE .................. 4"

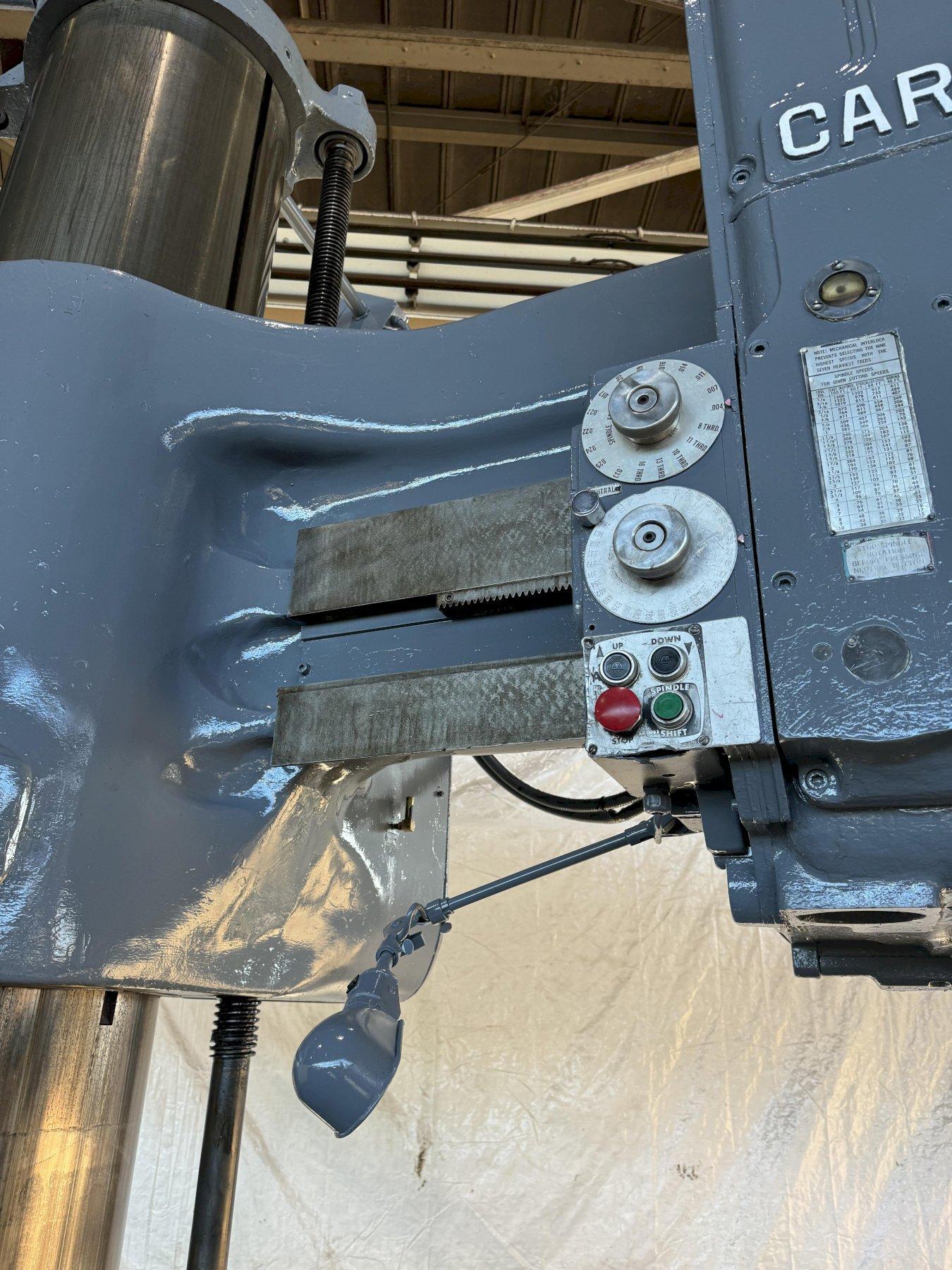

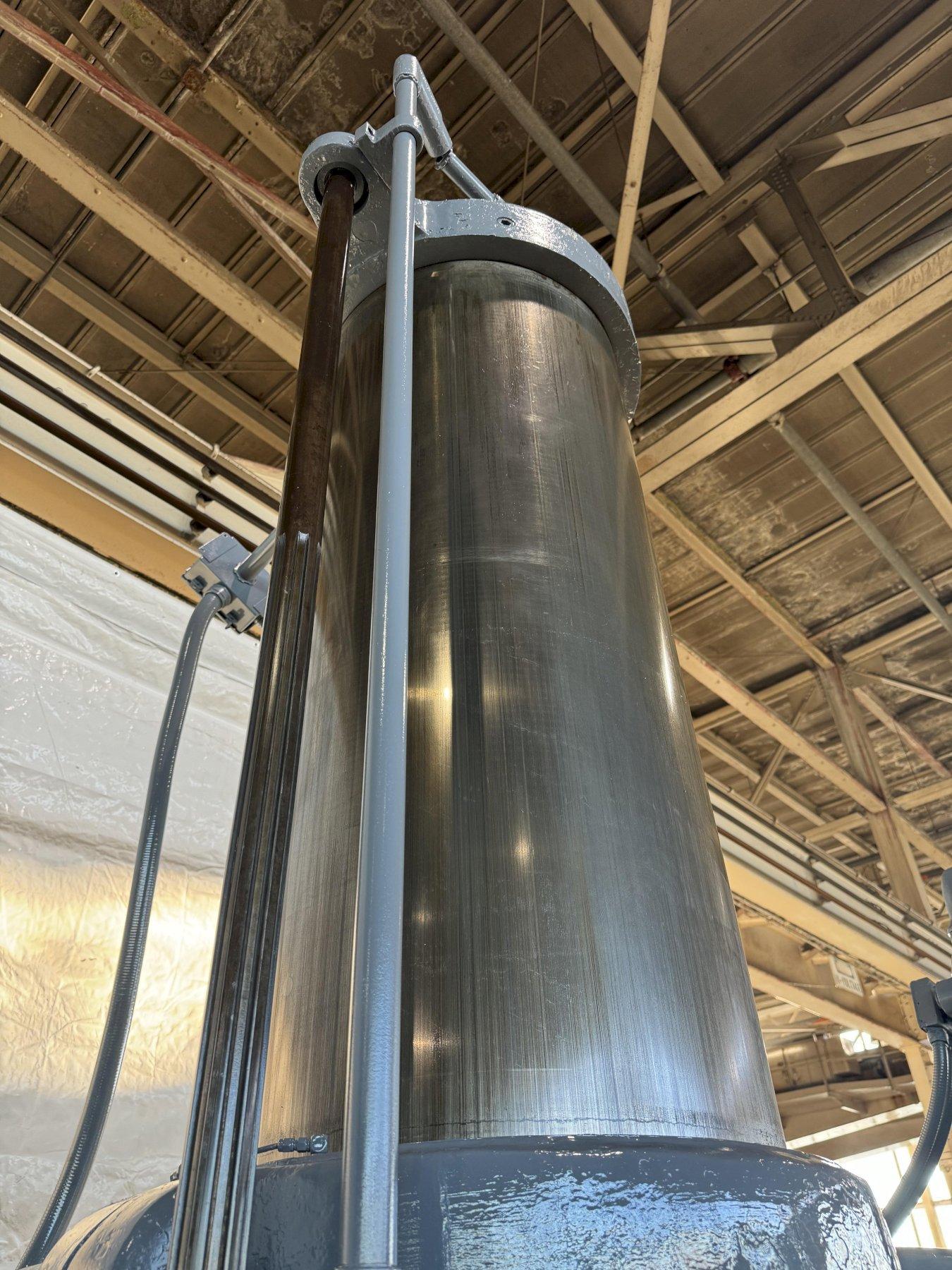

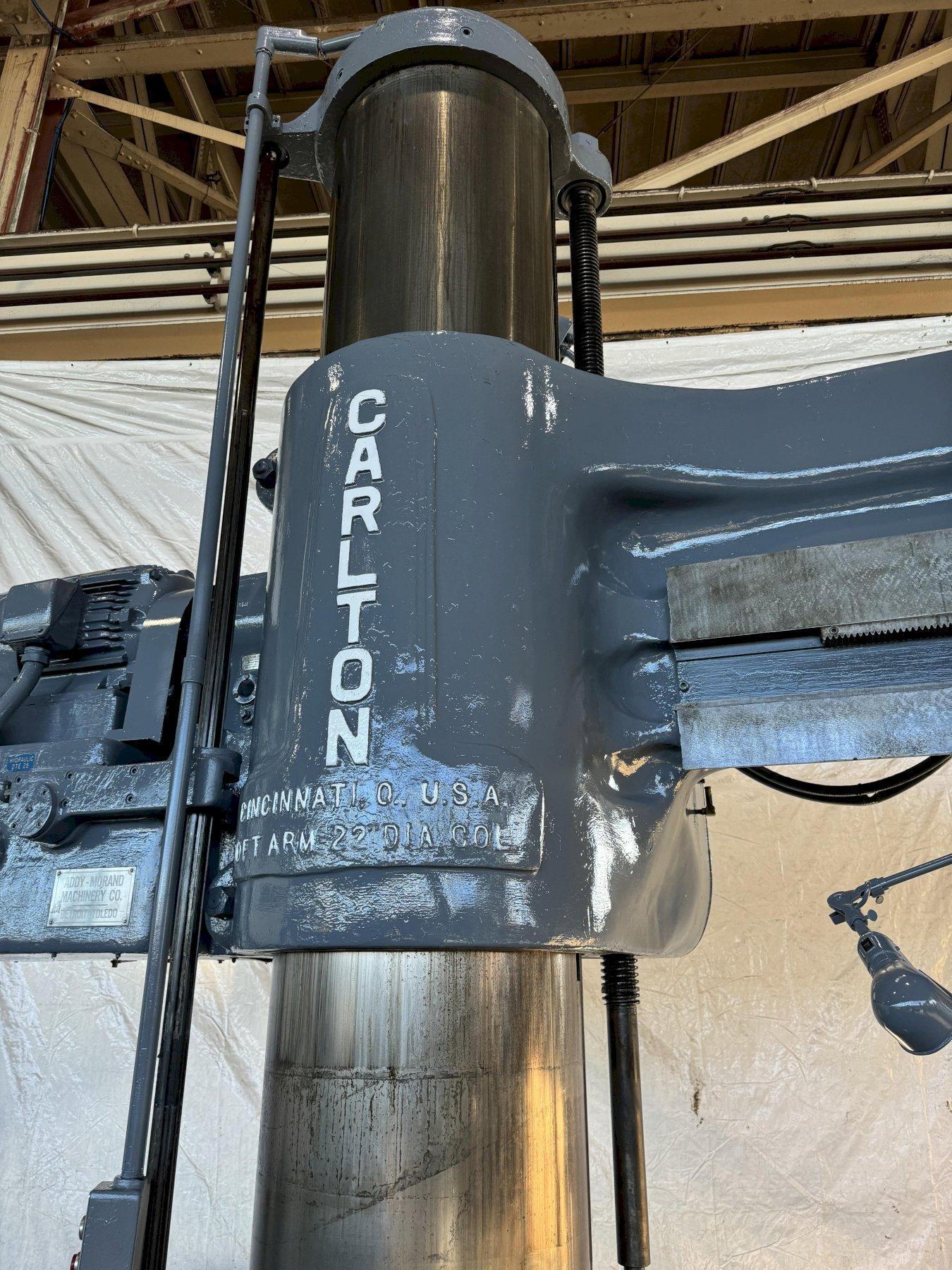

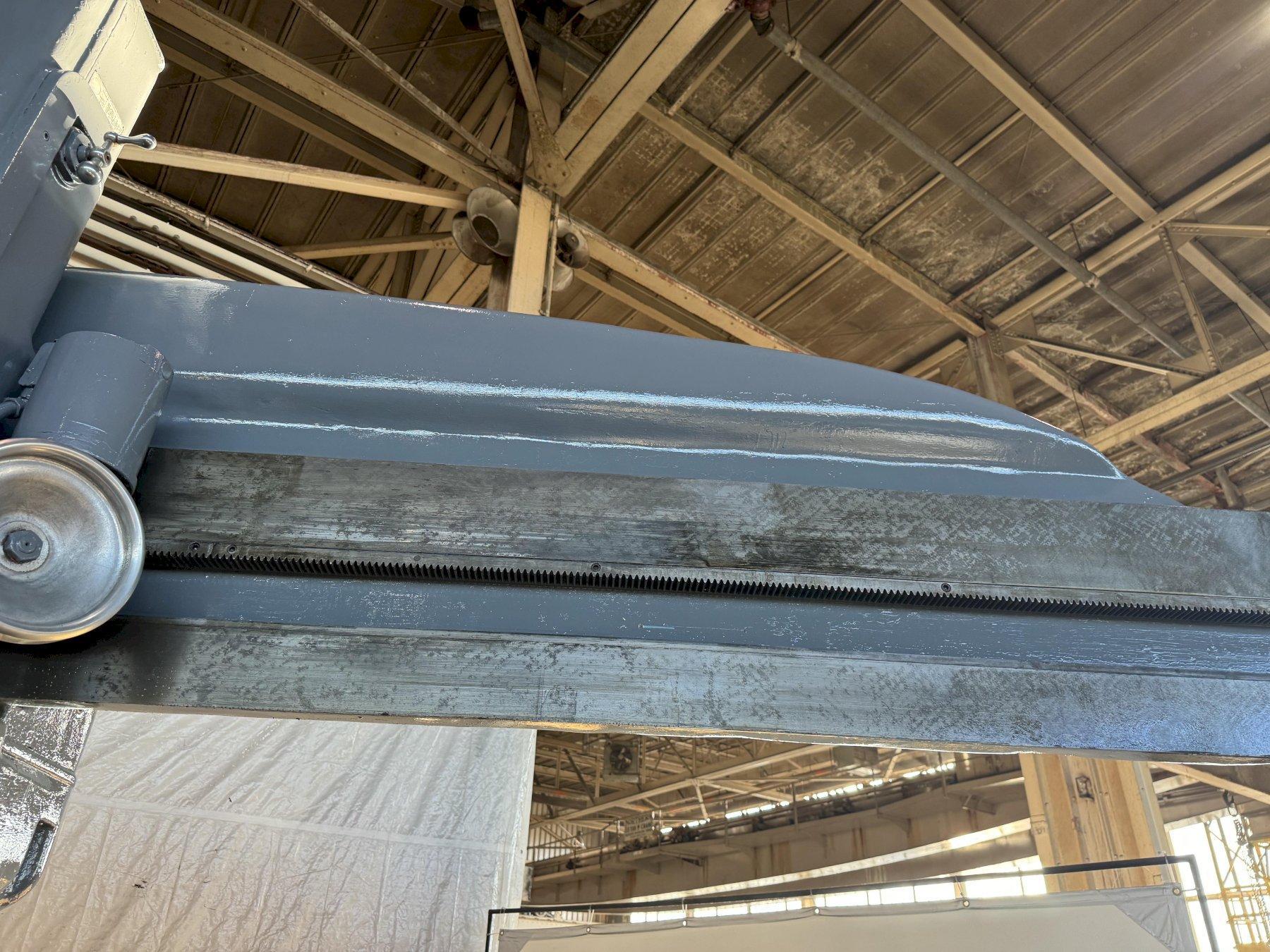

TRAVEL OF ARM ON COLUMN .............. 54"
TRAVEL OF HEAD ON ARM ................ 105"
POWER HEAD CLAMPING .................. YES
POWER HEAD TRAVERSE .................. YES

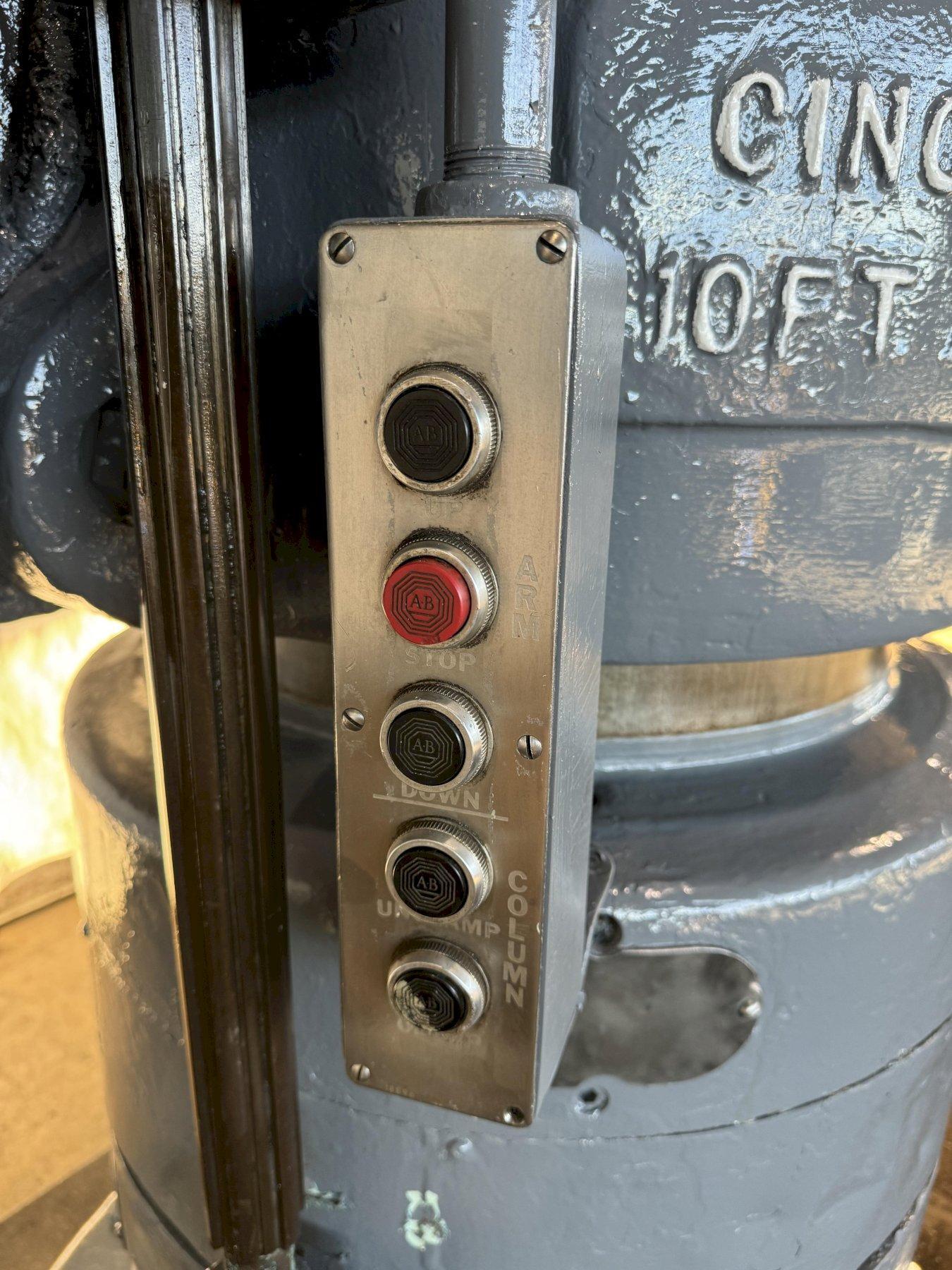

POWER ELEVATION ...................... YES

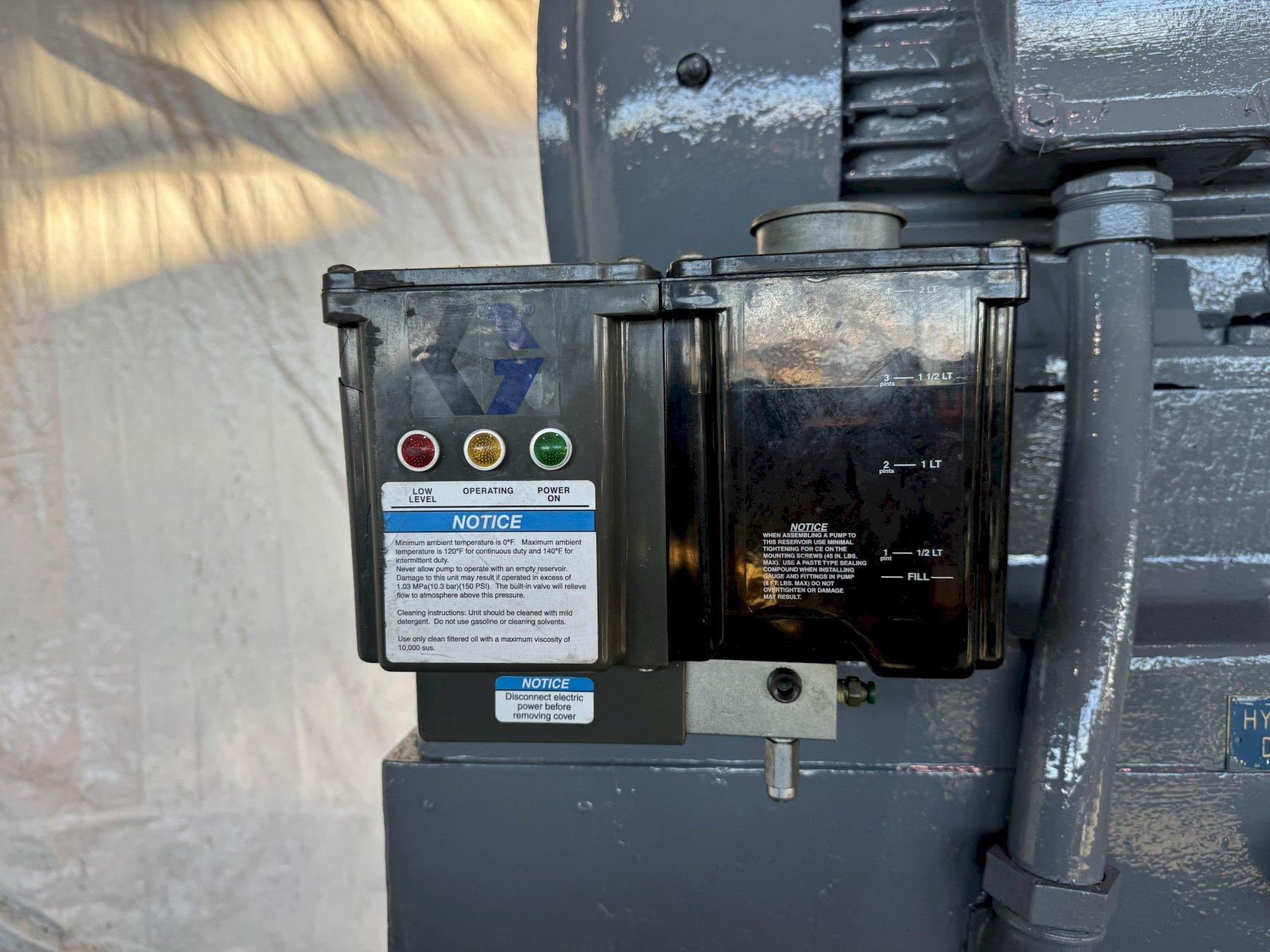

COOLANT .............................. YES
MAIN MOTOR ........................... 30 HORSEPOWER
180 BASE DESIGN WITH (1) HALF BASE. COMPLETE 180 DEGREE COVERAGEThis site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
