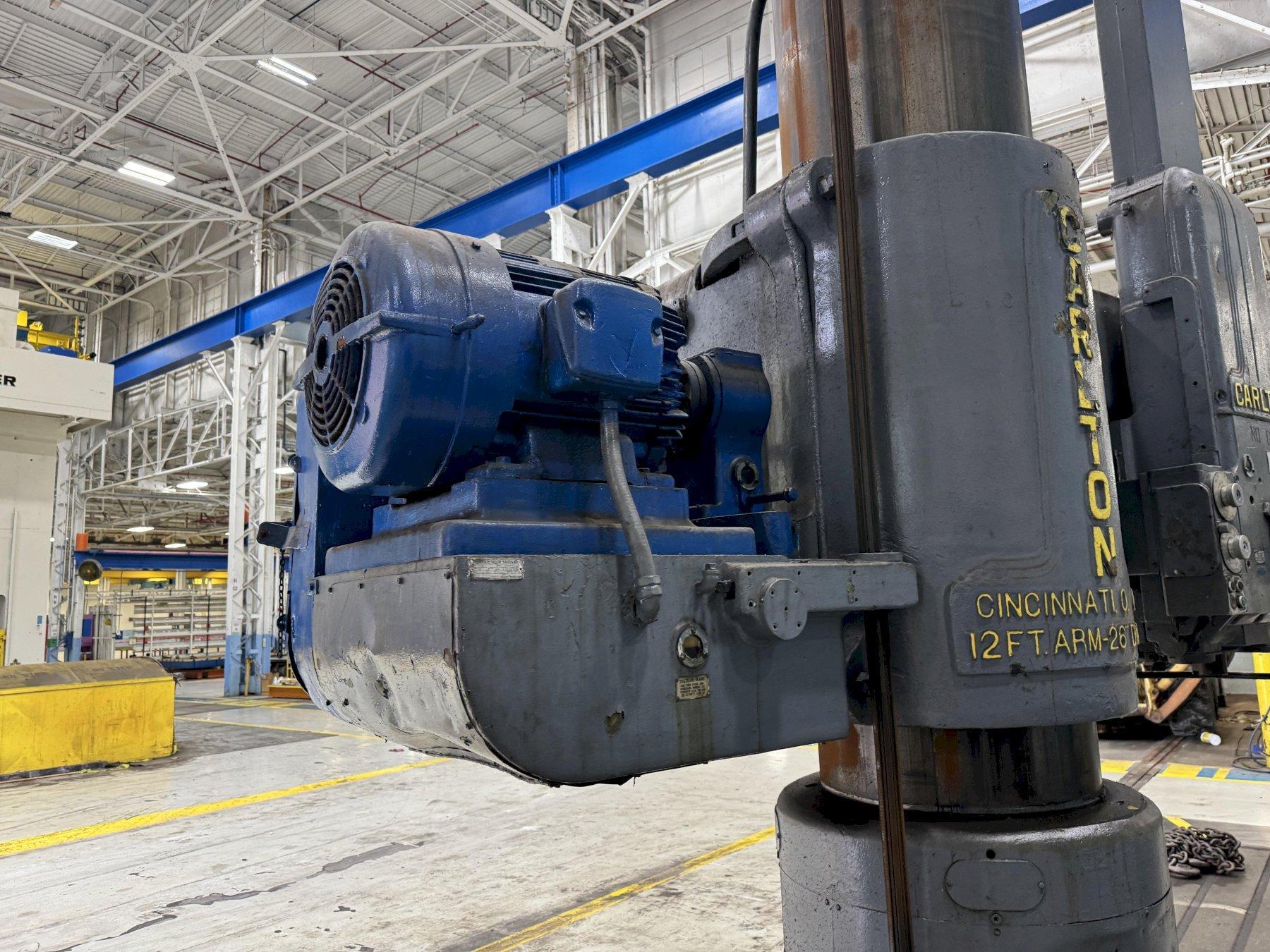

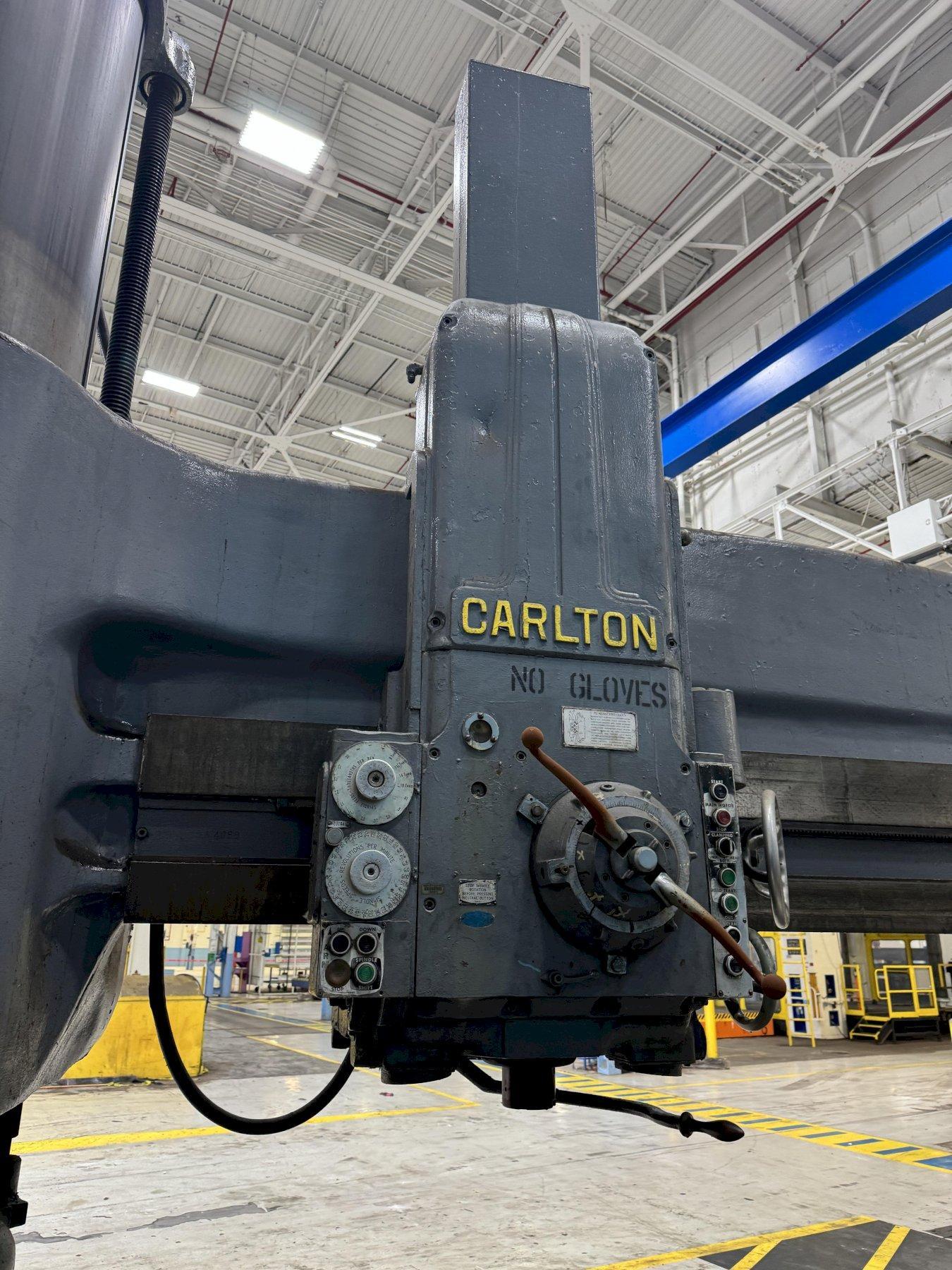

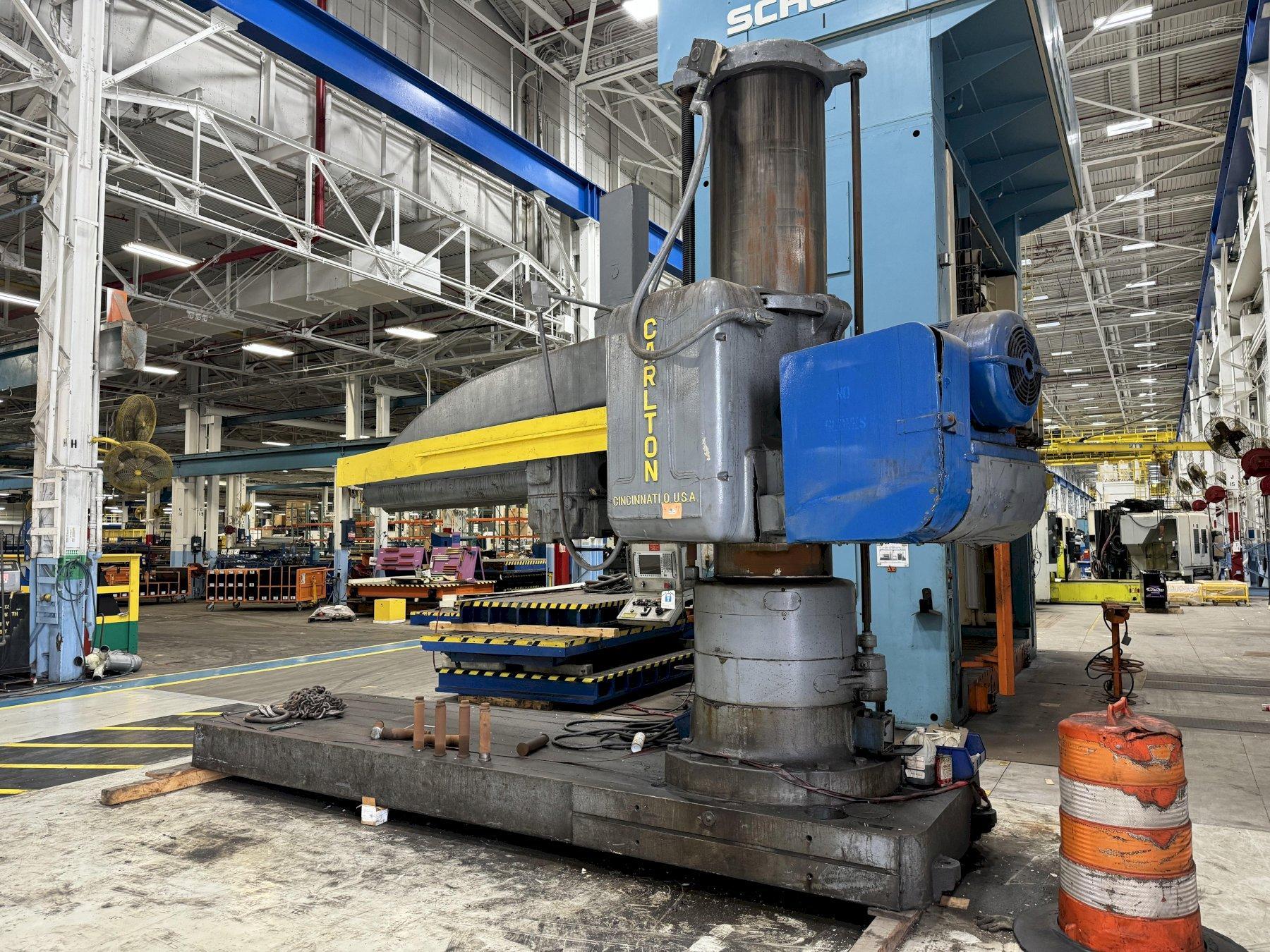

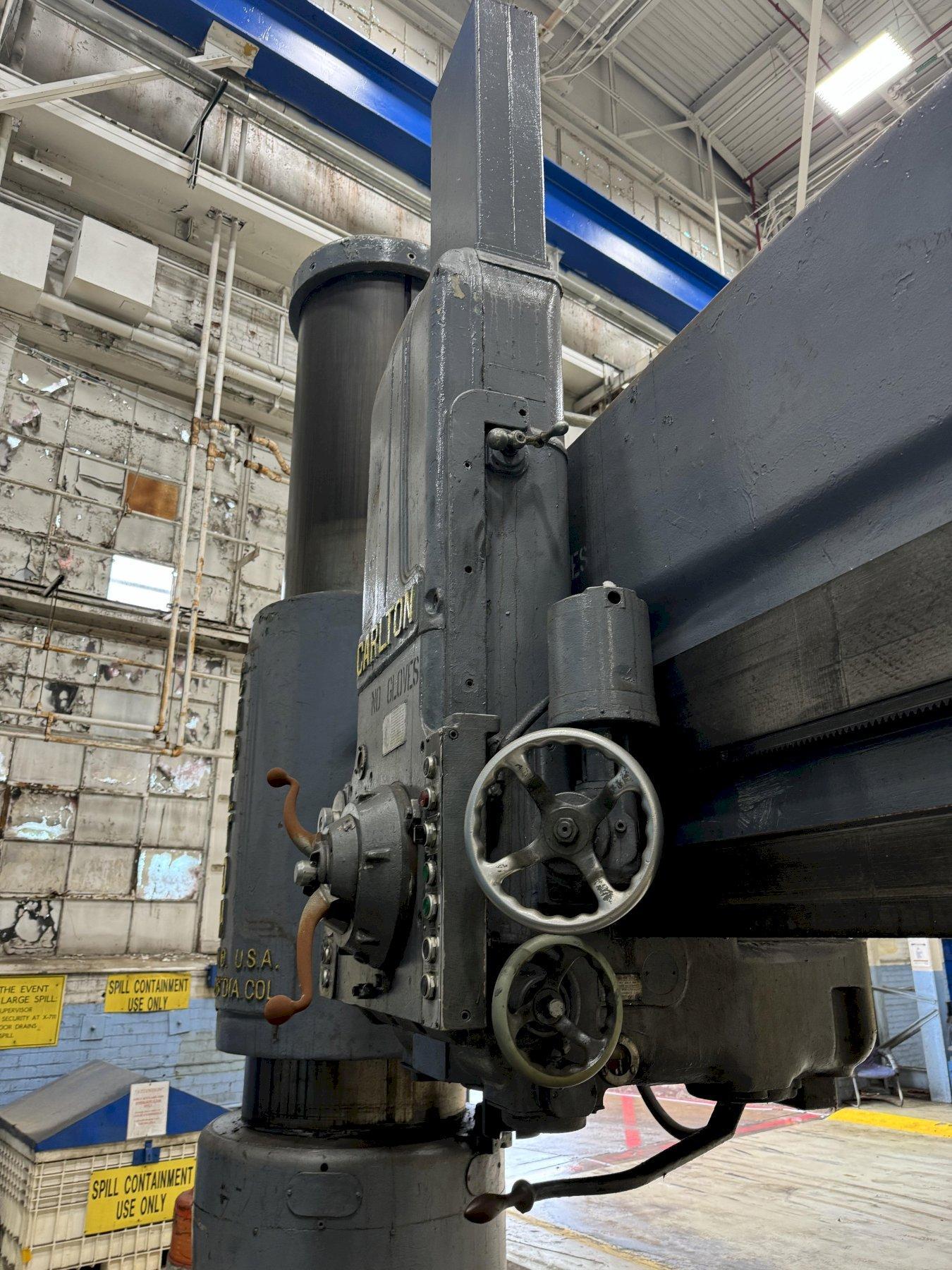

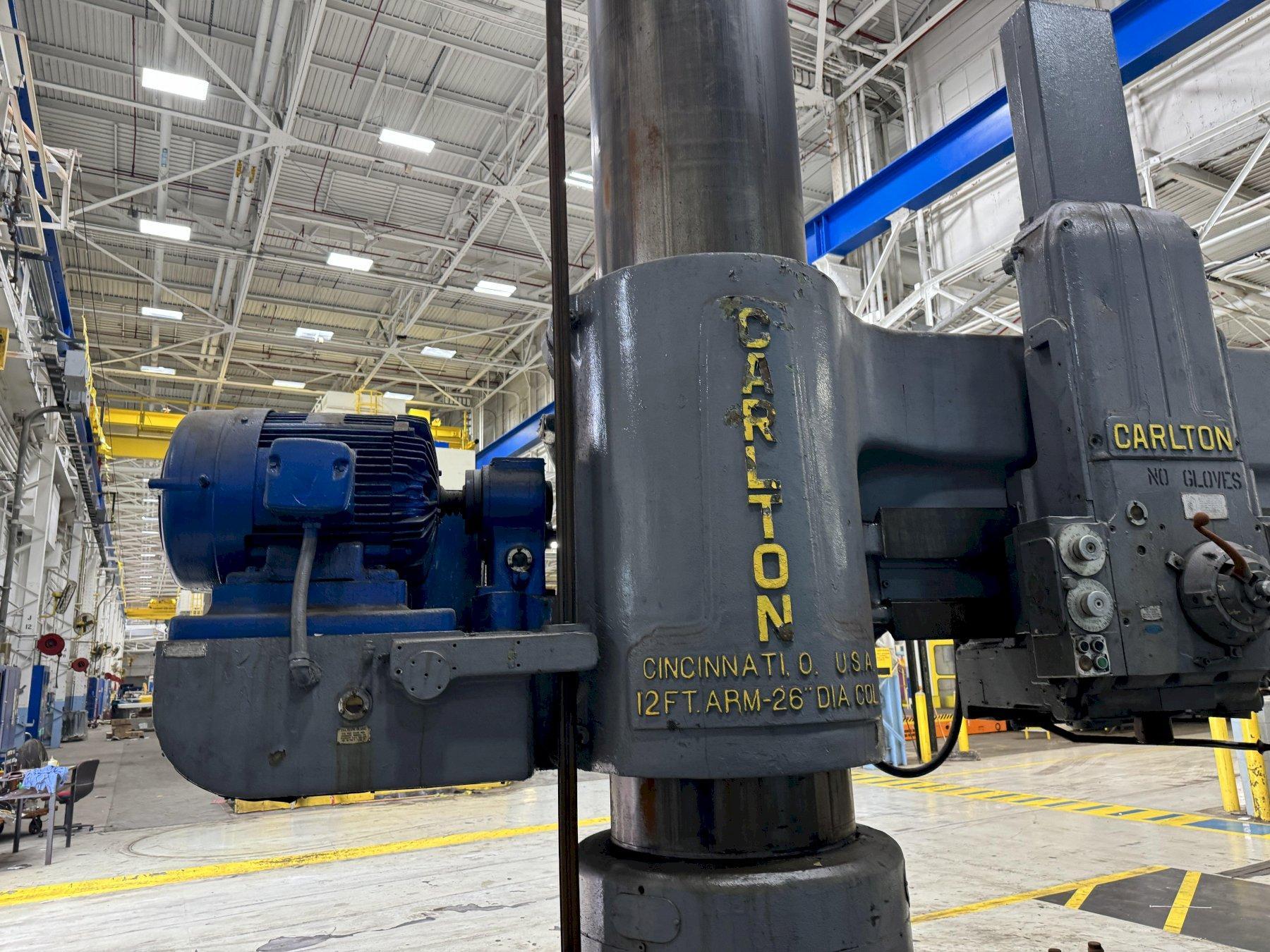

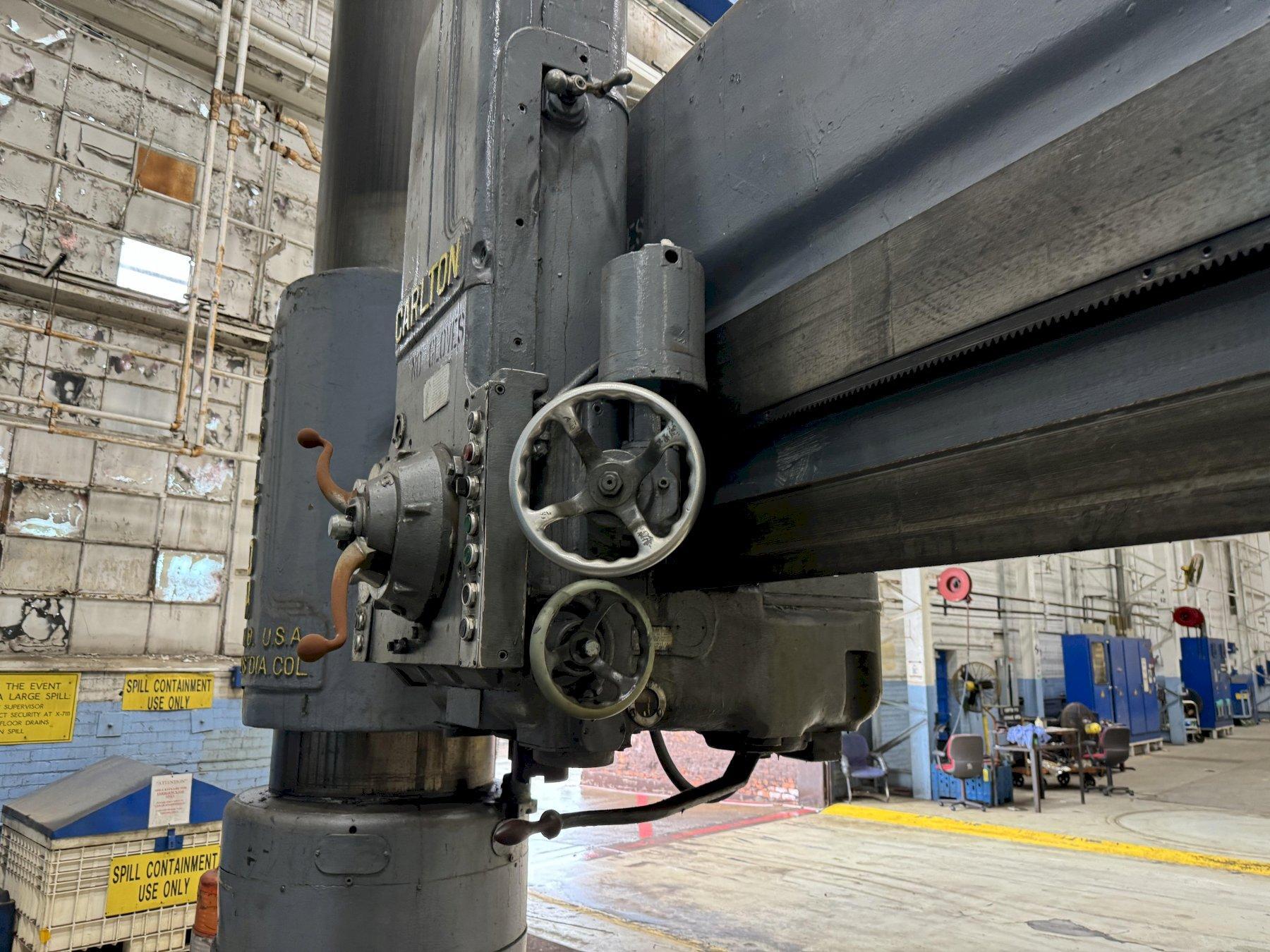

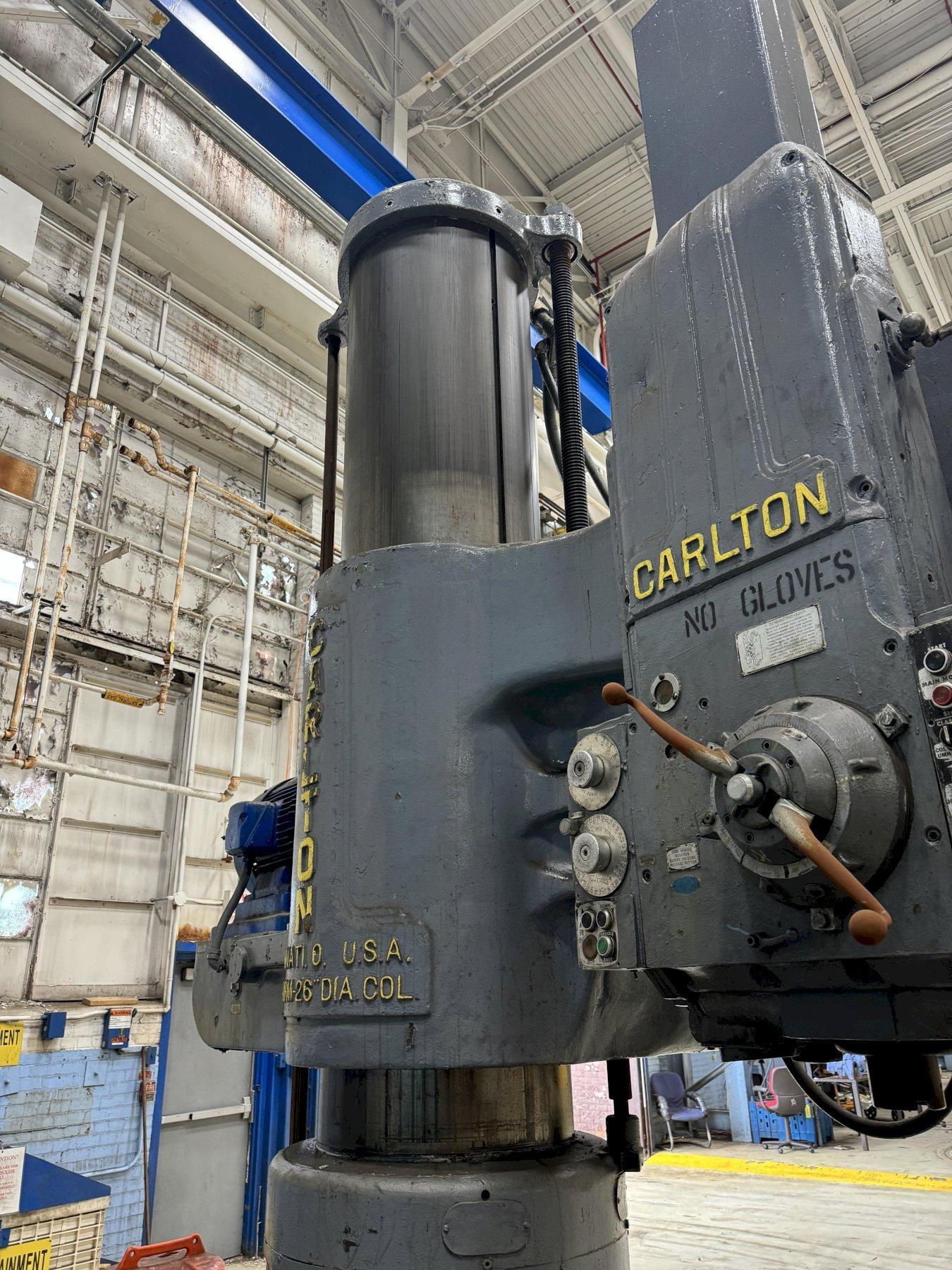

12' X 26" CARLTON 5A RADIAL ARM DRILL. STOCK # 0902724

Stock #: 0902724

Equipped With

SERIAL..................................: 4088
MODEL...................................: 5A

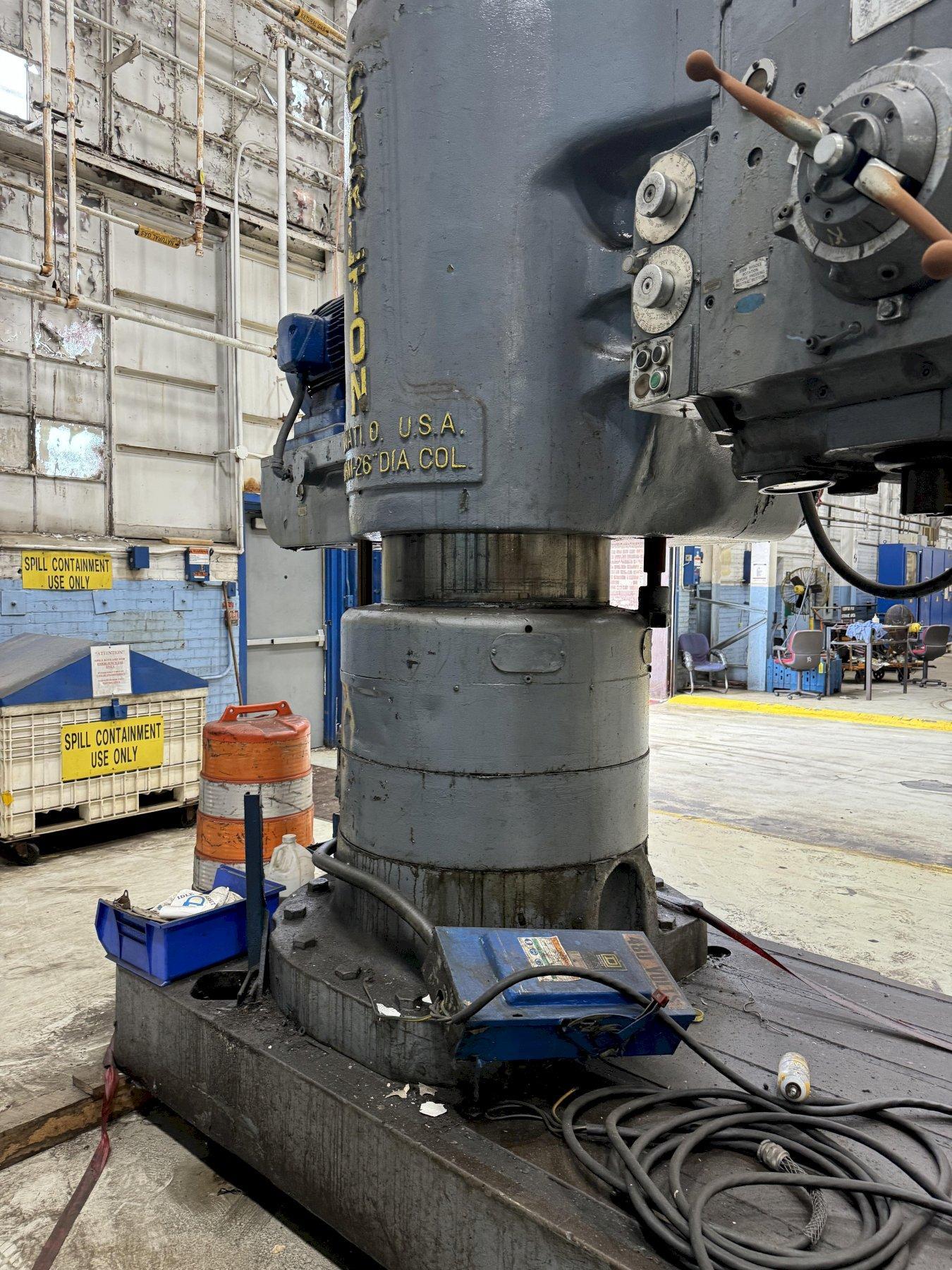

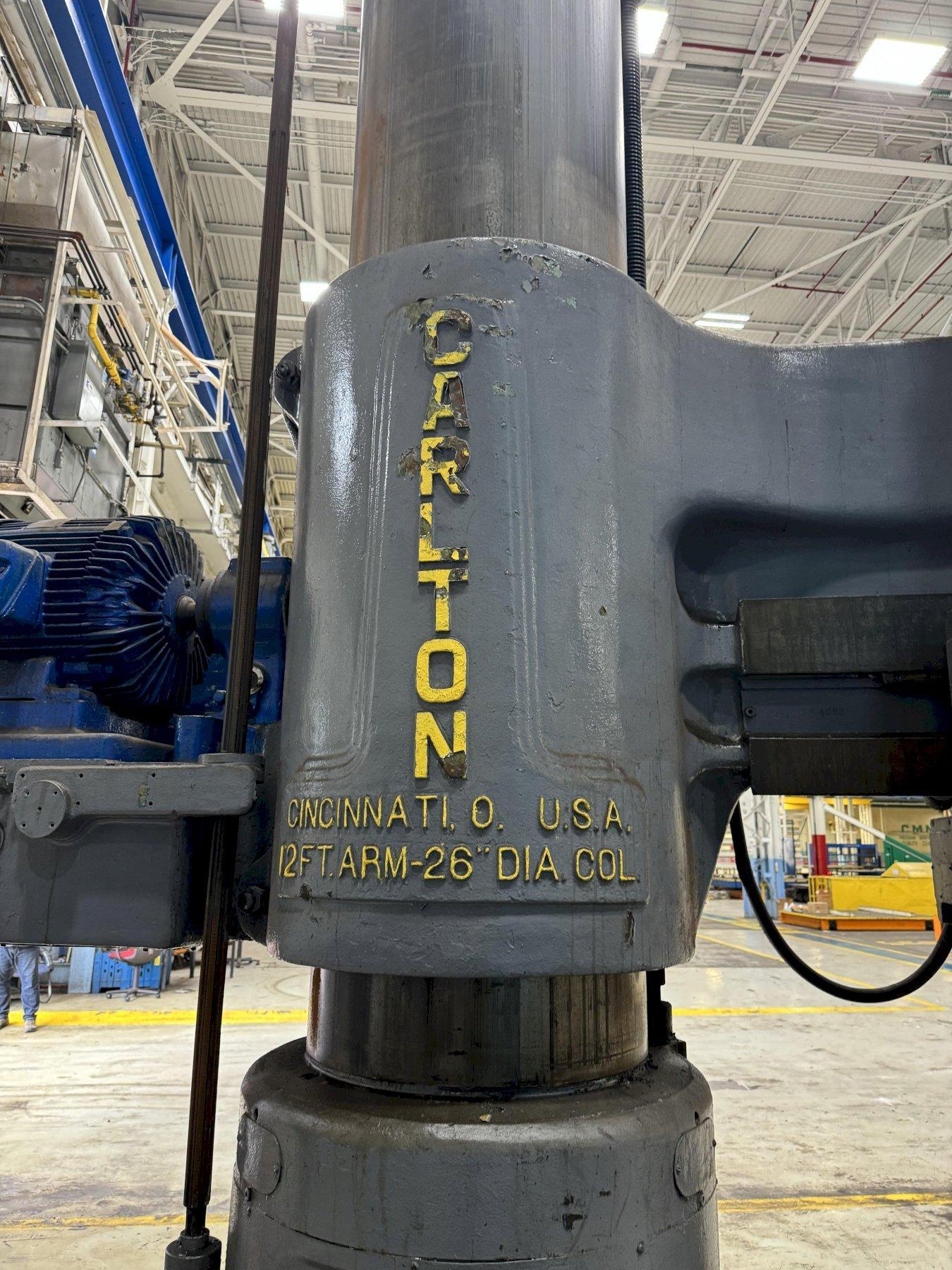

COLUMN DIAMETER.........................: 26"

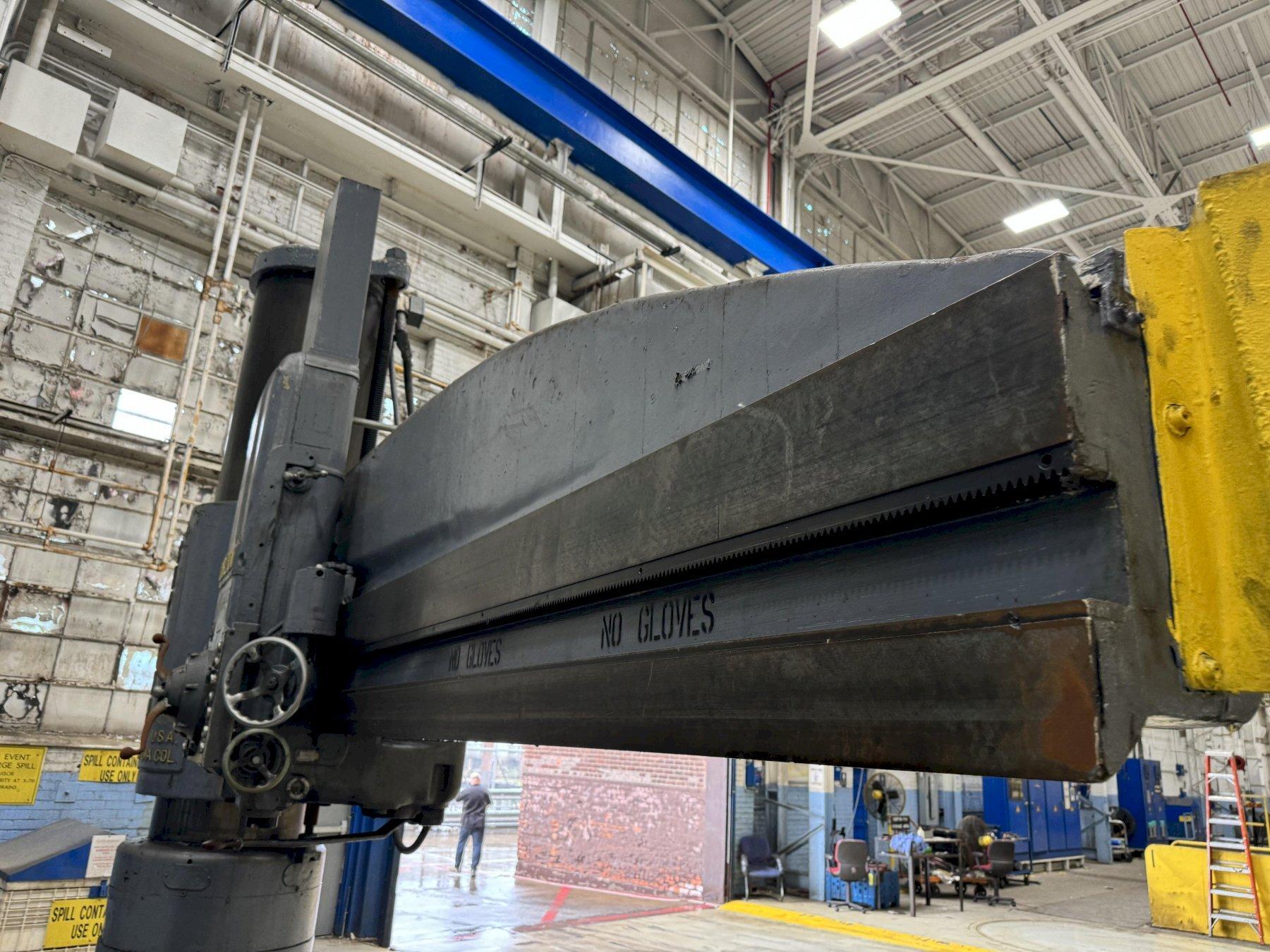

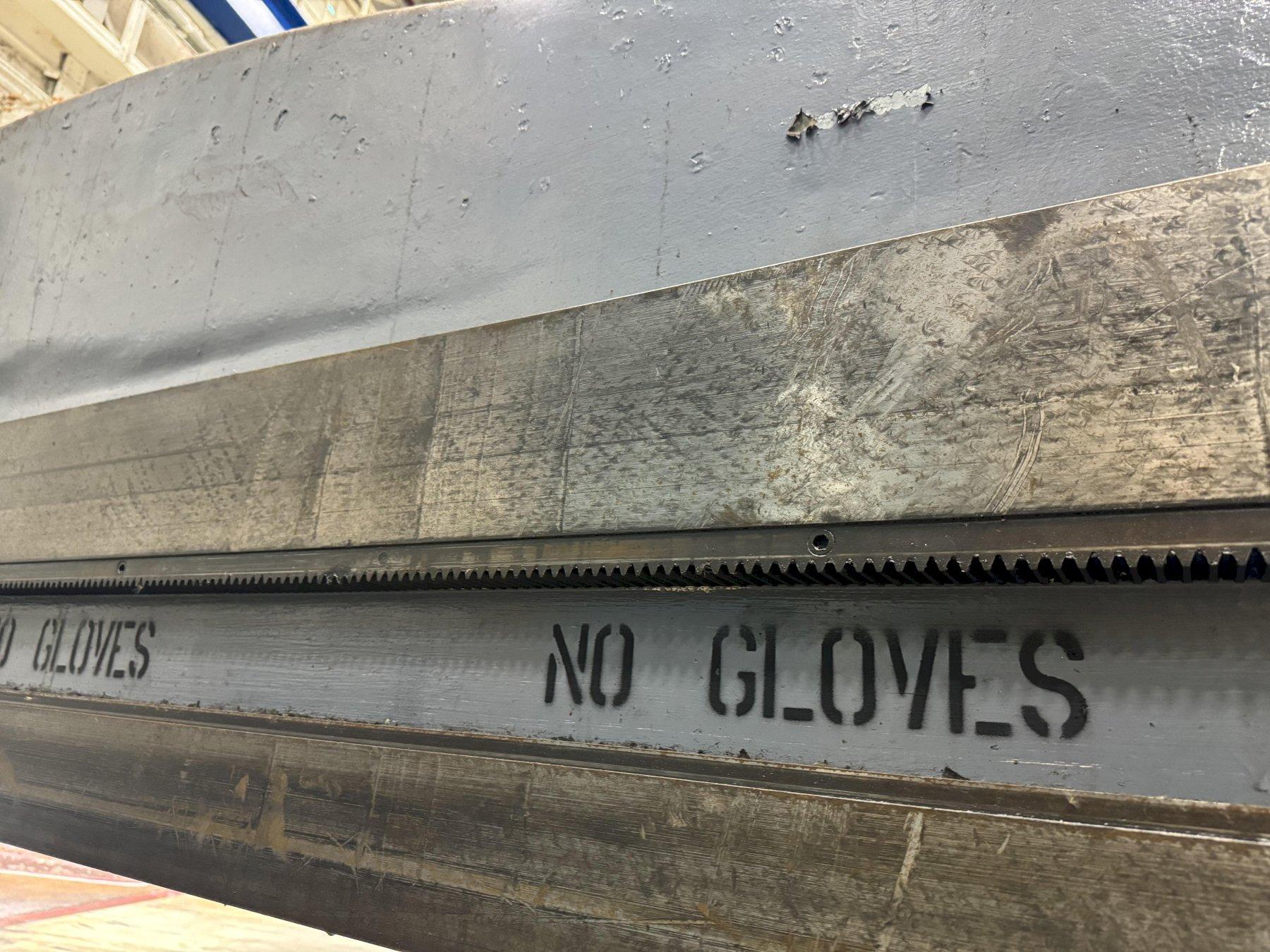

ARM LENGTH..............................: 12'
FACE OF COLUMN TO SPINDLE CENTER........: 16.5" - 144"
SPINDLE RADIUS..........................: 34" - 13'6"
SPINDLE TO BASE.........................: 20.5" - 8'4"

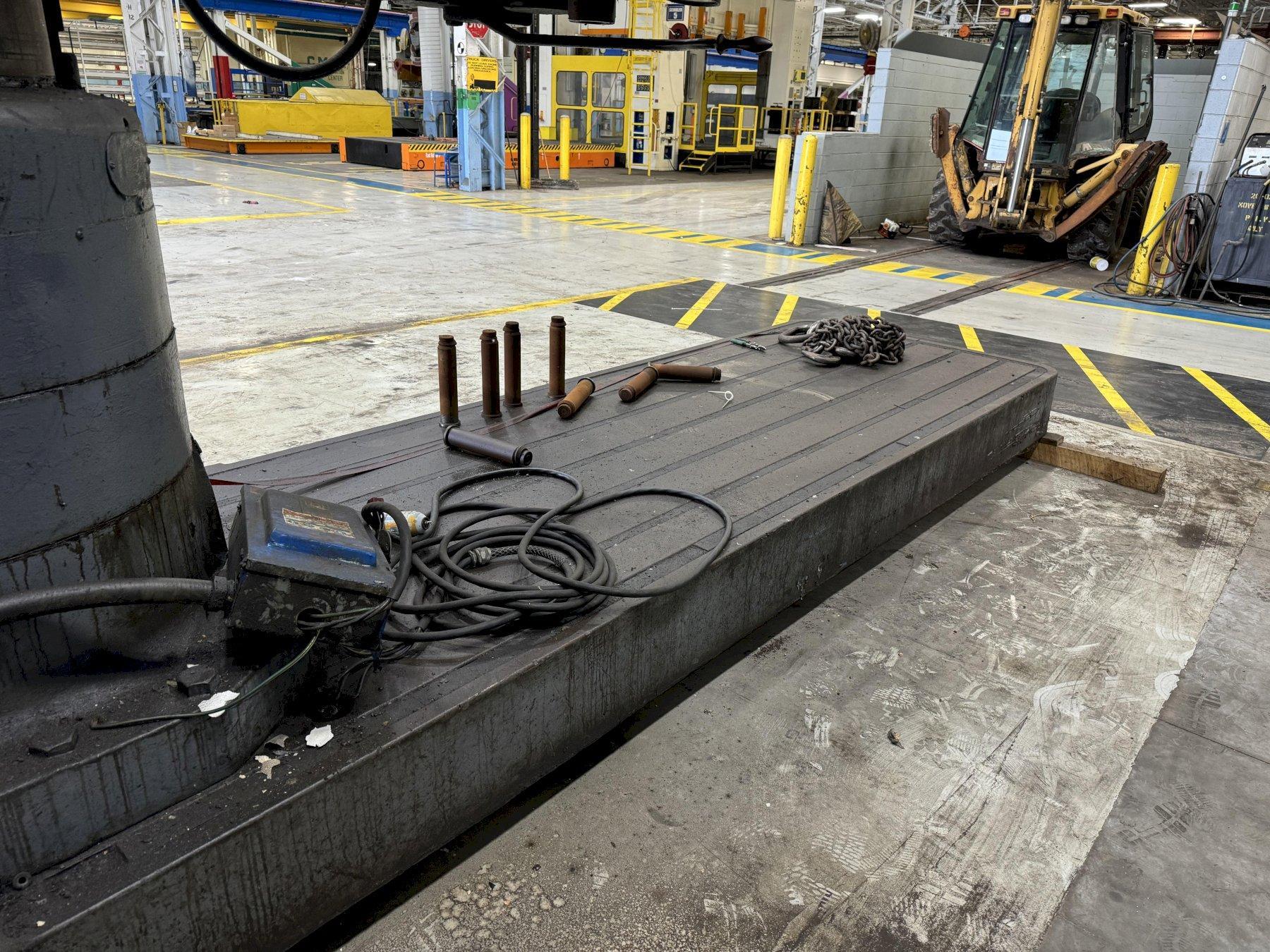

WORKING SURFACE OF BASE.................: 4'9" - 12'6"
TRAVEL OF SPINDLE IN HEAD...............: 24"
SPINDLE DIAMETER........................: 4"
SPINDLE TAPER...........................: #6
FEEDS AND TAP LEADS.....................: (18) .004" - .125"
NUMBER OF SPINDLE SPEEDS................: 36
