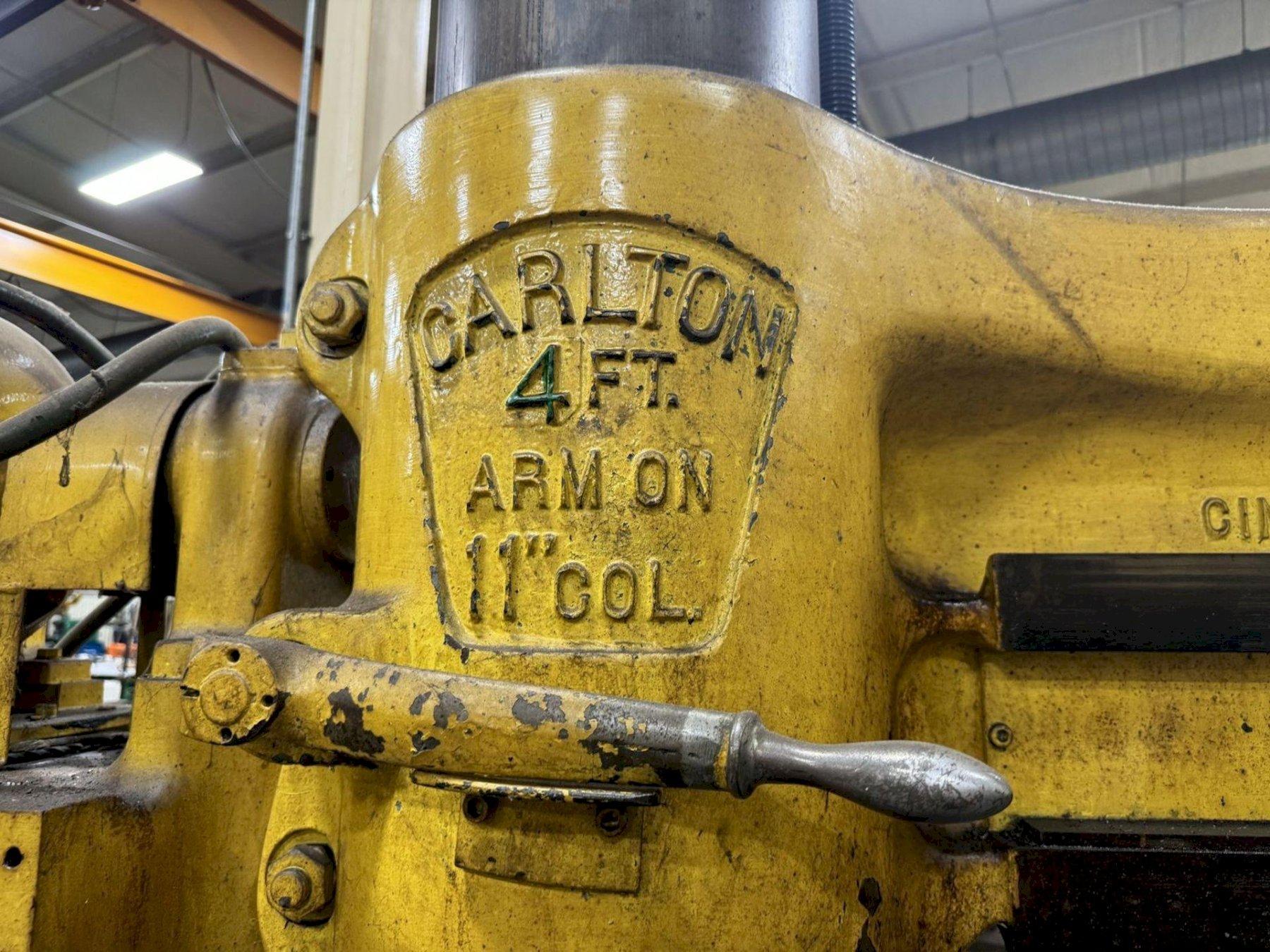

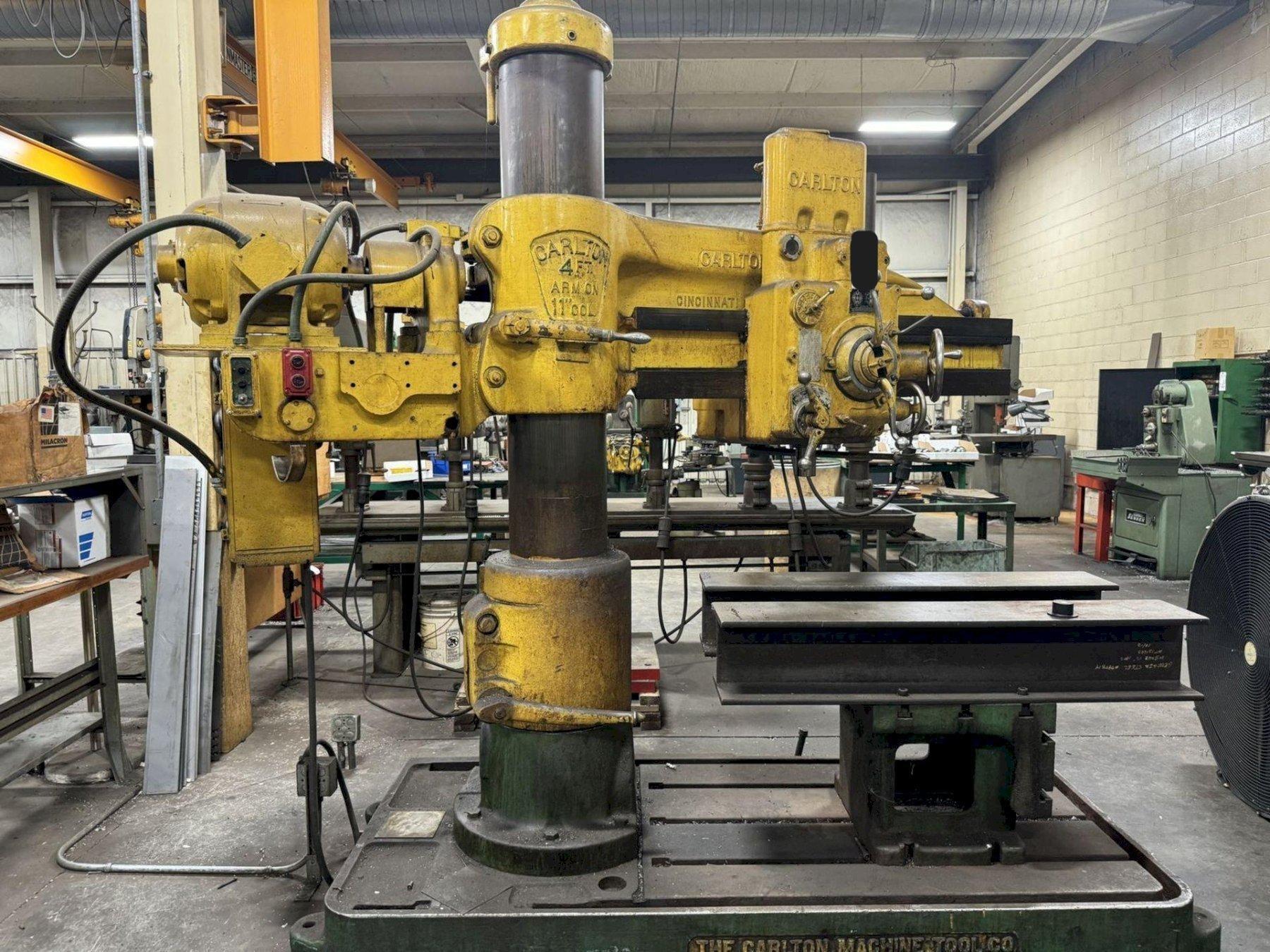

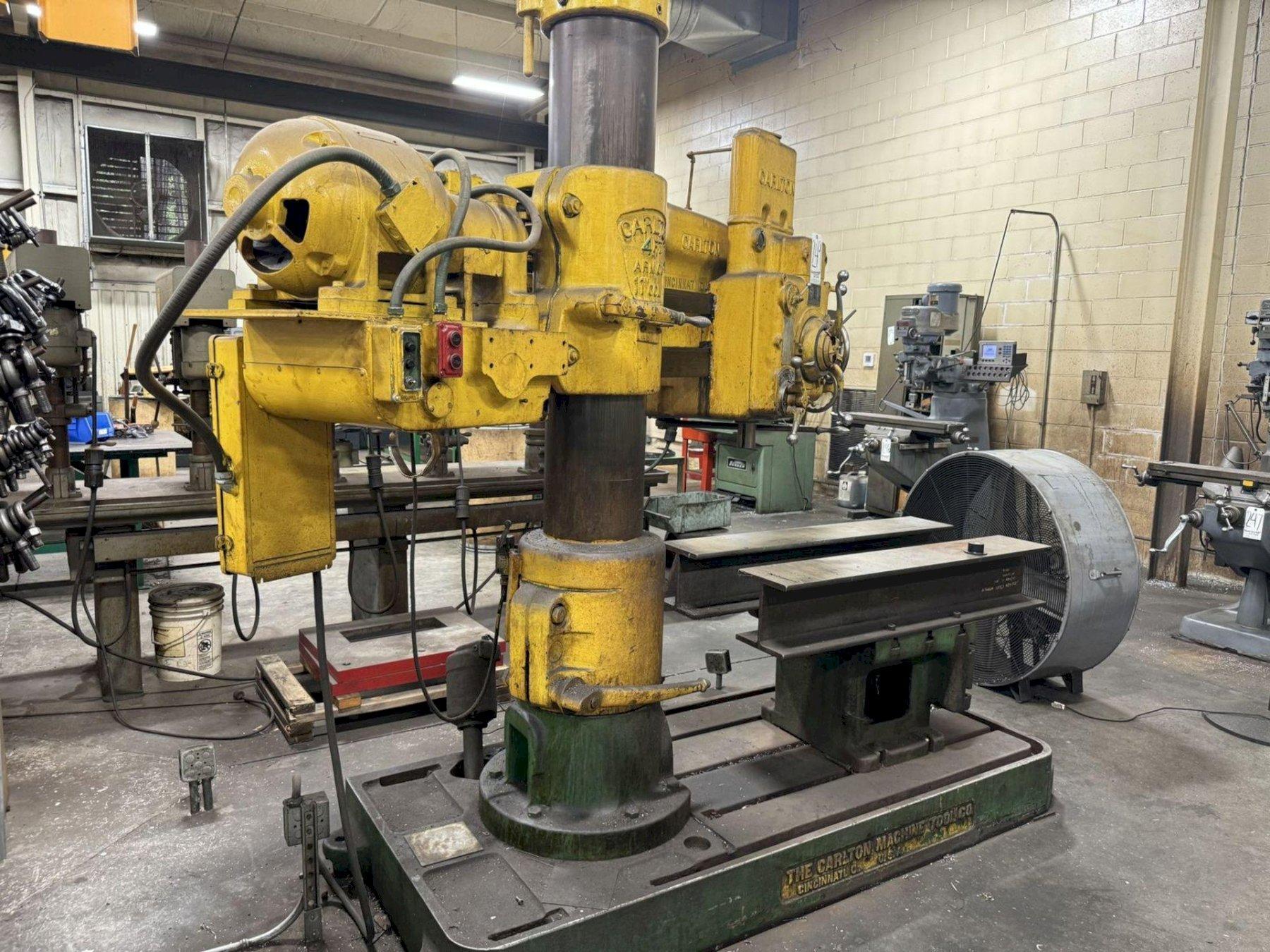

4' X 11" CARLTON RADIAL ARM DRILL. STOCK # 1114024.

Stock #: 1114024

Equipped With

Size of Arm: 4'
Diameter of Column: 11"
Column Face to Spindle Center: 48 max, 9 min
Spindle Radius: 4 8-1/2 max, 17-1/2 min
Spindle to Base: 4' 7-1/4" max, 14-3/4" min
Spindle Speeds: 40 – 1500 RPM
Spindle Feeds (6): 0.006 – 0.025
Vertical Travel of Spindle in Head: 12
Morse Taper in Spindle: No. 4
Traverse of Arm on Column: 2' 4-1/2"
Traverse of Head on Arm: 3' 3"
Drills to Center of Circle: 8
Main Drive Motor: 5 HP
