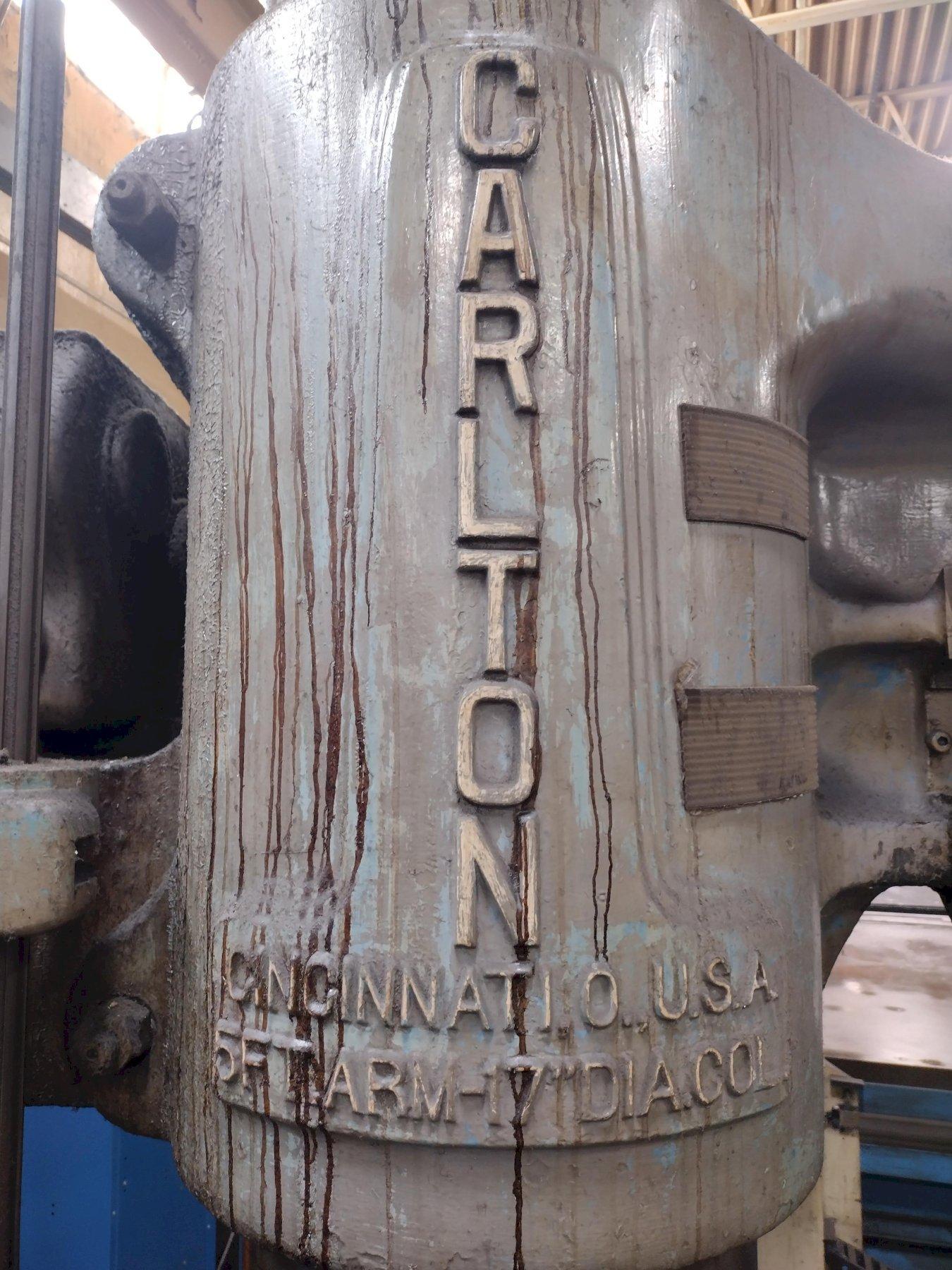

5' X 17" CARLTON RADIAL ARM DRILL. STOCK # 0328226

Stock #: 0328226

Equipped With

SERIAL................................. 3A-3151
MODEL ................................. 3A
AREA OF BASE .......................... 56" X 36"
SPINDLE SPEEDS ........................ (36) 18 TO 1800 RPM
SPINDLE FEEDS ......................... (18) .004 TO .125 IPR
TAP LEADS ............................. 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ........................ 18"
DIAMETER OF SPINDLE ................... 3-3/16"
TAPER IN SPINDLE ...................... #5MT
DISTANCE SPINDLE TO BASE .............. 10-1/2" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ............ 15" MIN, 60" MAX
POWER ARM ELEVATION ................... YES
POWER HEAD TRAVERSE ................... YES
POWER COLUMN CLAMPING ................. YES
POWER HEAD CLAMPING ................... YES
COOLANT ............................... YES

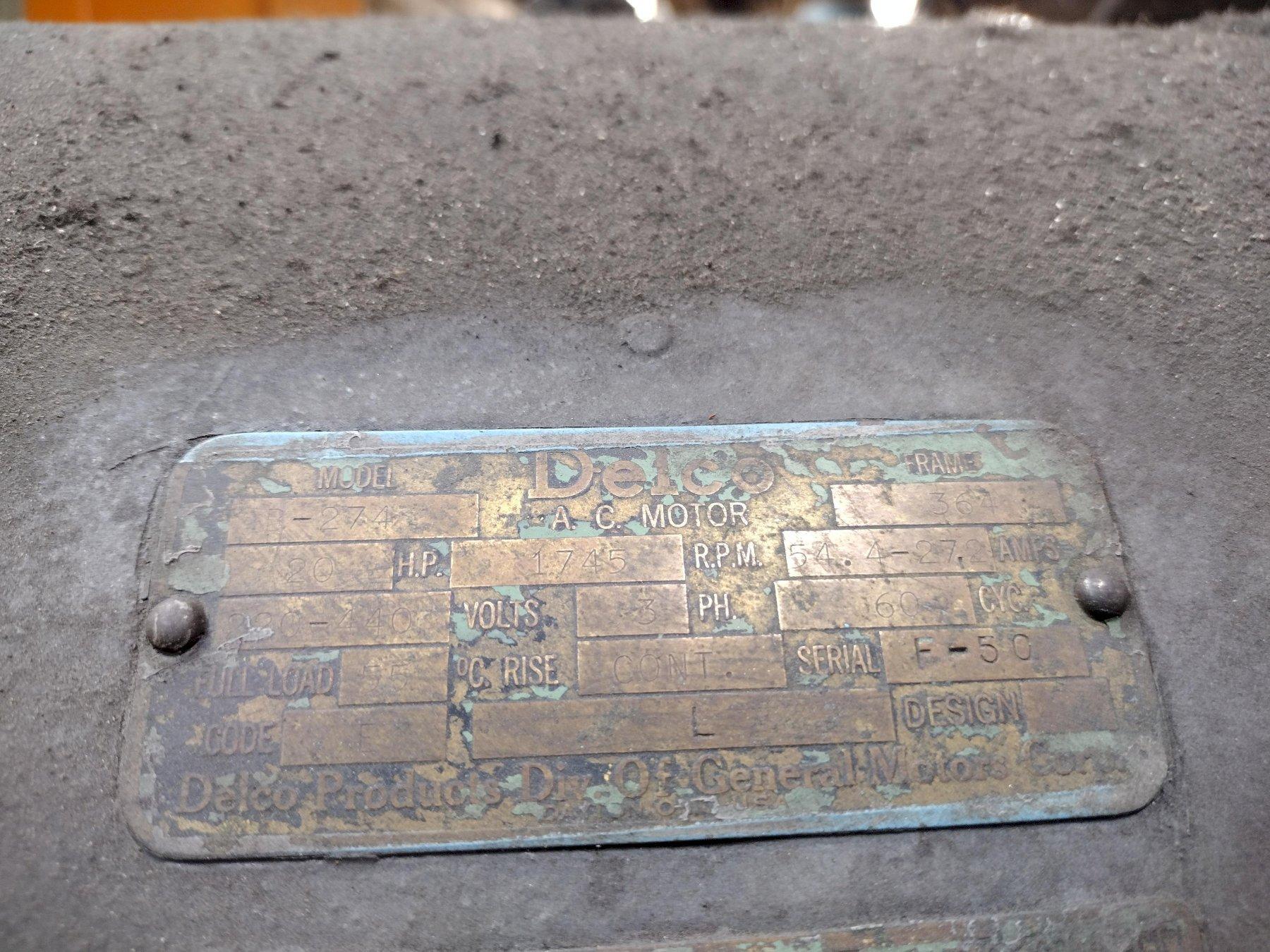

SPINDLE MOTOR, HORSEPOWER ............. 20
