50,000 LBS. X 60" X 3/16" PRO ECO CUT-TO-LENGTH LINE WITH CASSETTE LEVELER. STOCK # 0133225

Stock #: 0133225

Equipped With

MANUFACTURER............: PRO-ECO
YEAR....................: 1985, REINSTALLED 2002
WIDTH RANGE.............: 8" to 60"
GAUGE RANGE.............: 0.024" to 0.187"
WEIGHT CAPACITY.........: 25 TON
COIL OD.................: 36" to 72"
COIL ID.................: 19" to 24"
SHEET LENGTH............: 24" to 168"
SHEET WIDTH.............: 8" to 62"
PACK HEIGHT.............: 30" (INCLUDING DUNNAGE)
PACK WEIGHT.............: 20,000 LBS.
LINE DIRECTION..........: RIGHT to LEFT
LINE SPEED..............: 50 to 300 FPM (VARIABLE)
LEVELER TYPE............: MECHANICAL WEDGE STYLE w/ TWO CASSETTES
LNE COMPONENTS..........: FOUR ARM ENTRY STORAGE TURNSTILE
 FLOOR LEVEL COIL LOADING CAR

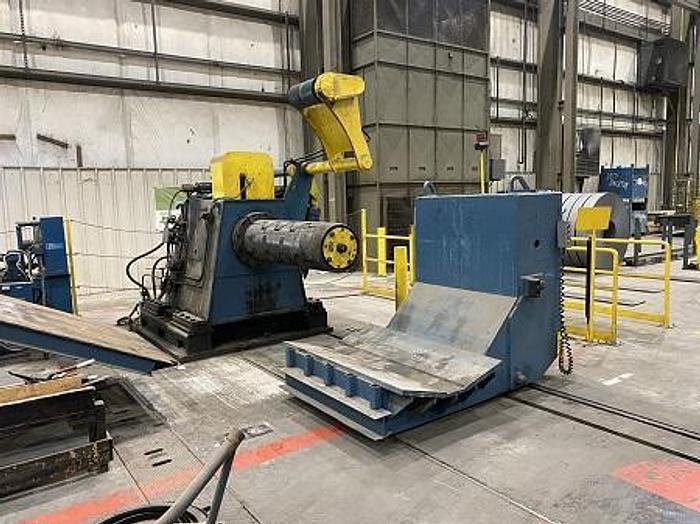

 CANTILEVERED MANDREL UNCOILER w/ WATER COOLED BRAKE
 PIVOTING AND TELESCOPING PEELER BLADE
 ENTRY PINCH ROLLS
 ROLLER TYPE SIDE GUIDES
 ENTRY CROP SHEAR
 SIDE TRIMMER HYDRAULIC SERVO DRIVE (CURRENTLY NOT OPERATIONAL)

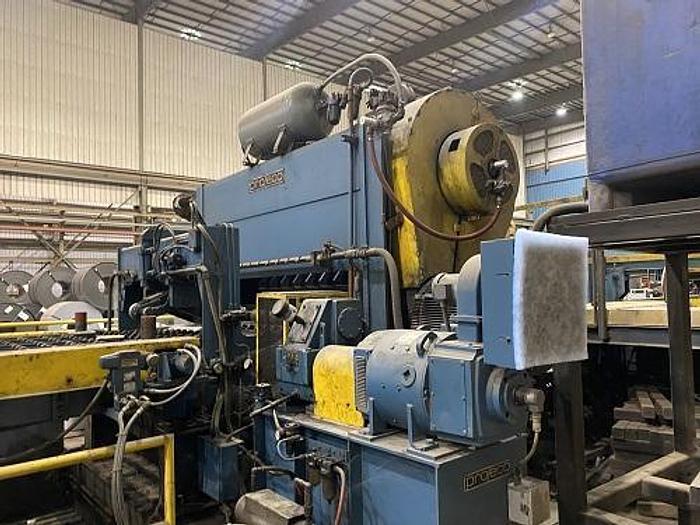

 MECHANICAL STYLE LEVELER FRAME W/ 200 HP MOTOR
 CASSETTE #1 - 19 ROLL, 2.50" DIAMETER, 5 HI, 7 BACKUP FLIGHTS
 CASSETTE #2 - 19 ROLL, 1.75" DIAMETER, 5 HI, 7 BACKUP FLIGHTS
 STRIP INSPECTION AND CARRY-OVER TABLE w/ NON-MARKING ROLLS

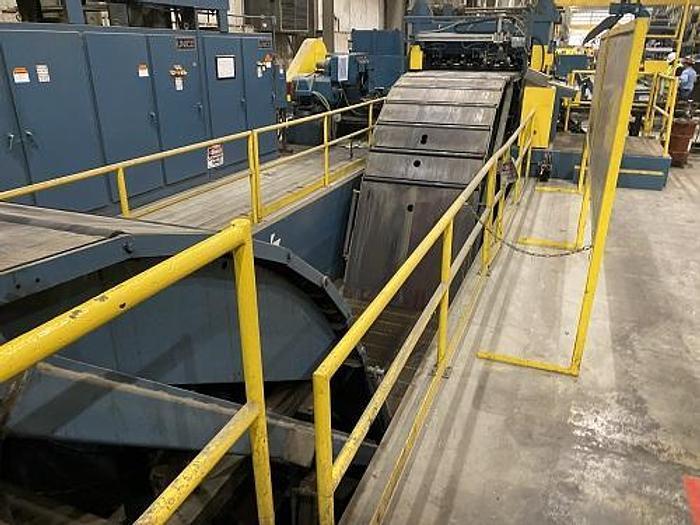

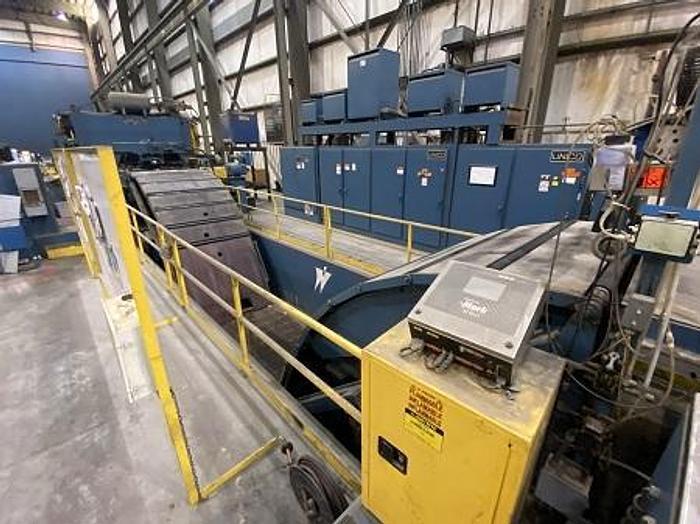

 LOOPING PIT QUADRANT TABLES w/ NON-MARKING ROLLS
 ROLLER TYPE STRIP SQUARING TABLE
 PRECISION ROLL FEEDER W/ 55 HP MOTOR

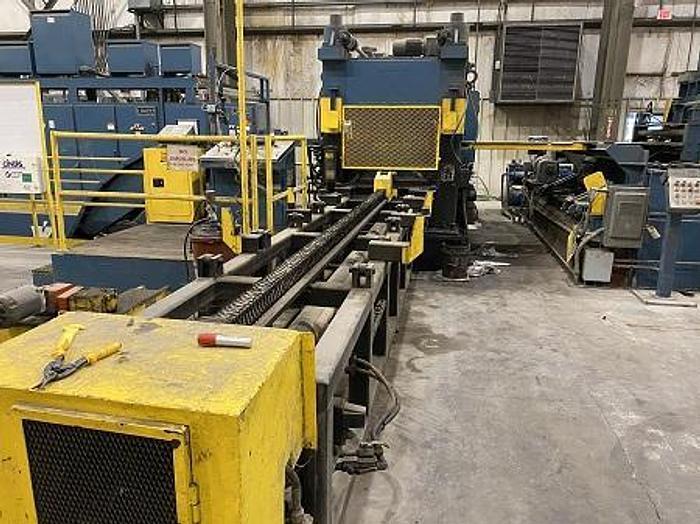

 HIGH SPEED MECHANICAL CUT OFF SHEAR W/ 40 HP MOTOR

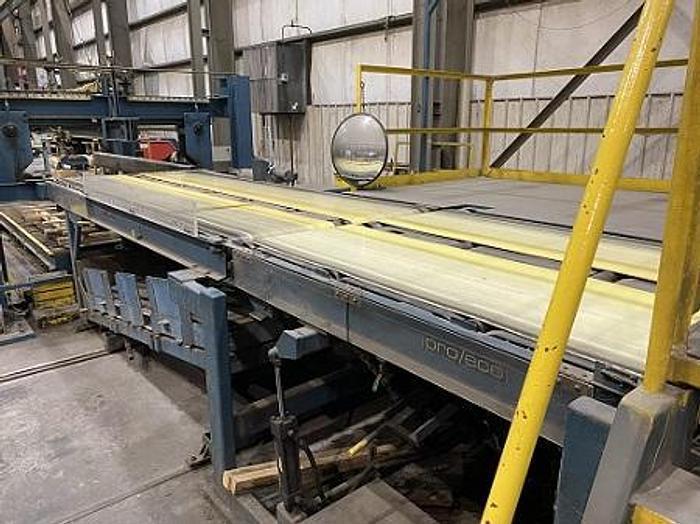

 BLANK INSPECTION CONVEYOR w/ NON-MARKING BELT
 REJECT BELT CONVEYOR w/ NON-MARKING BELT AND SCRAP CART
 14 FOOT AIR FLOAT STACKER w/ SQUARING GUIDES AND END STOP
 14 FOOT STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS
 14 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS

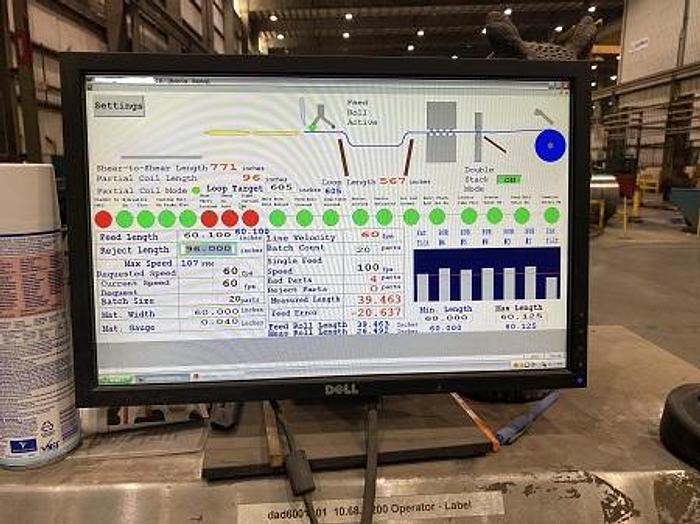

 OPERATOR CONTROL STATIONS
 UPDATED AC CONTROLS w/ ALLEN BRADLEY "CONTROL LOGIX" PLC (2006)
 UPDATED DRIVE CONTROLS w/ SIEMENS "SIMOREG" CONTROLLERS (2006)
 CLOSED LOOP HYDRAULIC SYSTEM
 CLOSED LOOP WATER COOLING SYSTEM
