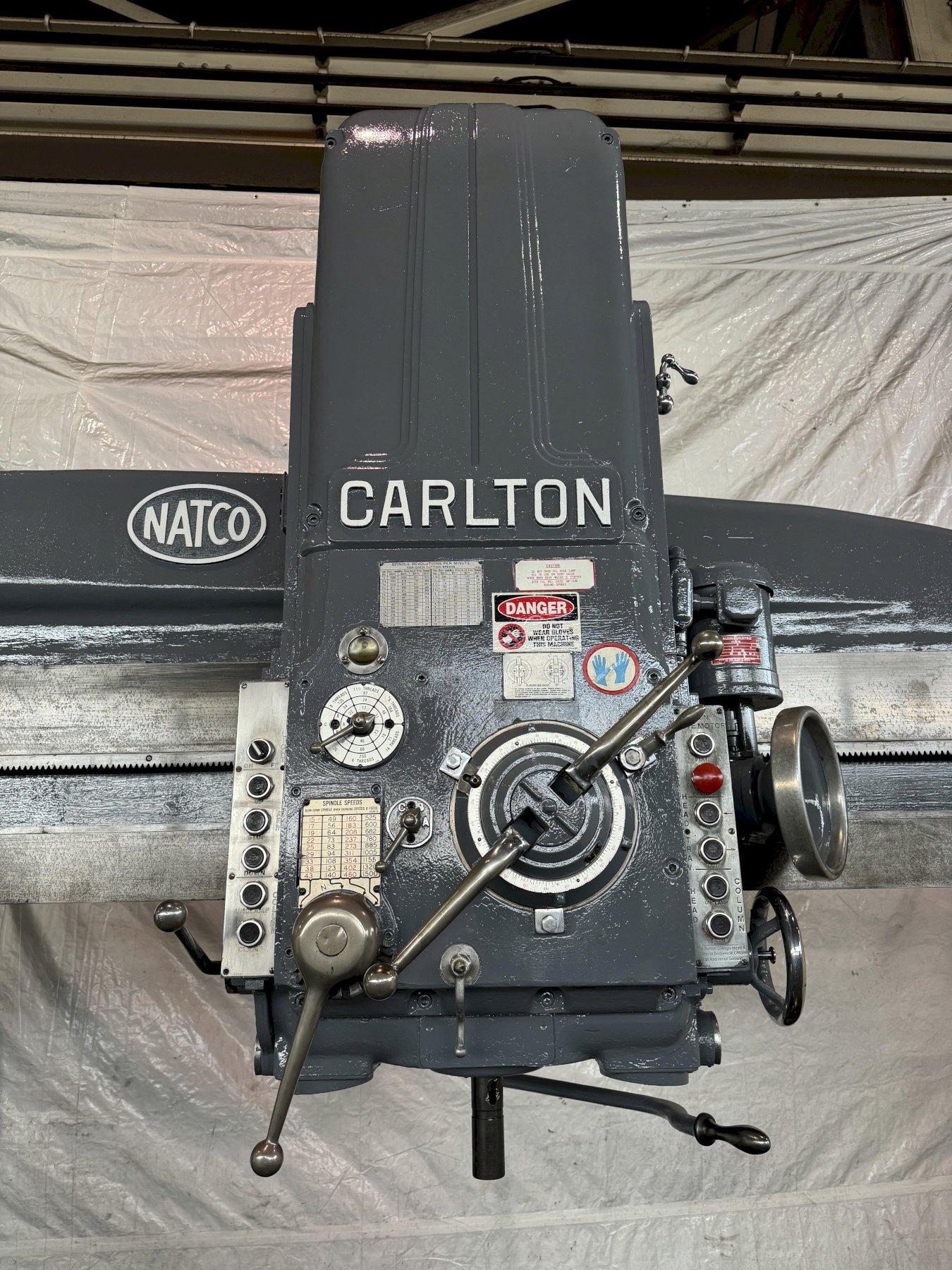

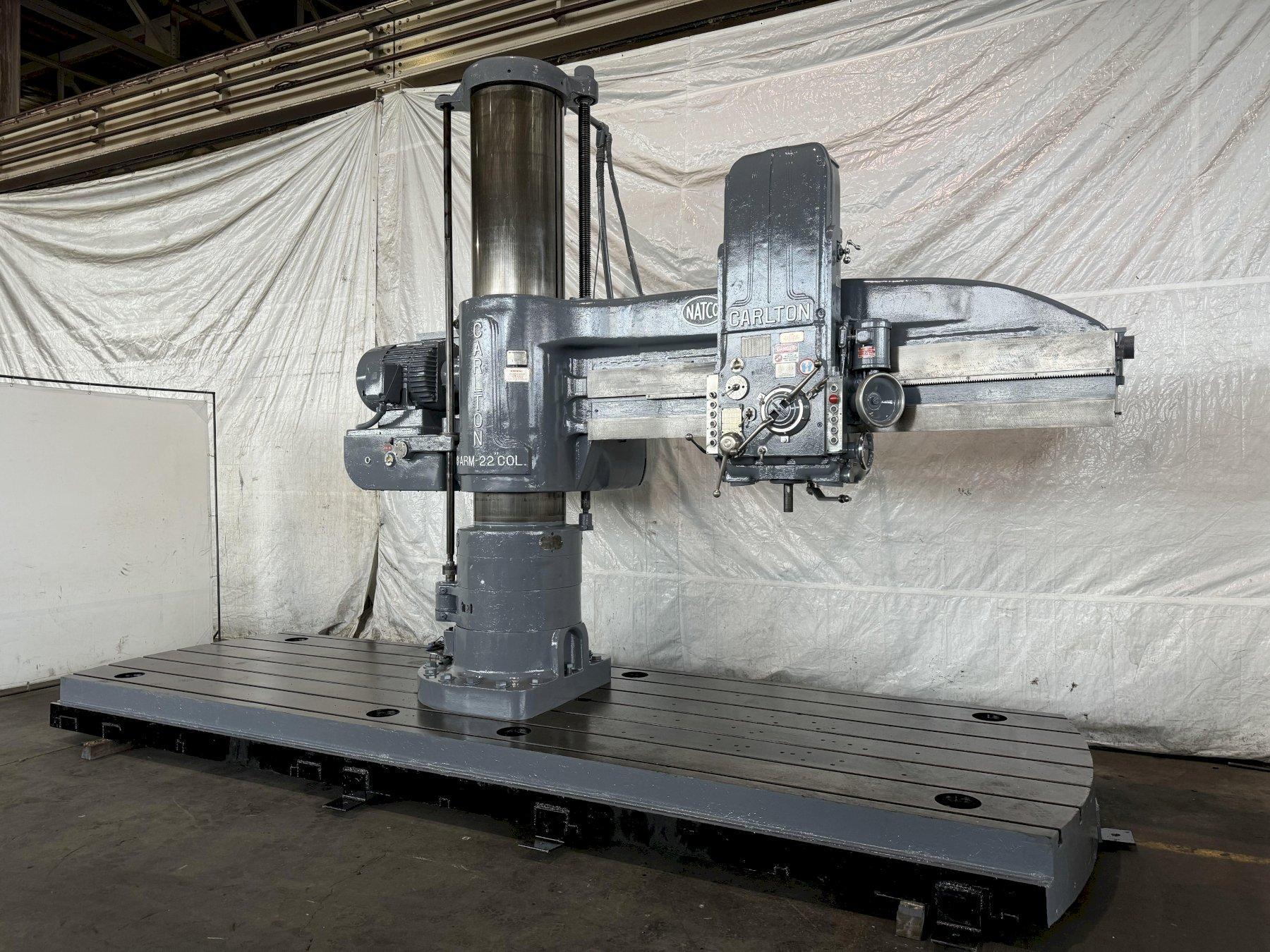

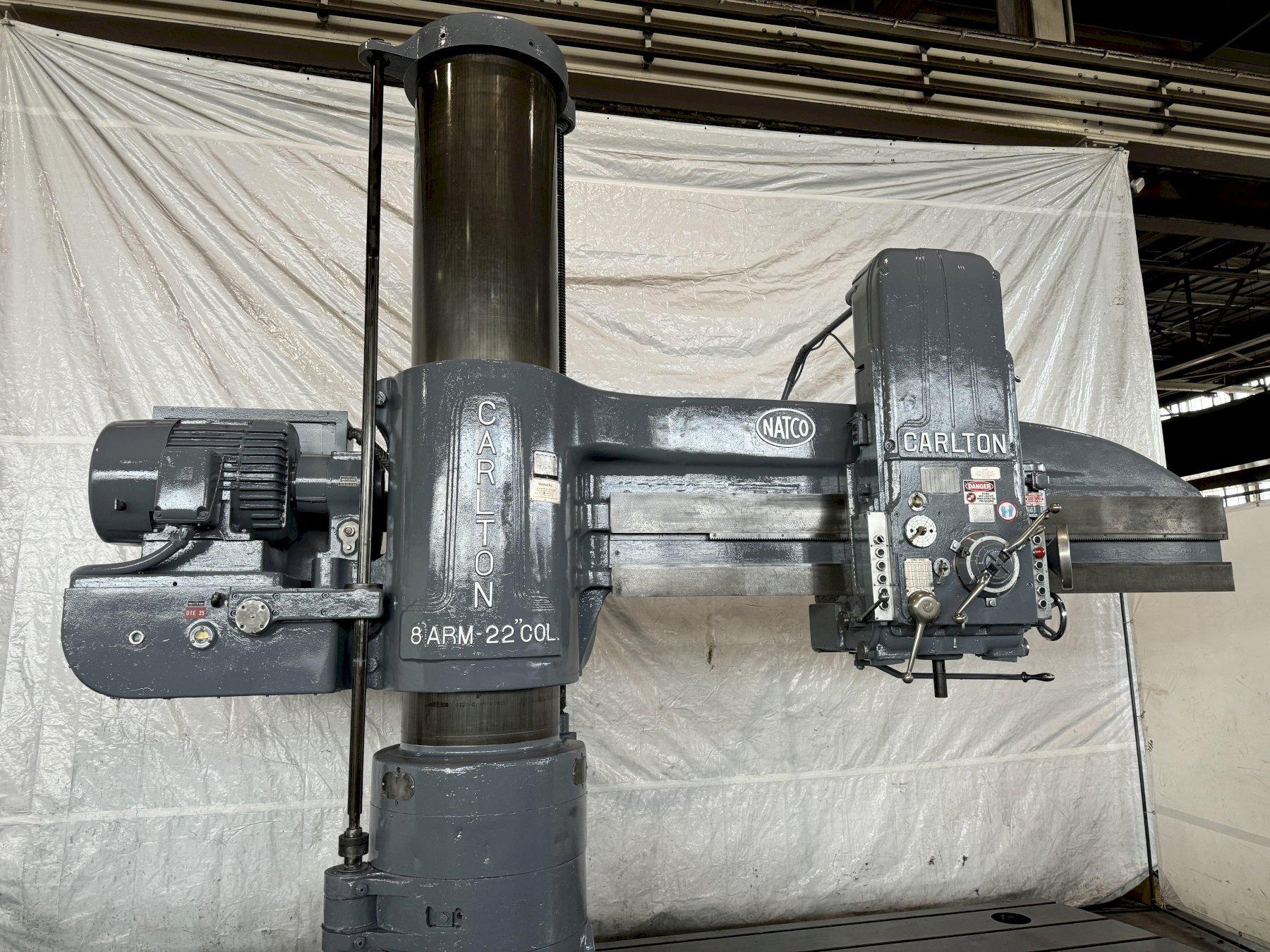

8' X 22" CARLTON NATCO 5A RADIAL ARM DRILL. STOCK # 0893524

Stock #: 0893524

Equipped With

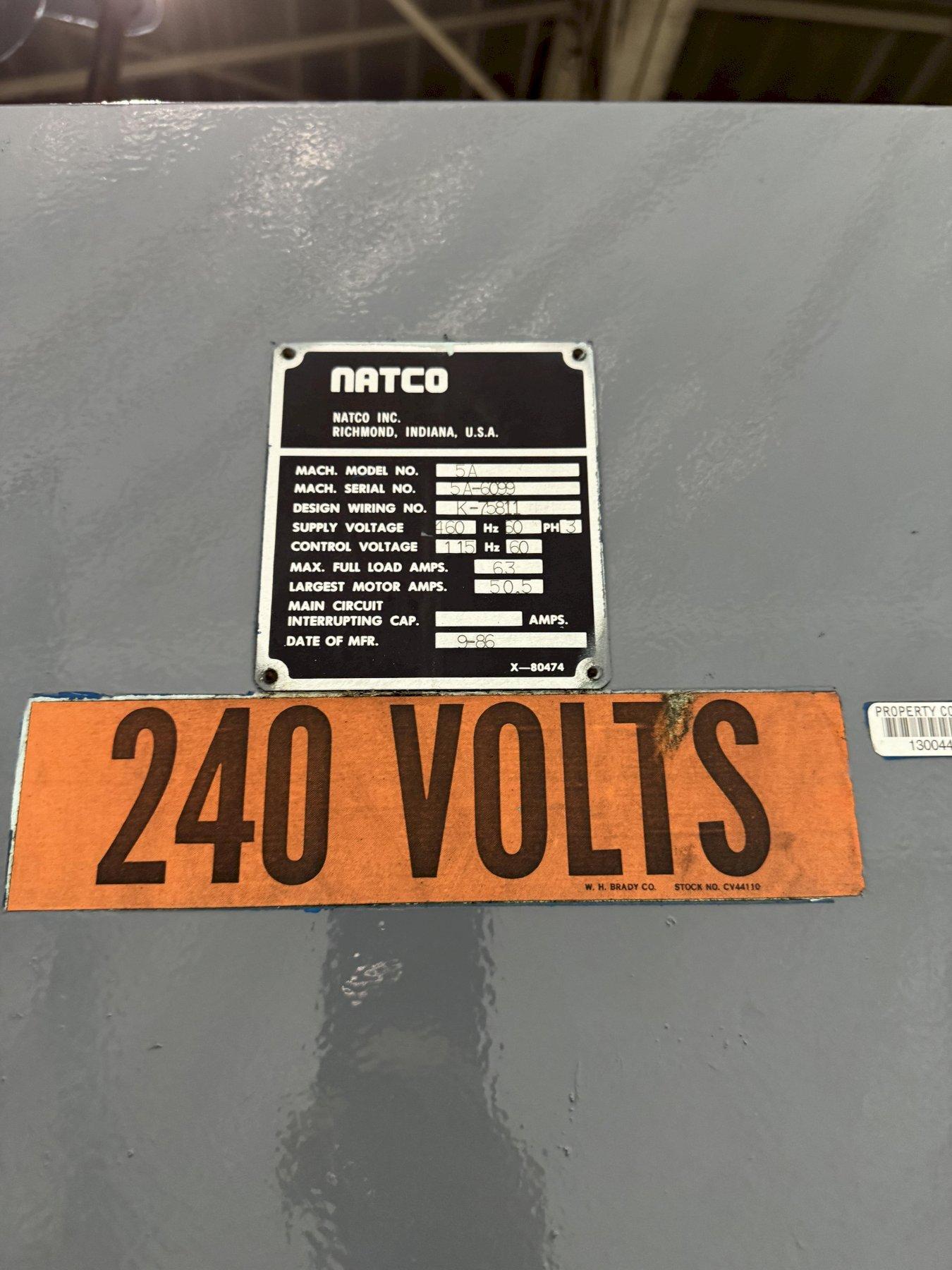

SERIAL.............................. 6099
MODEL............................... 5A

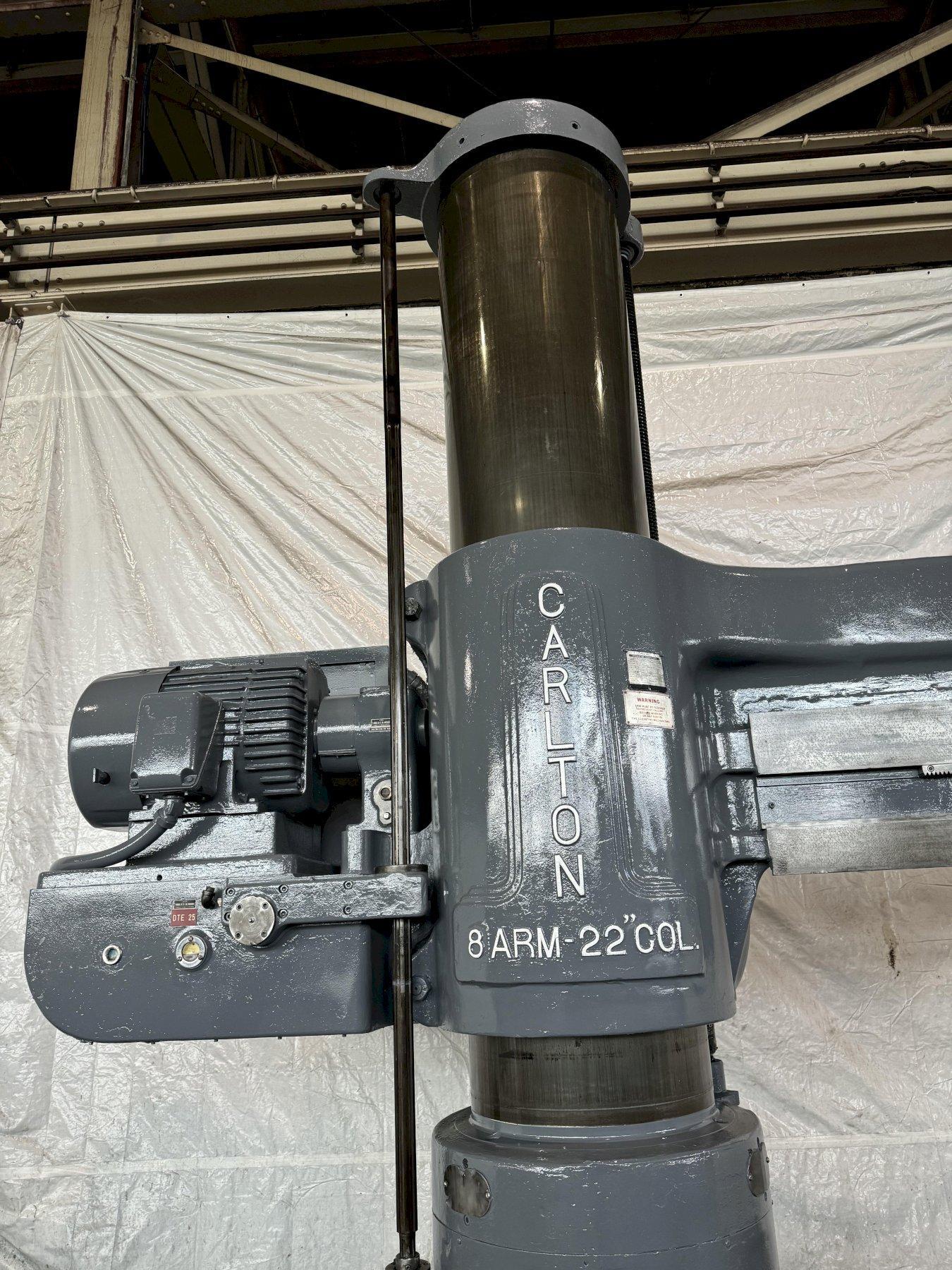

ARM LENGTH ......................... 8'

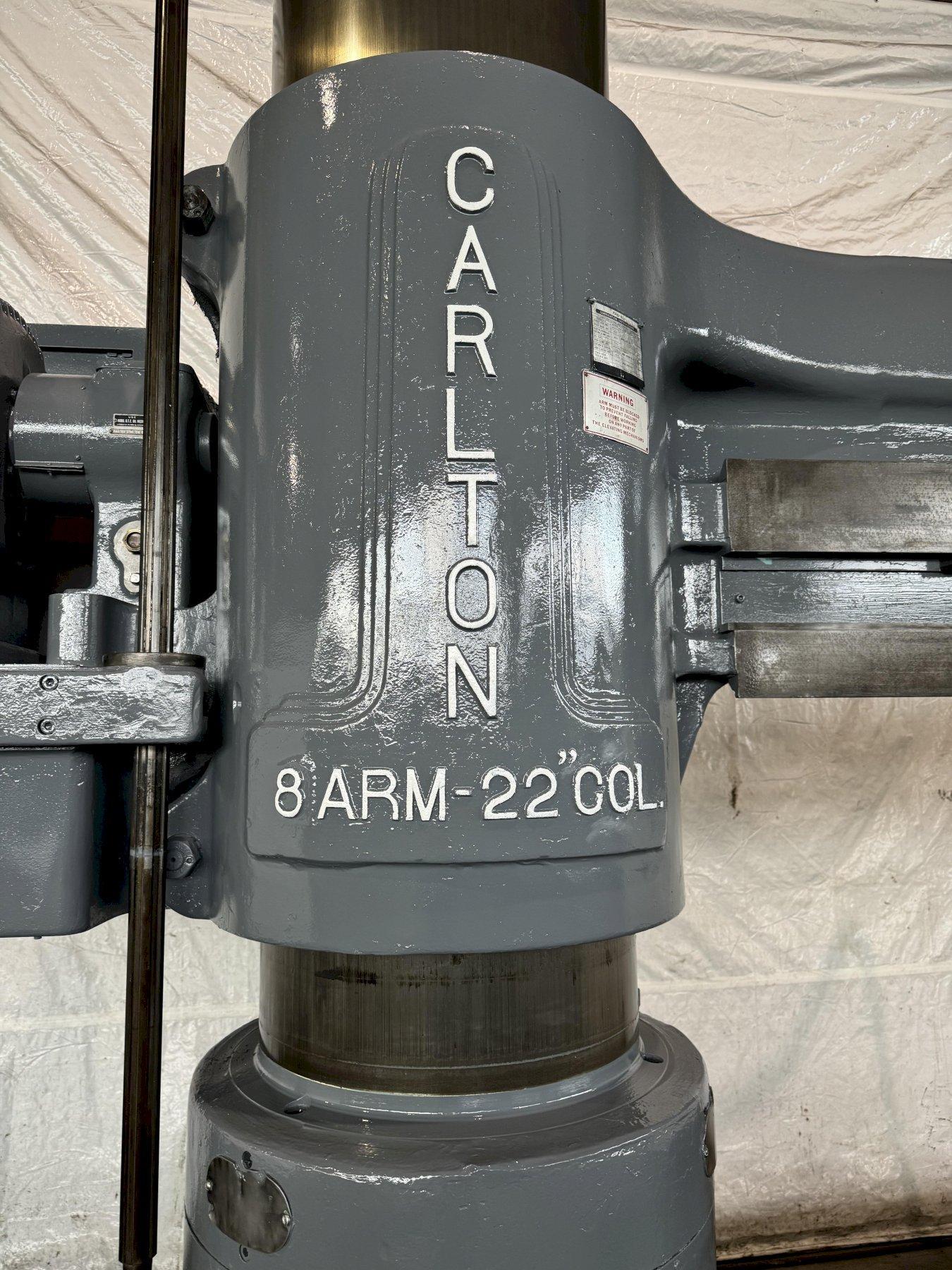

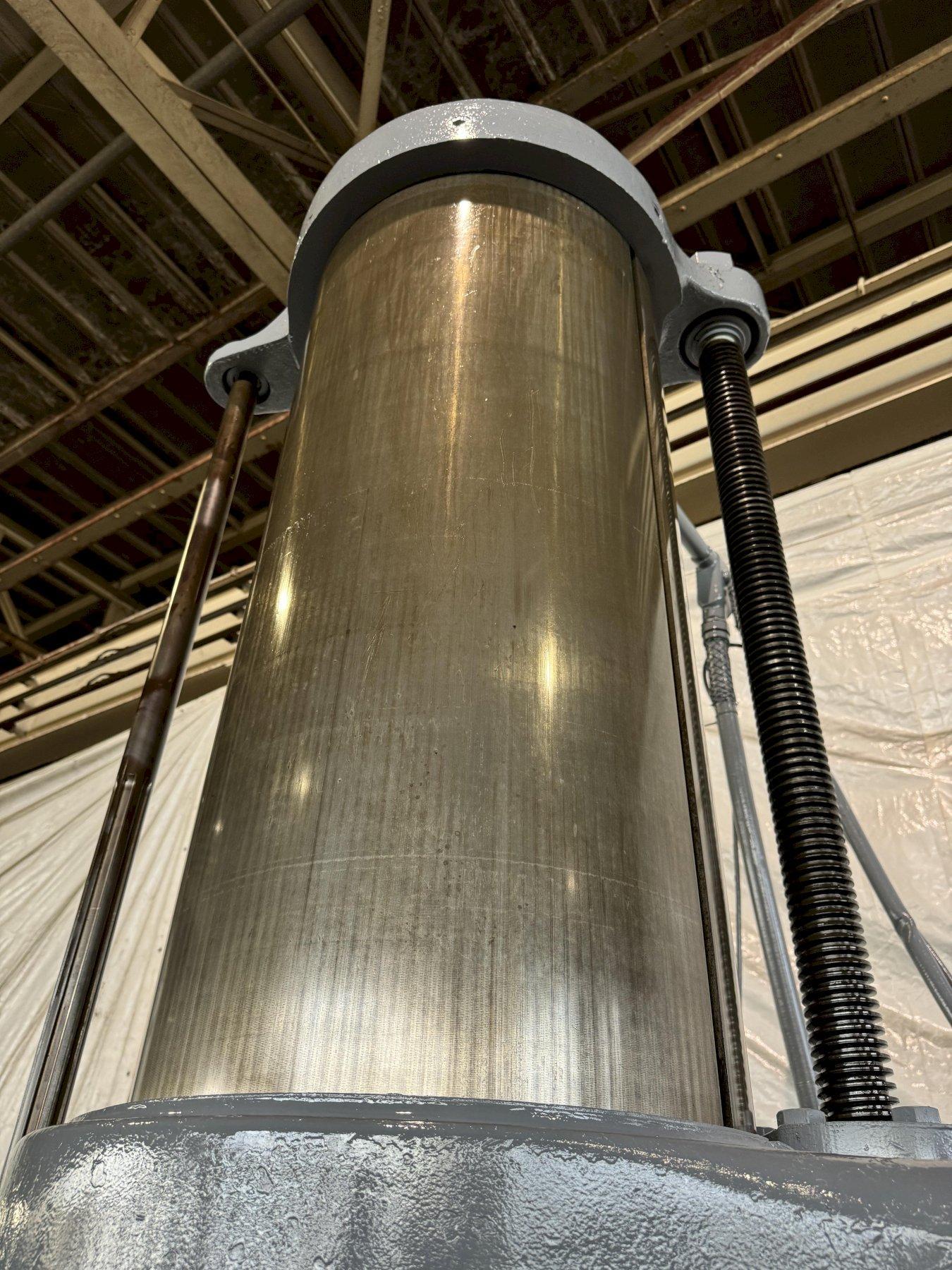

COLUMN DIAMETER .................... 22"
VERTICAL TRAVEL OF SPINDLE IN HEAD . 20"
SPINDLE SPEEDS (36) ................ 15 TO 1,500 RPM
FEEDS (18) ......................... .004 TO .125 IPR
THREADS ............................ 8,11 1/2, 13 AND 14 TPI
MAXIMUM DISTANCE SPINDLE TO COLUMN . 109-3/4"
MINIMUM DISTANCE SPINDLE TO COLUMN . 27"
MAXIMUM SPINDLE TO BASE ............ 78"
MINIMUM SPINDLE TO BASE ............ 14-1/2
TRAVEL OF ARM ON COLUMN ............ 43-1/2"
TRAVEL OF HEAD ON ARM .............. 82-3/4"
TAPER IN SPINDLE ................... #6MT
DIAMETER OF SPINDLE ................ 4"
AREA OF BASE ....................... 50" X 101" X 10" HIGH
L-SHAPED EXTENSION/ATTACHMENT ...... 30.5" X 36" X 10" HIGH
MAIN MOTOR ......................... 25 HP
SHIPPING DIMENSIONS HEAD DOWN ...... 14'10"L x 60"W x 144"H
WITH L-BASE EXTENSION .............. 7'6"W
APPROXIMATE WEIGHT ................. 30,500 LBS.
EQUIPPED WITH:

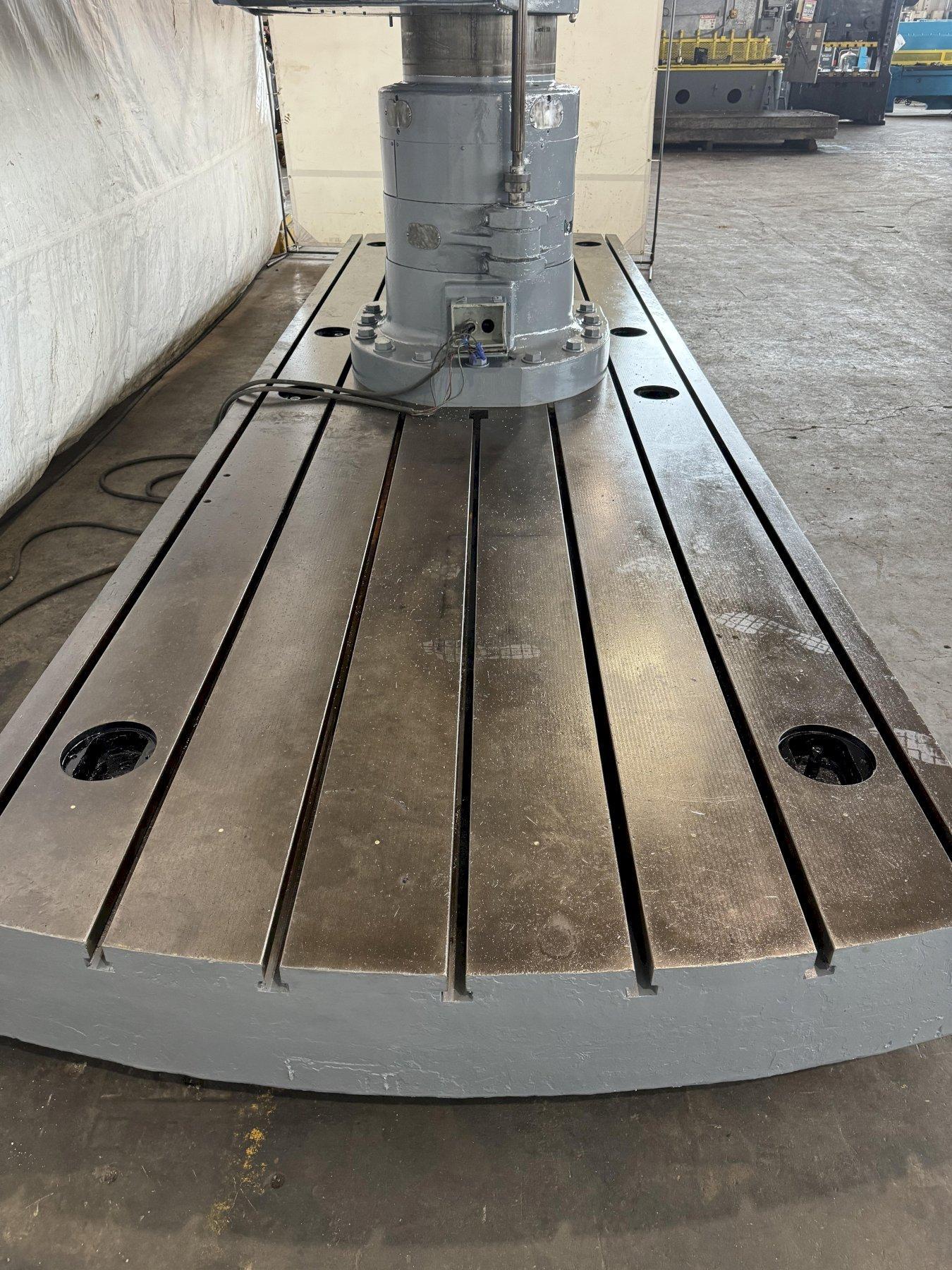

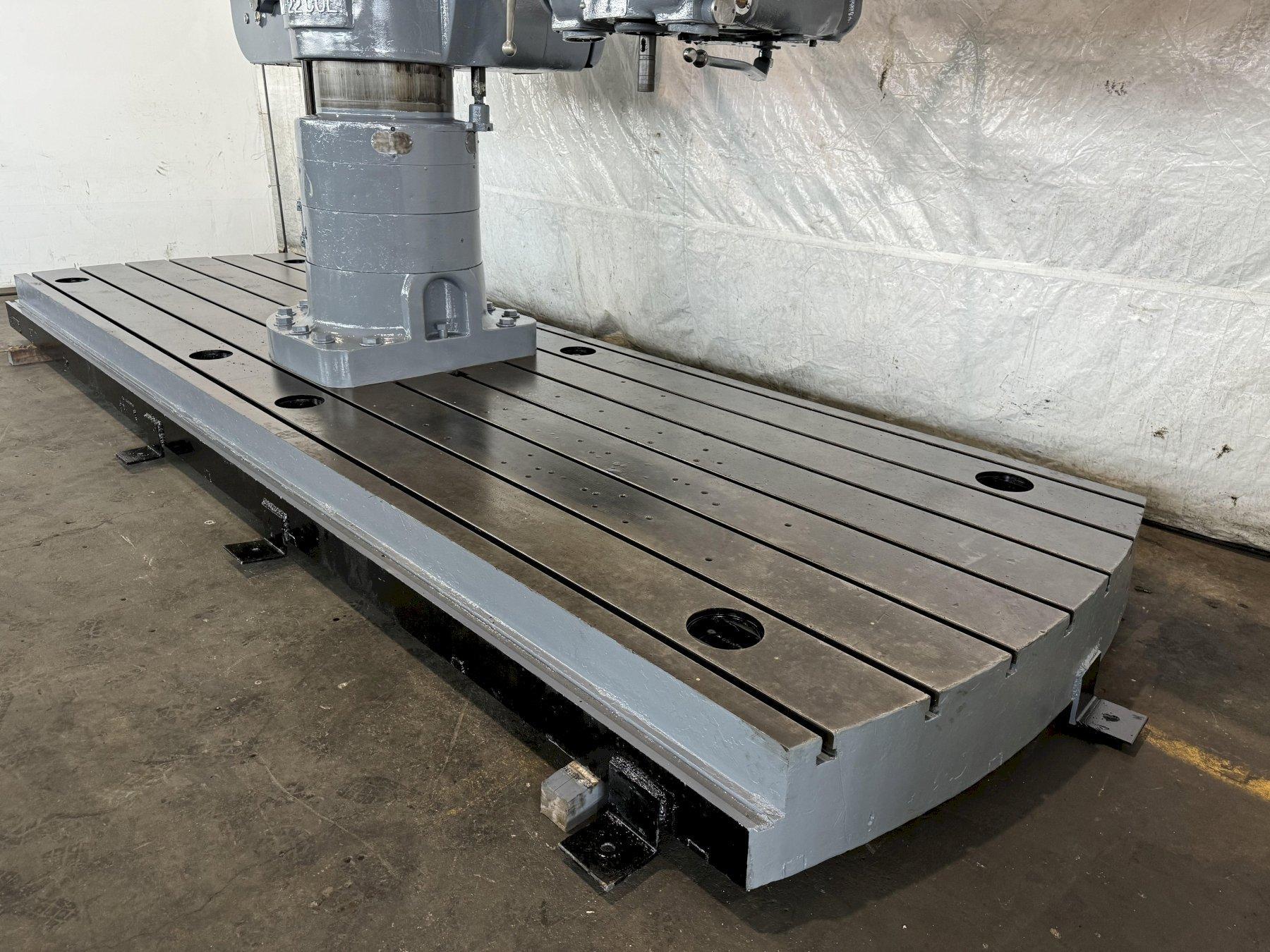

96" HALF MOON BASE

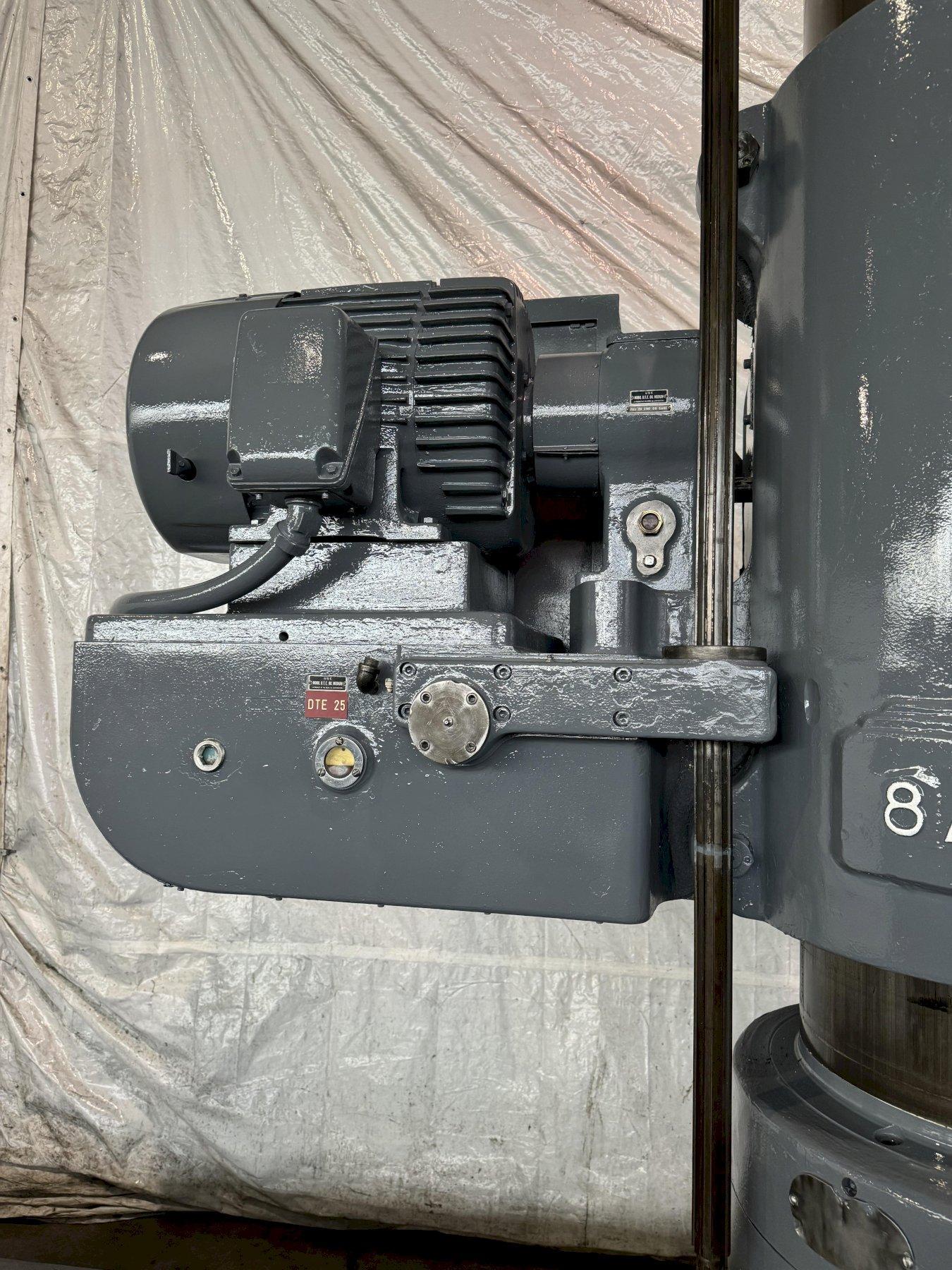

POWER ELEVATION & CLAMPING OF ARM ON COLUMN
POWER HEAD CLAMPING

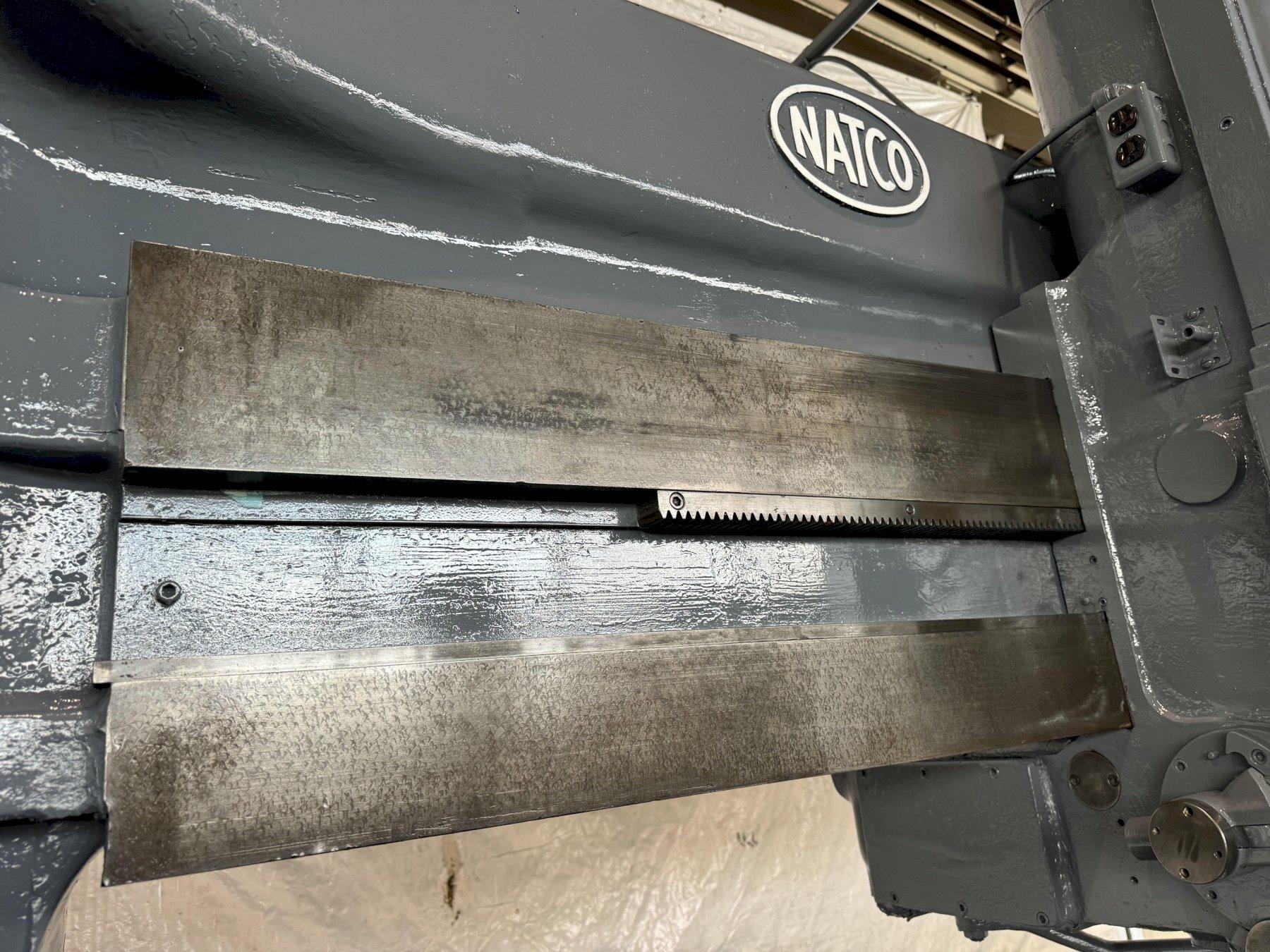

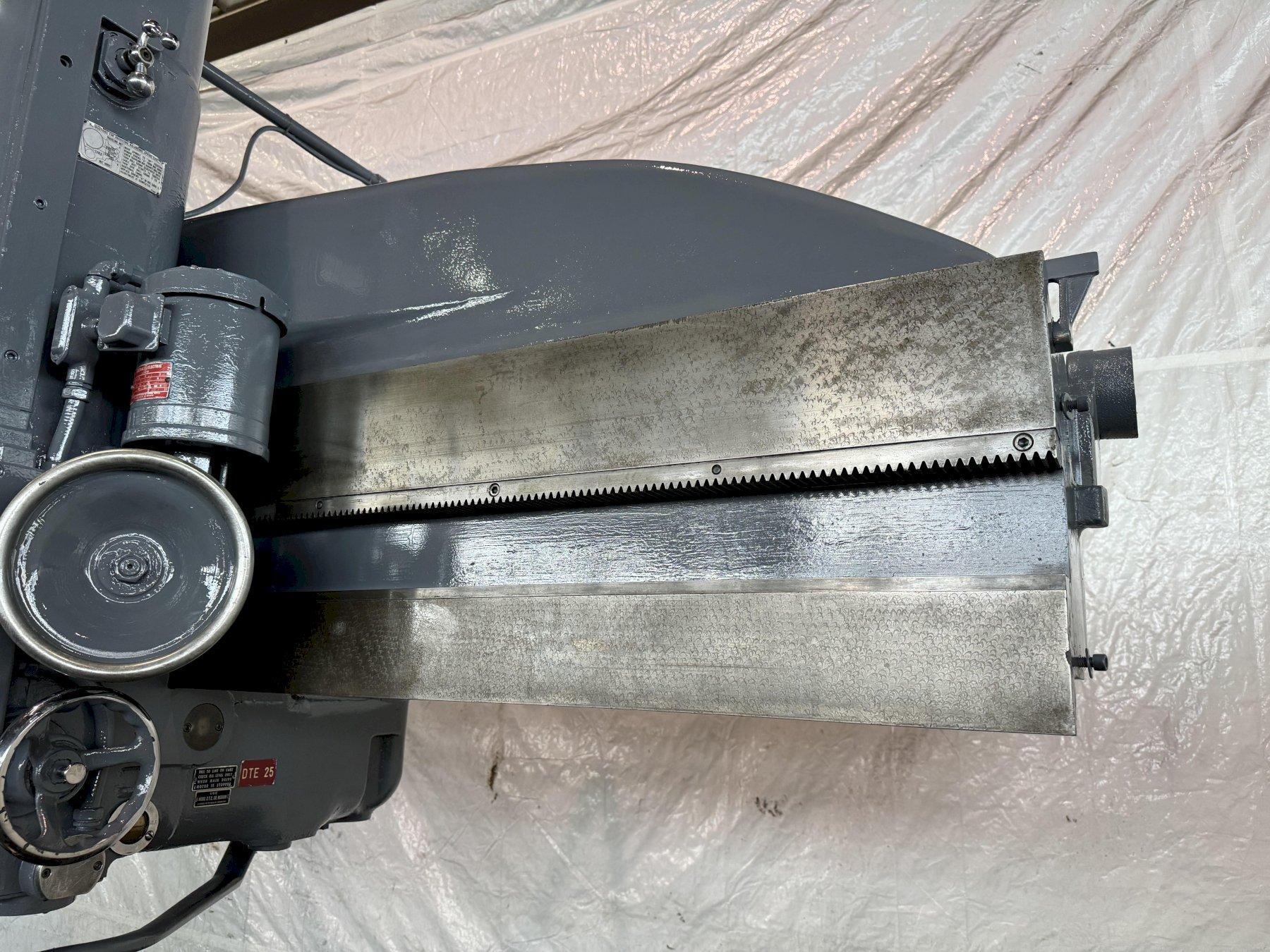

POWER TRAVERSE OF HEAD ON ARM
TAPPING
COOLANT IN BASE
25 HORSE POWER MAIN MOTOR
